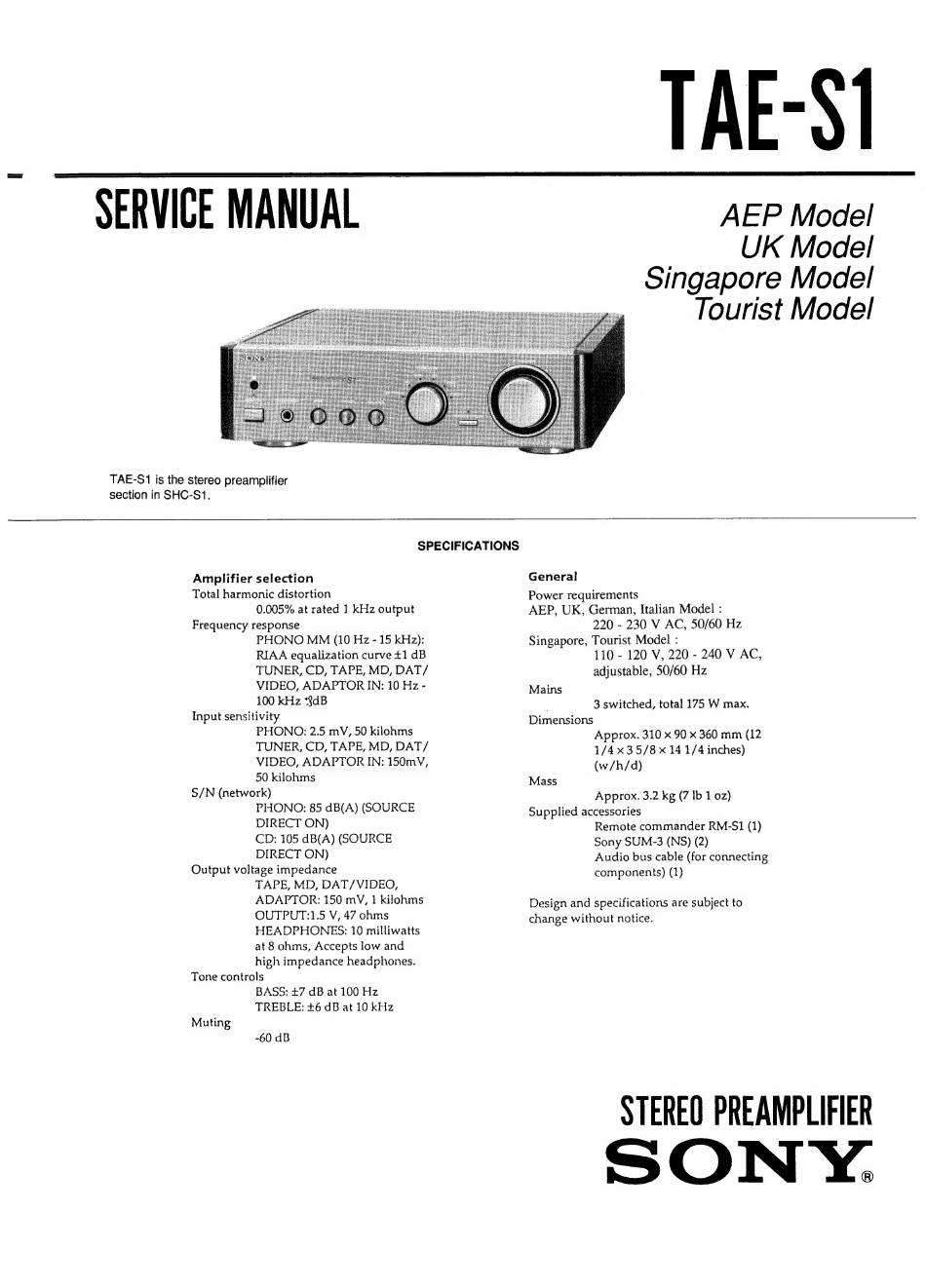

Sony TAE-S1 Service Manual

SERVICE MANUAL
Bee e:
eS E
en
es
TAE-S1 is the stereo preamplifier
section in SHC-S1.
SPECIFICATIONS
Amplifier selection
Total harmonic distortion
0.005% at rated 1 kHz output
Frequency response
PHONO MM (10 Hz - 15 kHz):
RIAA equalization curve +1 dB
TUNER, CD, TAPE, MD, DAT/
VIDEO, ADAPTOR IN: 10 Hz -
100 kHz *8dB
Input sensitivity
PHONO: 2.5 mV, 50 kilohms
TUNER, CD, TAPE, MD, DAT/
VIDEO, ADAPTOR IN: 150mV,
50 kilohms
S/N (network)
PHONO: 85 dB(A) (SOURCE
DIRECT ON)
CD: 105 dB(A) (SOURCE
DIRECT ON)
Output voltage impedance
TAPE, MD, DAT/VIDEO,
ADAPTOR: 150 mV, 1 kilohms
OUTPUT:1.5 V, 47 ohms
HEADPHONES: 10 milliwatts
at 8 ohms, Accepts low and
high impedance headphones.
Tone controls
BASS: £7 dB at 100 Hz
TREBLE: +6 dB at 10 kHz
Muting
-60 dB
AEP Model
UK Model
Singapore Model
Tourist Model
General
Power requirements
AEP, UK, German, Italian Model :
220 - 230 V AC, 50/60 Hz
Singapore, Tourist Model :
110 - 120 V, 220 - 240 V AC,
adjustable, 50/60 Hz
Mains
3 switched, total 175 W max.
Dimensions
Approx. 310 x 90 x 360 mm (12
1/4x35/8 x 14 1/4 inches)
(w/h/d)
Mass
Approx. 3.2 kg (7 Ib 1 oz)
Supplied accessories
Remote commander RM-SI (1)
Sony SUM-3 (NS) (2)
Audio bus cable (for connecting
components) (1)
Design and specifications are subject to
change without notice.
STEREO PREAMPLIFIER
SONY.
