SERVICE MANUAL

MICROFILM
SPECIFICATIONS

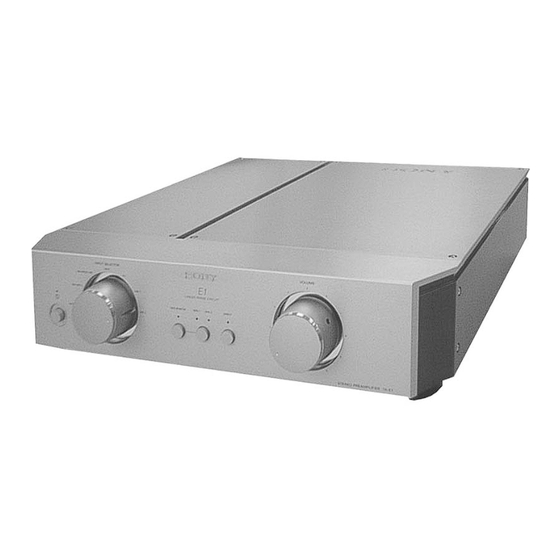

STEREO PRE AMPLIFIER
TA-E1
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
1

Advertisement

Table of Contents
loading

Related Manuals for Sony TA-E1 Operating Instructions (primary manual)

Summary of Contents for Sony TA-E1 Operating Instructions (primary manual)

  • Page 1: Service Manual

    SERVICE MANUAL MICROFILM SPECIFICATIONS STEREO PRE AMPLIFIER TA-E1 US Model Canadian Model AEP Model UK Model E Model Australian Model...

  • Page 2: Table Of Contents

    LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. 1. GENERAL 2.

  • Page 3: General

    SECTION 1 This section is extracted from instruction manual. GENERAL...

  • Page 5: Electrical Adjustment

    SECTION 2 ELECTRICAL ADJUSTMENTS IDLING ADJUSTMENT AND OFFSET VOLTAGE BALANCE OUTPUT LEVEL ADJUSTMENT CHECK • Perform this adjustment when replacing CP102. • Perform this adjustment after the idling adjustment • Perform this adjustment after replacing CP103 and CP104. • Perform this adjustment more than 10 minutes after supplying Connection: the power.

  • Page 6: Schematic Diagram - Main Section (1/3)

    TA-E1 3-2. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – • Refer to page 9 for Printed Wiring Board. (Page 8) (Page 7) (Page 7) (Page 7) (Page 7) (Page 10)

  • Page 7: Schematic Diagram - Main Section (2/3)

    TA-E1 3-3. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – • Refer to page 9 for Printed Wiring Board. (Page 6) (Page 6) (Page 6) (Page 8) (Page 6) (Page 8) (Page 10) (Page 10) (Page 10)

  • Page 8: Schematic Diagram - Main Section (3/3)

    TA-E1 3-4. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – (Page 6) (Page 7) (Page 7)

  • Page 9: Printed Wiring Board - Main Section

    3-5. PRINTED WIRING BOARD – MAIN SECTION – • Refer to page 5 for Circuit Boards Location. BOARD (Page 11) (Page 11) (Page 11) TA-E1 • Semiconductor Location Ref. No Location D201 D202 D203 D204 D205 D206 D207 D208 D209 D210 D211 B-10...

  • Page 10: Schematic Diagram - Power Section

    TA-E1 3-6. SCHEMATIC DIAGRAM – POWER SECTION – (Page 6) (Page 7) (Page 7) (Page 7)

  • Page 11: Printed Wiring Board - Power Section

    3-7. PRINTED WIRING BOARD – POWER SECTION – • Refer to page 5 for Circuit Boards Location. (Page 9) MAIN BOARD MAIN BOARD MAIN BOARD (Page 9) (Page 9) (Page 9) MAIN BOARD • Semiconductor Location Ref. No Location D701 D702 D703 D704...

  • Page 12: Exploded Views

    SECTION 4 EXPLODED VIEWS NOTE: • Hardware (# mark) list and accessories and pack- • -XX, -X mean standardized parts, so they may have ing materials are given in the last of this parts list. some difference from the original one. •...

  • Page 13: Bottom Plate Section

    4-3. BOTTOM PLATE SECTION not supplied not supplied not supplied not supplied not supplied not supplied Ref. No. Part No. Description 4-219-714-01 PLATE (A), BOTTOM 4-214-527-01 PLATE, BOTTOM 4-219-712-01 PLATE (A), TOP 4-219-713-01 PLATE (B), TOP A-4426-207-A PS BOARD, COMPLETE (US,CND) A-4426-210-A PS BOARD, COMPLETE (EXCEPT US,CND) * 106 4-941-237-01 HEAT SINK...

  • Page 14: Electrical Parts List

    AC J LED A LED B MAIN Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité.
  • Page 15 Ref. No. Part No. Description C403 1-128-200-11 ELECT C404 1-128-200-11 ELECT C405 1-110-512-51 FILM C406 1-110-512-51 FILM C407 1-128-972-11 ELECT C408 1-128-972-11 ELECT C409 1-128-973-11 ELECT C410 1-128-973-11 ELECT C411 1-128-200-11 ELECT C412 1-128-200-11 ELECT C413 1-128-200-11 ELECT C414 1-128-200-11 ELECT C419 1-110-512-51 FILM C420...
  • Page 16 MAIN Ref. No. Part No. Description Q211 8-729-424-08 TRANSISTOR Q212 8-729-424-08 TRANSISTOR Q214 8-729-421-22 TRANSISTOR Q215 8-729-421-22 TRANSISTOR Q216 8-729-421-22 TRANSISTOR Q217 8-729-421-22 TRANSISTOR Q218 8-729-421-22 TRANSISTOR Q219 8-729-421-22 TRANSISTOR Q220 8-729-421-22 TRANSISTOR Q221 8-729-421-22 TRANSISTOR Q222 8-729-421-22 TRANSISTOR Q223 8-729-421-22 TRANSISTOR Q224 8-729-421-22 TRANSISTOR...
  • Page 17 Ref. No. Part No. Description ! R516 1-202-937-41 FUSIBLE ! R517 1-202-937-41 FUSIBLE ! R518 1-202-937-41 FUSIBLE R519 1-259-995-11 CARBON MELF R520 1-259-995-11 CARBON MELF R521 1-259-999-11 CARBON MELF R522 1-259-999-11 CARBON MELF R523 1-259-987-11 CARBON MELF R524 1-259-987-11 CARBON MELF R525 1-259-995-11 CARBON MELF R526...
  • Page 18 7-683-255-58 SET SCREW 5X6 HEXAGON SOCKET The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Sony Corporation Home Audio Company Description < RESISTOR > < SWITCH >...
