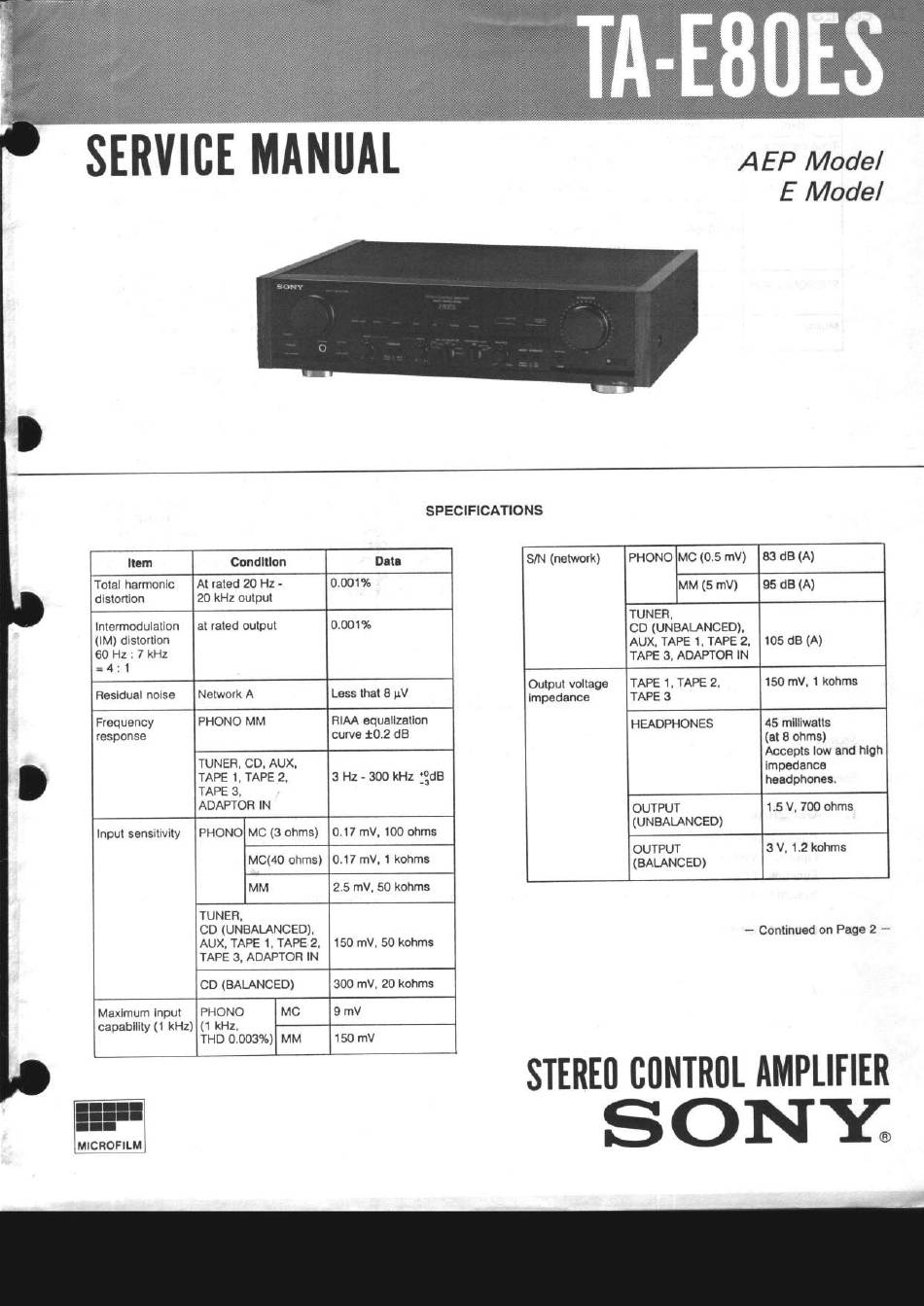

Sony TA-E80ES Service Manual

SERI|ICE
MANI|AL
AEP Model
E Model
SPECIFICATIONS
Item
Condltlon
Data
Total harmonic
distortion
At rated 20 Hz
20 kHz output
0.001%
lntermodulation
(lM) distortion
6 0 H z : 7 k H z
= 4 : 1
at rated output 0.001%
Residual noise
Netvvork A
Less that I lrv
Frequency
response
PHONO MM
RIAA equâllzatlon
curve:t0.2 dB
TUNER, CD, AUX,
TAPE 1, TAPE2,
TAPE 3,
ADAPTOR IN
3 Hz - 300 kHz :!dB
Input sensitivity PHONOMC (3 ohms) 0.17 mV,
.|00 ohms
MC(40 ohms) 0.17 mV. 1 kohms
MM
2.5 mV, 50 kohms
TUNER.
CD (UNBALANCED),
AUX, TAPE 1, TAPE 2,
TAPE 3. ADAPÏOR IN
150 mV, 50 kohms
CD (BALANCED) 300 mV, 20 kohms
Maximum input
capability (1 kHz)
PHONO
(1 kHz,
THD 0.003%l
MC 9 m V
MM
150 mV
S[{ (network)
PHONO
\4C (0.5 mV) 83 dB (A)
\'lM (5 mV) 95 dB (A)
TUNER.
CD (UNBALANCED),
AUX. TAPE 1. TAPE 2.
TAPE 3. ADAPTOR IN
105 dB (A)
Output voltage
impedance
TAPE 1, TAPE 2,
TAPE 3
150 mV, 1 kohms
HEADPHONES
45 milliwatts
(at I ohms)
Accepts low and hlgh
imp€dance
headphones.
OUTPUT
(UNBALANCED)
1.5 V, 700 ohms
OUTPUT
(BALANCED)
3 V. 1.2 kohms
- Continued on Page 2 -
STEREO
CONTROL
AMPLITI
SONY.
