Arcora 520BT Manual

Scrubber dryer machine with traction
Hide thumbs

Advertisement

Table of Contents

ARCORA 520BT SCRUBBER DRYER MACHINE
(WITH TRACTION)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 520BT and is the answer not in the manual?

Questions and answers

Related Manuals for Arcora 520BT

Summary of Contents for Arcora 520BT

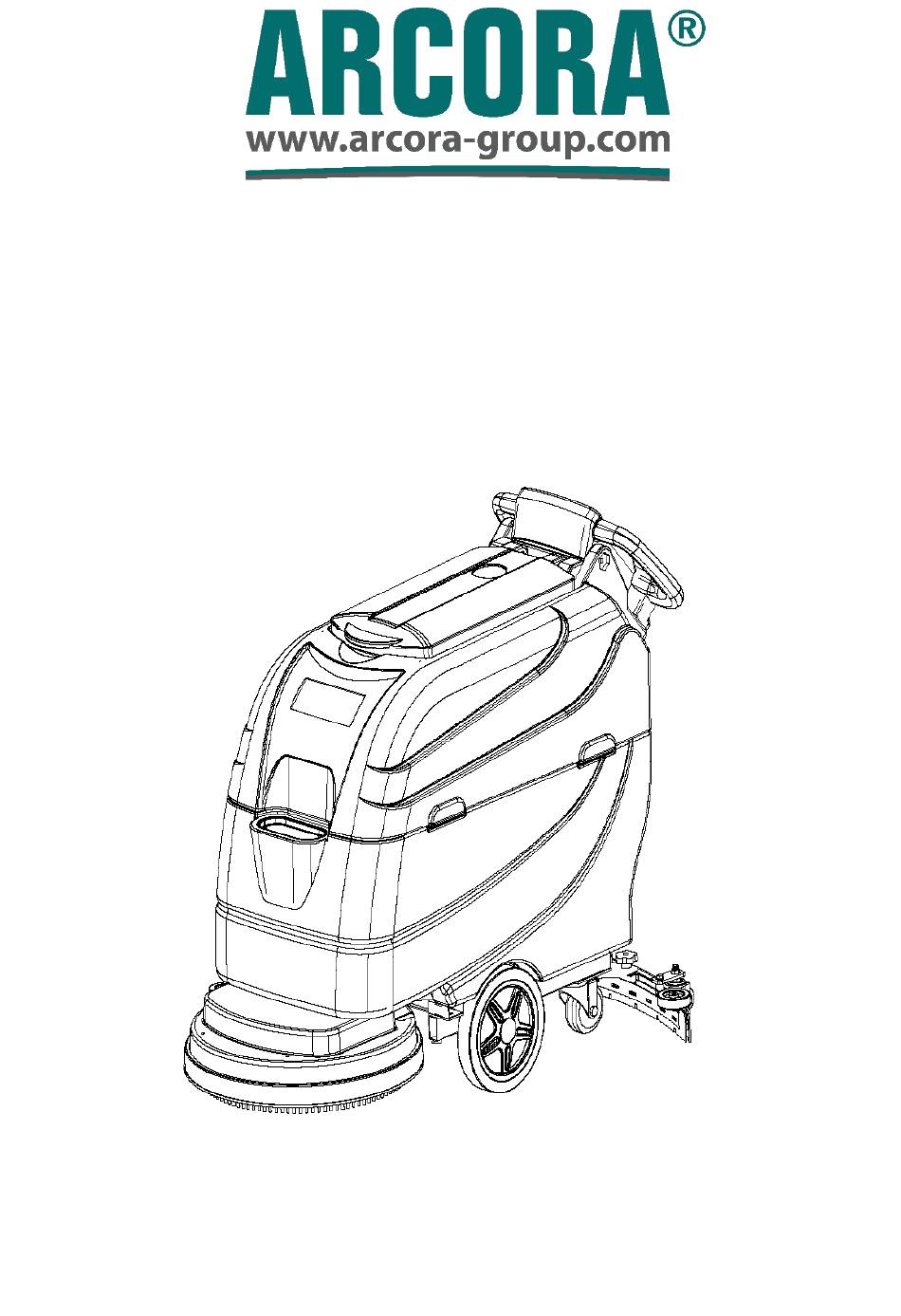

  • Page 1 ARCORA 520BT SCRUBBER DRYER MACHINE (WITH TRACTION)
  • Page 2 1.0 Overview ：Please read this manual carefully before using ARCORA ATTENTION 520BT Preface ARCORA 520BT self-propelled automatic floor scrubber is a mechanical movement of the disc brush and the chemical action of water and detergent solution, which can be used to clean hard floors with various stains, and collect the removed stains and untreated stains while doing it.

  • Page 3: Technical Parameters

    ● Prohibit electrical components from entering water. Note: It is forbidden to use this scrubber to clean flammable liquids, solvents, fuel oil, active metal water vapor or flammable dust. Technical Parameters Item Parameters Rated voltage DC24V Working width 510mm Water absorption width 760mm 2000 ㎡/h Work efficiency...

  • Page 4: Operation Preparation

    4.0 Machine packing and dismantling 4.1 Packaging - The unit comes in specific packaging with a wooden pallet for easy forklift handling. The package size is as follows： Long 1250mm， Width 610mm ， High 1200mm。 4.2 Disassembly - (1) Tear off the stretch film (2) Cut off the packing tape (3) Take away the packing cardboard (4) Take out the accessories (5) Use the slope to slide the machine off the wooden pallet.

  • Page 5: Control Instructions

    6.2 Fill the clean water tank  There is a water injection port (13) at the front end of the clear water tank (12) of the 520BT floor machine, which can be directly injected with water.  Fill the clean water tank with clean water and an appropriate amount of detergent according to the stain on the ground.
  • Page 6 815B panel are used to display the battery power (from left to right, from weak to strong). When the right indicator light is on, the battery power is sufficient. If only the left indicator light is on, it warns that the battery is low in power, and the machine must be stopped immediately and fully charged in time.

  • Page 7: Common Faults And Solutions

     Move the machine to the place of sewage discharge, take off the sewage hose (16) from the bracket clamp, and pull out the pipe cover towards the opposite direction of the person to drain the sewage. 8.0 Common faults and solutions 8.1 Fault analysis and processing form Fault Cause Analysis...
  • Page 8 flow closed Solution hose or filter clogged Rinse the hose or filter screen with clean water Drain solenoid valve blocked Disassemble the water solenoid valve for cleaning waste water tank full Drain the waste water tank The sewage pipe plug is loose Tighten the drain pipe plug Poor water absorption Wiper assembly clogged...

  • Page 9: Maintenance

    9.0 Maintenance 9.1 Daily maintenance and maintenance （1）Remove the pad/brush plate and wipe it clean with a specific cleaner. （2）Drain the water in the waste water tank and rinse it with clean water [Turn the box handle (23)]. Check for debris in the recovery tank and remove immediately if found.

  • Page 10: Explosion Diagram

    （1）Store indoors in a dry place. （2）Store upright. （3）Lift the brush plate off the ground. （4）Lift the wiper assembly off the ground. （5） If the storage place is extremely cold, the machine needs to be kept completely dry before storing to avoid damage caused by low temperature.
  • Page 11 Float M6 wing nut Handle box M4X30 Pan head screw (with nut) Charging socket Panel Power lock Button Speed potentiometer 3X10 Pan head self-tapping screws M4X8 pan head screw Circuit board M4X20 Pan head screw (with nut) 9*1*40 spring Controller Switch lever Switch lever connector M5x16 Cup head hexagon socket...
  • Page 12 Number Name Quantity Number Name Quantity Sewage tank Straw Activity buckle Active buckle washer Activity buckle spring M5X20 Pan head screw (with nut) Noise-absorbing sponge Sewage pipe Suction motor gasket Suction motor mounting plate M6X16 Cylindrical head Bellows Soft Rubber Pad hexagon socket screws M6X30 Round Head Screws Bellows...
  • Page 13 Explosion diagram Number Name Quantity Number Name Quantity 12V-100aH storage battery Clean water filter cover M6X12 countersunk head screw Clean water tank 4 inch stainless steel hinge M6X16 Cylindrical head hexagon socket screws Squeegee lifting handle Lift handle gloves Lifting handle glove accessories M8X25 Cylindrical head hexagon socket screws Lifting handle glove end cap...
  • Page 14 M4X12 pan head screw Water spool Water valve housing 34X3.5“O” Ring water valve fasteners Water valve filter M6X16 Cylindrical head hexagon M6X16 Cylindrical head hexagon socket screws socket screws 13-20 Hose clamp 14X10 Transparent hose Pagoda+G1/4 Tooth Elbow Fixed buckle Faucet M6X16 Cylindrical head hexagon socket screws...
  • Page 15 Three blades Brush plate level adjuster M8X30 Hexagon Screw Brush motor fixing plate 6.4X25 Countersunk head Brush button self-tapping screw M6X16 Cylindrical head hexagon Water ring socket screws Brush cover Brush M6X12 Cylindrical head hexagon M8X25 countersunk head screw socket screws 18X12PVC Soft hose 4X10 Round head self-tapping screws...
  • Page 16 Explosion diagram Number Name Quantity Number Name Quantity Bracket activity set M8X30 External hexagon screw (with nut) Pressure rod Brush plate lifting bracket Pressure spring M8X20 Hexagon Screw Frame M8X20 Hexagon Screw Drive bay A Gasket M8X20 Hexagon Screw Drive bay B M8X40 Hexagon Screw 8 inch wheel Drive axle...
  • Page 17 Pedal bar Pedal rod positioning part A Pedal rod positioning part B M8X30 Hexagon Screw Explosion diagram Number Name Quantity Number Name Quantity M8X60 Cylindrical head hexagon Squeegee swing up and down socket screws M10X85 Hexagon socket head Swing piece set screw Squeeze pressure spring M8X30 Hexagon Screw...
  • Page 18 Squeegee rear platen Press plate buckle assembly M4X6 Button head screw (with 40mm small wheel nut) Left and right small wheel frame M6X35 Cylindrical head hexagon socket screws 636 bearing Squeegee height adjustment wheel Adjust wheel support plate 30*8 meson M8X30 Hexagon Screw M8 star nut M5*6 pan head screw...
  • Page 19 2. This maintenance card is in duplicate, one for the customer and one for the agent and distributor. 3. ★ Warranty with purchase receipt, thank you for your cooperation! ARCORA INTERNATIONAL GMBH Marssstraße 9, 85609 Aschheim near Munich Tel. +49(0)89 14 33 29 30 Fax.
