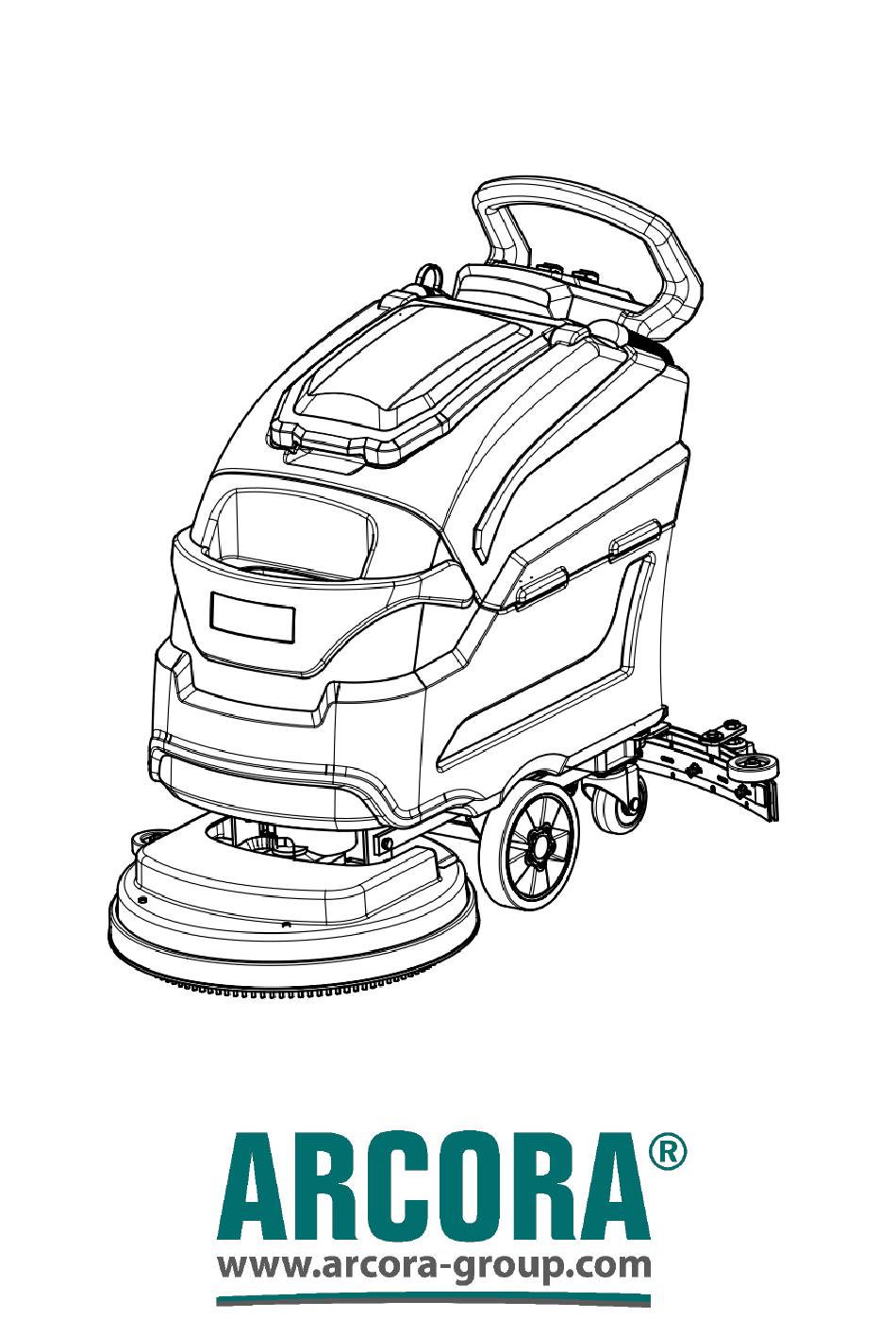

- Page 1 510BM (Battery type) Hand push type Automatic Floor Scrubber Manual Please read this manual carefully before using the product.
-
Page 2: Range Of Application
ATTENTION INTRODUCTION 510BM Hand push type Automatic Floor Scrubber is a machine which uses the mechanical movement of the disc brush and the chemical action of water and detergent solution to clean the hard floor with various stains and at the same time it can collect both the removed stains and the detergent solution not absorbed by the floor. - Page 3 ATTENTION：Do not use this scrubber to clean flammable liquids, solvents, fuel oil, reactive metal water vapor or flammable dust. 3.0 TECHNICAL PARAMETERS FOR THE PRODUCT Item Parameters (5100E) 220V; (5100B) 24V Rated voltage 510mm Working width 760mm Water absorption width 2000 ㎡/h Work efficiency 510mm...
- Page 4 Wire long 4.0 Packaging and disassembly of the machine Packing - this equipment is specially packed with wooden pallets for forklift handling. The package size is as follows: 1230mm long, 610mm wide and 1200mm high Remove -- (1) tear off the wrapping film, (2) cut off the packaging tape, (3) remove the packaging board, (4) remove the accessories, (5) use the slope to slide the machine down from the wooden pallet。...
- Page 5 5.0 The assembly instructions 5.1 Assembly of suction squeegee ⚫ Lift the lifting handle (01) of the squeegee. ⚫ Turn on the two knobs（03） of the suction (02). ⚫ Hang the squeegee on the fixed palm (04) and tighten the two knobs. ⚫...
-
Page 6: Operation Preparation
6.0 Operation preparation Accessories choosing ⚫ Nylon brush: suitable for cleaning rough, irregular or smooth ground ⚫ Hundred-cleaning pad and needle holder brush: suitable for flat polished ground Fill the clean water tank with water ⚫ The front end of the YL815 scrubberclean water tank (12) is provided with a water injection port (13), which can be directly filled with water... - Page 7 7.0 Manipulation of the instructions 7.1 Correct operation instructions for machine startup ⚫ Pull and step handle (1) and pedal (6) respectively to lower the squeegee and brush plate to the ground。 ⚫ Observe and confirm or press the "O" button of the water suction motor switch (10) and the brush disk motor switch (12) to be in the "press"...
- Page 8 8.0 Common faults and handling methods 8.1 Fault analysis and processing form Malfunction Analysis Methods Did not open the power Please turn on the power switch switch Machine doesn’t Power cord broken Check and connect work Overload protector jumps off Check and press reset Electronic centrifugal Contact the manufacturer...
- Page 9 Drain solenoid valve is Disassemble the discharge blocked solenoid valve and clean Sewage tank full Drain the sewage tank The plug of the drain pipe Tighten the drain plug Poor water has come loose absorption Water scraper assembly Clean the water scraper blocked Water wipers wear out Turn to use or replace...
- Page 10 8.3 510BM Circuit diagram...
-
Page 11: Maintenance
9.0 Maintenance 9.1 Daily maintenance and repair （1）Remove the pin holder/brush tray and wipe with a specific cleaner. （2）Drain the sump and rinse with clean water. Check the sewage tank for debris. Remove it immediately. In addition, the remaining solvent in the water tank should be discharged clean. - Page 12 9.3 Maintenance of motors （1）For motor maintenance, please contact the manufacturer of automatic floor washer. （2）Check the motor carbon brush every 250 hours after use. If the carbon brush wear seriously, please contact the manufacturer to replace. 9.4 Battery maintenance (1) Please follow the battery charging chapter in the operation manual of each manufacturer for maintenance.
-
Page 13: Exploded View
10.0 Exploded view... - Page 19 510BM Exploded list Number Name Quantity Remarks Radiator cap seal Float guide pin Guide pin positioning frame 4X25 countersunk head tapping screws Float soft washer float M6 wing nut Handle box M8X40 cylindrical head hexagon socket screw 4X35 pan head tapping screws...
- Page 20 M6X30 cylindrical head hexagon socket screw Bellows soft rubber pad Water suction motor 5X20 pan head tapping screws 40X3 "O" ring Suction pipe joint 27-51 hose clamp Suction pipe M6X90 cylindrical head hexagon socket screw Suction pipe net cover Sewage pipe Pipe clamp M5X16 cylindrical head hexagon socket screw Junction box fixing plate...
- Page 21 14X10 transparent hose M6X20 cylindrical head hexagon socket screw Squeegee cable Decorative back cover M6X2 cylindrical head hexagon socket screws Fixed buckle M5X16 cylindrical head hexagon socket screw 12V-100aH battery Brush motor Transmission buckle aluminum parts M20X1.5 nut Bevel meson Three blades Brush plate level adjustment piece M8X30 Hexagon Screw...
- Page 22 axle 6204 bearing 8-inch wheel Wheel cover 4 inch universal wheel M8X20 Hexagon Screw M8X30 Hexagon Screw Foot lever positioning piece A Foot lever positioning piece B Pedal pads Foot lever M8X80 cylindrical head hexagon socket screw (with nut) Squeegee swing M8X45 hex screw (with nut) Squeegee fixed palm M8X20 Hexagon Screw...
- Page 23 2. This warranty card is in duplicate, one for the customer and one for each distributor. ★Warranty with purchase bills, thank you for your cooperation! ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ARCORA INTERNATIONAL GMBH Marssstraße 9, 85609 Aschheim near Munich Tel. +49(0)89 14 33 29 30 Fax. +49(0)89 14 33 29 329 www.arcora-group.com...
