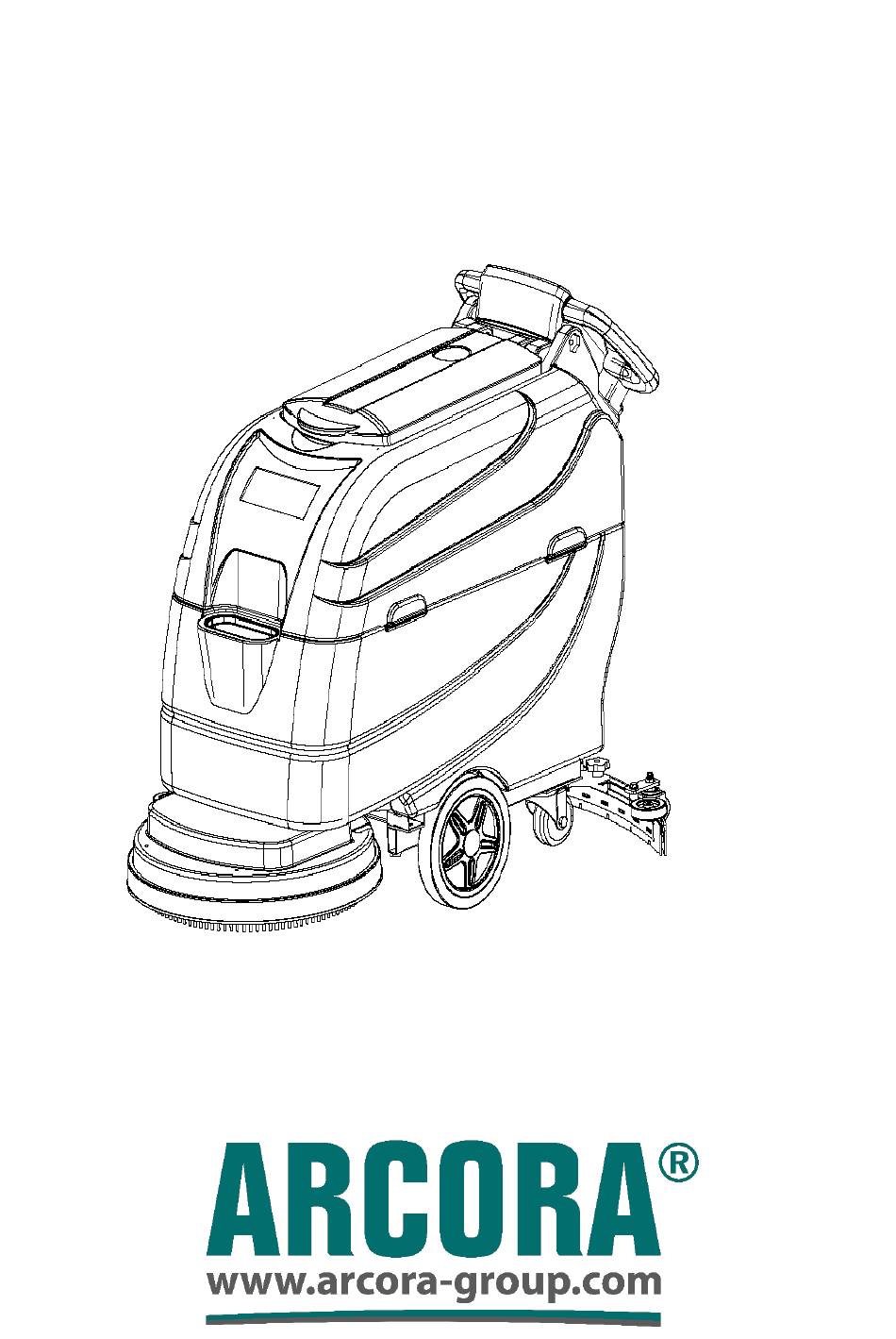

- Page 1 520BM (Battery type) Hand push type Automatic Floor Scrubber Manual Please read this manual carefully before using the product.
- Page 2 1.0 Summarize Attention：Please read the manual before you use 520BM Preface C 5050 manual floor scrubber is a kind of mechanical movement using disk brush and chemical action of water and detergent solution. It can be used to clean hard floors with various stains, and at the same time, it can collect the removed stains and the detergent solution not absorbed by the floor.
- Page 3 Note: it is forbidden to use this machine to clean flammable liquid, solvent, fuel oil, active metal vapor or flammable dust. 3.0 Technical parameters Project Parameter Rated voltage 220V; Working width 510mm Suction width 760mm 2000 ㎡/h The efficiency Brush 510mm Brush speed 150rpm...
- Page 4 4.0 Packaging and disassembly of the machine Packing - this equipment is specially packed with wooden pallets for forklift handling. The package size is as follows: 1250mm long, 610mm wide and 1200mm high Remove -- (1) tear off the wrapping film, (2) cut off the packaging tape, (3) remove the packaging board, (4) remove the accessories, (5) use the slope to slide the machine down from the wooden pallet。...
- Page 5 6.0 Operational preparation Accessories choosing ⚫ Nylon brush: suitable for cleaning rough, irregular or smooth ground ⚫ Hundred-cleaning pad and needle holder brush: suitable for flat polished ground Fill the clean water tank with water ⚫ The front end of the YL815 scrubber clean water tank (12) is provided with a water injection port (13), which can be directly filled with water...
- Page 6 7.0 Manipulation of the instructions 7.1 Correct operation instructions for machine startup ⚫ Pull and step handle (1) and pedal (6) respectively to lower the squeegee and brush plate to the ground。 ⚫ Observe and confirm or press the "O" button of the water suction motor switch (10) and the brush disk motor switch (12) to be in the "press"...
- Page 7 8.0 Common faults and handling methods 8.1 Fault analysis and processing form Malfunction Analysis Methods Did not open the power Please turn on the power switch switch Machine doesn’t Power cord broken Check and connect work Overload protector jumps off Check and press reset Electronic centrifugal Contact the manufacturer...
-
Page 8: Maintenance
The suction pipe is not Connect the suction pipe reliably connected to the reliably wiper assembly The suction pipe is blocked Clear the blockage Suction pipe damage Replace suction pipe The cover of the sewage tank Close the cover is not properly closed The seal strip of sewage Replace the strip tank cover is damaged... - Page 9 9.2 Monthly maintenance and maintenance （1）Check the seal strip of the sewage tank cover. If there is any damage, please replace it （2）Lubricate all lubrication parts and shafts with a specified lubricant. （ 3 ） Check whether the fasteners are loose.
-
Page 10: Explosive View
10.0 Explosive view... - Page 16 520BM explosive view Name Amout Note The tank cover Sealing strip Buoy needle Needle holder 4X25 countersunk head self-tapping screw buoy soft washer buoy m6 butterfly nut handle box outlet Industrial plug (female plug) Hang line hook Industrial plug (male plug)
- Page 17 Suction motor 5X20 pan head self-tapping screw 40X3“O”circle Suction pipe connect 27-51 throat hoop Suction pipe M6X90 cylinder head hexagon screw bleed pipe network cover M8X35 cylinder head hexagon screw pipe clamp M5X16 cylinder head hexagon screw Cement weighting block water filter cover M6X12 countersunk head screw Clear water tank...
- Page 18 M12X160 cylinder head hexagon screw Brush motor Fastener alumcake M20X1.5nuts Three points bend 3 point Outer tooth tower nozzle 3point tooth copper set Brush horizontal adjustment M8X30 external hexagon screw Brush motor Fixed plate 6.4X25 countersunk head self-tapping screw Brush fastener M6X16 cylinder head hexagon screw Brush cover Against hydrosphere...
- Page 19 M6X40 cylinder head hexagon screw(with nuts) 8X30X3 meson M8 butterfly nut M6X30 cylinder head hexagon screw(with nuts) suction stent movable hinge ARCORA INTERNATIONAL GMBH Marssstraße 9, 85609 Aschheim near Munich Tel. +49(0)89 14 33 29 30 Fax. +49(0)89 14 33 29 329 www.arcora-group.com info@arcora.de...
