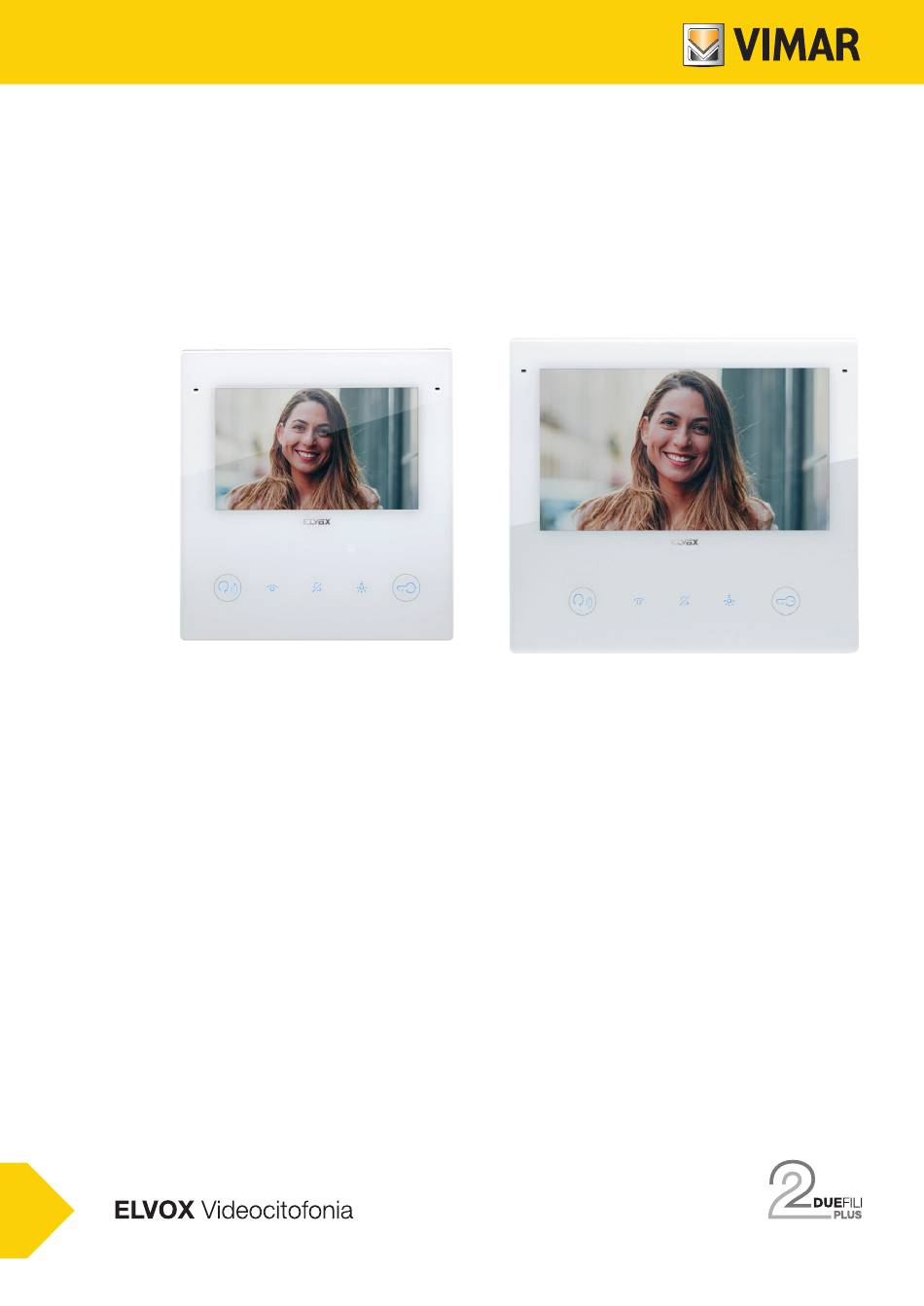

TAB 5S UP 5" Due Fili Plus Wi-Fi hands-free video entryphone
TAB 7S UP 7" Due Fili Plus Wi-Fi hands-free video entryphone
Use and Configuration Manual
TAB
40515
40517

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELVOX TAB 40515 and is the answer not in the manual?

Questions and answers

Related Manuals for Vimar ELVOX TAB 40515

Summary of Contents for Vimar ELVOX TAB 40515

  • Page 1 Use and Configuration Manual 40515 TAB 5S UP 5” Due Fili Plus Wi-Fi hands-free video entryphone 40517 TAB 7S UP 7” Due Fili Plus Wi-Fi hands-free video entryphone...
  • Page 2 Tab 5S Up 40515 - Tab 7S Up 40517...

  • Page 3: Table Of Contents

    Tab 5S Up 40515 - Tab 7S Up 40517 Index • 1. General information ................4 • 1.1 Description ......................4 • 1.2 Warnings ......................4 • 1.2.1 Maintenance .................... 4 • 1.2.2 Warnings for the user ................4 • 1.2.3 Disclaimer for operation of the App ............5 •...
  • Page 4 Tab 5S Up 40515 - Tab 7S Up 40517 • 4.1.4 Settings ....................35 • 4.2 Calls and messages ..................36 • 4.2.1 Calls made and received ................ 37 • 4.2.2 Missed calls .................... 39 • 4.2.3 Video messages ..................40 •...
  • Page 5 Tab 5S Up 40515 - Tab 7S Up 40517 • 5.6.5 Rebooting the device ................106 • 5.6.6 Restoring default settings ..............106 • 5.7 Installer menu ....................107 • 5.7.1 PIN entry ....................107 • 5.7.2 Installer menu ..................108 •...

  • Page 6: General Information

    Tab 5S Up 40515 - Tab 7S Up 40517 General information Description Surface mounting Tab 5S Up and Tab 7S Up hands-free video entryphone for Due Fili Plus system, integrated Wi-Fi for call forwarding to smartphone with dedicated App, with touch-screen colour LCD display, capacitive keyboard for video door entry functions and intercom calls, video voicemail, teleloop for hearing aids, control of functions in a View Wireless connected system (lights, curtains and roller shutters, sensors and scenarios), bracket for fixing in round or rectangular mounting box, surface mounting or semi-flush mounting.

  • Page 7: Disclaimer For Operation Of The App

    App Store. Vimar is not responsible for the selection of technical equipment for accessing the Internet that the Customer needs to use the service, and which is based on an agreement that the Customer has signed with an Internet Service Provider (ISP);...

  • Page 8: Characteristics

    Tab 5S Up 40515 - Tab 7S Up 40517 Characteristics 1.3.1 Calls • Receipt of audio or audio/video calls from an outdoor station. • Specific self-start from an outdoor station, and cyclical self-start. • Call to/from switchboard. • Audio-only intercom calls to/from another indoor station. •...

  • Page 9: 1.4 Additional Functions

    Tab 5S Up 40515 - Tab 7S Up 40517 1.4 Additional functions 1.4.1 Audio frequency function for hearing aids (Teleloop) The video entryphone can be used by people wearing hearing aids. For correct functioning of the hearing aid, please refer to its instruction manual. Any metal objects or electronic equipment in the vicinity may affect the quality of the sound received by the hearing aid.

  • Page 10: Button And Signal Functions

    Tab 5S Up 40515 - Tab 7S Up 40517 Button and signal functions 40515 Tab 5S Up 40517 Tab 7S Up...
  • Page 11 Tab 5S Up 40515 - Tab 7S Up 40517 1 - Microphone 2 - Display: - 40515 - Tab 5S Up: 5” Display, 16.8 million colours, 800x480 resolution, ratio of 15:9, capacitive touch screen. - 40517 - Tab 7S Up: 7” Display, 16.8 million colours, 1024x600 resolution, ratio of 16:9, capacitive touch screen. Indicators (white backlighting): 3 - New notifications or messages (steady);...

  • Page 12: Sd Card (Solo Per Tab 7S Up 40517)

    Firmware update via SD Card The firmware of the device can be updated via microSD card. Download the update file (ZIP archive) from www.vimar. com and extract the contents into the microSD card. Insert the card in the slot and wait a few seconds. Follow the instructions on the screen and apply the update from Settings ->...

  • Page 13: First Power-Up

    Tab 5S Up 40515 - Tab 7S Up 40517 First power up Configuration wizard The first time the device is started, a welcome screen is displayed. The configuration wizard starts automatically after 3 seconds, or when any part of the screen is touched. Interface language When accessing the configuration wizard, the first step is to select the language.
  • Page 14 Tab 5S Up 40515 - Tab 7S Up 40517 Manual date and time setting The user must manually set the date and time. Enter the PIN Enter the PIN Enter the PIN To confirm the set configurations, enter the device PIN code. Default PIN: 0000 Entering the PIN code, the confirmation button will appear in order to proceed.
  • Page 15 Tab 5S Up 40515 - Tab 7S Up 40517 If the desired choice is selected, the button will be activated to confirm your choice and the user will be guided to the next screen. Configuration in progress... The configuration in progress screen only permits one action: “exit”. Configuration completed! The device has been configured correctly.

  • Page 16: Manual Configuration

    Tab 5S Up 40515 - Tab 7S Up 40517 Manual configuration As an alternative to automatic video entryphone configuration via a call from an outdoor station, you can proceed in manual configuration mode, in which you type the ID directly on the video entryphone, without having to interact with the outdoor station.
  • Page 17 Tab 5S Up 40515 - Tab 7S Up 40517 Video Entryphone ID configuration DEVICE ID Undefined Enter the device ID code using the numerical keypad and confirm. Configuration in progress... A procedure is launched to check that this ID is valid and not already used in the system. Configuration completed! The device was configured with ID 1 When the configuration has been completed successfully, a feedback screen containing the assigned ID will appear,...

  • Page 18: Manual Group Id Configuration

    Tab 5S Up 40515 - Tab 7S Up 40517 2.2.2 Manual group ID configuration Video Entryphone ID Configuration Video Entryphone ID Configuration Group ID Configuration Group ID Configuration Select "Group ID configuration". Undefined GROUP ID You can configure the group ID in the first screen by entering it with the numerical keypad and confirming. DEVICE ID You can select the device ID in the next screen: the field is already filled in with an ID value calculated with the Due Fili algorithm, e.g.
  • Page 19 Tab 5S Up 40515 - Tab 7S Up 40517 Configuration in progress... A procedure is launched to check that the ID is valid and not used in the system. Configuration completed! When the configuration has been completed successfully, a feedback screen containing the assigned ID will appear, followed by the home screen.

  • Page 20: Call Functions

    Tab 5S Up 40515 - Tab 7S Up 40517 Call functions Call from outdoor station Front door Answer Refuse Open door Outside light When the video door entry device receives a call from an entrance panel, the display shows image recorded on the calling outdoor station on full-screen.

  • Page 21: Adjusting Call Settings

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.1 Adjusting call settings Front door Answer Refuse Open door Outside light To view the control panel, swipe upwards. Front door Answer Refuse During an incoming call, the following are present in the control menu: - screen brightness - ringtone volume Adjust the values using the cursors.

  • Page 22: Answering A Call

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.2 Answering a call Front door Answer Refuse Open door Outside light Enter talk mode by pressing the "Answer" button. Front door Mute Close microphone Open door Outside light In talk mode, the “Answer” button is replaced by the “Mute microphone” button, while “Refuse” is replaced by “Close”. Enable the option by pressing the “Mute microphone”...

  • Page 23: Adjusting Talk Settings

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.3 Adjusting talk settings Front door Close Mute microphone Open door Outside light To view the adjusting talk settings menu, swipe upwards. Front door Close Mute microphone During a call, the following are present in the control menu: - screen brightness - talk volume Adjust the values using the cursors.

  • Page 24: Video Controls

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.4 Video controls Front door Close Mute microphone Open door Outside light During a call or self-start, controls are available for adjusting the talk volume and screen backlighting, as well as accessory controls for adjusting the video stream brightness and contrast.

  • Page 25: Additional Controls And Favourites

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.5 Additional controls and Favourites Front door Mute Close microphone Open door Outside light To display the additional controls and favourites panel, use the “Expand” button. Front door Close Mute Front door Stairwell microphone light...

  • Page 26: Zoom Function

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.6 Zoom function Front door Mute Close microphone Open door Outside light By touching the screen again (in an area where there are no controls), the display returns to the no-controls mode. By touching the screen twice, the zoom area selection screen appears.

  • Page 27: Door Release

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.7 Door release Front door Answer Refuse Open door Outside light For an incoming call from the entrance panel, it is possible to open the door without necessarily answering the call, by pressing the “Open door”...

  • Page 28: Refusing A Call

    Tab 5S Up 40515 - Tab 7S Up 40517 3.1.8 Refusing a call Front door Answer Refuse Open door Outside light If you decide to refuse the call, the “Incoming call” window closes and automatically returns to the home page (or any screen that was active prior to the incoming call).

  • Page 29: Answering A Reception Call

    Tab 5S Up 40515 - Tab 7S Up 40517 Answering a Reception call Reception Answer Refuse Outside light Incoming calls from reception may be audio/video or audio-only. The controls are similar to the call from entrance panel controls, except the Door release Reception Answer Refuse...

  • Page 30: Video Voicemail

    Tab 5S Up 40515 - Tab 7S Up 40517 Video voicemail Front door Answer Refuse Outside light Open door If the video voicemail function has been enabled in the indoor station, the arrival of a call from entrance panel can switch the call, after an adjustable delay, to recording an answering machine message.

  • Page 31: Answering A Call From An Indoor Station (Apartment)

    Tab 5S Up 40515 - Tab 7S Up 40517 Answering a call from an indoor station (Apartment) Claudia Nelli Answer Refuse For an incoming call from another apartment, the call controls and actuations will be available, but not the door release. Claudia Nelli Mute Close...

  • Page 32: Call From A Mobile Device

    Tab 5S Up 40515 - Tab 7S Up 40517 Call from a mobile device Giulio’s telephone Answer Refuse Outside light For an incoming call from a mobile device, the call controls and actuations will be available, but not the door release. Giulio’s telephone Mute Close...

  • Page 33: Landing Call

    Tab 5S Up 40515 - Tab 7S Up 40517 Landing call Door call from: Sarfatti Entrance When enabling a landing call, the video entryphone plays the associated ringtone and shows a full-screen pop-up. The pop-up is displayed for 30 seconds. It may be ended in advance. Closing, it returns to the previously displayed page.

  • Page 34: Making A Call

    Tab 5S Up 40515 - Tab 7S Up 40517 Making a call Giulio’s telephone Close Mute microphone Outside light If from the contacts list you press the “mobile device” icon connected to the system, an “Outgoing call” window opens to that contact, with the possibility to end the call. Lounge Apartment 12 Mute...

  • Page 35: Home Page And Other Functions

    Tab 5S Up 40515 - Tab 7S Up 40517 Home page and other functions Home Page State icons State bar System functions Functions Alert Customisable Home page area Operating modes Use modes Navigation bar Home Settings Calls and messages Touching the touch area on the device, the display comes on showing the home page; on the left, the screen has two function access points, on the right a customisable space containing any favourite objects, at the top the state bar, and at the bottom the navigation bar.

  • Page 36: State Bar

    Tab 5S Up 40515 - Tab 7S Up 40517 4.1.2 State bar Functions Professional Voice mail Call forwarding Studio Use modes Do not disturb Silent Alert The state bar also shows the following states: connection to the WiFi network, connection to the Cloud, door open, Alert management.
  • Page 37 Tab 5S Up 40515 - Tab 7S Up 40517 4.1.4 Controls Functions Cameras Access and Video entry presence system Use modes Lights Various Swipe from the bottom upwards to access the ringtone volume and screen brightness control menu. Functions Cameras Access and Video entry presence...

  • Page 38: Calls And Messages

    Tab 5S Up 40515 - Tab 7S Up 40517 Calls and messages Functions Alert Use modes If there are missed calls or unread messages, the related button in the home page shows the unread elements with a yellow badge. Functions Alert Use modes Press the “calls and messages”...

  • Page 39: Calls Made And Received

    Tab 5S Up 40515 - Tab 7S Up 40517 4.2.1 Calls made and received Calls and messages Calls and messages Apartment 234 Apartment 234 4:35 PM yesterday 4:35 PM yesterday Carlo Neri Carlo Neri 12:07 AM of 14/08/2019 12:07 AM of 14/08/2024 Front door Front door 6:45 AM of 13/08/2024...
  • Page 40 Tab 5S Up 40515 - Tab 7S Up 40517 Calls and messages Front door 6:45 AM of 13/08/2024 Apartament 214 6:45 AM of 13/08/2024 Carlo Neri 12:07 AM of 14/08/2024 When fully swiped, the element row disappears and the list is compressed upwards, leaving room for the next element in the list or disappearing.

  • Page 41: Missed Calls

    Tab 5S Up 40515 - Tab 7S Up 40517 4.2.2 Missed calls Calls and messages Calls and messages Switchboard: External door alert Switchboard 4:35 PM yesterday 4:35 PM yesterday Switchboard: Network disconnection warning Switchboard 12:07 AM of 14/08/2024 12:07 AM of 14/08/2024 Switchboard: DHL delivery Switchboard 6:45 AM of 13/08/2024...

  • Page 42: Video Messages

    Tab 5S Up 40515 - Tab 7S Up 40517 4.2.3 Video messages Calls and messages Calls and messages Apartment 234 Front door 4:23 AM today 4:35 PM yesterday Carlo Neri Switchboard 12:07 AM of 14/08/2024 9:15 PM yesterday Front door Front door 6:45 AM of 13/08/2024 6:45 AM of 13/08/2024...
  • Page 43 Tab 5S Up 40515 - Tab 7S Up 40517 Calls and messages Front door 4:23 AM today Switchboard 9:15 PM yesterday Front door 6:45 AM of 13/08/2024 After viewing, the video message will be shown in white to show it has been seen. Calls and messages Front door 4:23 AM today...

  • Page 44: Alert Messages

    Tab 5S Up 40515 - Tab 7S Up 40517 4.2.4 Alert messages Calls and messages Calls and messages Apartment 234 Apartment 234 4:35 PM yesterday 4:35 PM yesterday Carlo Neri Carlo Neri 12:07 AM of 14/08/2024 12:07 AM of 14/08/2024 Front door Front door 6:45 AM of 13/08/2024...

  • Page 45: Deleting The Calls And Messages History

    Tab 5S Up 40515 - Tab 7S Up 40517 4.2 6 Deleting the calls and messages history Calls and messages Are you sure you want to delete everything? Apartment 234 4:35 PM yesterday Confirming the action, all list items will be deleted Carlo Neri 12:07 AM of 14/08/2024 Front door...

  • Page 46: Memory Full" Warning

    Tab 5S Up 40515 - Tab 7S Up 40517 4.2.7 "Memory full" warning Calls and messages Caution: video message memory full Delete at least one video message to receive more Switchboard 5:23 AM today Brambilla Family 7:12 PM yesterday Entering the “Calls and messages” section, you can identify the nature of the warning: in this case, it refers to the memory full state, identified by the “answering machine”...
  • Page 47 Tab 5S Up 40515 - Tab 7S Up 40517 Calls and messages Switchboard 5:23 AM today Switchboard 7:30 AM yesterday Brambilla Family 6:12 PM on 23/05/2024 The deleted video message is no longer present in the list. Once the memory has been freed, the memory full warning also disappears. By clicking on the “delete”...

  • Page 48: Operating Modes

    Tab 5S Up 40515 - Tab 7S Up 40517 Operating modes Press the “Operating modes” button to access a list of functions linked to the operation of the video door entry device. Professional Functions Voice mail Call forwarding Studio Use modes Do not disturb Silent Alert...

  • Page 49: Functions

    Tab 5S Up 40515 - Tab 7S Up 40517 Functions Video entry Access and Functions Cameras Door entry Entry Front door Claudia Nelli system presence system Reception Use modes Lights Various Cameras Bedroom Lounge Press the “Functions” button to display the list of all elements present in the system on the interface: •...

  • Page 50: Video Door Entry System

    Tab 5S Up 40515 - Tab 7S Up 40517 4.4.1 Video door entry system Entry Front door Door entry Claudia Nelli system Cameras Bedroom Reception Lounge Press the “Video door entry system” button to view the available video door entry system functions: •...

  • Page 51: Cameras

    Tab 5S Up 40515 - Tab 7S Up 40517 4.4.2 Cameras Video entry system Internal Cameras Front Garden entrance access and Garage presence Press the “Camera cycle” control to view all the cameras connected to the video door entry system. Front Close Outside light...
  • Page 52 Tab 5S Up 40515 - Tab 7S Up 40517 Internal entrance Internal entrance Stop Stop Patio Outside light Outside light Press the “Expand” button to access the full accessories and favourites control panel. The accessory control panel appears with a sliding effect from the right, colouring the area; it shows the accessory controls and the favourite elements, according to a 2 or 3 columns matrix with 2 elements, in which the first is already occupied by the controls available in standard display mode.

  • Page 53: Lights, Entrances And Actuators

    Tab 5S Up 40515 - Tab 7S Up 40517 4.4.3 Lights, entrances and actuators Accessi e Presenze Lights Hall Outside light Internal light Doors Patio Veranda Path Press the “Lights” aggregator button to view all the “light” type actuators in the video door entry system. Accessi e Presenze Lights...
  • Page 54 Tab 5S Up 40515 - Tab 7S Up 40517 Add to favourites Hall Lights Outside light Internal light Doors Patio Veranda Path A long press on the element will activate the actions bar and add it to the favourites. The item is already in favourites Lights Hall Outside light...

  • Page 55: Customisable Home Page Area (Favourites)

    Tab 5S Up 40515 - Tab 7S Up 40517 Customisable Home Page area (Favourites) Add to favourites Functions Professional Voice mail Call forwarding studio Use modes Do not disturb Silent Alert Any element represented on the interface (controls and actuations (round icons)) can be selected as favourites; this way, they will be added as a link to both the home page and the call favourites panel (only if they represent an actuation).
  • Page 56 Tab 5S Up 40515 - Tab 7S Up 40517 Functions Alert Mute Use modes On the home page, you will see the element that has just been added to the favourites in the first available position. Press and hold the element to change its position. Remove from favourites Functions Alert...
  • Page 57 Tab 5S Up 40515 - Tab 7S Up 40517 Select the required element with a long press. The screen will enter the edit mode; an actions area appears at the top with the words “Remove from favourites”. Remove from favourites Removed from favourites Alert Functions...
  • Page 58 Tab 5S Up 40515 - Tab 7S Up 40517 The only elements that cannot be added to the favourites are the hexagonal aggregators: Add to favourites Access e presence Cameras Access and Functions Cameras Functions Video entry Video entry system presence system Use modes...
  • Page 59 Tab 5S Up 40515 - Tab 7S Up 40517 Re-arranging the favourites If re-arranging the favourites involves a number of elements arranged on more than one page, the elements can be moved between the various pages by moving them to the right and left limits of the screen. When the dragged element reaches the side bands of the screen, the system changes the page.

  • Page 60: Cleaning The Screen

    Tab 5S Up 40515 - Tab 7S Up 40517 Cleaning the Screen Professional Call forwarding Cleaning Functions Voice mail Functions studio mode Use modes Do not disturb Silent Alert Use modes Select the "Use modes" icon to access the “Cleaning mode” function. Touch the button to activate the mode.

  • Page 61: Alert Function

    Tab 5S Up 40515 - Tab 7S Up 40517 Alert function Alert Functions Use modes Press the alert button to make the device send an alert message to the switchboard, which will manage the message as a priority. The alert will be sent in: The alert will be sent in: Touch the screen to cancel the operation Touch the screen to cancel the operation...
  • Page 62 Tab 5S Up 40515 - Tab 7S Up 40517 SEND FAILED Functions Alert Use modes If the alert sending has failed or there are sending problems, the text label will change to “Send failed” and the button will show an error signal. The alert icon in the state bar will be red.
  • Page 63 Tab 5S Up 40515 - Tab 7S Up 40517 The outcome of sending the alert can be checked in any page via the state icon. The button will then return to normal state and it will be possible to send a new alert. Calls and messages Switchboard: outside door alert 0:20 of 12/09/2024...

  • Page 64: Settings

    Tab 5S Up 40515 - Tab 7S Up 40517 Settings Alert Functions Use modes The device options can be configured in the specific section, accessible from the home page when no call events are active. Settings General Appearance Sounds Call Network and System Installer menu...

  • Page 65: General Information

    Tab 5S Up 40515 - Tab 7S Up 40517 General Settings General Appearance Sounds Call Network and System Installer menu devices General Device names Mario Rossi, Marina Bianchi Device ID Entry Interface language Italian Date and time format DD/MM/YYYY - 12h Time zone (GMT +01:00) Amsterdam, Berlin, Rome Press the “General”...

  • Page 66: Language

    Tab 5S Up 40515 - Tab 7S Up 40517 5.1.1 Language General Interface language Device names Mario Rossi, Marina Bianchi Device ID Entry Interface language Italian Date and time format DD/MM/YYYY - 12h Time zone (GMT +01:00) Amsterdam, Berlin, Rome Click on the “Language”...

  • Page 67: Date And Time Format

    Tab 5S Up 40515 - Tab 7S Up 40517 5.1.2 Date and Time format Date and time format Date and time format Click on the “Date and time format” row to view the possible viewing formats in sequence; scroll through the options and directly select the one required.

  • Page 68: Manual Date And Time Settings

    Tab 5S Up 40515 - Tab 7S Up 40517 5.1.4 Manual date and time settings General Manual date and time setting Interface language Italian Date and time format DD/MM/YYYY - 12h Time zone (GMT +01:00) Amsterdam, Berlin, Rome Automatic date and time Not active Manual date and time setting Current value:...

  • Page 69: Appearance

    Tab 5S Up 40515 - Tab 7S Up 40517 Appearance Appearance Settings Graphic interface theme Dark Screen brightness General Appearance Sounds Call Brightness now set to: Automatic screen switch-off Interval now set to: 60" Key backlighting Network and System Installer menu Brightness now set to: devices Key backlighting in standby...

  • Page 70: Interface Graphic Theme

    Tab 5S Up 40515 - Tab 7S Up 40517 5.2.1 Interface graphic theme Appearance Graphic interface theme Graphic interface theme Dark Screen brightness Dark Light Brightness now set to: Automatic screen switch-off Interval now set to: 60" Key backlighting Brightness now set to: Key backlighting in standby Not active When you click on the “Interface graphic theme”...

  • Page 71: Screen Auto Sleep

    Tab 5S Up 40515 - Tab 7S Up 40517 5.2.2 Screen auto sleep Appearance Automatic screen switch-off Graphic interface theme Dark Screen brightness Brightness now set to: Automatic screen switch-off Interval now set to: 60" Key backlighting Brightness now set to: Key backlighting in standby Not active Click on the “Automatic screen switch-off”...

  • Page 72: Notification Led Backlighting

    Tab 5S Up 40515 - Tab 7S Up 40517 5.2.4 Notification LED backlighting Appearance Appearance Automatic screen switch-off Automatic screen switch-off Interval now set to: 30" Interval now set to: 30" Key backlighting Key backlighting Brightness now set to: Brightness now set to: Signalling LEDs Signalling LEDs Brightness now set to:...

  • Page 73: Button Backlighting In Standby

    Tab 5S Up 40515 - Tab 7S Up 40517 5.2.5 Button backlighting in Standby Appearance Automatic screen switch-off Interval now set to: 30" Key backlighting Brightness now set to: Signalling LEDs Brightness now set to: Key backlighting in standby Not active Automatic item grouping Active The “Key backlighting in standby”...

  • Page 74: Sounds

    Tab 5S Up 40515 - Tab 7S Up 40517 Sounds Settings Sounds Key volume Ringtone volume General Appearance Sounds Call Entry panel ringtone Ringtone 1 Intercom ringtone Network and System Installer menu Ringtone 1 devices Switchboard ringtone Ringtone 1 Pressing the “Sounds” button, the screen will show a list of available settings, including the items for enabling and changing the volumes of the specific call sounds and ringtones from the Switchboard, Entrance panels, Indoor stations and Door bell.
  • Page 75 Tab 5S Up 40515 - Tab 7S Up 40517 Sounds Key volume Ringtone volume Entry panel ringtone Ringtone 1 Intercom ringtone Ringtone 1 Switchboard ringtone Ringtone 1 Click on each of the ringtone items to select one of the available options. Entry panel ringtone Ringtone 1 Ringtone 2...

  • Page 76: Calls

    Tab 5S Up 40515 - Tab 7S Up 40517 Calls Settings General Appearance Sounds Call Network and System Installer menu devices Calls Answering machine message Edit the answering machine message Answering machine start delay 10 seconds Maximum message length 60 seconds End call with open door key Not active Professional studio mode...

  • Page 77: Voicemail Message

    Tab 5S Up 40515 - Tab 7S Up 40517 5.4.1 Voicemail message Calls Answering machine message Answering machine message Edit the answering machine message Answering machine start delay Listen to the audio message used for the video door entry 10 seconds answering machine or record a new one.
  • Page 78 Tab 5S Up 40515 - Tab 7S Up 40517 Do you want to record a new message? The current message will be deleted Press the “Record” button to record a new message. Recording a new message will delete the existing message, and the system will display a confirmation pop-up.

  • Page 79: Voicemail Activation Delay

    Tab 5S Up 40515 - Tab 7S Up 40517 5.4.2 Voicemail activation delay Calls Answering machine start delay Answering machine message Edit the answering machine message Answering machine start delay 10 seconds Maximum message length 60 seconds End call with open door key Not active Professional studio mode Ringtone 1...

  • Page 80: Maximum Message Length

    Tab 5S Up 40515 - Tab 7S Up 40517 5.4.3 Maximum message length Calls Maximum message length Answering machine message Edit the answering machine message Answering machine start delay 10 seconds Maximum message length 60 seconds End call with open door key Not active Professional studio mode Ringtone 1...

  • Page 81: End Call With Open Door Key

    Tab 5S Up 40515 - Tab 7S Up 40517 5.4.4 End call with open door key Calls Answering machine message Edit the answering machine message Answering machine start delay 5 seconds Maximum message length 30 seconds End call with open door key Not active Professional studio mode Ringtone 1...

  • Page 82: Professional Studio Mode

    Tab 5S Up 40515 - Tab 7S Up 40517 5.4.5 Professional studio mode Calls Maximum message length 30 seconds End call with open door key Active Professional studio mode Set automatic opening parameters Automatic answer Not active Distributed landing panel Not active The “Professional studio mode”...
  • Page 83 Tab 5S Up 40515 - Tab 7S Up 40517 Automatic opening delay Professional studio mode Close call and open the lock Active Automatic opening with random delay Active Automatic opening delay 10 seconds Continuous activation mode Active Activation configuration programmed Configure custom activation days and intervals Click on the “Automatic opening delay”...
  • Page 84 Tab 5S Up 40515 - Tab 7S Up 40517 Activation configuration programmed Professional studio mode Close call and open the lock Active Automatic opening with random delay Active Automatic opening delay 9 seconds Continuous activation mode Active Activation configuration programmed Configure custom activation days and intervals Click on the “Activation configuration programmed”...
  • Page 85 Tab 5S Up 40515 - Tab 7S Up 40517 Friday Click on the programming preview for a day to open a panel for adding and managing time bands, in this case where not yet created. The navigation bar at the bottom of the screen shows the selected day in yellow. Click on another day, without returning to the previous screen, to change it.
  • Page 86 Tab 5S Up 40515 - Tab 7S Up 40517 Friday When the activation time is confirmed, it is added and made visible with a summary representation. Click on an interval card to change it again, alternatively it is possible to add up to six intervals in total using the “Add” button.
  • Page 87 Tab 5S Up 40515 - Tab 7S Up 40517 Returning to the programming view, the preview will be updated. Friday Delete interval The intervals can be removed by pressing and holding the corresponding card and then dragging it upwards. The screen will enter the change mode and all the other elements are represented at 40% matt. In the upper part of the screen, an action bar appears with the words “Delete interval”.
  • Page 88 Tab 5S Up 40515 - Tab 7S Up 40517 Activation mode programmed Activation mode programmed Group Group Returning to the programming view, the preview will be updated. The programming allows up to six different intervals. Tuesday In this case, it is still possible to add an interval. Set the activation interval from The user can create the new interval, the only constraint being that the start value must be prior to the end value.
  • Page 89 Tab 5S Up 40515 - Tab 7S Up 40517 and the end result. In these cases, the system will warn of the fact that the intervals and merged in a pop-up. The user can accept the action, described in a graphic diagram, or return to the change. Tuesday Tuesday You have reached the...
  • Page 90 Tab 5S Up 40515 - Tab 7S Up 40517 edit. Delete interval An interval can be deleted even with the “group” function active. interval deleted Wednesday, Thursday, Saturday The top bar confirms that the interval has been deleted. Now no intervals can be seen in the programming of the selected group of days. Activation mode programmed WED, THU, MON, TUE...
  • Page 91 Tab 5S Up 40515 - Tab 7S Up 40517 Having selected “Monday” in the bottom navigation bar, the system will show the programming of the selected day and the bottom bar shows Monday, rather than Friday, in yellow. Select a group to view its programming. Activation mode programmed Activation mode programmed THU -...

  • Page 92: Automatic Answer

    Tab 5S Up 40515 - Tab 7S Up 40517 5.4.6 Automatic answer Calls Automatic answer Maximum message length 30 seconds Not active End call with open door key Active Professional studio mode Set automatic opening parameters Automatic answer Not active Distributed landing panel Not active Select “Automatic answer”...

  • Page 93: Network And Devices

    Tab 5S Up 40515 - Tab 7S Up 40517 Network and devices Settings General Appearance Sounds Call Network and System Installer menu devices Network and devices Wi-Fi network card Network card status: active Connection properties Connected network: Rete000 View Wireless cloud service configuration Not associated Cloud service activation Cloud service status:...

  • Page 94: Wi-Fi Network Mode

    Tab 5S Up 40515 - Tab 7S Up 40517 5.5.1 Wi-Fi network mode Network and devices Connection properties Wi-Fi network card WPS mode Network card status: active Start WPS pairing Connection properties Rete000 Connected network: Rete000 WPA PSK - channel 2 - 45 dBm: 192,168.1.21 Searching for other networks...
  • Page 95 Tab 5S Up 40515 - Tab 7S Up 40517 SSID: Rete000 Encryption: IP address: Channel: Link speed: Signal level: Forget Click on the row relating to a network to access the related options: in this case, as the device is connected to a known network, only the “Forget”...
  • Page 96 Tab 5S Up 40515 - Tab 7S Up 40517 Connect to: Altrarete111 Connect to: Altrarete111 The “show” button disables the encryption of the entered text. Connection properties WPS mode Start WPS pairing Altrarete117 WPA PSK - channel 2 - 36 dBm: 192,168.1.21 Altrarete111 WPA PSK - channel 2 - 45 dBm...

  • Page 97: Wps Mode

    Tab 5S Up 40515 - Tab 7S Up 40517 5.5.2 WPS mode Connection properties Press the WPS button on your router WPS mode Start WPS pairing Altrarete111 WPA PSK - channel 2 - 36 dBm Altrarete117 WPA PSK - channel 2 - 45 dBm Altrarete222 WPA PSK - channel 2 - 45 dBm Altrarete333...

  • Page 98: Connection Problems

    Tab 5S Up 40515 - Tab 7S Up 40517 5.5.3 Connection problems Connection properties WPS mode Start WPS pairing Altrarete111 Cannot connect to this network Altrarete117 WPA PSK - channel 2 - 45 dBm Altrarete222 WPA PSK - channel 2 - 45 dBm Altrarete333 WPA PSK - channel 2 - 45 dBm If there are connection problems on the active network, the related icon appears in red and a text string indicates the...

  • Page 99: Cloud Service Status

    Not associated Cloud service activation Cloud service status: inactive Mobile device - 1 No devices paired with this position If the Vimar cloud services are not active on the device, the mobile device associations cannot be modified. Activating cloud services...
  • Page 100 Tab 5S Up 40515 - Tab 7S Up 40517 Click on the “Cloud service status” row to switch the function from active to inactive and vice versa. The cloud services activation request will generate a wait screen. Cloud services activated Once the process is completed successfully, the interface displays a confirmation message.

  • Page 101: Associating A Mobile Device

    Tab 5S Up 40515 - Tab 7S Up 40517 5.5.5 Associating a mobile device Network and devices Wi-Fi network card Network card status: active Connection properties Connected network: Rete000 View Wireless cloud service configuration Not associated Cloud service activation Cloud service status: active, connected Mobile device - 1 No devices paired with this position...
  • Page 102 Tab 5S Up 40515 - Tab 7S Up 40517 The mobile device now appears in the first position. Network and devices Cloud service status: inactive Giulio’s telephone Device paired Mobile device - 2 No devices paired with this position Mobile device - 3 No devices paired with this position Mobile device - 4 No devices paired with this position...
  • Page 103 Tab 5S Up 40515 - Tab 7S Up 40517 The device is now removed. Giulio’s telephone Pair again Remove The “Pair again” option is useful when having to restore the association of a device that is already recorded.

  • Page 104: System

    Tab 5S Up 40515 - Tab 7S Up 40517 System Settings General Appearance Sounds Call Network and System Installer menu devices System Software update Version: 3.1 20/05/2024 - update available Network diagnostics Check connection status and performance System information Check the software and hardware version details Revisit the introductory guide Find out how to make the most of your TAB S UP Function of capacitive keys...

  • Page 105: Firmware Updating

    Tab 5S Up 40515 - Tab 7S Up 40517 5.6.1 Firmware updating System Firmware updating Software update Version: 3.1 20/05/2024 - update available Network diagnostics The new version 4.12 is available Check connection status and performance System information This will take a few minutes, during which calls cannot be answered. Check the software and hardware version details Revisit the introductory guide Find out how to make the most of your TAB S UP...

  • Page 106: Network Diagnostics

    Tab 5S Up 40515 - Tab 7S Up 40517 5.6.2 Network diagnostics System Network diagnostics Software update Version: 3.1 20/05/2024 - update available Network diagnostics Wi-Fi connection Check connection status and performance System information Internet access Check the software and hardware version details IP check Revisit the introductory guide Find out how to make the most of your TAB S UP...

  • Page 107: Capacitive Key Functions

    - The Cyclic function is available as a configurable function only on the Self-start capacitive key. - The Scenario function is available as a configurable function only if the indoor station is associated with a Vimar View Wireless system, and solely on the Self-start and Light capacitive keys.

  • Page 108: Rebooting The Device

    Tab 5S Up 40515 - Tab 7S Up 40517 5.6.5 Rebooting the device System Do you really want to reboot the device? System information Check the software and hardware version details Revisit the introductory guide This will take a few minutes, during which calls can be answered. Find out how to make the most of your TAB S UP Function of capacitive keys Configure automatic opening parameters...

  • Page 109: Installer Menu

    Tab 5S Up 40515 - Tab 7S Up 40517 Installer menu Settings General Appearance Sounds Call Network and System Installer menu devices 5.7.1 PIN entry Enter the PIN Enter the PIN To access the installer menu the PIN is required. Enter the PIN Enter the PIN WRONG PIN...

  • Page 110: Installer Menu

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.2 Installer menu Installer menu Administration PIN Change the PIN required for advanced settings Videophone configuration Not configured Energy saving mode Not active Display alert key Active Display professional studio mode Active The installer menu has several functions, including: •...

  • Page 111: Administrator Pin

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.3 Administrator PIN Administration PIN CURRENT PIN not defined NEW PIN not defined REPEAT THE NEW PIN not defined Click on the “Administrator PIN” row to view a window for entering the values required to change it. Administration PIN Administration PIN CURRENT PIN...
  • Page 112 Tab 5S Up 40515 - Tab 7S Up 40517 The system explicitly confirms that the PIN has been recorded with a pop-up, which automatically disappears after 4 seconds or by pressing the “Close” button. Administration PIN WRONG PIN NEW PIN REPEAT THE NEW PIN If the current PIN entered is incorrect, the screen displays an error message;...

  • Page 113: Video Entryphone Configuration

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.4 Video entryphone configuration Installer menu Administration PIN Change the PIN required for advanced settings Videophone configuration Not configured Energy saving mode Active Display alert key Active Display professional studio mode Active ”Videophone configuration”...

  • Page 114: Primary Id Configuration

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.5 Primary ID configuration Choose the videophone configuration mode Primary configuration Secondary configuration Kit configuration Manual configuration Pressing the “Primary configuration” button, the choice will be highlighted by the coloured feedback and the process will start.

  • Page 115: Secondary Id Configuration

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.6 Secondary ID configuration Choose the videophone configuration mode Primary configuration Secondary configuration Kit configuration Manual configuration Pressing the “Secondary configuration” button, the choice will be highlighted by the coloured feedback and the process will start Configuration in progress...

  • Page 116: Edit Contacts List

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.7 Edit Contacts List Installer menu Edit contacts list Administration PIN Change the PIN required for advanced settings Videophone configuration Rossi Apartment Address: ID: 2 - Type: Apartment Edit contacts list F1 Master Edit contacts list ID: 2 - Actuation Type - Actuation class: F1...
  • Page 117 Tab 5S Up 40515 - Tab 7S Up 40517 Add an "Apartment", "Entrance Panel" or "Control Unit" element to the contacts list Edit contacts list Rossi Apartment ID: 2 - Type: Apartment F1 Master ID: 2 - Actuation Type - Actuation class: F1 F2 Master ID: 2 - Actuation Type - Actuation class: F2 Press the "+"...
  • Page 118 Tab 5S Up 40515 - Tab 7S Up 40517 Alla pressione della spunta, il nuovo elemento viene creato e si torna alla schermata principale che visualizzerà anche il nuovo appartamento. Nota: l'esempio illustra aggiunta di un "Appartamento"; per aggiungere una "Targa" o un "Centralino" la procedura è...
  • Page 119 Tab 5S Up 40515 - Tab 7S Up 40517 Device ID not defined DEVICE ID Enter the "Device ID" code of the new element. Name F2 Master NAME Insert the actuation name. Select icon Light Entrance Input Choose an icon to associate with the actuation and confirm. That is how the actuation will appear in the contacts list.
  • Page 120 Tab 5S Up 40515 - Tab 7S Up 40517 Edit the name of an element in the contacts list Edit contacts list Rossi Apartment ID: 2 - Type: Apartment F1 Master ID: 2 - Actuation Type - Actuation class: F1 F2 Master ID: 2 - Actuation Type - Actuation class: F2 Select the element for which you want to change the name.

  • Page 121: Restoring The Factory Settings

    Tab 5S Up 40515 - Tab 7S Up 40517 5.7.8 Restoring the factory settings Installer menu Energy saving mode Not active Display alert key Active Display professional studio mode Active Display professional studio mode Active Device reset Restore all settings to their factory values Do you really want reset to the default settings? All settings will be reset to the factory configuration.

  • Page 122: Integration With View Wireless Smart Systems

    Integration with View Wireless Smart systems General information The integration between Tab S Up video door entry indoor stations and Vimar’s View Wireless Smart Home system is designed to associate an indoor station with a View Wireless system, making the control of system functions available directly from the screen and, for scenarios only, from the capacitive keys (where configured).

  • Page 123: Introductory Guide

    Tab 5S Up 40515 - Tab 7S Up 40517 Introductory guide Introductory guide present in 7 languages (Italian, English, Spanish, German, French, Greek and Portuguese). The guide explains the graphic interface change and the introduction of Smart View Wireless functions to the user. In addition, it clarifies how to add an object to your favourites and how to associate a mobile device to receive calls.

  • Page 124: Homepage

    Tab 5S Up 40515 - Tab 7S Up 40517 Homepage Depending on whether the video entryphone is connected to a View Wireless Smart system or not, it has one of two different homepages: Purely video door entry system: Video door Functions Cameras Accesses and...

  • Page 125: Indoor Station Association

    Tab 5S Up 40515 - Tab 7S Up 40517 Indoor station association On the indoor station, access the Settings → Network and Devices and select View Wireless Cloud service configuration. A QR code is displayed with the association instructions. Network and devices Associate the video entryphone with a View Wireless Connected network: XXXXX...

  • Page 126: Lights

    Tab 5S Up 40515 - Tab 7S Up 40517 6.6.1 Lights In the Lights aggregator, you can view the status of lights shown by the IoT gateway of the View Wireless Smart system. Icon Icon description On/off light in ON status ROOM Object name On/off light in OFF status...

  • Page 127: Curtains And Roller Shutters

    Tab 5S Up 40515 - Tab 7S Up 40517 6.6.2 Curtains and roller shutters In the Curtains and Roller shutters aggregator, you can view the status of curtains and roller shutters shown by the IoT gateway of the View Wireless Smart system. Icon Icon description Roller shutter completely open...
  • Page 128 Tab 5S Up 40515 - Tab 7S Up 40517 Roller shutter widget Widget adjustments Group of roller shutters [*], the possible adjustments Roller shutter without position are: • fully opening the roller shutter using the dedicated button • fully closing the roller shutter using the dedicated button SHUTTER •...
  • Page 129 Tab 5S Up 40515 - Tab 7S Up 40517 For curtains, you can: • brief touch to open widget and access controls to: - open/close the curtain completely - [if with position] select the level of aperture of the curtain - interrupt the curtain movement •...

  • Page 130: Various

    Tab 5S Up 40515 - Tab 7S Up 40517 6.6.3 Various In the Various aggregator, you can view the status of generic 1-way switches shown by the IoT gateway of the View Wireless Smart system. 1-way switch icon Icon description 1-way switch in ON status ROOM Object name...

  • Page 131: Scenarios

    • bottom: text label with name of scenario object • top: if enabled from the menu, relevant object room label display To create scenarios, please refer to the documentation relating to the Vimar View Wireless system and the View mobile App.

  • Page 132: Sensors

    Tab 5S Up 40515 - Tab 7S Up 40517 6.6.5 Sensors In the Sensors aggregator, you can view the status of sensors shown by the IoT gateway of the View Wireless smart system. Sensors icon Icon description Sensor in ON status ROOM Object name Sensor in OFF status...

  • Page 133: Indoor Station Dissociation

    Tab 5S Up 40515 - Tab 7S Up 40517 Indoor station disassociation On the indoor station, access the Settings → Network and Devices and select View Wireless Cloud service configuration. An information screen is displayed, where the Dissociate push button is also available. View Wireless Cloud service Network and devices Connected network:...
  • Page 134 Tab 5S Up 40515 - Tab 7S Up 40517...
  • Page 135 Viale Vicenza 14 36063 Marostica VI - Italy MU_40515_40517_EN 08 2412 www.vimar.com...

This manual is also suitable for:
