Summary of Contents for Vimar Tab 40607

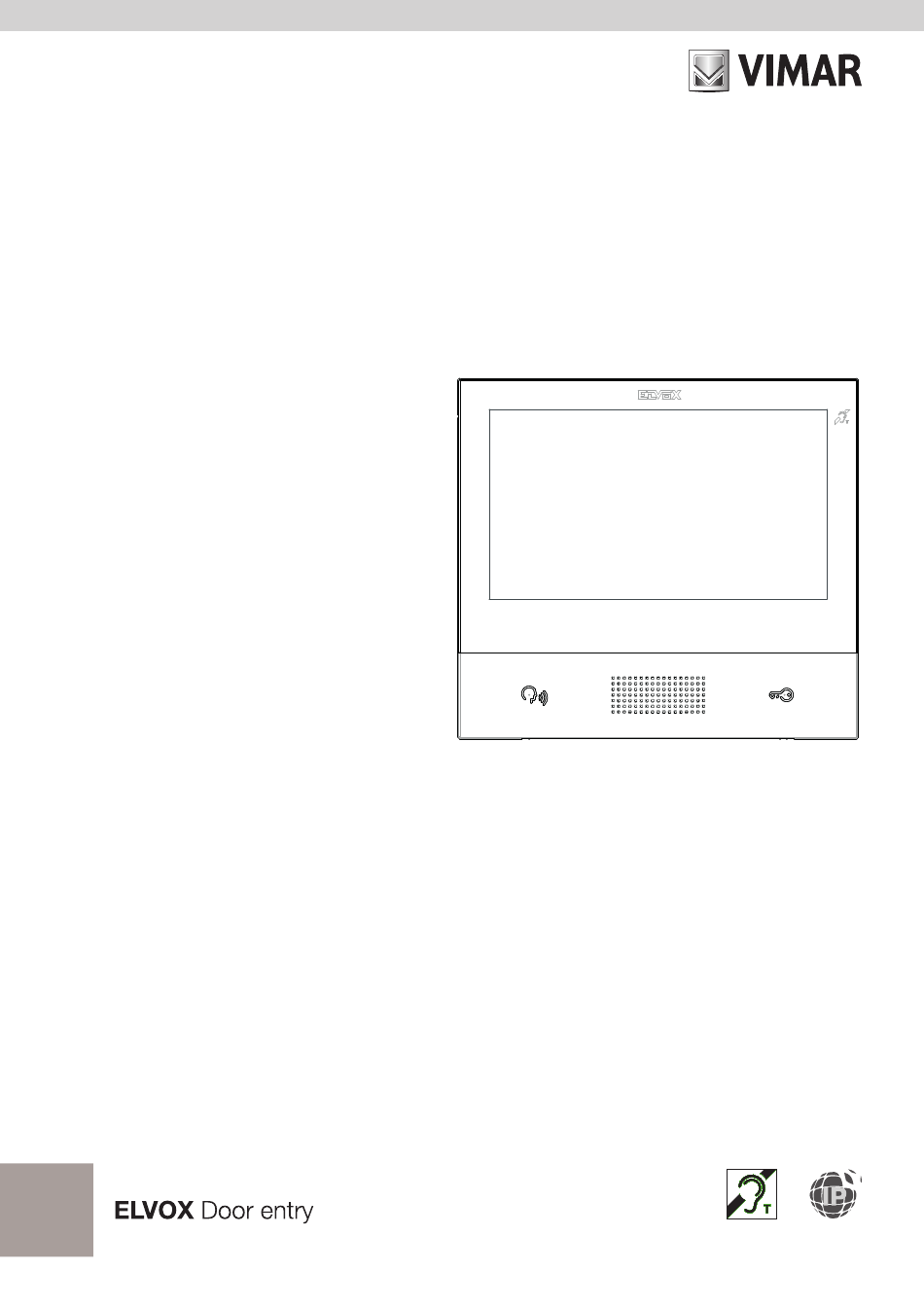

  • Page 1 User Manual 40607 TAB 7S IP hands-free video entryphone...
  • Page 2: Table Of Contents

    TAB: 40607 CONTENTS Rules of Installation, Regulatory compliance, WEEE - Information for users ............. 3 Description ................................4 1.1. Technical characteristics ..........................4 1.2. Main functions ............................4 1.3. Audio frequency function for hearing aids (teleloop) .................. 4 1.4. Maintenance .............................. 4 1.5.
  • Page 3: Rules Of Installation, Regulatory Compliance, Weee - Information For Users

    Standards EN 301 489-17, EN 300 328, EN 62311, EN 60065, EN60118-4. Vimar SpA declares that the reference radio equipment type 40607 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.vimar.com...
  • Page 4: Description

    • Touchscreen + 2 backlit capacitive keys. • Full-duplex hands-free with echo canceller and teleloop function. • Assembly: wall-mounting, with metal bracket, in box: circular 2M (Vimar V71701), 3M (Vimar V71303, V71703) horizontal and vertical, 4+4M (Vimar V71318, V71718) and square, British standard.
  • Page 5: Disclaimer - Operation Of App For Tab 7S Ip

    Internet type of data contract on the smartphone and tablet Vimar will not be held responsible for any malfunction in the event that one of the above items does not comply with the specific requirements for operation of the product.
  • Page 6: Description Of Buttons And Main Screen

    TAB: 40607 Description of buttons and main screen 1.6. Main screen a) Talk/Listen Button - When an incoming call is received, pressing this button accepts the call. During conversa- tion, this button toggles between microphone on/off (mute function). In other cases, pressing the button executes the configured function, e.g.
  • Page 7 TAB: 40607 • Home: the user’s video entryphones. • Favourites: contacts selected by the user for quick access from the Favourites menu. • Users: other system users. Speech Units: accessible speech units in the system. • • CCTV: CCTV cameras configured to be accessible from the video entryphone. •...
  • Page 8 TAB: 40607 Quick settings menu – Access to the main settings: ringtone volume, ringtone on/off, display brightness, video voicemail service on/off, activate cleaning mode. Status – Displays and allows you to set the user status, i.e. all devices, video entryphones and mobile devices that belong to the same user: Online or Do Not Disturb.
  • Page 9: Introduction

    The same user can be associated with multiple video entryphones, and even mobile devices (smartphones or tablets) on which the Video Door app by Vimar has been installed. When the system is configured, one of the user’s video entryphones is assigned as the master device. Certain user settings such as WiFi connectivity are only accessible from the master device.
  • Page 10: Call Functions

    TAB: 40607 3. Call functions 3.1 Call from Speech Unit When a call from Speech Unit is made to a user, if the user's Status is Do Not Disturb and the video voicemail service is enabled, the call is automatically rejected or diverted to voicemail. The video entryphone does not ring or display any image.
  • Page 11 TAB: 40607 To adjust the display brightness using the pop-up slider. If the user presses reject, the call is cut off and all devices return to standby. If the user answers the call, con- versation starts between the Speech Unit and the device that the user answered from, while the other devices return to standby.
  • Page 12: Speech Unit Self-Start

    TAB: 40607 Both when calling and during the conversation, pressing the button activates the lock output of the calling Speech Unit (if the function was configured by the installer). Additionally, if the End Call With Key Buttonoption is enabled, the call is rejected (incoming) or ended (call in progress). 3.2 Speech Unit self-start In standby with the screen on or off, pressing the button activates self-start of a specific Speech Unit:...
  • Page 13: Calling From Or Directly To Another Video Entryphone

    TAB: 40607 outgoing calls. It is also possible to send and receive calls from/to other devices (video entryphones or mobiles) belonging to the same user. Enter the Home section of the Contacts List, select the device and start the call by pressing the corresponding icon.
  • Page 14 TAB: 40607 Conversation with switchboard...
  • Page 15: Settings

    TAB: 40607 4 Settings The Settingspage, which is accessed by pressing the button on the main screen, allows you to customise and configure some parameters of the video entryphone system. The page is divided into the following sections: General Displays and Buttons Sounds Call Options WiFi...
  • Page 16: Display And Buttons

    (smartphone or tablet) on which the Video Door app by Vimar has been installed. If you have a home WiFi network via your own router or access point, select ON mode and follow the instruc- tions in the next paragraph, 3.5.1.
  • Page 17: On (Station)

    TAB: 40607 4.5.1 ON (station) In this mode, the video entryphone connects to an existing WiFi network. Select the network to join from the list of available networks. If the network is encrypted, the virtual keyboard is displayed so that you can type and confirm the password (top right of the screen).
  • Page 18: Mobile Devices

    TAB: 40607 • Channel: to set up the WiFi channel (recommended: Auto). • Password: to set the network password. • Connected Devices: the number of devices connected to the network. • Show QRCode: to display a pop-up with the QRCode needed to complete the Connection Wizard on the Video Door app.
  • Page 19: System

    TAB: 40607 repeated. • CLOUD Services: to enable/disable CLOUD services. • CLOUD Status: status of CLOUD services. • Mobile Devices List: mobile devices already associated with the video entryphone system and/or slots available for associating new devices. The available slots are identified by the following names: Mobile Device1, Mobile Device2, Mobile Device3.
  • Page 20: Contacts List

    TAB: 40607 5 Contacts List The Contacts List contains all the contacts in the system to which the video entryphone has access. The contacts are divided by type into the following sections: Home Favourites Users Speech Units CCTV Porters Actuations Selecting a section displays the contacts contained therein.
  • Page 21: Home

    TAB: 40607 Contacts List 5.1 Home Contacts relating to video entryphones and mobile devices belonging to the same user. This section always contains the special contact All My Devices, which allows you to call or send a message to all your user's devices.
  • Page 22 TAB: 40607 To remove it from the Favourites, press : the icon changes to and the contact is removed from the Favourites section and the Favourites Menu. Alternatively, you can also remove it by selecting the contact in the Favourites section and pressing the icon.
  • Page 23: Users

    TAB: 40607 Favourites Menu 5.3 Users Contacts relating to other system users to which you can initiate a call or send a message. The following commands are available for contacts in this section: 5.4 Entry panels Contacts relating to speech units to which you can initiate a self-start. If the user has been enabled by the installer during the system configuration phase, it is also possible to activate the speech unit’s lock output.
  • Page 24: Concierge

    TAB: 40607 To stop viewing. To restart the viewing end timer. To adjust the display brightness using the pop-up slider. CCTV display 5.6 Switchboards Contacts relating to porter stations to which you can initiate a call or send a message. The following commands are available for contacts in this section: 5.7 Actuations Contacts relating to actuators (lock outputs and relay outputs) that can be activated.
  • Page 25 TAB: 40607 Feedback icons The following commands are available for contacts in this section:...
  • Page 26: Call Log

    TAB: 40607 6 Call Log The Call Log is organised into two sections, All calls and Missed calls. The first section lists all outgoing and incoming calls. The second section lists only rejected calls and those that the user did not answer. For each section, the icon can be used to respectively delete the history of all calls, or to delete missed calls only.
  • Page 27 TAB: 40607 Main screen - New missed calls If the user's State is Do not Disturb, automatically rejected calls are not recorded in the history. If the State is Online and the video voicemail service is enabled, calls forwarded to the voicemail service are recorded as missed calls.
  • Page 28: Messages

    TAB: 40607 7 Messages Incoming and outgoing sent messages are contained in the Received and Sent sections. The icon enables you to delete the messages in each section. Messages The sender/recipient name, date, time and a preview of the message content are indicated for each message in the list.
  • Page 29 TAB: 40607 Message received display To write a message, access the New Message window using the New command. The window contains two areas: selecting the first area displays a multiple choice list which is used to choose recipients from those avail- able in the Contacts List;...
  • Page 30 TAB: 40607 Write new message Text messages must contain no more than 160 characters. Images cannot be attached to sent messages. Sending a message to multiple recipients equates to sending the same message to each recipient, and the corresponding details are recorded in the Sent Items section. When you have new unopened messages, the number of messages is shown on the main screen above the Messages icon.
  • Page 31: Video Messages

    TAB: 40607 8 Video Messages The page shows messages recorded by the voicemail service. The icon next to Video Messages allows you to delete all messages. Voicemail The caller name, date and time are indicated for each message in the list. The symbol indicates new mes- sages that have not yet been opened.
  • Page 32 TAB: 40607 Play recorded video message The video entryphone can store up to 100 messages. If the message box is full, the active answering service icon in the main page header turns red. Additionally, a warning message appears on the Video Messages page. At least one message must be deleted to allow the service to record new messages.
  • Page 33: Alert

    TAB: 40607 9 Alert This icon/command allows you to send an instant notification to all the porter stations in the system. A pop-up prompt asks you to confirm before sending. The porter switchboard service treats this notification as a high priority service request.
  • Page 34 Viale Vicenza 14 36063 Marostica VI - Italy 49400925A0_MU_EN 01 1701 www.vimar.com...
