Use and Care Guide and Installation Instruction
For questions about features, operation/performance, parts, accessories, or service, call: 1-800-422-1230
or visit our website at... www.kitchenAid.com
In Canada, call: 1-800-807-6777, or visit our website at... www.KitchenAid.ca
W11533205
05-May-2021 10:43:59 EDT | RELEASED

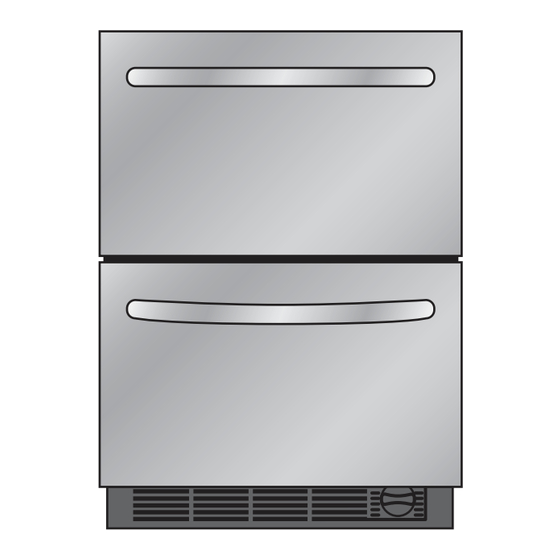

DOUBLE DRAWERS
REFRIGERATOR/FREEZER
REFRIGERATOR/REFRIGERATOR
Models: KUDR204KSB, KUDR204KPA, KUDF204KSB,
KUDF204KPA
TABLE OF CONTENTS
DOUBLE DRAWERS SAFETY .........................................2
Proper Disposal of your Old Double Drawer ......................3
DESIGN SPECIFICATIONS ..............................................3
24" Drawer Models ............................................................. 3
INSTALLATION REQUIREMENTS ...................................3
Tools and Parts .................................................................3
Location Requirements .....................................................3
Product Dimension ...........................................................4
Custom Overlay Drawer Panels .........................................5
Electrical Requirements ....................................................6
INSTALLATION INSTRUCTIONS .....................................6
Unpack the Refrigerator Drawers ......................................6
Water Supply Requirements .............................................7
Connect Water Supply ......................................................7
Move the Refrigerator Drawers to Final Location ................8
Level the Refrigerator Drawers ..........................................8
Install Custom Overlay Panel .............................................9
Complete Installation .........................................................9
REFRIGERATOR DRAWERS USE ..................................9
Normal Sounds .................................................................9
Ensuring Proper Air Circulation .........................................9
Using the Controls ...........................................................10
Ice Maker and Water Filtration System.................. ......11
CARE AND CLEANING .................................................. 12
Cleaning .........................................................................12
Removing Base Grille .....................................................13
Power Interruptions .........................................................13
Vacation Care .................................................................13
Moving Care ...................................................................13
TROUBLESHOOTING .................................................... 14
ASSISTANCE ................................................................. 16
In the U.S.A .....................................................................16
In Canada .......................................................................16
Accessories ....................................................................16
PRODUCT DATA SHEETS ............................................. 17
In some European factories the letter "W" of the part code mentioned herein will be automatically
replaced by the number "4000" (e.g. "W12345678" becomes "400012345678")
1
Advertisement
Table of Contents
Related Manuals for KitchenAid KUDR204KPA
Summary of Contents for KitchenAid KUDR204KPA
-
Page 1: Table Of Contents
Use and Care Guide and Installation Instruction For questions about features, operation/performance, parts, accessories, or service, call: 1-800-422-1230 or visit our website at... www.kitchenAid.com In Canada, call: 1-800-807-6777, or visit our website at... www.KitchenAid.ca TABLE OF CONTENTS DOUBLE DRAWERS SAFETY .........2 Proper Disposal of your Old Double Drawer ......3... -
Page 2: Double Drawers Safety
DOUBLE DRAWERS SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. -
Page 3: Proper Disposal Of Your Old Double Drawer
IMPORTANT: This appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shops, offi ce and other working KUDR204KSB KUDR204KPA environments; Farm houses and by clients in hotels, motels and other residential type environments;... -
Page 4: Product Dimension
Bed and breakfast type environments; For flush installation, the power outlet can be installed in adjacent cabinetry with a cutout on the power cord side for Catering and similar non-retail applications. routing of the power cord. NOTES: The power outlet can also be recessed on the back wall For the double drawer to be fl... -
Page 5: Custom Overlay Drawer Panels
Style 2- Overlay (top view) Drawer depth dimensions: " (60.6 cm) Style 1 - Stainless steel (side view) ” (105.5 cm)** " (99.3 cm) " " " (55 cm) (55 cm) (44.3 cm) " (58.6 cm) " (86.8 cm)* Add 3/4” (1.9 cm) to the height dimension when leveling legs are fully extended. -
Page 6: Electrical Requirements
Top and bottom overlay drawer panel dimensions: Electrical Requirements Upper Door ” (60.3 cm) 11/16” 11/16” (1.75 cm) (1.75 cm) ” (56.8 cm) 3/4” (1.9 cm) Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. -
Page 7: Water Supply Requirements
Dispose of and/or recycle all packaging materials. Connect Water Supply After all packaging materials have been removed, clean the (Refrigerator/Freezer Drawers only) inside of your double drawer the cleaning instructions in “Cleaning” section. Connect to water line: Clean before using: 1. -
Page 8: Move The Refrigerator Drawers To Final Location
2. Turn ON shutoff valve. Level the Refrigerator Drawers 3. Check for leaks. Tighten any connections (including IMPORTANT: connections at the valve) or Overlay Model-Be sure to install the custom overlay drawer nuts that leak. panels before leveling the refrigerator drawers. See “Install Custom Overlay Drawer Panels.”... -
Page 9: Install Custom Overlay Panel
IMPORTANT: Create a custom overlay panel according to the specifi cations in “Custom Overlay Drawer Panels.” KitchenAid is not responsible for the removal or addition of molding or decorative panels that would not allow access to the refrigerator for service. -
Page 10: Using The Controls
Viewing Celsius temperatures: Using the Controls Press the F/C touch pad to toggle between displaying the The control panels for both double drawer models are located temperature in degrees in the upper drawer. To view and set the Upper and Lower Fahrenheit and degrees control panel, pull out the Celsius. -
Page 11: Ice Maker And Water Filtration System
shut off automatically when the temperature returns to normal. Max Cool: To let you know an Over Temperature condition occurred, the indicator light will continue to flash until the Reset Alarm touch The Max Cool feature assists with pad is pressed. periods of heavy usage, full grocery If the over temperature condition is still present when an Over loads or temporarily warm room... -
Page 12: Care And Cleaning
power consumption. If you do not need the ice making With the filter cap in the (including not automatically supplying water), you should turn vertical position, insert the new OFF the ice maker. (The indicator light will dim). filter into the base grille until it stops. -
Page 13: Removing Base Grille
3. Wash stainless steel and painted metal exteriors with a 2. Using a Phillips screwdriver, remove the two screws. clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners, or cleaners 3. -
Page 14: Troubleshooting
TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. - Page 15 GENERAL OPERATION Possible Causes and/or Recommended Solutions The refrigerator drawers seems to The sounds may be normal for your refrigerator drawers.? make too much noise See “Normal Sounds.” The divider between the two The warmth is probably due to normal operation of the automatic exterior compartments is warm moisture control? If still concerned, call for service.
-
Page 16: Assistance
Canada. For Further Assistance If you need further assistance, you can write to KitchenAid In the U.S.A. Canada with any questions or concerns at: KitchenAid Canada... -
Page 17: Product Data Sheets
PRODUCT DATA SHEETS Base Grille Water Filtration System Tested and certified by NSF International against ANSI/NSF Standard 42 for the reduction of Chlorine, Model WF-L200V capacity 200 gallons (757 liters) Taste and Odor, Particulate Class lll*; and against ANSI/NSF Standard 53 for the reduction of Lead, Model WF-NL120V capacity 120 gallons (454 liters) Mercury, Benzene, and p-dichlorobenzene. - Page 18 ® /™ ©2020 All rights reserved. Used under license in Canada. Tous droits réservés. Utilisé sous licence au Canada. Todos los derechos reservados. Usado en Canadá bajo licencia. W11533205 12/2020 In some European factories the letter "W" of the part code mentioned herein will be automatically 05-May-2021 10:43:59 EDT | RELEASED replaced by the number "4000"...
