KitchenAid Architect Series II KURS24LSBS Dimension Manual

PRODUCT MODEL NUMBERS
KURS24LS
KURS24RS
Electrical: A 115 Volt, 60 Hz., AC only 15 or 20
amp fused (or circuit breaker), grounded electrical
supply is required. It is recommended that a
separate circuit serving only your refrigerator be
provided. Use an outlet that cannot be turned off
by a switch. Do not use an extension cord.
LOCATION REQUIREMENTS
" (6.35 mm)
2 " (6.35 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Compact Refrigerator

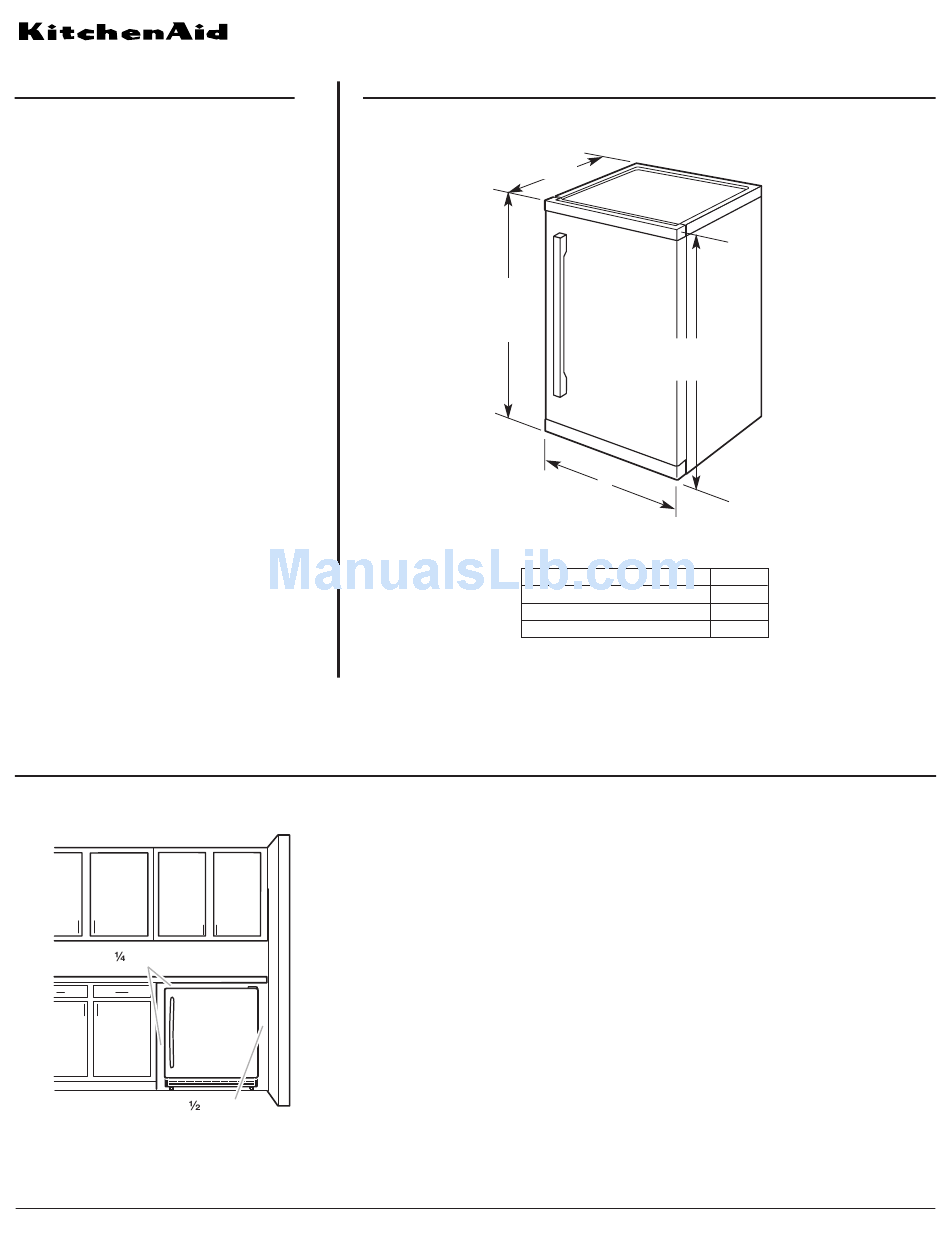

OVERALL DIMENSIONS
C
excluding
handles
B
overall
height
including
hardware
A. Width
B. Overall height
C. Depth (excluding handles)
D. Cabinet height
If your refrigerator is to be built-in, to ensure proper ventilation for
your refrigerator, allow for 1/4" in. (6.35 mm) space on each side and
at the top. When installing your refrigerator next to a fixed wall and the
hinge side is next to the wall, leave 2-1/2" (6.35 cm) minimum to allow
for the door to swing open. To open door wider, leave more space.
NOTE: Do not install the refrigerator near an oven, radiator, or other
heat source, nor in a location where the temperature will fall below
55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
D
cabinet
height
A
23 5/8"
34 1/2"
23 5/8"
34 1/4"
Ref. 2300274
07-10-06
