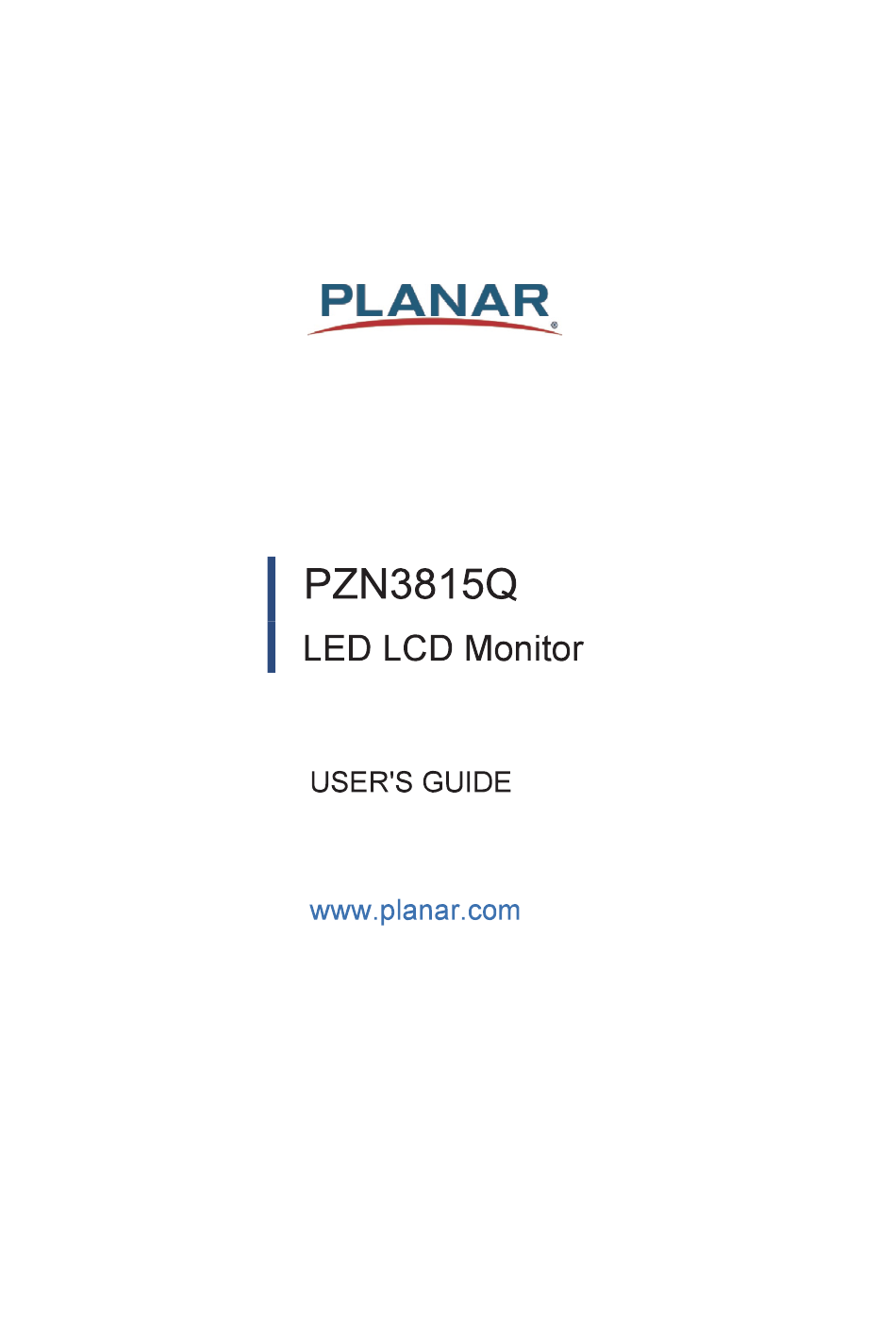

- Page 2 Disclaimer The information contained in this document is subject to change without notice. Planar Systems,Inc. makes no warranty of any kind with regard to this material. While every precaution has been taken in the preparation of this manual, the Company shall not be liable for errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance,or use of this material.
- Page 3 Rear View of the Product ..................9 Installation ........................10 Basic Operation ......................12 OSD Menu ........................13 Supporting Timing Modes ..................20 Technical information ....................21 Wall-mounted installation instructions ..............22 Care and Maintenance .................... 23 Troubleshooting ......................23 Planar Support ......................24...
- Page 8 ® USB-C Cable(100W） USB-A to USB-B Cable DP Cable VESA plate adapter...
- Page 9 Use included styrofoam to lay the monitor down. Styrofoam...
- Page 10 or cushion...
- Page 11 PIP/PBP / PXP Audio input / Down Volume / KVM Toggle / Up...
- Page 12 USB Gen3.2 Gen1) (USB Gen3.2 Gen1) (USB Gen3.2 Gen1) USB-C (96W HDMI HDMI...
- Page 13 USB-C,HDMI or DP Note: In order to power the connected device (laptop, phone, tablet) via Type-C cable, a 100W Type-C cable is required. This monitor ships with a 100W USB-C cable. The KVM switch allows you to control two separate PCS with one monitor-keyboard-mouse setup.
-
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... - Page 15 • Power Button: Press this button to switch ON/OFF monitor’s power. • Power Indicator: Blue — Power on mode. Orange — Power saving mode. [M]: Menu / Exit: Activates OSD menu or exit selection. : Down When OSD is Off, short press activates the PIP/PBP toggle while long press activates the PXP Audio Input toggle.
-
Page 16: Picture Mode
PICTURE MODE: STANDARD, MOVIE, GAME, TEXT, MONO... - Page 17 (Brightens dark image)
- Page 19 QUICK START MODE (Splash screen is skipped when On): OFF/ON...
- Page 20 PIP (Picture-in-Picture): The sub source signal is displayed with the main source signal. Resolution for PIP window are as follows: Small:800 x 600 Middle: 1024 x 768 Large: 1280 x 800 PBP (Picture-by-Picture): The main source and the sub source signals are displayed side by side with equal display sizes.
- Page 22 USB CHARGE: OFF / ON Note: USB Charge is off by default. Turn On to use USB hub. SERIAL NO.: Monitor serial number.
- Page 23 Preset HDMI/Displayport/Type C Modes Standard Resolution (Hz) TYPE-C HDMI 640 × 480 @ 60 640 × 480 @ 67 640 × 480 @ 72 640 × 480 @ 75 SVGA 800 × 600 @ 56 SVGA 800 × 600 @ 60 SVGA 800 ×...
- Page 24 LCD Panel Driving system TFT Color LCD Size 95.25 cm(37.5") Pixel pitch 0.22908 (H) x 0.0.22908 (V) mm Curvature 2300R Input Video Digital H-Frequency 97.4-99.6 kHz V-Frequency 59.4-60.6 Hz Display Colors 1.07 Billion colors Max. Resolution 3840x1600 @75Hz Plug & Play DDC 1/ 2B / CI or VESA DDC2B™...
- Page 25 styrofoam...
- Page 27 2184260...
- Page 28 6799 NE Bennett Street,Hillsboro OR 97124 1/2025...
