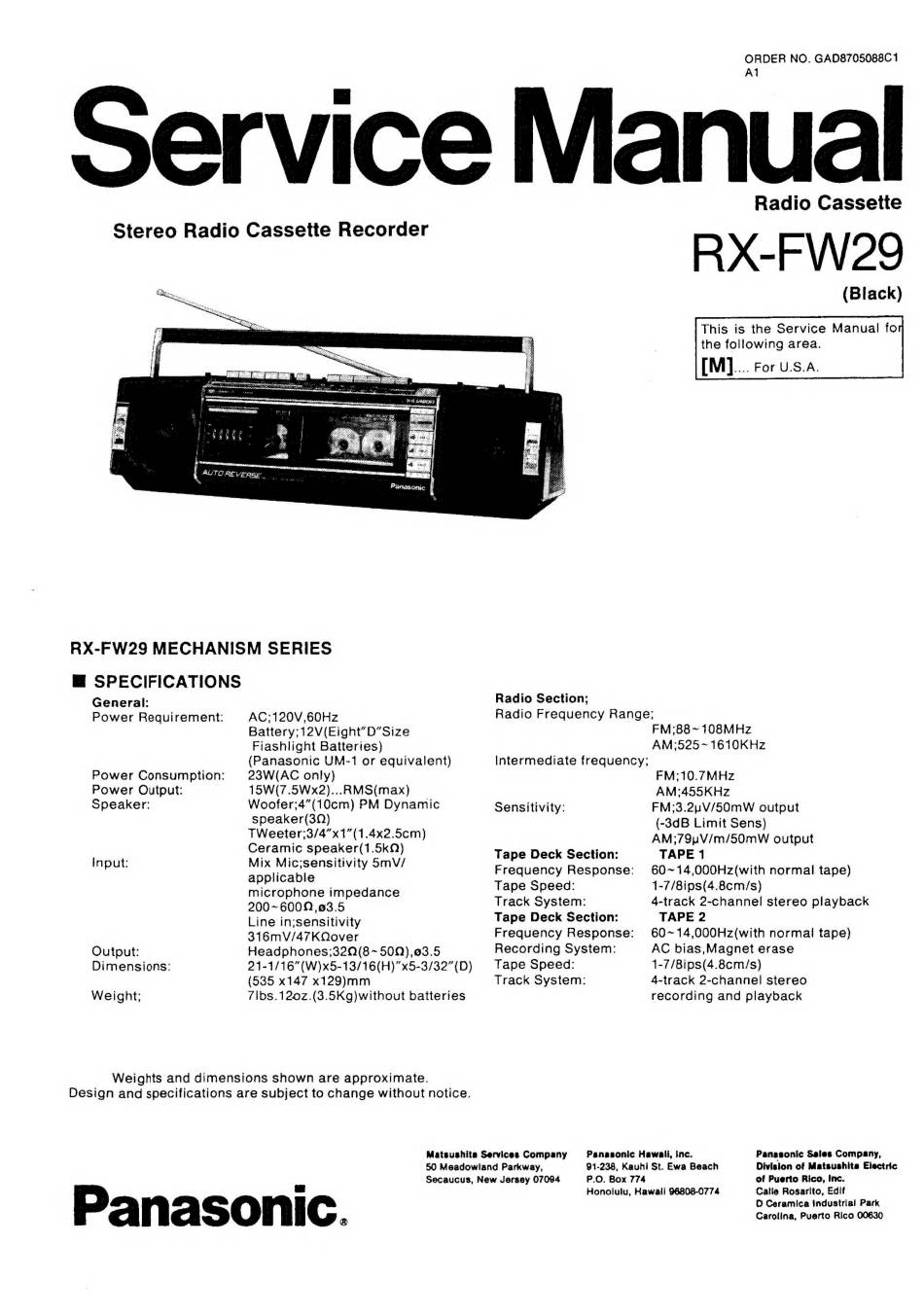

Panasonic RX-FW29 Service Manual

Stereo Radio Cassette Recorder
iN te,
RX-FW29 MECHANISM SERIES
M@ SPECIFICATIONS
General:
Power Requirement:
Power Consumption:
Power Output:
Speaker:
Input:
Output:
Dimensions:
Weight;
AC;120V,60Hz
Battery; 12V(Eight'D'Size
Fiashlight Batteries)
(Panasonic UM-1 or equivalent)
23W(AC only)
15W(7.5Wx2)...RMS(max)
Woofer;4"(10cm) PM Dynamic
speaker(3Q)
TWeeter;3/4"x1"(1.4x2.5cm)
Ceramic speaker(1.5kQ)
Mix Mic;sensitivity 5mV/
applicable
microphone impedance
200~6002,03.5
Line in;sensitivity
316mMV/47KOover
Headphones ;320(8~ 500),03.5
21-1/16" (W)x5-13/16(H)"x5-3/32"(D)
(535 x147 x129)mm
7lbs.120z.(3.5Kg)without batteries
Weights and dimensions shown are approximate.
Design and specifications are subject to change without notice.
Radio Section;
ORDER NO. GAD8705088C 1
Al
Radio Cassette
RX-FW29
(Black)
This is the Service Manual fo
the following area.
[M].... For u.s.a.
Radio Frequency Range;
Intermediate frequency;
Sensitivity:
Tape Deck Section:
Frequency Response:
Tape Speed:
Track System:
Tape Deck Section:
Frequency Response:
Recording System:
Tape Speed:
Track System:
FM:88 ~ 108MHz
AM:525~ 1610KHz
FM;10.7MHz
AM;455KHz
FM;3.2uV/50mW output
(-3dB Limit Sens)
AM;79uV/m/50mW output
TAPE 1
60~14,000Hz(with normal tape)
1-7/8ips(4.8cm/s)
4-track 2-channel stereo playback
TAPE 2
60~ 14,000Hz(with normal tape)
AC bias,Magnet erase
1-7/8ips(4.8cm/s)
4-track 2-channel stereo
recording and playback
Matsushita Services Company
Panasonic Hawaili, Inc.
50 Meadowland Parkway,
Secaucus, New Jersey 07004
Panasonic.
91-238, Kauhi St. Ewa Beach
P.O. Box 774
Honolulu, Hawali 96808-0774
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Calle Rosarito, Edif
0 Ceramica industrial Park
Carolina, Puerto Rico 00630
