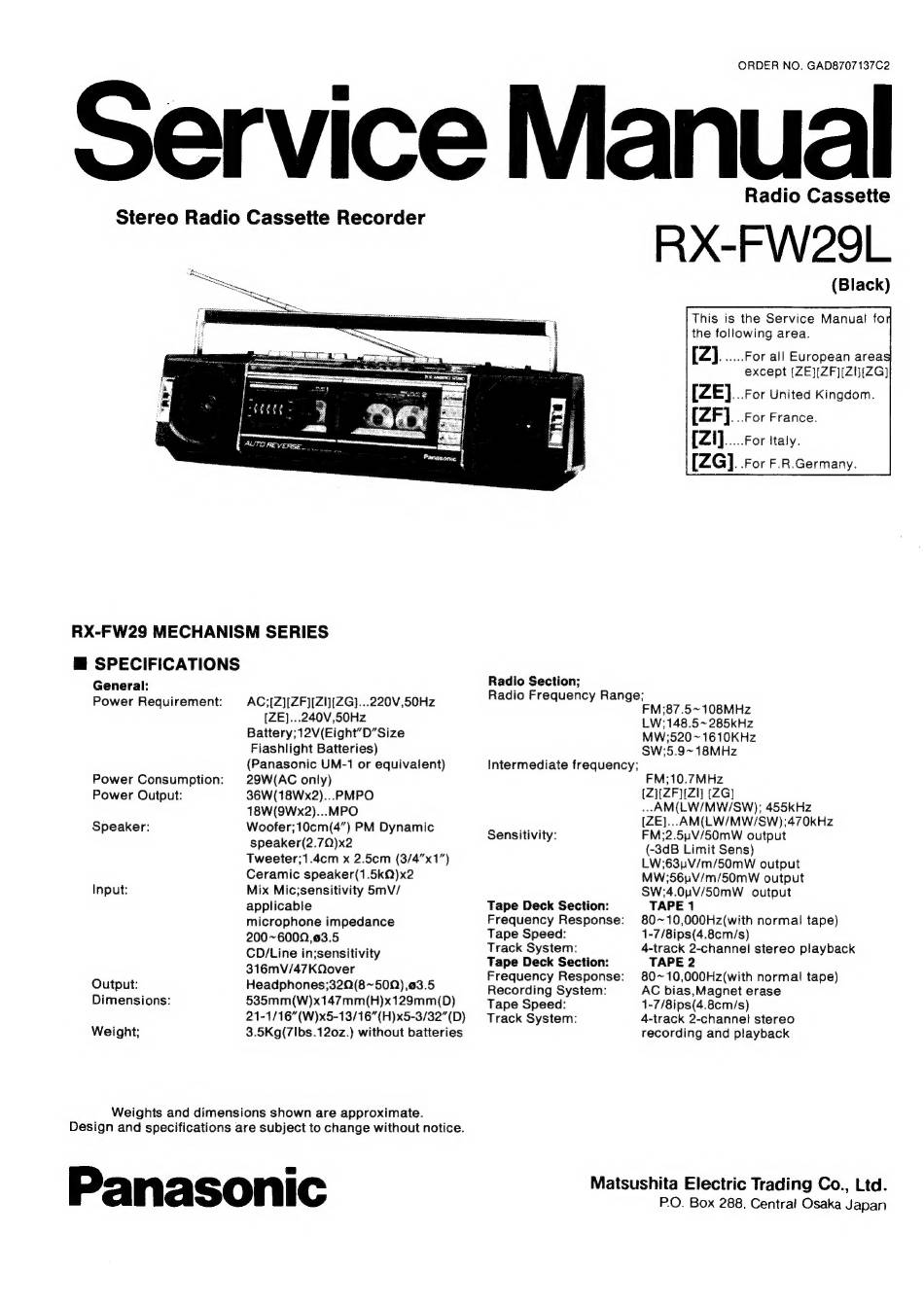

Panasonic RX-FW29 Service Manual

ORDER NO. GAD8707137C2
Service Manual
Stereo Radio Cassette Recorder
RX-FW29 MECHANISM SERIES
@ SPECIFICATIONS
General:
Power Requirement: AC;[Z)][ZF][Z1][ZG]...220V,50Hz
(ZE]...240V,50Hz
Battery;12V(Eight'D'Size
Fiashlight Batteries)
(Panasonic UM-1 or equivalent)
29W(AC only)
36W(18Wx2)...PMPO
18W(9Wx2)...MPO
Woofer;10cm(4") PM Dynamic
speaker(2.7Q)x2
Tweeter;1.4cm x 2.5cm (3/4"'x1")
Ceramic speaker(1.5kQ)x2
Mix Mic;sensitivity 5mV/
applicable
microphone impedance
200 ~6000,63.5
CD/Line in;sensitivity
316mV/47KQover
Headphones;320(8~50Q),03.5
535mm (W)x147mm(H)x129mm(D)
21-1/16" (W)x5-13/16"(H)x5-3/32"(D)
3.5Kg(7lbs.120z.) without batteries
Power Consumption:
Power Output:
Speaker:
Input:
Output:
Dimensions:
Weight;
Weights and dimensions shown are approximate.
Design and specifications are subject to change without notice.
Panasonic
Radio Cassette
RX-FW29L
(Black)
This is the Service Manual fo
the following area.
[Z]. ies For all European areas
except (ZE}[ZF][Z!][ZG]
[ZE]...For United Kingdom.
[ZF]. ..For France.
For Italy.
. For F.R.Germany.
Radio Section;
Radio Frequency Range;
FM;87.5~108MHz
LW;148.5~285kHz
MW;520~ 1610KHz
SW;5.9~18MHz
Intermediate frequency;
FM;10.7MHz
([Z}{[ZFI[ZI] [ZG]
. AM(LW/MW/SW); 455kHz
[ZE]...AM(LW/MW/SW);470kHz
FM;2.5uV/50mW output
(-3dB Limit Sens)
LW;63uV/m/50mW output
MW;56uV/m/S50mW output
SW;4.0uV/50mW output
TAPE 1
80~10,000Hz(with normal tape)
1-7/8ips(4.8cm/s)
4-track 2-channel stereo playback
TAPE 2
80~10,000Hz(with normal tape)
AC bias,Magnet erase
1-7/8ips(4.8cm/s)
4-track 2-channel stereo
recording and playback
Sensitivity:
Tape Deck Section:
Frequency Response:
Tape Speed:
Track System:
Tape Deck Section:
Frequency Response:
Recording System:
Tape Speed:
Track System:
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
