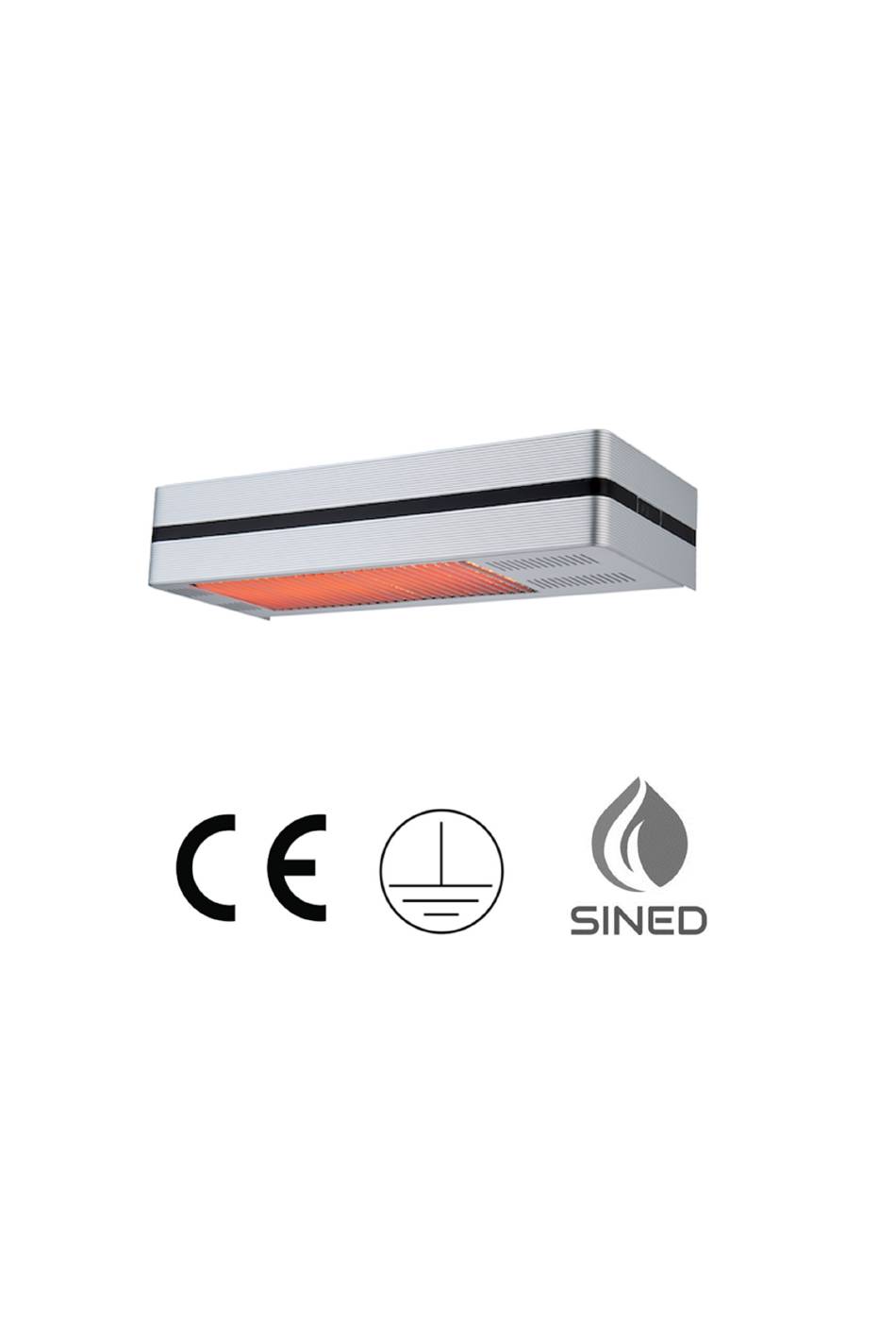

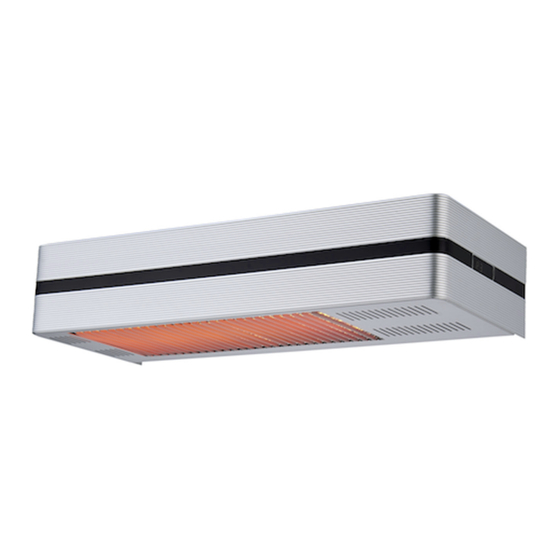

- Page 1 Version: 2021-09-16 Infrared heater Special Asymmetrical Irradiation CALDO-I-BOX W20A17MR-LG User's manual The photo is only indicative, the real device may appear slightly different in color.
-
Page 2: Specifications
SPECIFICATIONS Model CALDO-I-BOX W20A17MR-LG Commands Remote control Voltage 230-240V~, 50-60Hz Power(W) 2000 Installation Wall Product Dimensions(mm) 602*250*120 Insulation Class I Water Protection IP65 Lamp LG: Low glaring IMPORTANT INFORMATION Read the user manual carefully before installing and using the infrared heater. This operating manual contains important information about your safety, as well as some recommendations on the proper use of the appliance and its maintenance. - Page 3 body. • Do not place any clothing, towels or the like on top of the heater to dry. Risk of overheating and fire • Do not leave the heater unattended during use. • Do not use this heater on a wet surface, or where it can fall or be pushed into water. •...
-
Page 4: Wall Installation
small rooms when occupied by people who are unable to leave the room alone, unless constant supervision is provided. • If the customer wishes to have a copy of this manual, please contact Customer Service. 2 INSTALLATION The CALDO-I-BOX heater is designed specifically for installation and use in outdoor environments such as verandas, terraces, patios, courtyards, porches, gazebos and outdoor areas. - Page 5 2.1.2 Wall-mounting operations ！NOTE: The structural elements of the wall and fasteners must be able to support 5 times the weight of the heater. NOTE: Select the installation location carefully, ensuring that all minimum distances and safety requirements have been met. For plasterboard walls, the holes should be aligned with the wall structure if possible.
- Page 6 2.1.2.2 Drill three holes for the Ø6mm dowels on the wall using a suitable tool and insert the three dowels into the holes. Screw two screws (M5 x 30mm) into holes 2 and 3 as follows and leave the screw head 2mm outside the wall or anchorage.
-
Page 7: Operation
2.1.2.4 Screw the M5 x 30mm screw firmly into the dowel (position 1). 3. Operation Operating instructions for the W20A17MR-LG HOT-I-BOX heater... -
Page 8: Shut Down Mode
Wall mounting brackets ② on/off switch Power cord and plug DISPLAY Remote control 3.1 MECHANICAL CONTROL MODE Connect the heater to a 230-240V~ 50-60Hz power outlet. Set the rocker switch to position I: the heater will start to operate on high power but no indication will appear on the display. Attention: The remote control cannot operate the heater at this stage. -
Page 9: Timer Function
Press the "LOW", "MED" and "HIGH" buttons on the remote control, the heater will operate with the power settings LOW and MED, HIGH, and the symbol "P1" "P2" "P3" will be shown on the display area. （LOW LOW） （MEDIUM MED） （HIGH HIGH）... -
Page 10: Maintenance
Disable or reprogram the timer. If the timer is enabled, pressing the same button a second time will reprogram or disable the timer. Example 1. After activating the 13 hour timer by pressing button "1" "2" "4" "6", successively pressing button "1"... - Page 11 RONGGUI, SHUNDE, FOSHAN, GUANGDONG, CHINA Made in China Imported in Italy by M.P.C. srl Tortona 21 20144 Milano Italia Tel +39 02 21117815 e-mail info@mpcnet.it website www.sinedtechnology.com SINED trademark and SINED logo are registered by Sined Ventas online s.l.u. EUTM 018196373...
