Summary of Contents for Yamaha MBC9600

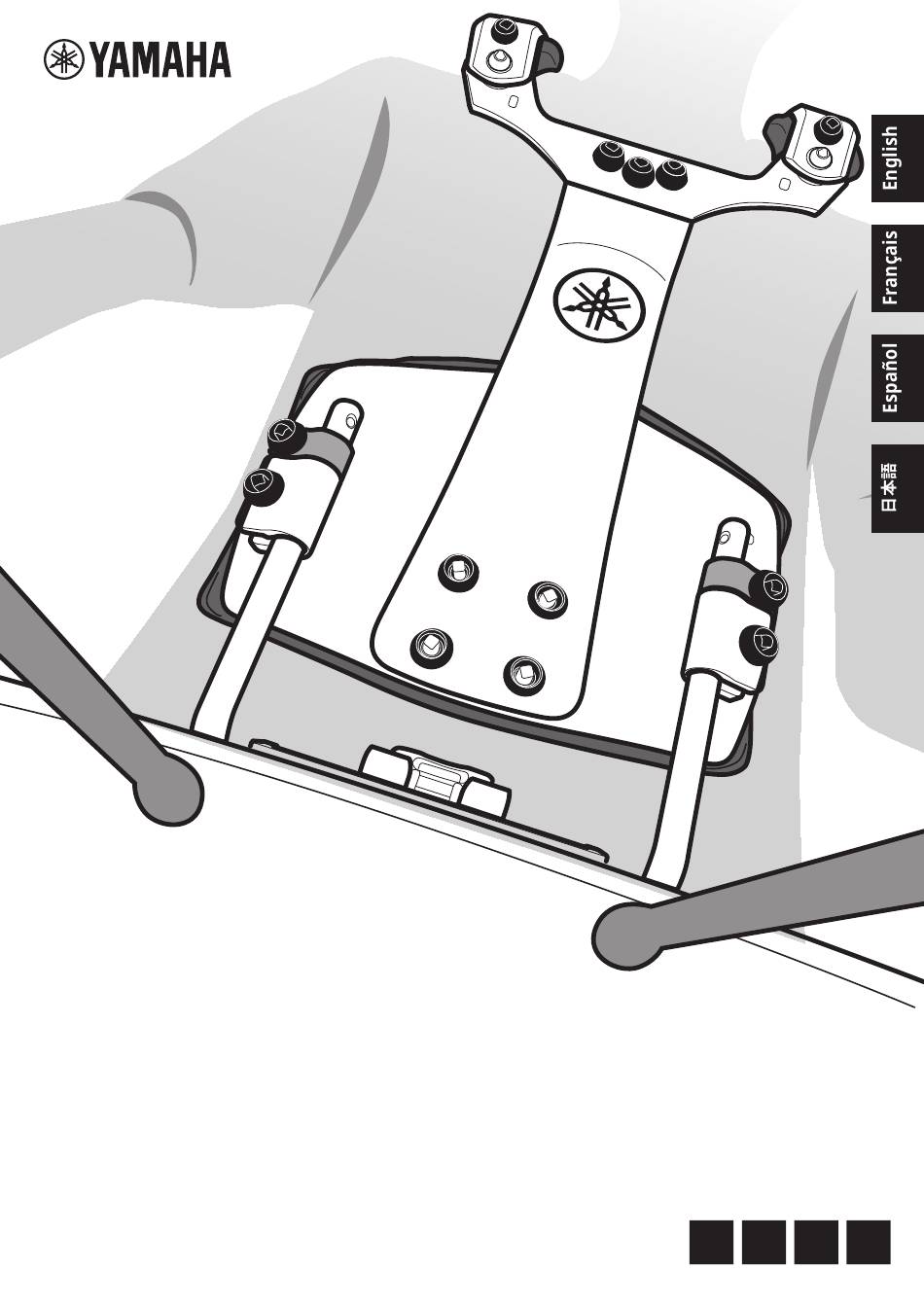

  • Page 1 MSC9600 MTC9600 MBC9600 MARCHING DRUM CARRIER HARNAIS POUR PERCUSSIONS DE DÉFILÉ ARNÉS DE PERCUSIÓN DE MARCHA Owner's Manual マーチングドラムキャリア Mode d'emploi Manual de instrucciones EN FR ES 取扱説明書...
  • Page 2: Please Read Carefully Before Proceeding

    Otherwise, injuries may result. Unintended uses may result in unexpected injuries. • Keep this product out of reach of children. This product is not suitable for use in locations where children are likely to be present. DMI-11 2 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 3 • If some of the parts are broken and/or lost, immediately stop using the carrier. Using a defective carrier can cause injury. Yamaha cannot be held responsible for damage caused by improper use or modifications to the product. DMI-11 MSC9600 MTC9600 MBC9600 Owner's Manual • 3...
  • Page 4: Maintenance

    • Do not store the carrier in areas with high temperatures or high humidity. Otherwise, the carrier may become deformed, rust, etc. Care instructions for pads This product is compatible with genuine Yamaha products. Refer to the website for compatible products. 4 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 5: Included Items

    (4 mm) (6 mm) (6 mm) ● Owner’s Manual ● Owner’s Manual ● Owner’s Manual (this document) (this document) (this document) ● Service location information ● Service location information ● Service location information MSC9600 MTC9600 MBC9600 Owner's Manual • 5...
  • Page 6 MSC9600 as an example, the same operations apply to all other carriers. Adjusting the Shoulder Rests → page 7 Adjusting the Belly Plate → page 8 Installing the Rod → page 9 Installing the Receiver Installing the Rod → page 12 → page 9 6 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 7: Adjusting The Shoulder Rests

    Adjust the angle of the shoulder rests as desired. Tighten bolts (three places) with a drum key to secure the shoulder rests. Bolts Most rearward position Most forward position (when shipped from manufacturer) MSC9600 MTC9600 MBC9600 Owner's Manual • 7...
  • Page 8: Adjusting The Belly Plate

    (four places) with a drum key so that the belly plate can be moved. Adjust the belly plate to the desired position. Tighten bolts (four places) with a drum key to secure the belly plate. Bolts Bolts Highest position Lowest position (when shipped from manufacturer) 8 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 9: Installing The Rods

    Insert the rod into the rod holder from below, and then roughly set the rod installation position (height) and angle. NOTE : There is no difference between the left and right rods included with the Bolt carrier. MSC9600 MTC9600 MBC9600 Owner's Manual • 9...
  • Page 10 • Be careful not to lose the removed memory clamp. It will be used in the following steps to secure the instrument after it has been mounted. 10 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 11 (from the back) with the hexagonal wrench (4 mm). Determine the position of the rod holders, and then install bolts and their washers (removed in step 2). Back Washer Bolts Washer Washer Bolts Washer Reattach the pad removed in step 1. MSC9600 MTC9600 MBC9600 Owner's Manual • 11...
  • Page 12: Installing The Receiver

    Align the rods with the holes in the receiver, and then fully insert them on both sides, making sure they are equal. MSC9600 MTC9600 Rod holder Rod holder Rod holder Rod holder Bolt Bolt Bolt Bolt Tighten bolts (two places) with the hexagonal wrench (6 mm) to secure the rods. MSC9600 MTC9600 Bolts Bolts 12 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 13 MSC9600 MTC9600 Bolt Bolt Insert the memory clamps from above, and then tighten bolts to secure the holders. MSC9600 MTC9600 Memory clamp Memory clamp Memory clamp Memory clamp Bolt Bolt Bolt Bolt MSC9600 MTC9600 MBC9600 Owner's Manual • 13...
  • Page 14 NOTE: The attachment will be installed on the tube lugs of the snare drum. We recommend installing the attachment onto the tube lugs on the opposite side of the Yamaha logo. 1-1. Clamp the attachment’s lug holders (left and right) onto the snare drum tube lugs as shown in the illustration, and then lightly tighten lug holder fixing bolts with a drum key.
  • Page 15 Fit the attachment on the instrument into the receiver on the marching drum carrier. Attachment (attached to instrument) Receiver (marching drum carrier) 2-3. Lock the quick lock system (on the receiver) by flipping it up, then pushing it down. Locked MSC9600 MTC9600 MBC9600 Owner's Manual • 15...
  • Page 16 Perform step 2-1 above to unlock the quick lock system, and then reverse step 2-2 in order to remove the attachment from the receiver and thereby the instrument from the marching drum carrier. 16 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 17 With the instrument held up as shown in the illustration below, fit the joint unit into the receiver, and then slowly tilt the instrument down into the upright position. Joint unit Receiver 1-4. Lock the quick lock system (on the receiver) by flipping it up, then pushing it down. (Perform step 1-2 in reverse.) MSC9600 MTC9600 MBC9600 Owner's Manual • 17...
  • Page 18 Perform step 1-2 above to unlock the quick lock system, and then reverse step 1-3 (tilt up and pull up the instrument) in order to remove the joint unit on the instrument from the receiver on the marching drum carrier. 18 • MSC9600 MTC9600 MBC9600 Owner's Manual...
  • Page 19 At this time, make sure that the marching drum carrier does not come into contact with the bass drum body and lugs. Flesh hoop Flesh hoop Equally spaced Rubber Rubber support support MSC9600 MTC9600 MBC9600 Owner's Manual • 19...
  • Page 20 With the high-position arms (sold separately), an 18" bass drum can be mounted onto the carrier at a higher position (as shown). For installation, attach the memory clamps (included with MBC9600) to the high-position arms, and then insert the high-position arms into the rod holders from above.
  • Page 21 © 2025 Yamaha Corporation Published 1/2025 10-1 Nakazawa-cho, Chuo-Ku, 2025 年 1 月 Hamamatsu, 430-8650 JAPAN IPOE-A0 VHA0220 〒 430-8650 静岡県浜松市中央区中沢町 10-1...
