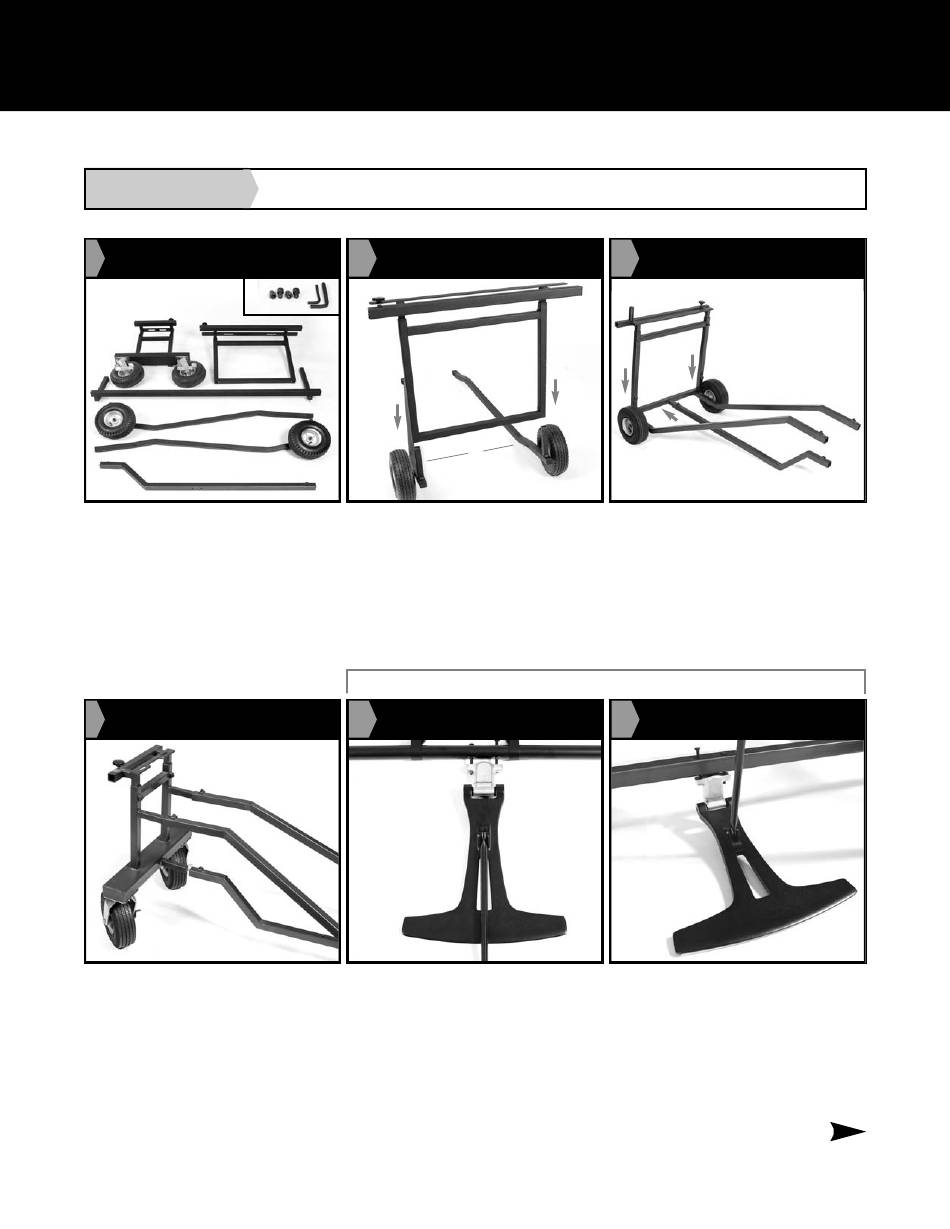

YAMAHA TOUGH-TERRAIN FRAME
ASSEMBLY INSTRUCTIONS FOR T-335, T-2700, T-2400
Tools You Will Need:
1
Carefully unpack
A
• Unpack the box and make sure you have all of the parts
Do not throw away the box until you have
completed the assembly of the frame and
the instrument.
3
Upper wheel/frame assembly
A
E
• Attach the upper wheel/frame assembly
– Part A to the ends of the wheel assembly
– Part D, secure the allen bolts at the bottom of part A.
– Include part E for vibraphone frame.
• Phillips (+) screwdriver
• Plyers
2a
Lower frame assembly
F
B
C
D
(vibe only)
E
• Attach the lower frame assembly
– Slide part B on to the vertical posts of part D (wheel assembly)
– Tighten the allen bolts on part B to secure the low end frame assembly to the vibe wheel assembly.
Vibraphone Only
– Slide part E on to the post of part D – tighten allen bolt on part E
4a
Vibe Pedal
D
• Remove pedal assembly from round tube
• Hex/allen wrench (included)
2b
Lower frame assembly
B
D
Vibraphone Only
4b
Vibe Pedal
• Attach vibe pedal assembly to square lower crossbar
of Tough Terrain Frame
5
" Hex/allen wrench (included)
3 2
B
D
E
E
