Summary of Contents for Wayfair N7254GY Series

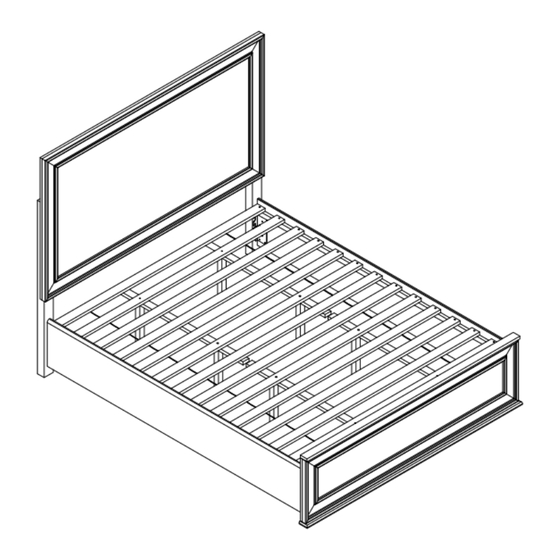

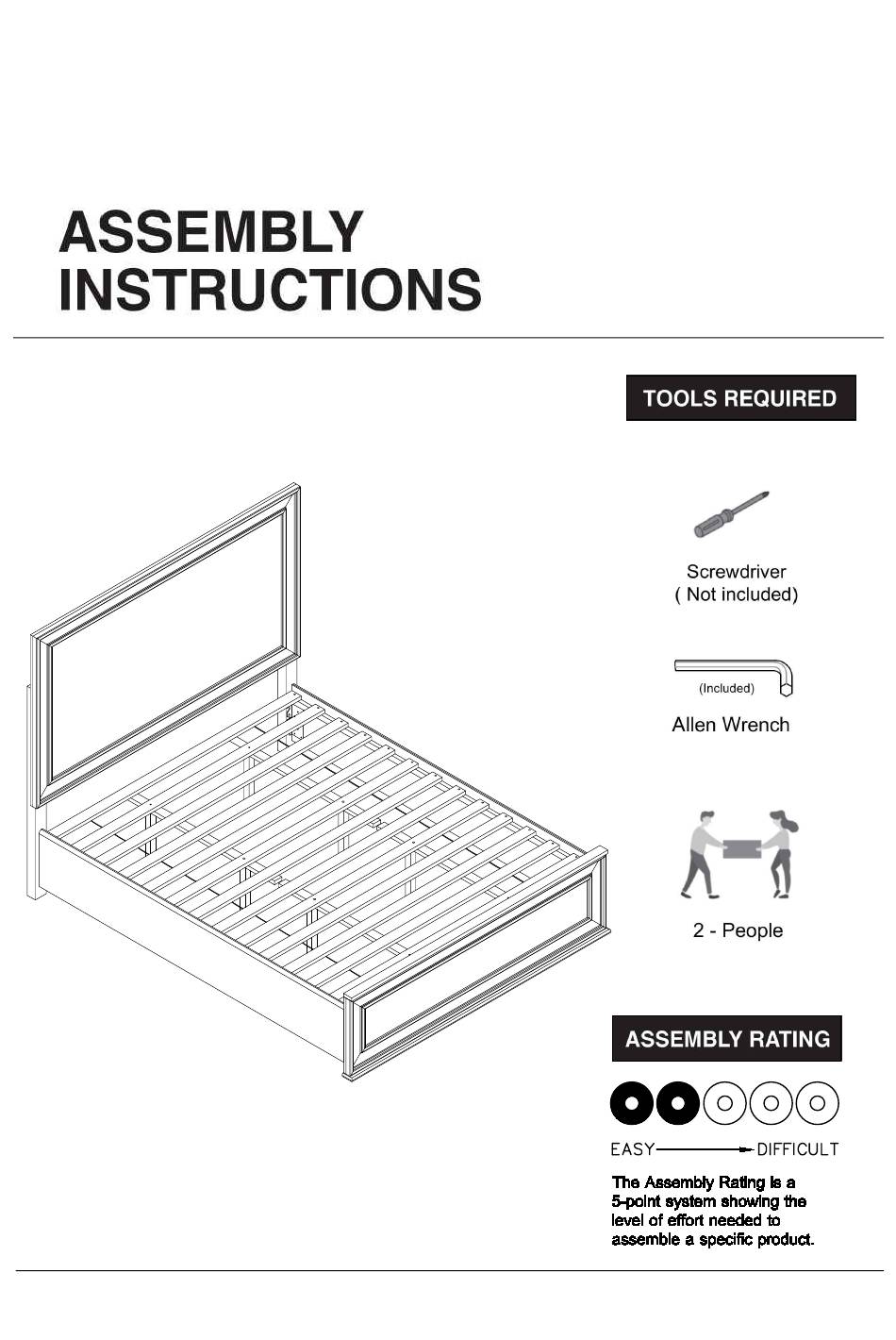

- Page 1 VERSION# 24-07-11...
-
Page 5: Headboard
KING BED PARTS 5 1pc 6 4pcs 4 2pcs HEADBOARD HEADBOARD HEADBOARD SIDERAIL FOOTBOARD CENTER RAIL POST (LEFT) POST (RIGHT) 8pcs 2set CENTER RAIL SLATS SUPPORTER HARDWARE HARDWARE INSIDE HEADBOARD 10pcs 10pcs 10pcs Allen Key M4 JCBC M6 X 35mm Lock Washer Flat Washer HARDWARE INSIDE FOOTBOARD SIDERAIL... -
Page 6: Table Of Contents
packed in 2 cartons Description Carton Part Hardware A x10pcs HEADBOARD B x10pcs C x10pcs HEADBOARD POST (LEFT) D x1pc HEADBOARD POST (RIGHT) E x28pcs SIDERAIL F x1pc FOOTBOARD CENTER RAIL CENTER RAIL SUPPORTER SLATS... -
Page 7: C X10Pcs
ASSEMBLY INSTRUCTIONS Align the headboard post (#2L,#3R) to the headboard (#1). Part x1pc Part x1pc Part x1pc Use Allen Key (#D) to attach headboard post (#2L,#3R) to the headboard (#1) by using screw assembly of screw (#A) with lock washer (#B) and flat washer (#C). Part x1pc Part... -
Page 8: F X1Pc
ASSEMBLY INSTRUCTIONS Please hook Screw plate on Siderail is already loosened. Use Allen Key (#F) to attach the Siderail (#4) to Headboard (#1), and Footboard (#5). Part x1pc Part x2pcs Part x1pc Hardware x1pc Please loose the screw from TRUSS Headboard Post (Left) (#2),Headboard Post (Right) (#3) front near to bottom for left and right side. - Page 9 ASSEMBLY INSTRUCTIONS Part x2set Hardware x28pcs Extend the slats (#8) over the siderail (#4) and secure by using Screw (#E) with screwdriver (not included). Remark : Please peel to remove Protection Film This product is intended for RESIDENTIAL USE ONLY and not for commercial use.
