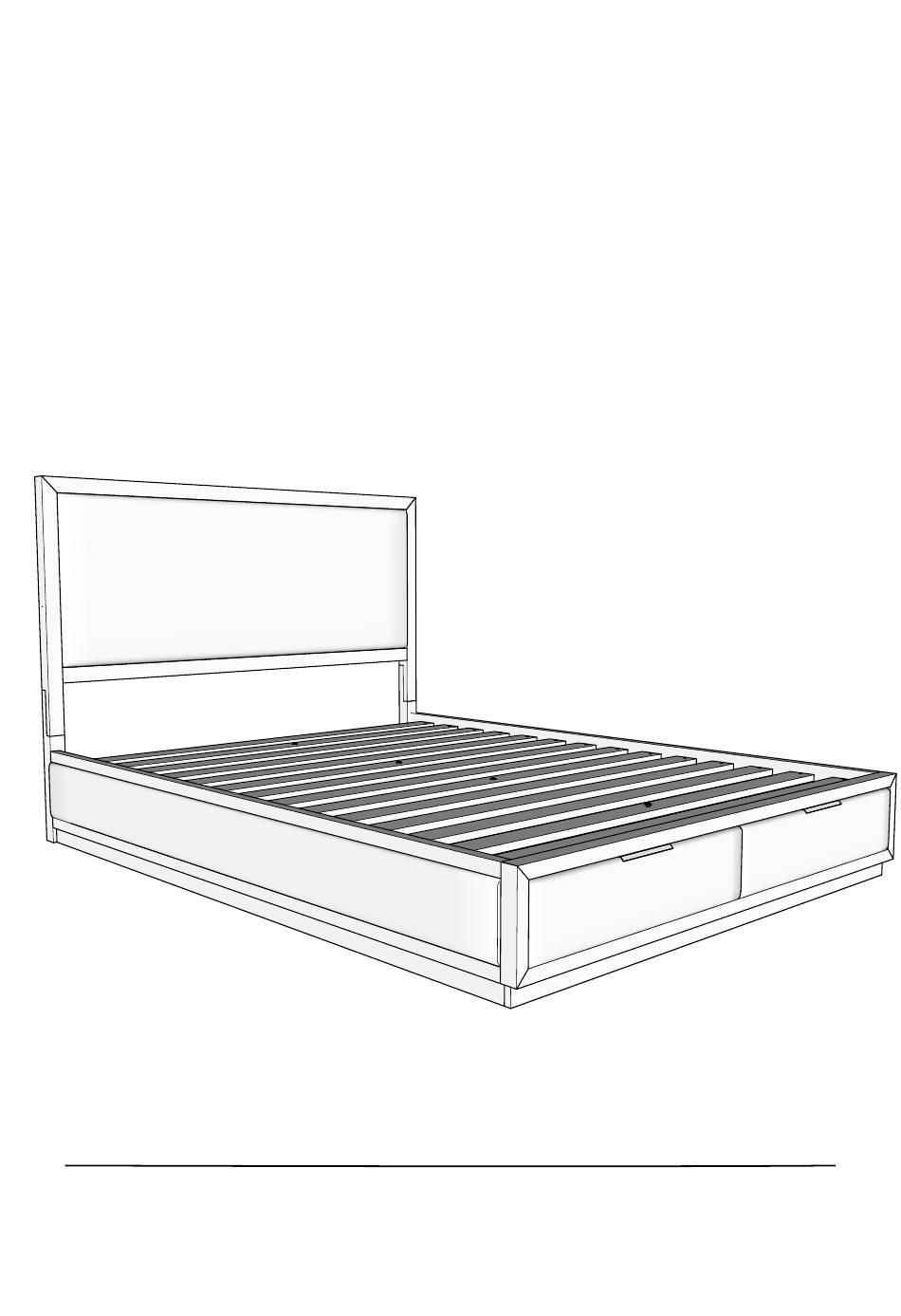

- Page 1 ASSEMBLY INSTRUCTIONS...
- Page 2 IMPORTANT INFORMATION Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE Keep these assembly instructions for future reference. �...
- Page 3 BED PARTS Headboard Headboard Post Left Headboard Post Right Footboard Side Rail Drawer Box Drawer Guide Drawer Horizontal Support Bed Slat x 14 Slat Support Support Leg...
- Page 4 HARDWARE HARDWARE Bolt Bolt M8 x 70mm M6 x 35mm Bolt (Pre-installed) Barrel Nut Spring Washer M8 x 16mm M8 x 20 mm Flat Washer Screw Screw x 32 M4 x 30mm M4 x 12mm Handle Hex Key Wrench Hex Key Wrench...
- Page 5 BED ASSEMBLY STEP 1 Screw Philips Screwdriver Handle M4 x 12mm Not provided Attach to Drawer Box with using a Philips Screwdriver as shown.
- Page 6 BED ASSEMBLY STEP 2 Headboard Headboard Headboard Bolt Post Left Post Right M6 x 35mm Spring Washer Flat Washer Hex Key Wrench B & C Attach with , and using a Hex Key Wrench as shown.
- Page 7 BED ASSEMBLY STEP 3 Side Rail Bolt Hex Key (Pre-installed) Wrench M8 x 16mm B & C B & C Loosen Pre-installed Bolt from using a Hex Key Wrench as shown. Attach to Assembled Headboard with pre installed Bolt using Hex Key Wrench as shown.
- Page 8 BED ASSEMBLY STEP 4 Footboard Bolt Hex Key (Pre-installed) Wrench M8 x 16mm Loosen Pre-installed Bolt from using a Hex Key Wrench as shown. Attach to Assembled Bed with pre installed Bolt using Hex Key Wrench as shown.
- Page 9 BED ASSEMBLY STEP 5 Screw Philips Screwdriver Drawer Horizontal Support M4 x 30mm Not provided Attach to Assembled Bed with using a Philips Screwdriver as shown.
- Page 10 BED ASSEMBLY STEP 6 Drawer Guide Screw Philips Screwdriver M4 x 30mm Not provided Attach to Assembled Bed with using a Philips Screwdriver as shown.
- Page 11 BED ASSEMBLY STEP 7 Drawer Box Bolt Spring Washer Flat Washer M6 x 35mm Hex Key Philips Screwdriver Wrench Not provided Note: � Slotted hole found on Drawer Guide , and 2 holes found on Drawer Horizontal Support for bolt, allow for tolerance of alignment due to possible uneven floor.
- Page 12 BED ASSEMBLY STEP 8 Bed Slat Slat Support Support Leg Bolt M8 x 70mm Barrel Nut Hex Key Philips Screwdriver Wrench M8 x 20mm Not provided Attach with using a Philips Screwdriver and Hex Key Wrench as shown.
- Page 13 BED ASSEMBLY STEP 9 Screw Philips Screwdriver M4 x 30mm Not provided Wood Screw location Attach Assembled Bed Slat to Assembled Bed with using a Screwdriver as shown.
- Page 14 BED ASSEMBLY STEP 10 WARNING! Ensure the adjustable feet are perpendicular to the floor before using the bed. Rotate them clockwise or counterclockwise until firmly against the floor. Note: The adjustable feet rotate to fit the floor; one may need clockwise rotation while the other counterclockwise, depending on leveling and assembly.
