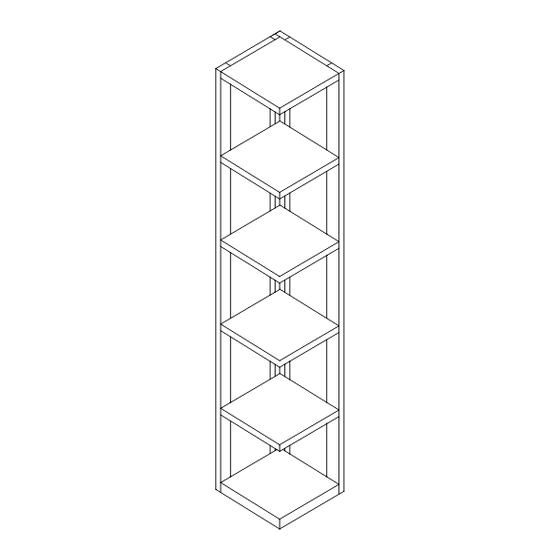

- Page 1 Product Instructions for: CORNER BOOKCASE For assistance with assembly or questions contact: Wayfair Customer Service, 877-WAYFAIR (877-929-3247) | www.wayfair.com PAGE 1...
- Page 2 D: Bottom Panel (1) 1: Bolt Dia. 1/4”x1-7/8”L (18) 2: Nut Dia. 1/4”x3/8”L (18) 4: Allen Wrench Dia. 1/4” (1) 3: Screw Dia. 1/8”x1-1/4”L (3) For assistance with assembly or questions contact: Wayfair Customer Service, 877-WAYFAIR (877-929-3247) | www.wayfair.com PAGE 2...
- Page 3 6. Paper Covers (21) 8: Bracket (4) 7: Anchor (2) 9: Plastic Strap (2) 10: Screw Dia. 1/8”x1-1/2”L (2) 11: Screw Dia. 1/8”x3/4”L (2) For assistance with assembly or questions contact: Wayfair Customer Service, 877-WAYFAIR (877-929-3247) | www.wayfair.com PAGE 3...
- Page 4 Figure 1 by inserting Wooden Dowels (5). Connect Bolts (1) to Nuts (2). Tighten Bolts (1) with Allen Wrench (4). Figure 2 For assistance with assembly or questions contact: Wayfair Customer Service, 877-WAYFAIR (877-929-3247) | www.wayfair.com PAGE 4...
- Page 5 Phillips screwdriver (not included). Figure 3 Step 4 Cover all holes on pre- assembled unit in Figure 3 with Paper Covers (6). Figure 4 For assistance with assembly or questions contact: Wayfair Customer Service, 877-WAYFAIR (877-929-3247) | www.wayfair.com PAGE 5...
- Page 6 6. You will need a hammer to set Anchors (7). Attach Brackets (8) to the wall using Screws (10). Tighten Screws (10) with a Philips screwdriver. Figure 6 For assistance with assembly or questions contact: Wayfair Customer Service, 877-WAYFAIR (877-929-3247) | www.wayfair.com PAGE 6...
- Page 7 Step 7 Move corner bookcase close to the Brackets (8) in wall. Tie Brackets (8) on bookcase and wall together with Plastic Strap (9) as shown in Figure 6. Anti-tipping hardware must be used with this product to avoid tipping and injury.
