HappyJapan EU-5EB Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model EU-5EB
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EU-5EB and is the answer not in the manual?

Questions and answers

Related Manuals for HappyJapan EU-5EB

Summary of Contents for HappyJapan EU-5EB

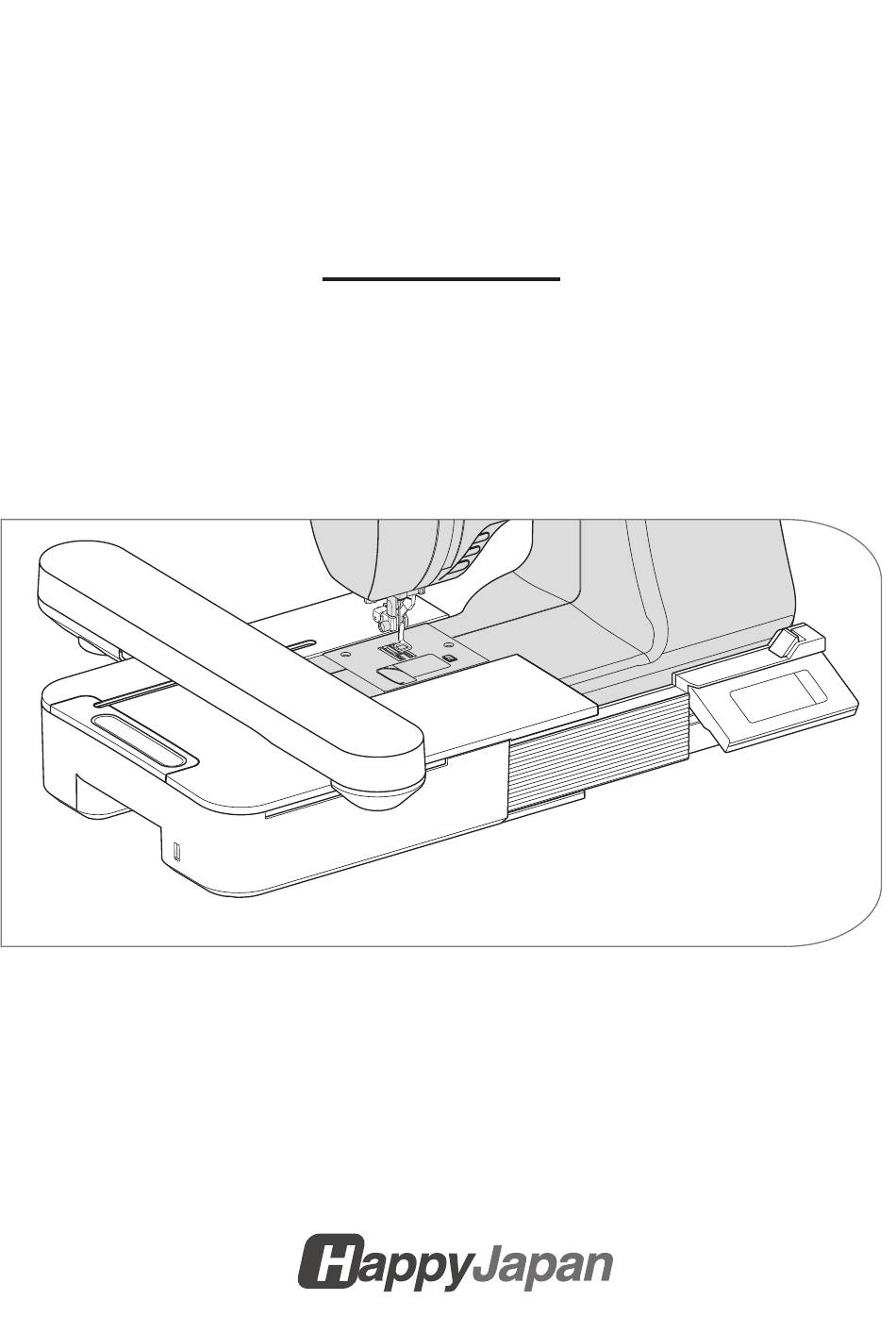

  • Page 1 Model EU-5EB Instruction Manual...

  • Page 2: Important Safety Instructions

    INSTRUCTION MANUAL This embroidery unit is intended for household use. IMPORTANT SAFETY INSTRUCTIONS When using an embroidery unit, basic safety precautions should always be followed, including the following. Read all instructions before using. DANGER - To reduce the risk of electric shock: Never leave unattended when plugged in.
  • Page 3 12.To disconnect, turn the power switch of sewing machine to the off position (symbol O), then remove plug. 13.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. 14.If the cord of this appliance is damaged, it must be replaced with a special cord by your authorized local dealer. 15.Don’t use the unit if it’s wet.

  • Page 4: Table Of Contents

    CONTENTS ABOUT THIS EMBROIDERY UNIT ..................3 MAIN PARTS ...........................4 ATTACHING THE EMBROIDERY FOOT ................5 ATTACHING THE BRIDGE .....................6 ATTACHING THE EMBROIDERY UNIT ..................7 ADJUSTING THE TILT OF CONTROL BOX ..................10 REMOVING THE EMBROIDERY UNIT ................11 SETTINGS OF THE UNIT (Home screen) ................12 ATTACHING THE EMBROIDERY FRAME ................14 PREPARING THE FABRIC, THREAD AND NEEDLE ................

  • Page 5: About This Embroidery Unit

    SETTING LETTERS ......................36 A. Scaling button ........................... 36 B. Rotate button (Arc setting) ........................ 37 C. Mirror/position/trace button ....................... 38 Spacing between letters ........................38 Checking start position .......................... 39 SEWING EMBROIDERY .......................40 WHEN YOU HAVE COMPLETED SETTINGS (Before go to sewing mode) ........40 START SEWING THE EMBROIDERY ....................

  • Page 6: Main Parts

    MAIN PARTS Embroidery Unit 1. Carriage 2. Embroidery Frame Holder 3. Control Box 4. Control Box Slide Lever 5. Connecting Plug 6. Adjustable Legs (X2) 7. Embroidery Unit Releasing Lever 8. USB Connector Port Control Box 9. LCD Touch Screen 10.

  • Page 7: Attaching The Embroidery Foot

    ATTACHING THE EMBROIDERY FOOT First, you must attach the embroidery foot to your sewing machine. CAUTION: To prevent accidents. Turn off the power switch of sewing machine before you change the presser foot. 1. Turn off the power switch of your sewing machine.

  • Page 8: Attaching The Bridge

    ATTACHING THE BRIDGE By the type of sewing machine, to attach 45 mm 48 mm the embroidery unit more stable, attach the bridge to the unit. This unit has 2 types of bridges. Remove the 36060 36061 extension table of your sewing machine and check the free arm shape.

  • Page 9: Attaching The Embroidery Unit

    ATTACHING THE EMBROIDERY UNIT CAUTION: To prevent accidents. 1. Turn off the power switch of sewing machine before you attach the embroidery unit to the sewing machine. 2. Do not carry the sewing machine when embroidery unit is attached. It may fall off.
  • Page 10 8. Turn on the power switch of sewing machine. The LCD screen of embroidery unit will indicate start up screen a few seconds and change as fig. 10. NOTE: If other message as fig. 9 is indicated, it means error occurred. Turn off the power switch and check connections between machine and unit.
  • Page 11 When you touch the “ ” button at step 10, LCD screen will display as fig. 11 or fig. • When fig. 11 is appeared, this sewing machine is provided with dial tension system. Turn the thread tension regulator to “-” direction slightly.

  • Page 12: Adjusting The Tilt Of Control Box

    ADJUSTING THE TILT OF CONTROL BOX Tilt the control box by pulling the bottom side of box. To store, push there. CAUTION: Do not move the control box strongly. Otherwise, it may be broken.

  • Page 13: Removing The Embroidery Unit

    REMOVING THE EMBROIDERY UNIT 1. Remove the embroidery frame from carriage if attached. (See page 16) 2. Touch the “ ” button. (If the home screen is not indicated, touch the “ ” button long time.) 3. As the message will appear as shown, take your hands or other objects away from carriage and touch the “...

  • Page 14: Settings Of The Unit (Home Screen)

    SETTINGS OF THE UNIT (Home screen) 1. When you have attached the embroidery unit correctly, the home screen will appear on the LCD screen. A. Editing Indicator You can enter 3 patterns or letters at same time. When you turn on this unit, empty 3 folders are indicated and underline is appeared at the first folder.
  • Page 15 e-i Beep sound (Default setting: ON) H. Backup restore button By touch the “OFF” button, sounds will (This button is appearing only when data turn off. is remained.) By touch the “ON” button, sounds will turn This machine remains the selected pattern or letters if power is failed.

  • Page 16: Attaching The Embroidery Frame

    ATTACHING THE EMBROIDERY FRAME PREPARING THE FABRIC, THREAD AND NEEDLE Consult your nearest local dealer to get best result. FABRIC For good result, use stabilizer for embroidery. (Stabilizer is sold on the market) THREAD Upper Thread: Use spool type embroidery thread. #50 - #60. Lower Thread: Use #90 polyester spun thread.

  • Page 17: Attaching The Fabric

    ATTACHING THE FABRIC 1. Loosen the adjustment screw (a) from outer frame (b) and remove the inner frame (c). “I” 2. Put the outer frame on flat table. 3. Put the fabric on the outer frame. 4. Aligning the “I” mark on both frames, push and insert the inner frame into the fabric from upper side so that the both frames should be even height.

  • Page 18: Attaching The Embroidery Frame

    ATTACHING THE EMBROIDERY FRAME 1. Before you attach the frame to the unit, wind and set the bobbin thread to the sewing machine. (See the instruction manual of your sewing machine.) “I” 2. Raise the needle. 3. Raise the presser foot. 4.

  • Page 19: Selecting Embroidery Pattern

    SELECTING EMBROIDERY PATTERN This embroidery unit has 150 embroidery patterns. (See page 23 “PATTERN CHART”) To select a pattern, follow as below steps. 1. When you attached the embroidery unit correctly, the LCD screen will display the home screen. 2. Touch embroidery pattern selection button (A). 3.
  • Page 20 8. LCD screen will indicate the stop position setting screen. You can set the frame stop position at the thread changing. Touch the button you want to stop position. Button will be highlighted. 9. Touch the “ ” button. 10.Edit screen will appear. You can change the setting of the selected pattern.

  • Page 21: Setting The Embroidery Pattern

    SETTING THE EMBROIDERY PATTERN When you have selected a desired pattern, LCD screen will display the edit screen. You can change various settings on this screen. A. Frame size Selected frame size is indicated. You can change the frame size by touching the “...

  • Page 22: Magnify Button

    F. Magnify button By touching this button, you can see the embroidery image closed up. Touch the “ ” or “ ” button to change view point. Viewing point is indicated by black square (f1). By touching the “ ” button, you can return to the edit screen.

  • Page 23: Mirror/Position/Trace Button

    J. Mirror/position/trace button By touching this button, mirror/position/ trace screen will be appear. At this screen, you can move the pattern position by touching the 4 arrow buttons. (j1-4) According to these buttons, frame will move each direction. By touching these buttons long time, position will move larger.

  • Page 24: When You Have Completed Settings

    WHEN YOU HAVE COMPLETED SETTINGS If you want to enter more pattern Touch the “ ” button. Home screen will appear. Select a pattern. If you want to enter letters Touch the “ ” button. Home screen will appear. Select letters referring to page 31, 32. At the home screen, black icon (A) will indicate in the first folder.

  • Page 25: Pattern Chart

    PATTERN CHART This chart is indicating the pattern number, height, width, stitch count, thread color and sequence. The form of Illustration may be slightly difference from actually sewing. Thread color is recommendation. Test sew and decide by yourself. No.001 No.002 No.003 No.004 9.5 cm...
  • Page 26 No.017 No.018 No.019 No.020 11.6 cm 12.3 cm 15.0 cm 11.8 cm 10.9 cm 12.3 cm 12.1 cm 8.9 cm 3715 6174 12306 13794 No.021 No.022 No.023 No.024 12.6 cm 14.9 cm 11.4 cm 7.1 cm 12.4 cm 12.5 cm 12.5 cm 12.2 cm 9000...
  • Page 27 No.037 No.038 No.039 No.040 7.8 cm 13.5 cm 5.9 cm 12.0 cm 11.3 cm 12.9 cm 10.6 cm 8.9 cm 4741 11984 6311 13284 No.041 No.042 No.043 No.044 12.0 cm 12.4 cm 9.6 cm 14.5 cm 12.1 cm 12.4 cm 11.6 cm 10.2 cm 7056...
  • Page 28 No.055 No.056 No.057 No.058 11.3 cm 11.4 cm 10.9 cm 8.7 cm 11.2 cm 11.1 cm 9.1 cm 9.9 cm 8002 8311 6270 11287 No.059 No.060 No.061 No.062 11.9 cm 10.0 cm 15.1 cm 10.8 cm 11.6 cm 11.0 cm 12.2 cm 10.4 cm 7187...
  • Page 29 No.075 14.4 cm 12.3 cm 6957 No.076 No.077 No.078 No.079 No.080 4.6 cm 2.1 cm 8.3 cm 4.2 cm 7.5 cm 3.2 cm 2.9 cm 7.8 cm 3.0 cm 7.2 cm 9446 1456 1063 No.081 No.082 No.083 No.084 No.085 9.2 cm 7.3 cm 5.5 cm 3.6 cm...
  • Page 30 No.101 No.102 No.103 No.104 No.105 6.7 cm 3.6 cm 3.0 cm 4.5 cm 8.1 cm 8.0 cm 4.2 cm 4.2 cm 4.5 cm 9.9 cm 3647 2953 2336 1190 3040 No.106 No.107 No.108 No.109 No.110 6.2 cm 6.7 cm 3.0 cm 3.7 cm 2.4 cm 7.1 cm...
  • Page 31 No.131 No.132 No.133 No.134 No.135 2.5 cm 3.9 cm 7.2 cm 3.0 cm 2.1 cm 2.8 cm 4.6 cm 8.0 cm 7.5 cm 1.9 cm 2463 2732 4190 1028 No.136 No.137 No.138 No.139 No.140 3.0 cm 3.5 cm 4.0 cm 2.5 cm 7.0 cm 2.4 cm...

  • Page 32: Pattern Chart (Letters)

    PATTERN CHART (LETTERS) This unit can sew below letters. By touching the font button, letter font will change.

  • Page 33: Selecting Embroidery Letters

    SELECTING EMBROIDERY LETTERS This embroidery unit can sew English letters. (See page 30 “PATTERN CHART (LETTERS)”.) To select letters, follow below procedures. 1. Open the home screen. If other pattern or letters has been entered, folder (1a) is filled and next folder is underlined.
  • Page 34 7. To delete the letter, touch the “ ” button. Last selected letter will be deleted. By touching long time, all selected letters will be deleted. 8. When you have completed selecting letters, touch the “ ” button. LCD screen will change to the save and color change screen.

  • Page 35: Saving Letters And Color Change

    SAVING LETTERS AND COLOR CHANGE You can save selected letters and set color change at this screen. A. TO CHECK SELECTED LETTERS Selected letters are indicated on the top line of LCD screen. If the letters over the indication area, touch the highlighted “...

  • Page 36: Saving Selected Letters

    E. SAVING SELECTED LETTERS You can save selected letters until 2 sets. They are remained after you turn off the power. 1. Select letters. 2. At save and color change screen, touch the “ ” button. Save/read screen will appear. 3.

  • Page 37: G.deleting Saved Letters

    G. DELETING SAVED LETTERS 1. At save/read screen, select the file button you want to delete. Selected file will be highlighted. 2. Touch the “ ” button. Confirmation screen will appear. 3a. Touch the “ ” button, if you want to delete them.

  • Page 38: Setting Letters

    SETTING LETTERS When you have touched “ ” button at save and color change screen, LCD screen will change to frame selection screen. See page 17 and 18, to set frame size and position. After selecting the frame, LCD screen will display the edit screen.

  • Page 39: Rotate Button (Arc Setting)

    B. Rotate button (Arc setting) 1. Touch the “ ” button. The rotation and arc screen will appear. 2. Rotating letters is same as rotating pattern. 3. You can line up the letters on arc line. Touch the “ ” button. The arc selection screen will appear.

  • Page 40: Mirror/Position/Trace Button

    C. Mirror/position/trace button By touching this button, mirror/position/ trace screen will appear. Setting the mirror, position and tracing sewing area function are same as pattern setting. You can also adjust spacing between letters and check start position. Spacing between letters 1.

  • Page 41: Checking Start Position

    Checking start position At mirror/position/trace screen, touch the “ ” button, frame will move to start position. It is used for connect letters. (See page 44, 45) By touching this button again, frame will move to center position. Touch the “ ”...

  • Page 42: Sewing Embroidery

    SEWING EMBROIDERY Always test on a piece of fabric scrap before you start actual sewing. WHEN YOU HAVE COMPLETED SETTINGS (Before go to sewing mode) This unit sew selected pattern or letters. 1. Select the pattern or letters you want to sew by touching the “...
  • Page 43 i. Color information button When you touch this button, color information screen (i1) will appear. This screen indicates the image of each color part. By touching the “ ” or “ ” button, color part will change before or next. j.

  • Page 44: Start Sewing The Embroidery

    START SEWING THE EMBROIDERY Thread the upper thread to the first color. Color and sequence of each pattern are indicated on the pattern chart. (Thread correctly referring the instruction manual of your sewing machine.) CAUTION: To avoid injury; Special care is needed for the needle when changing the upper thread.
  • Page 45 4. Change the upper thread to next color and touch “ ” button. 5. Lower the presser foot and start embroidering as same procedure. Repeat same procedure until last color. 6. When embroidery is completed, LCD screen will display message. Touch “...

  • Page 46: Connect Letters

    CONNECT LETTERS If the letters are too long to sew at once, you can connect letters as follows. 1. Select first few letters and sew. 2. Remove the embroidery frame. 3. Reset the fabric so that the end point of letter is coming to first point of next letters.
  • Page 47 10. Adjust the position using position buttons so that the needle comes to the end point of sewn letters. (At this time, do not lower the needle or presser foot.) 11. Touch the “ ” button. 12. As attention message will appear, check around frame and touch the “...

  • Page 48: Saving Embroidery Data To The Usb Flash Memory

    SAVING EMBROIDERY DATA TO THE USB FLASH MEMORY This unit can save the combination and settings of patterns and letters to the USB flash memory as one embroidery data. This data is saved as “.hlo” format. 1. Insert the USB flash memory into the USB connector port.

  • Page 49: Reading Embroidery Data From Usb Flash Memory

    READING EMBROIDERY DATA FROM USB FLASH MEMORY This unit can read saved data (.hlo) and other embroidery data (.dst) from the USB flash memory. NOTE: Certain “.dst” embroidery data may be misformed or tangled. In this case, you should edit it by using commercially available embroidery software.
  • Page 50 5. When file is selected, the frame setting screen will appear. Select frame size and stop position as pattern selecting. (See page 17, 18) 6. The edit screen will appear. When data from USB flash memory is selected, the USB icon “ ”...

  • Page 51: Sewing Tips

    SEWING TIPS TO SEW SMALL FABRIC OR FABRIC EDGE Use stabilizer for embroidery. Remove it after sewing. A. Small fabric B. Fabric end C. Ribbon or tape WHEN THREAD HAS BROKEN OR USED UP UPPER THREAD Machine will stop automatically and display error message. (Upper thread sensor) Raise the needle and presser foot.

  • Page 52: If Power Has Failed While Sewing

    IF POWER HAS FAILED WHILE SEWING You can recall selected pattern or letters. 1. Turn on the power switch again. 2. When the home screen has appeared, touch the “ ” button. The sewing screen of sewing pattern or letters will be appear.

  • Page 53: Regulating The Thread Tension

    REGULATING THE THREAD TENSION According to the thread or fabric, thread tension should be changed. To get correct thread tension, test sew using same fabric and adjust as follows. A. CORRECT THREAD TENSION TOP SIDE BOTTOM SIDE Upper thread appears slightly to the bottom side of fabric.

  • Page 54: Message

    MESSAGE Did you lower the feed Carriage will move. Take dogs? away any objects around the carriage and touch the Touch the “ ” or “ ” button. “ ” button. Do you want to go setting Remove foot controller mode from sewing mode? and touch the “...

  • Page 55: Specifications

    Thread again the upper Cannot read this embroidery design. thread and touch the “ ” button. The embroidery unit has The USB flash memory come off. was removed and the Turn off the power switch pattern was deleted. and check the embroidery Touch the “...
  • Page 56 P.No. 37801 (F)C24 EU-5EB English...
