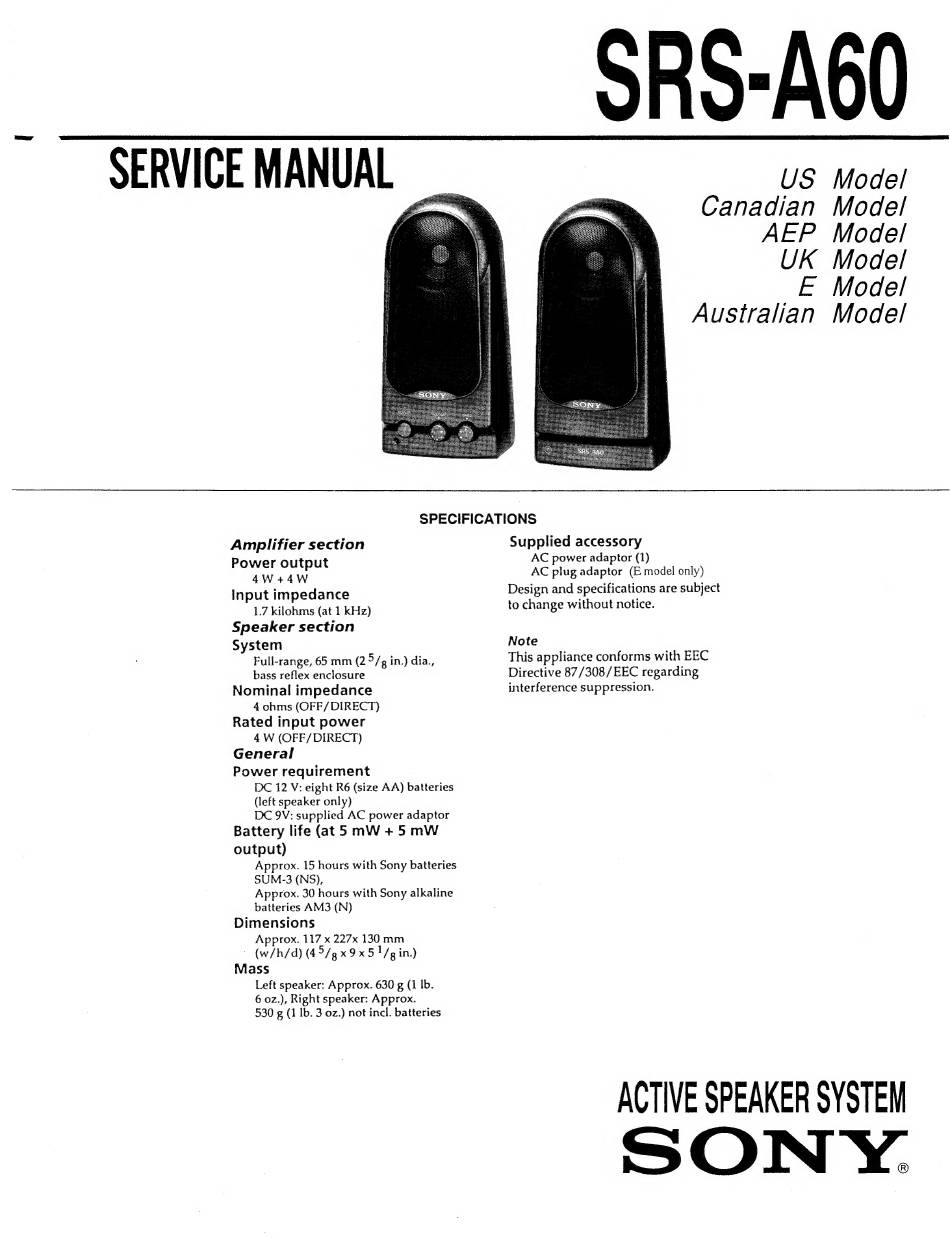

Sony SRS-A60 Service Manual

SRS-A60
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SPECIFICATIONS
Amplifier section
Supplied accessory
AC power adaptor (1)
ee
AC plug adaptor
(E model only)
Input impedance
Design and specifications are subject
1.7 kilohms (at 1 kHz)
to change without notice.
Speaker section
System
Note
.
Full-range, 65 mm (2 5/g in.) dia.,
This appliance conforms with EEC
bass reflex enclosure
Directive 87/308/EEC regarding
Nominal impedance
interference suppression.
4 ohms (OFF/DIRECT)
Rated input power
4 W (OFF/ DIRECT)
General
Power requirement
DC 12 V: eight R6 (size AA) batteries
(left speaker only)
DC 9V: supplied AC power adaptor
Battery life (at 5 mW +5 mW
output)
Approx. 15 hours with Sony batteries
SUM-3 (NS),
Approx. 30 hours with Sony alkaline
batteries AM3 (N)
Dimensions
Approx. 117 x 227x 130 mm
~ (w/h/d) (45/3 x 9x5 !/g in.)
Mass
Left speaker: Approx. 630 g (1 Ib.
6 oz.), Right speaker: Approx.
530 g (1 Ib. 3 oz.) not incl. batteries

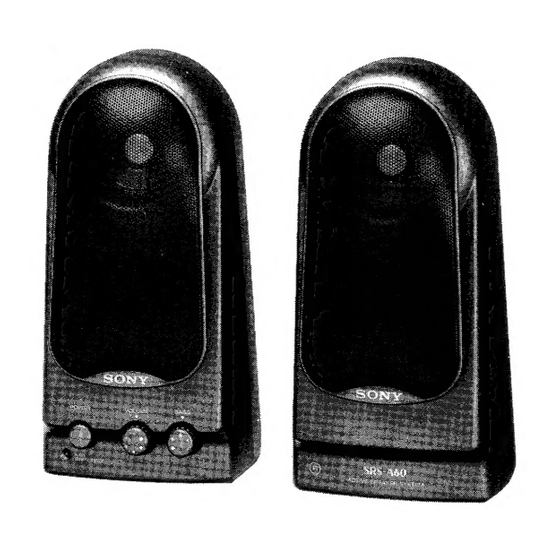

ACTIVE SPEAKER SYSTEM
SONY.
