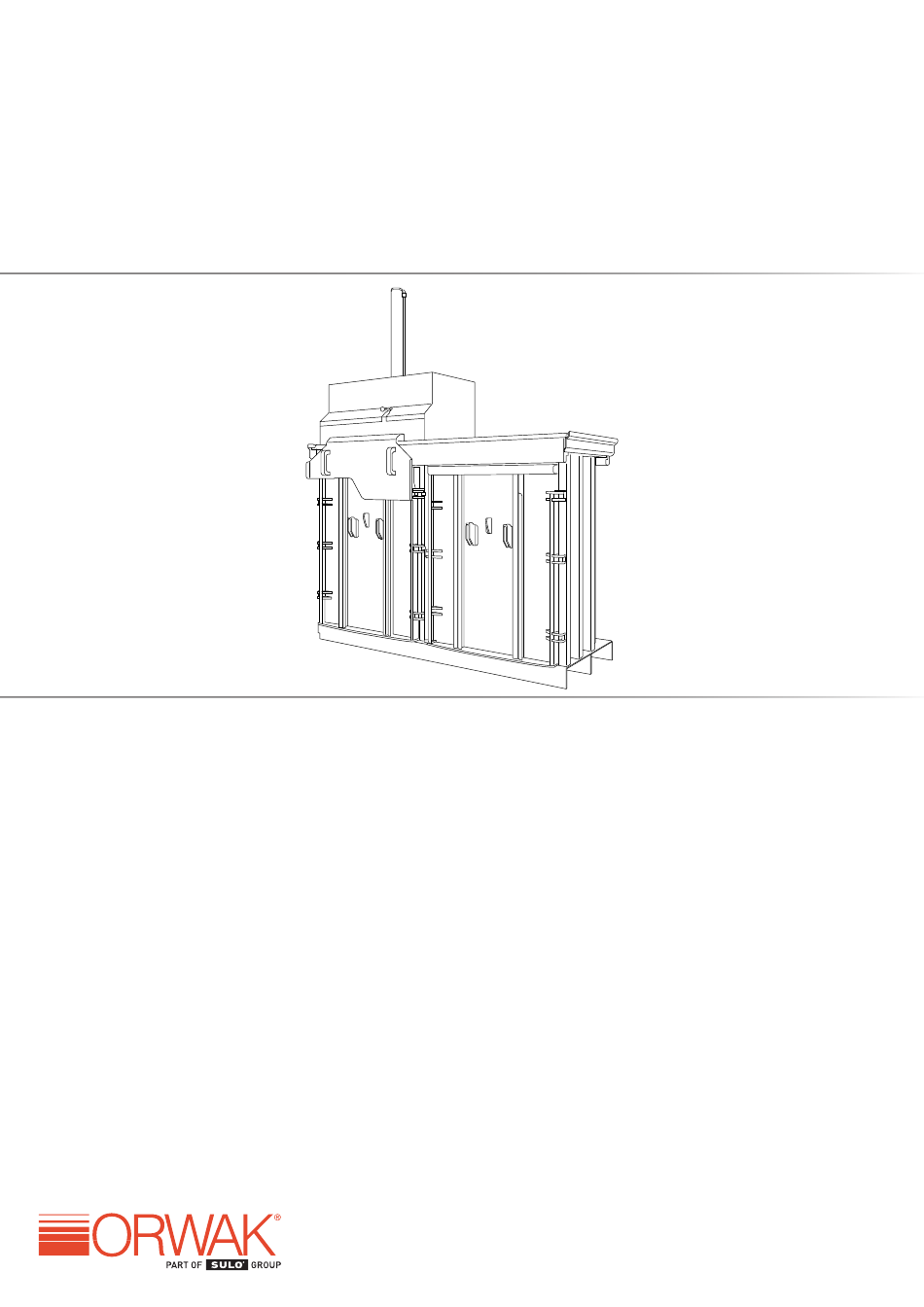

- Page 1 Edition 6.4, From serial no. 120000- Publ. no 4867331-03 OM 5070, 2023-03 ORWAK 5070 ORIGINAL OPERATING INSTRUCTIONS...
- Page 3 Temperature range of use (special oil): -10°C to +40°C Temperature range of use (special oil): -10°C to +40°C -10 °C ** -10 °C ** +5 °C +5 °C XXXX (ex Compactor 5070) XXXX (ex Compactor 5070) ** - XXXxXX (ex 121001) ** - XXXXXX (ex 121001)
- Page 4 English OPERATOR WARNING & DUTY This manual must be available permanently near the baler. Each operator must read and follow the full instruction of this manual before being authorize. All operator must absolutely study and fully understand the operator’s manual, specifically pay a particular attention to the safety procedure section.
-
Page 5: Parts Of The Machine
English PARTS OF THE MACHINE Lever Press unit Front cover Press plate Rail Data plate End guard Stop Apron with handle Door and door handle Chamber Latches Strap slots Strap hook Hydraulic unit Rear cover Strap holders Latches... -
Page 6: Important Safety Instructions
English IMPORTANT SAFETY INSTRUCTIONS Please read the operating instructions BEFORE operating the machine and then SAVE THE INTSTRUCTIONS. Our warranty/product responsibility requires that: • instructions are followed, and that no conversion or modification is carried out. • original spare parts, and hydraulic oils and lubricants recommended by the machine manufacturer are used. - Page 7 English OPERATING INSTRUCTIONS 4872248-00 (VG13) WARNING! Paper Plastic Only the operator is allowed in the machine’s working area! Mounting the strap 1 Pull the compactor unit to one side. 2 Pull the strap through the slot on the rear of the container. 3 Thread the strap through the slot in the door and secure the strap with a loop on the front.
-
Page 8: Technical Specifications
5070 std. English TECHNICAL SPECIFICATIONS A=2160 (Valid for 490 5070-00 unless B=735 otherwise indicated) C=1740 D=1205 GENERAL DATA E=656 Double container: 365 kg (833 lbs) F=138 Compactor unit: 157 kg (352 lbs) G=1660 Total weight: 522 kg (1,185 lbs) H=1430... -
Page 9: Ec Declaration Of Conformity
English English EC DECLARATION OF CONFORMITY Orwak AB Svetsaregatan 4 S-576 33 Sävsjö, Sweden Tel: 46-382-15700 declares under its sole responsibility that the product model 4905070-00 - 4905070-99 4905070-S001 - 4905070-S999 to which this declaration relates is in conformity with the following... -
Page 10: Installation
English English INSTALLATION 5070 INSTALLATION 0,9 m min 0,6 m min 0,6 m min 0,6 m Svetsaregatan 4 576 33 Sävsjö Sweden Type Date Product No Weight Serial No Temperature range of use (standard oil): +5°C to +40°C +40 °C Temperature range of use (special oil): -10°C to +40°C... -
Page 11: Safety Check
English English WEEKLY INSPECTION AND MAINTENANCE - To disconnect, turn all controls to “off”, then 5070 remove plug from outlet. NOTE! During inspection and maintenance, service work - Do not unplug by pulling RENGÖRING OCH SERVICE and the removal of trapped waste, etc.: on the cord. - Page 12 4876345-50 ydraulic diagram Ø2 0,1-10,1V 90-250 bar 2.5 cc 1.6 cc Description Item Svenska English Deutsch Français Español 1 Elmotor Electrical motor Elektrischer Motor Moteur électrique Motor eléctrico 2 Dubbelpump Double pump Doppelpumpe Double pompe Doble bomba 3 Sugfilter Suction filter Saugsieb Filtre Filtro...
- Page 13 lEctrical diagram...
- Page 16 COMPACTION SOLUTIONS FOR MOST TYPES OF WASTE ORWAK develops solutions for sorting and recycling waste ORWAK develops solutions for sorting and recycling waste materials that improve business efficiency, contribute to a materials that improve business efficiency, contribute to a cleaner working and natural environment to provide the best cleaner working and natural environment to provide the best total waste handling economy.
