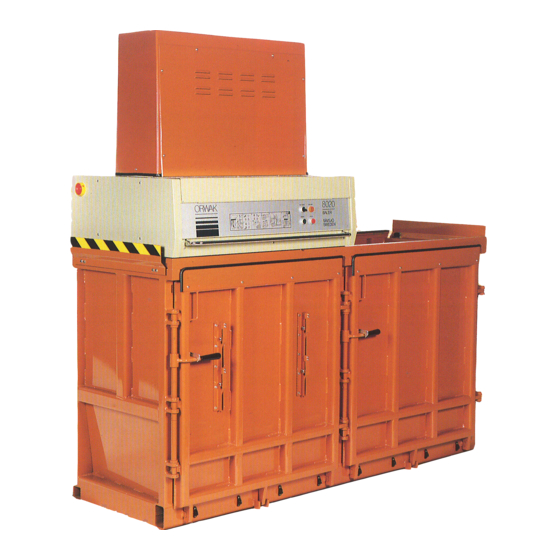

Summary of Contents for Orwak 8020
- Page 1 OPERATING INSTRUCTION APRIL 2001 MAJ 2002 PUBL. NO PUBL. NO 486 7328-ENG 91 644-00...
-
Page 2: Table Of Contents
8020 TABLE OF CONTENTS OPERATING INSTRUCTION SAFETY Operating instruction Data Transport Inspection/ Maintenance Instruction for installation... -
Page 3: Safety
LOCATION. The ORWAK 8020 is insulated to IP 55 so can be used in damp locations but not in areas which are hazardous locations. Always check the local regulations. - Page 4 8020 SAFETY FEATURES The machine is equipped with the following safety features : The Main switch can be secured with a pad lock to prevent unauthorised use or when servicing the machine. The Emergency Stop Switch breaks the electrical circuit immediately it is used.
- Page 5 The ORWAK 8020 is a quality product. As a quality aware Company AB ORWAK wishes to see that the ORWAK 8020 is used only for the correct purposes and that the safety instructions are followed. The Instruction Manual should be read thoroughly so that the ORWAK 8020 can be installed, operated and maintained properly.
- Page 6 The hydraulic pump is powered by a three phase electrical motor. The ORWAK 8020 is operated from a control panel on the front of the machine. The electrical connection is made by a 5 wire insulated cable which is connected to the power supply via an isolating wall socket, see instruction for installation.
- Page 7 8020 HYDRAULIC SYTEM Hydraulic two staged gear wheel pump, driven by an electrical motor. The hydraulic functions consists of an electrical directional valve, pressure switches and two hydraulic cylinders to move the press plate up and down. Relief valve to prevent over pressure in the hydraulic system.
-
Page 8: Operating Instruction
8020 OPERATING INSTRUCTION START BALING STOP BALING LAMP Put wate into the chamber 15 min and press the start button. Automatic stop at full bale. The machine will stop auto- Place baling cord by matically when full and yellow using special tool. -
Page 9: Data
8020 TECHNICAL DATA Overall length 2,43 m Overall width 1,11 m Overall height 2,36 m Electrical system Working voltage 220 / 380 / 415 V 3-phase 50 Hz 16 A Control voltage 220 / 240 V Motor rating 3 hp ( 2,2 kW) -
Page 10: Transport
8020 TRANSPORT 1500 kg... -
Page 11: Inspection/ Maintenance
8020 INSPECTION& MAINTENANCE +0 C Hydraulic oil LE 6520 -0 C VG 32-68 S AE 5-20 SAE 20 SAFETY CHECK When you have remove the bale from the machine xlose the door. Start the machine. When the press plate goes down, open the door to the chamber. -
Page 12: Instruction For Installation
8020 INSTRUCTION FOR INSTALLATION... - Page 13 DECLARATION OF INCORPORATION (Directive 89/392/EEC, Art. 4.2 and Annex II, sub B) AB ORWAK Box 58 S-576 22 Sävsjö, Sweden tel. 46-382-15700 / telefax 46-382-10607 Herewith declares that the machinery: press unit type: 4908020-81 is intended to be incorporated into...
