NO
PARTS LIST
1
TABLE TOP
2
BOTTOM SHELVES
3
TABLE LEGS
STEP 1
2
3
3

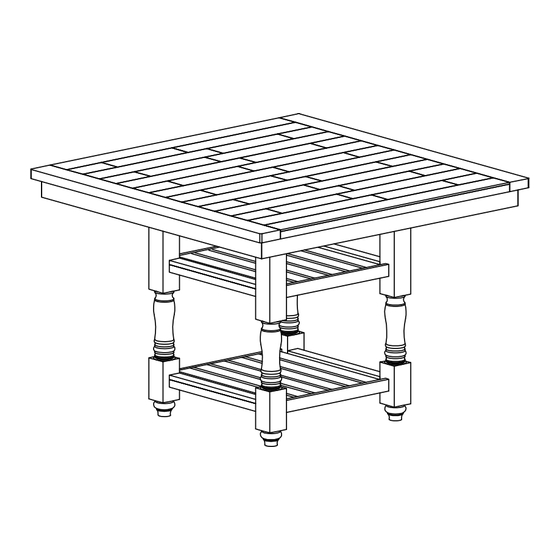

COMPLETED
For items use on wooden floor, hard surfaces or carpets, it is recommended to install protective pads
under all legs and supports to avoid/prevent from damages/scratches and discoloration
Do not tighten bolts until completely assembled
Care instructions:
. Dust often using a clean, soft, dry ang lint-free cloth.
. When blot spills, wipe with a clean, damp cloth immediately.
. We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish.
. Hardware may loosen over time. Periodically check to make sure all connections are tight. Re-tighten if
necessary.
ASSEMBLY INSTRUCTION
ITEM # 5906WH-36
DESCRIPTION: COUNTER HEIGHT TABLE
D
A
3
B
C
3
2
QTY
NO
A
1pc
B
C
2pcs
D
4pcs
STEP 2
PAGE 1 OF 1
HARDWARE LIST
BOLT
5/16"x 60mm
SPRING WASHER
5/16"xØ13x1.5mm
FLAT WASHER
1/4"xØ19x1.5mm
ALLEN KEY
C
MADE IN VIETNAM
QTY
16pcs
16pcs
16pcs
1pc
1
A
B
D
