Important Safety Instructions ...........................3-5
Features at a Glance .......................................... 6
Before Setting Oven Controls ..............................7
Before Setting Surface Controls ........................8-9
Oven Control Functions (300) ............................ 14
TA B L E O F C O N T E N T S
Setting Oven Controls .................................. 14-19
Self-Cleaning ............................................... 20-21
Care & Cleaning .......................................... 22-25
Before You Call ........................................... 26-27
Major Appliance Warranty ................................. 28
Advertisement
Table of Contents
Related Manuals for Frigidaire FFEF3020LBD
Summary of Contents for Frigidaire FFEF3020LBD
-

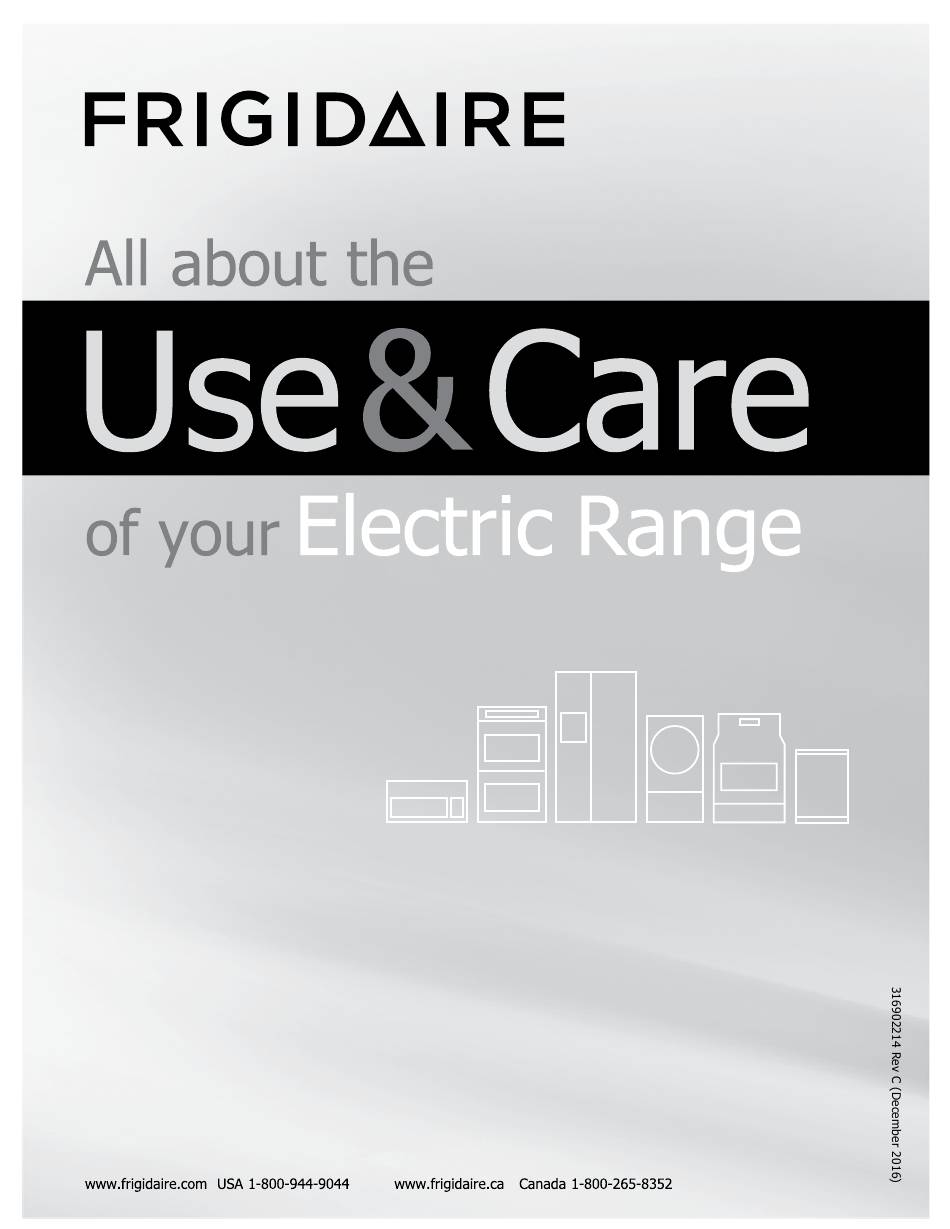

Page 1: Table Of Contents
TA B L E O F C O N T E N T S Important Safety Instructions ......3-5 Setting Oven Controls ........14-19 Features at a Glance .......... 6 Self-Cleaning ..........20-21 Before Setting Oven Controls ......7 Care & Cleaning .......... 22-25 Before Setting Surface Controls ......8-9 Before You Call ........... -
Page 2: Product Record And Registration
Setting bake time ............. 16 that might occur. If you do need service, help is only Setting bake time and start time ....... 17 a phone call away. Call Frigidaire Customer Services Setting broil ............. 18 at 1-800- 944-9044. Adjusting oven temperature ........19 Product Registration Setting oven lockout feature ........ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. WARNING This manual contains important safety symbols and Tip Over Hazard instructions. Please pay attention to these symbols and follow all instructions given. • A child or adult can tip the range and be killed. -
Page 4: Important Instructions For Using The Appliance
IMPORTANT SAFETY INSTRUCTIONS • Be sure to have an appropriate foam-type fire extinguisher available, visible, and easily accessible located near the appliance. GROUNDED INSTRUCTIONS Power supply cord with 4-prong grounding plug WARNING 240V grounded wall receptacle • Avoid fire hazard or electrical shock. Failure to follow this warning may cause serious injury, fire, or death IMPORTANT INSTRUCTIONS FOR USING... -
Page 5: Important Instructions For Using Your Radiant Cooktop
IMPORTANT SAFETY INSTRUCTIONS size. Using the proper cookware on the cooking area CAUTION will improve efficiency. • Glazed cooking utensils— Only certain types of glass, • When heating fat or grease, watch it closely. Grease glass/ceramic, ceramic, earthenware, or other glazed may catch fire if it becomes too hot. -
Page 6: Important Instructions For Cleaning Your Appliance
IMPORTANT SAFETY INSTRUCTIONS • Keep oven vent ducts unobstructed. Touching surfaces • Before using self clean, remove the broiler pan, any in this area when the oven is on may cause severe food, utensils, and cookware from the oven, storage burns. -
Page 7: Oven Vent Location
BEFORE SETTING OVEN CONTROLS Oven vent location Types of oven racks The oven vent is located under the left side of the Your range may be equipped with one or more of the oven control panel (See Fig. 1). When the oven is on, warm rack styles shown. -
Page 8: Before Setting Surface Controls
BEFORE SETTING SURFACE CONTROLS About the ceramic glass cooktop The ceramic cooktop has radiant surface elements element ON indicator light located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. -
Page 9: Types Of Cooktop Elements
BEFORE SETTING SURFACE CONTROLS Types of cooktop elements Using proper cookware The ceramic glass cooktop has radiant surface elements The size and type of cookware used will influence the located below the surface of the glass. The patterns on setting needed for best cooking results. Be sure to follow the ceramic glass will outline the size and type of element the recommendations for using proper cookware as available. -
Page 10: Setting Surface Controls (Ceramic Cook Top)
SETTING SURFACE CONTROLS Single radiant surface elements To operate the single radiant element: 1. Place correctly sized cookware on single radiant surface element. 2. Push in and turn the surface control knob in either direction (Fig. 2) to the desired setting (Refer to the Suggested radiant surface element settings table Fig. -
Page 11: Dual Radiant Surface Elements (Some Models)
SETTING SURFACE CONTROLS Dual radiant surface elements (some models) Symbols on the backguard are used to indicate which coil of the dual radiant element will heat. The symbol indicates the inner coil only. The symbol indicates both inner and outer coils will heat. To operate a dual radiant element: 1. -
Page 12: Setting The Keep Warm Zone
SETTING SURFACE CONTROLS Keep Warm Zone (some models) Temperature selection - Refer to the keep warm zone recommended food settings table (See Fig. 2). If a The purpose of the keep warm zone is to keep hot cooked particular food is not listed, start with the medium level, foods at serving temperature. -
Page 13: Home Canning
SETTING SURFACE CONTROLS Home Canning Be sure to read and observe all the following points when CAUTION home canning with your appliance. Check with the USDA (United States Department of Agriculture) website and be sure to read all the information they have available as Radiant surface elements may appear to have cooled well as follow their recommendations for home canning after they have been turned off. -
Page 14: Oven Control Functions (300)
OVEN CONTROL FUNCTIONS READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad features and functions of the oven as described below. Feature indicator Bake time pad— Use Up and down arrow pads— Use with the feature Bake pad—Use lights—... -
Page 15: Setting Silent Control Feature
SETTING OVEN CONTROLS Setting a silent control panel When choosing a function, a tone will be heard each NOTES time a keypad is pressed. If desired, the control may be programmed for silent operation. The indicator light located above the timer on-off pad will glow while the minute timer is active. -
Page 16: Setting Bake
SETTING OVEN CONTROLS Setting bake Setting bake time The oven can be programmed to bake at any temperature The bake time pad sets the amount of time needed from 170°F to 550°F (77°C to 287°C). The factory preset for baking. The oven will turn on immediately and stop automatic bake temperature is 350°F (177°C). -
Page 17: Setting Bake Time And Start Time
SETTING OVEN CONTROLS Setting bake time and start time The bake time and start time pads may be used to set the length of baking time and to delay the starting time WARNING (delayed timed bake). The oven will turn on at a later time and stop automatically after the set bake time ends. -
Page 18: Setting Broil
SETTING OVEN CONTROLS Setting broil Use the broil feature to cook meats that require direct exposure to radiant heat for optimum browning results. When broiling always remember to arrange the oven Insert racks while oven is still cool. Position the rack as suggested in the broil settings table (See Figs. -
Page 19: Adjusting Oven Temperature
SETTING OVEN CONTROLS Adjusting the oven temperature Setting oven lockout The control can be programmed to lock the oven door and Your appliance has been factory calibrated and tested lockout the oven control pads. to ensure an accurate baking temperature. For the first few uses, follow your recipe times and temperature To set the oven lockout feature recommendations carefully. -
Page 20: Self-Cleaning
SELF-CLEANING Self-Cleaning CAUTION A self-cleaning oven cleans itself with high temperatures During the self-cleaning cycle, the outside of the range (well above normal cooking temperatures) which eliminate can become very hot to the touch. DO NOT leave small soils completely or reduces them to a fine powdered ash children unattended near the appliance. - Page 21 SELF-CLEANING Setting a self-clean cycle or a delayed start self-clean cycle When the self-clean cycle has completed: IMPORTANT 1. The time of day will appear in the display window and the “Clean” and “LOCK” light will continue to glow. 2. Once the oven has cooled down for about 1 HOUR and To start a self-clean cycle immediately without a delay, the “LOCK”...
-
Page 22: Care & Cleaning
CARE & CLEANING Cleaning recommendation table Surface type Recommendation • Control knobs Use hot, soapy water and a cloth. Dry with a clean cloth. • Painted body parts For general cleaning, use hot, soapy water and a cloth. For more •... -
Page 23: Cooktop Maintenance & Cleaning
CARE & CLEANING Cooktop maintenance Cooktop cleaning IMPORTANT CAUTION Consistent and proper cleaning is essential to Before cleaning the cooktop, be sure the controls are maintaining your ceramic glass cooktop. turned to OFF and the cooktop is COOL. Prior to using your cooktop for the first time, apply For light to moderate soil: a ceramic cooktop cleaning cream (available in most Apply a few drops of cooktop cleaning cream directly... -
Page 24: Cautions For Aluminum Use
CARE & CLEANING Cooktop cleaning (cont’d) Plastic or foods with a high sugar content: IMPORTANT These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Damage to the ceramic glass cooktop may occur if you Permanent damage (such as pitting of the cooktop use an abrasive type cleaning pad. -
Page 25: Removing And Replacing The Lift-Off Oven Door
CARE & CLEANING Removing and replacing the lift-off oven door Oven door hinge locations CAUTION The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. To remove oven door: 1. Open oven door completely (horizontal with floor - See Fig. -
Page 26: Before You Call
BEFORE YOU CALL • Solutions to common problems Problem Solution Poor baking results. • Many factors affect baking results. Make sure the proper oven rack position is used. Center food in the oven and space pans to allow air to circulate. - Page 27 BEFORE YOU CALL Solutions to common problems • Problem Solution • Failure to clean bottom, front top of oven, frame of oven or door area Soil not completely removed after self- outside oven seal. These areas are not in the self-cleaning area, but get cleaning cycle.
-
Page 28: Major Appliance Warranty
MAJOR APPLIANCE WARRANTY Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
