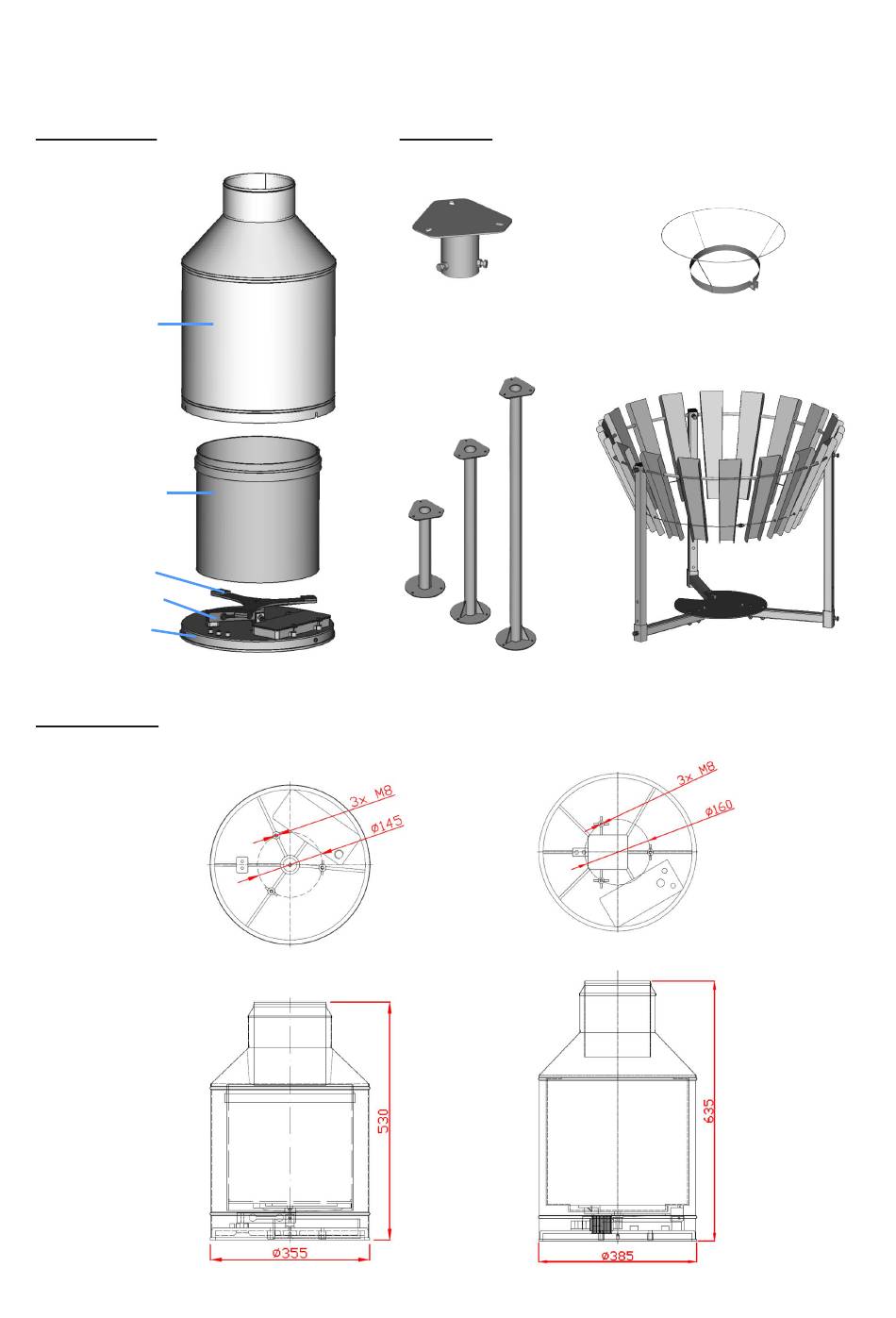

INSTALATION GUIDE TRWS_10 & TRWS_30
Follow these step-by-step instructions to assemble the TRWS for your precipitation measurement system.
Main parts:
COVER
BUCKET
PLATE
SENSOR
BASE
Dimensions:
MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk
Optional:
ADAPTER
STAND 1/1.5/2 m
TRWS_10
BIRD PROTECTOR
WINDSHIELD
TRWS_30
Advertisement
Related Manuals for MPS TRWS 10
Summary of Contents for MPS TRWS 10
- Page 1 Follow these step-by-step instructions to assemble the TRWS for your precipitation measurement system. Main parts: Optional: ADAPTER BIRD PROTECTOR COVER STAND 1/1.5/2 m WINDSHIELD BUCKET PLATE SENSOR BASE Dimensions: TRWS_10 TRWS_30 MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
-
Page 2: Installation
• Attach the base to the stand using three M8 screws. Check the horizontal position of the support triangle with the spirit level and adjust using the lower flange nuts if necessary. • Tighten all the nuts securely. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk... - Page 3 • Secure the enclosure by tightening the three screws around the lower edge. • Use your finger to check the assembly: the bucket should not touch the enclosure. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
- Page 4 8 wire cable connection M12 8-pin & 4-pin connectors HT-IN HT-IN HT-IN HT-IN HT-IN HT-IN HT-OUT HT-OUT HT-OUT HT-OUT HT-OUT HT-OUT PIN 1 6 4 3 2 5 8 7 MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
- Page 5 Follow these step-by-step instructions to assemble the TRWS for your precipitation measurement system. Main Parts: Optional: STAND 1/1.5/2 m ADAPTER COVER WINDSHIELD SELF EMPTYING BUCKET LIBELA BASE Dimensions: TRWS_E.200 TRWS_E.314 TRWS_E.400 MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
- Page 6 Ensure the support triangle is level by placing the spirit level on both ends. • Once the base plate is level, tighten the mounting adapter's fixing screws securely. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
- Page 7 • Use your finger to check the assembly: the bucket should not touch the enclosure. 3. Cable connection: M12 8-pin & 4-pin connectors HT-IN HT-IN HT-OUT HT-OUT PIN 1 6 4 3 2 5 8 7 MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
-
Page 8: Sdi-12 Protocol
Link to access the online web-based testing tool for TRWS rain gauges, allowing you to verify and ensure precise measurement accuracy: https://accuracy-test-trws.mps-system.sk/ Note: The web tool is compatible only with Microsoft Edge and Chrome browsers. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bratislava, Slovakia, www.mps-system.sk...
