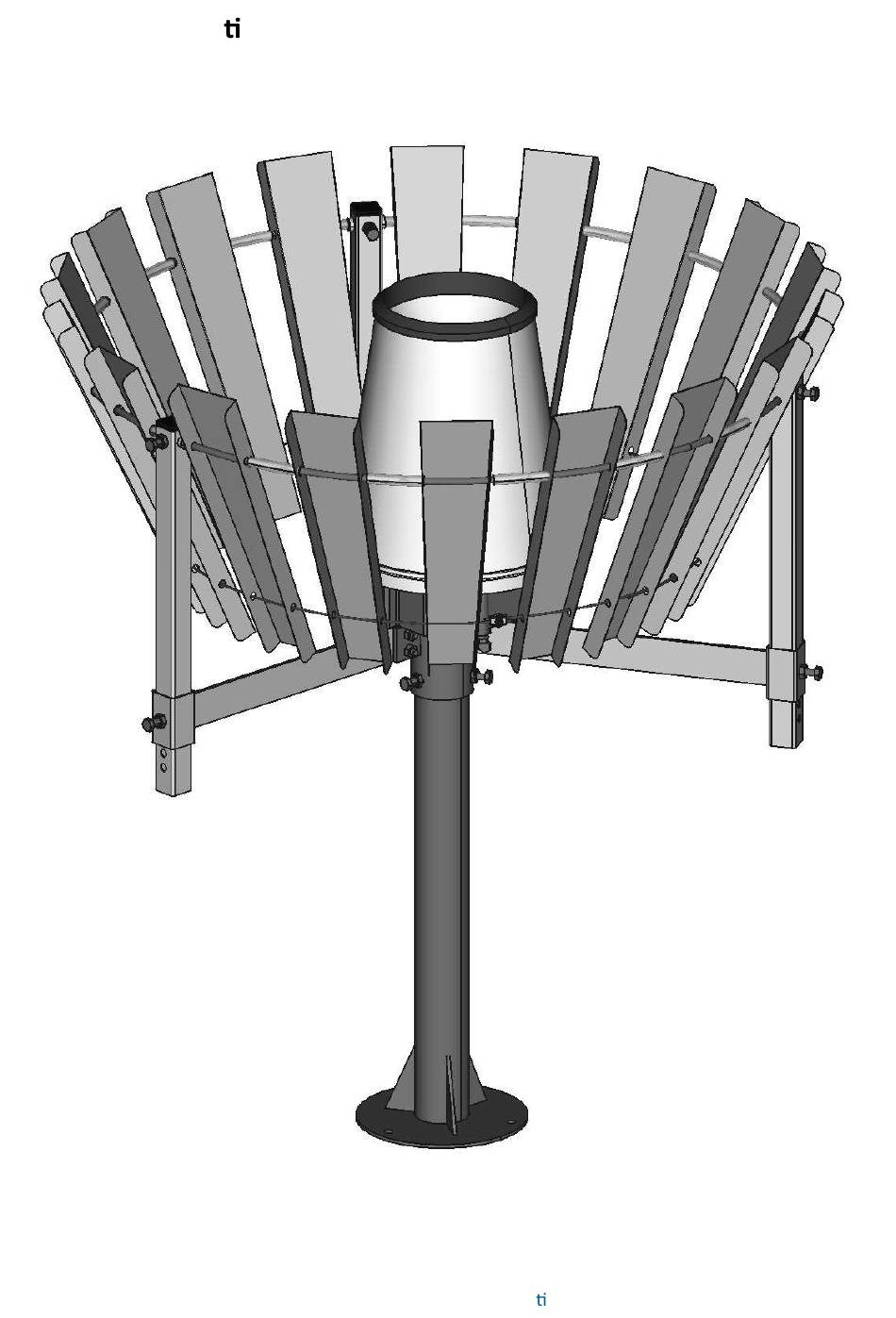

- Page 1 Instala on guide Tretyakov Wind Shield TRWS_E MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
-
Page 2: Parts List
7. Spacers 8. Steel cable & clamp 1 pc 9. M8x20 bolt with – long 15 psc nut & washer 6 pcs – short 6 pcs MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk... -
Page 3: Assembly Procedure
• A ach 3 pcs Horizontal Arms (3) to the Moun ng Bracket (1) using 6 pcs M8x20 bolts with washer & nut (9) for each arm. Tighten with a 13 mm wrench. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk... - Page 4 • A ach 3 Ver cal Supports (4) to the ends of the Horizontal Arms (3). • Use the holes that correspond to your specific TRWS model: TRWS_E.200 TRWS_E.314 TRWS_E.400 • Tighten with a 13 mm wrench. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
- Page 5 • Insert the ends of each assembled Ring Segment (6) into the holes at the top of the Ver cal Supports (4). • Fix the Ring Segments in place using M8 bolts on the ver cal arms. Tighten with a 13 mm wrench. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
-
Page 6: Final Adjustments
• Ensure the Leaves are evenly spaced and properly aligned for op mal wind shielding. • Make sure the stand is securely fastened and anchored to the ground to prevent the en re assembly from vibra ng in the wind. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
