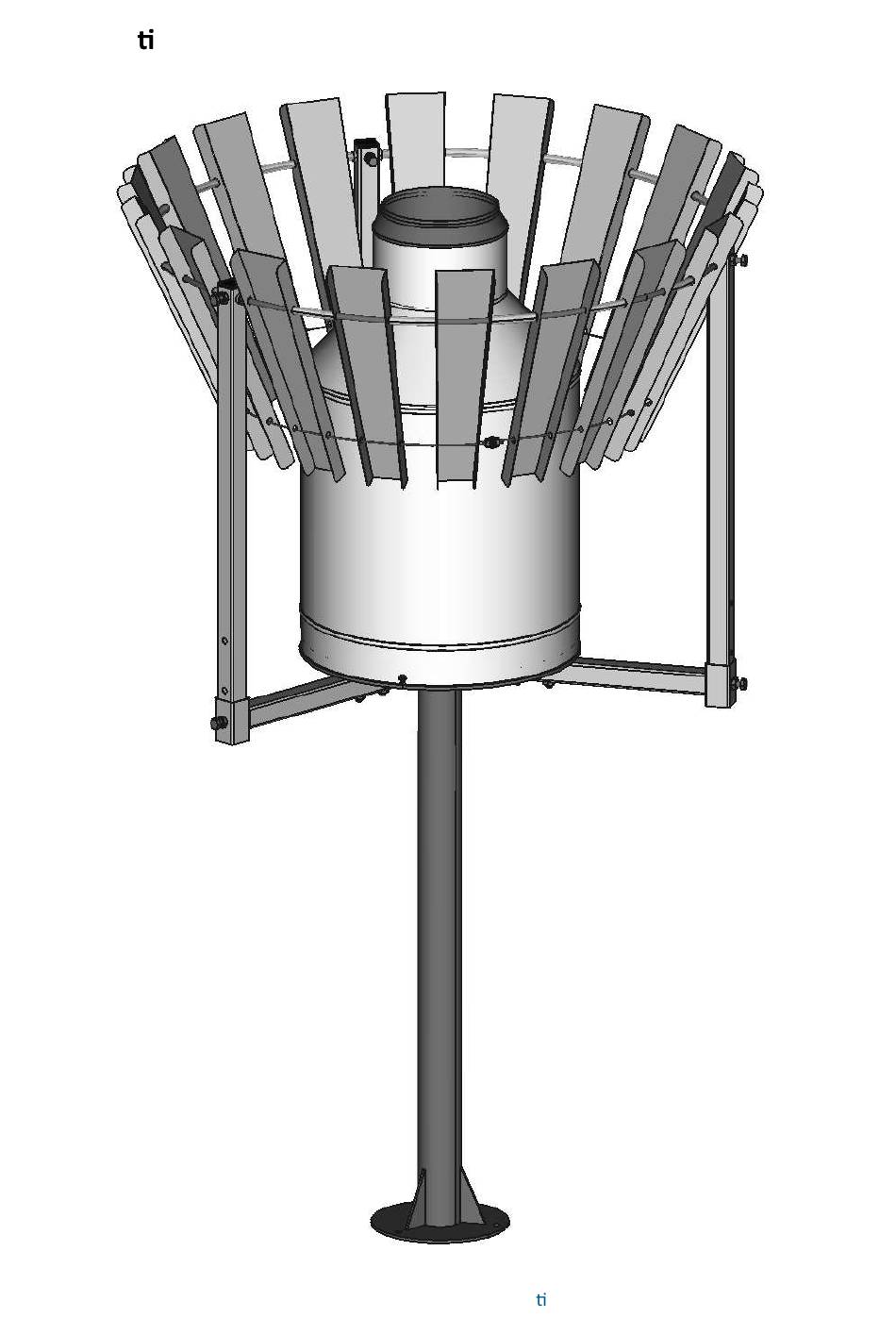

- Page 1 Instala on guide Tretyakov Wind Shield TRWS_10 & TRWS_30 MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
-
Page 2: Parts List
7. Spacers 8. Steel cable & clamp 1 pc 9. M8x45 bolt with – long 15 psc nut & washer 6 pcs – short 6 pcs MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk... -
Page 3: Assembly Procedure
• Posi on the TRWS base on top, ensuring its threaded holes align with the holes in the flange and the Moun ng Bracket. • Secure the base plate using three M8 bolts. Tighten with a 13 mm wrench. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk... - Page 4 Leaves for a achment. Between six leaves, use 5 pcs of long spacers, and on both ends, use 2 short spacers each. • Ensure the flat sides of the Leaves face inward, towards the rain gauge. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
- Page 5 • Fix the Ring Segments in place using M8 bolts on the ver cal arms. Tighten with a 13 mm wrench. 6. Install the Steel Cable • Thread the Steel Cable (8) through the holes at the lower ends of each Leaf (5). MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
-
Page 6: Final Adjustments
• Ensure the Leaves are evenly spaced and properly aligned for op mal wind shielding. • Make sure the stand is securely fastened and anchored to the ground to prevent the en re assembly from vibra ng in the wind. MPS - System spol. s.r.o., Pri vinohradoch 326, 831 06, Bra slava, Slovakia, www.mps-system.sk...
