  • Page 1 SOM200RD-XI Development Kit with 5S / 4 USB / LAN / 2GPIO / PWMx24 256MB DDR2 Onboard User’s Manual (Revision 1.0A)
  • Page 2: Trademarks Acknowledgment

    No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc.
  • Page 3: Table Of Contents

    PWM ..............33 IDE to SD ............. 34 C h a p t e r 3 Driver Installation……………………………………35 Appendix ………………………………………………………………..36 A. TCP/IP library for DOS real mode ......36 B. SOM200RD-XI & SOM200DX-DEV-XI Schematic ..37 C. BIOS Default Setting......……………………38 Warranty.................... 39...
  • Page 4 This page is blank...
  • Page 5: Table O F C O N T E N T S

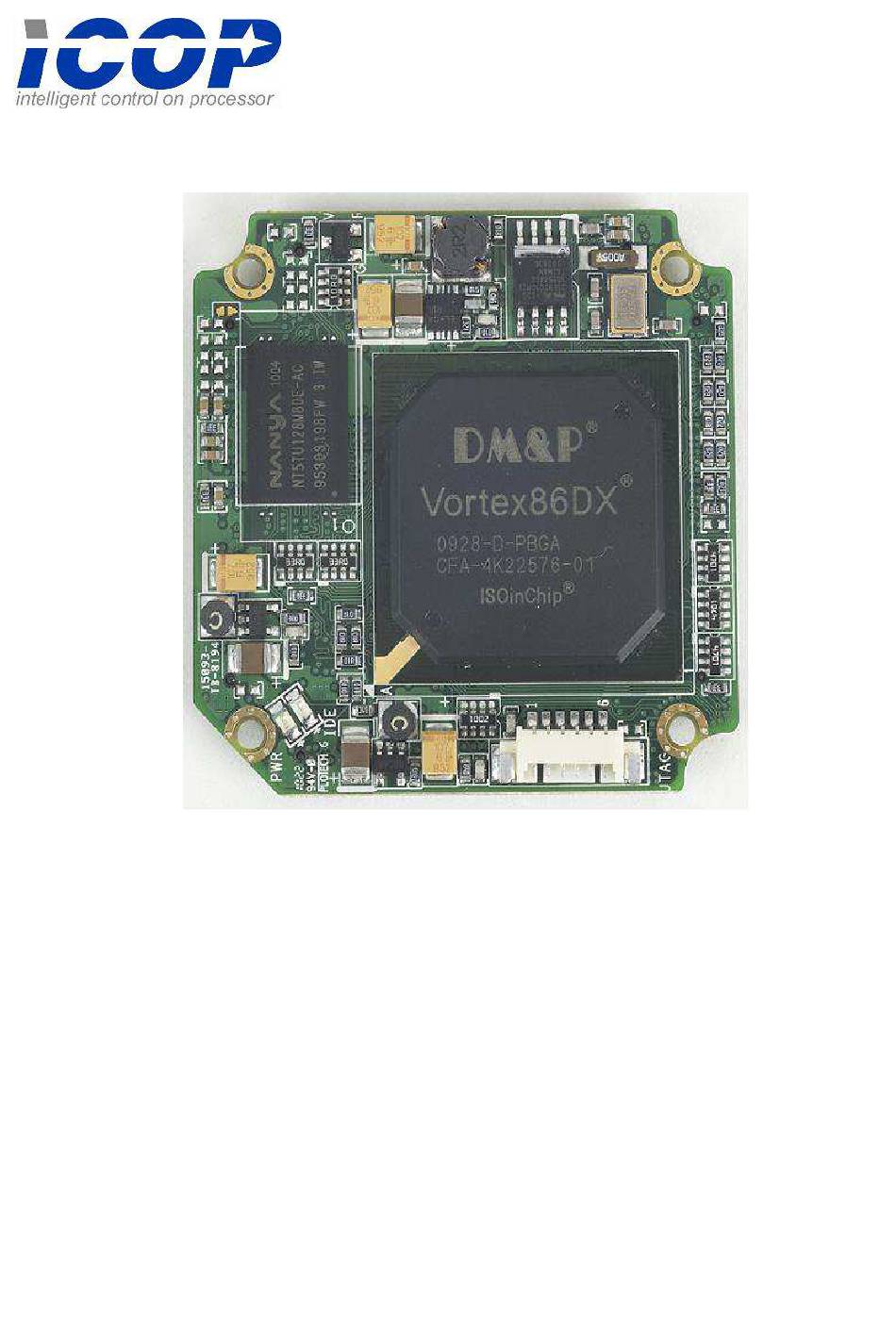

    USB (2.54mm) x 1 Print cable (2.54mm ) x 1 Product Name Package SOM200RD-XI SOM200RD-XI CPU Module x 1 Product Name Package ICOP-0091 PC/104 Interface to ISA Bus x 1 ICOP-2811 PC/104 VGA/LCD Display Module SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 6: Product Description

    25pin connector, SOM200RD-XI is able to provide multiple functions, such as RS-232, ISA, IDE, LAN, USB and GPIO. To assist users easily adapt SOM200RD-XI Module into their applications, ICOP offers a complete development board and referential circuit diagram for SOM200RD-XI Module in order to reduce users’...
  • Page 7: Specifications

    External 6-pin Mini DIN connector for Mouse x1 External Audio Phone Jack x1 Single Voltage +5V @200mA Power Requirement 170 X 170 mm (6.69 x 6.69 inches) Dimension 280g Weight C ~ +70 Operating -40°C ~ +85°C (Optional) Temperature SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 8 1.25mm 6-pin Wafer for JTAG x1 Single Voltage +5V @ 600mA Power Requirement 52 mm (L) x 52 mm (W) x 10.5 mm (H) (With Cover) Dimension Weight C ~ +70 Operating -40°C ~ +85°C (Optional) Temperature SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 9: Board Dimension

    Board Dimension SOM200DX-DEV-XI SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 10 SOM200RD-XI SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 11 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 12: Chapter 2 Installation

    EIDE Interface COM3 Power Connector IDE/SD GPIO 0, 1 Console Redirection GPIO 2, 3 ATX Power Input COM1 Redundancy PWR - SW Reset PS/2 COM1 KB/Mouse COM2 COM2 USB 0, 1 Audio SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 13 SOM200DX-DEV-XI Development Kit ICOP-2811 LINE-IN COM2 ICOP-0091 PS/2 Mouse PS/2 KBD COM1 MIC-IN LINE-OUT SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 14 SOM200RD-XI JTAG SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 15: Connectors & Jumpers Location

    Connectors & Jumpers Location Connectors SOM200DX-DEV-XI USB1 J46 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 16: Connectors & Jumpers Summary

    Box Header, 2.54∅ 20x2 COM1 9-pin J45A D-Sub Male COM2 9-pin J45B D-Sub Male Audio Mic-In 1.25mm Phone Jack J46A Audio Line-Out 1.25mm Phone Jack J46B Audio Line-In 1.25mm Phone Jack J46C BUZZER PWR-SW Reset SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 17: Pin Assignments & Jumper Settings

    Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS-0 IDECS1 IDELED SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 18 LUSBD1- LUSBD0+ LUSBD1+ GGND GGND Note: USB port 0, 1 will be occupied if audio function is available. USB1A: USB0/1 Pin # Signal Name Pin # Signal Name -DATA -DATA +DATA +DATA SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 19 Pin # Signal Name Pin # Signal Name SYS-FAIL-OUT RXD9\ TXD9\ SYS-FAIL-IN SYS-GPCS-IN GPCS0 SYS-SW-IN GPCS1 J9: TTL/RS232 Mode Selector (Open: On, Close: Off) Pin # Signal Name Pin # Signal Name SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 20 SPICS GP21 SPICLK GP22 SPIDO GP23 SPIDI GP24 GP34 GP25 GP35 GP26 GP36 GP27 GP37 Note: If you Enable 4M SPI flash Disk on the BIOS setting, you cannot use GP30~GP37 Pins. SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 21 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 TXDEN2/VCC J16: ATX Power Pin # Signal Name Pin # Signal Name SB5V +12V -12V SB5V J17: Power Connector (Terminal Block 5.0mm) Pin # Signal Name SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 22 Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J20: COM 4 TTL Mode Signal Signal Pin # Pin # Name Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 23 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH * SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 * BALE SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 24 DACK6 * DRQ6 SD10 DACK7 * SD11 DRQ7 SD12 SD13 MASTER * SD14 SD15 J45A: COM 1 Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 25 J45B: COM 2 Signal Signal Pin # Pin # Name Name DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 26 SOM200RD-XI SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 27 SOM200RD-XI J1/J2/J3/J4: SOM200RD-XI Signal Assignment SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 28 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 29: System Mapping

    FEFFE000 - FFFFF000 Standard OpenHCD USB Host Controller FEFFF400 - FFFFFF00 On board Ethernet Adapter FEFFF800 - FFFFFF00 Standard Enhanced PCI to USB Host Controller FEFFFC00 - FFFFFF00 Standard Enhanced PCI to USB Host Controller SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 30 CMOS RAM port 0072h - 0075h MTBF control register 0078h - 007Ch GPIO port 0,1,2,3,4 default setup 0080h - 008Fh DMA page register 0092h System control register 0098h - 009Ch GPIO direction control SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 31 8259 Edge / level control register 0CF8h – 0CFFh PCI configuration port DE00h – DEFFh On board LAN FC00h – FC05h SPI Flash BIOS control register FC08h – FC0Dh External SPI BUS control register SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 32 Printer Port IRQ8 Real Time Clock IRQ9 USB/ Ethernet 10/100M LAN IRQ10 Serial Port 3 IRQ11 Serial Port 4 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Hard Disk Controller#1 IRQ15 Hard Disk Controller#2 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 33 DMA Mapping DMA# Description Usage DMA0 DMA1 DMA2 Floppy Disk Controller DMA3 DMA4 DMA5 DMA6 DMA7 SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 34: Watchdog Timer

    The M6117D compatible watchdog timer is called WDT0 and the new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 35: Gpio

    We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 36: Spi Flash

    Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 37: Pwm

    New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 38: Ide To Sd

    44 pins IDE to SD Adapter can be easily installed on all Vortex86DX CPU boards. You or your customers just do the BIOS setting and use SD-1917 to connect IDE connector of Vortex86DX boards directly. For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request.
  • Page 39: Chapter 3 Driver Installation

    The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection. Operating system support The SOM200RD-XI CPU module provides LAN drivers for DOS 6.22 Windows CE 5.0, CE 6.0, Windows 98, Windows XP Professional, Windows Embedded standard (XPE) and Windows 2000 (SP4).
  • Page 40: Appendix

    Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs.
  • Page 41: Som200Rd-Xi & Som200Dx-Dev-Xi Schematic

    Designer can place connectors precisely where needed for the application on a baseboard designed to optimally fit a system’s packaging. Please contact or e-mail our regional sales to get SOM200RD-XI CPU module and SOM200DX-DEV-XI Schematic. SOM200RD-XI Development Kit...
  • Page 42: Bios Default Setting

    CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9” to Load Optimized Defaults Press “F10” to Save configuration changes and exit setup SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
  • Page 43: Warranty

    Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. SOM200RD-XI Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
