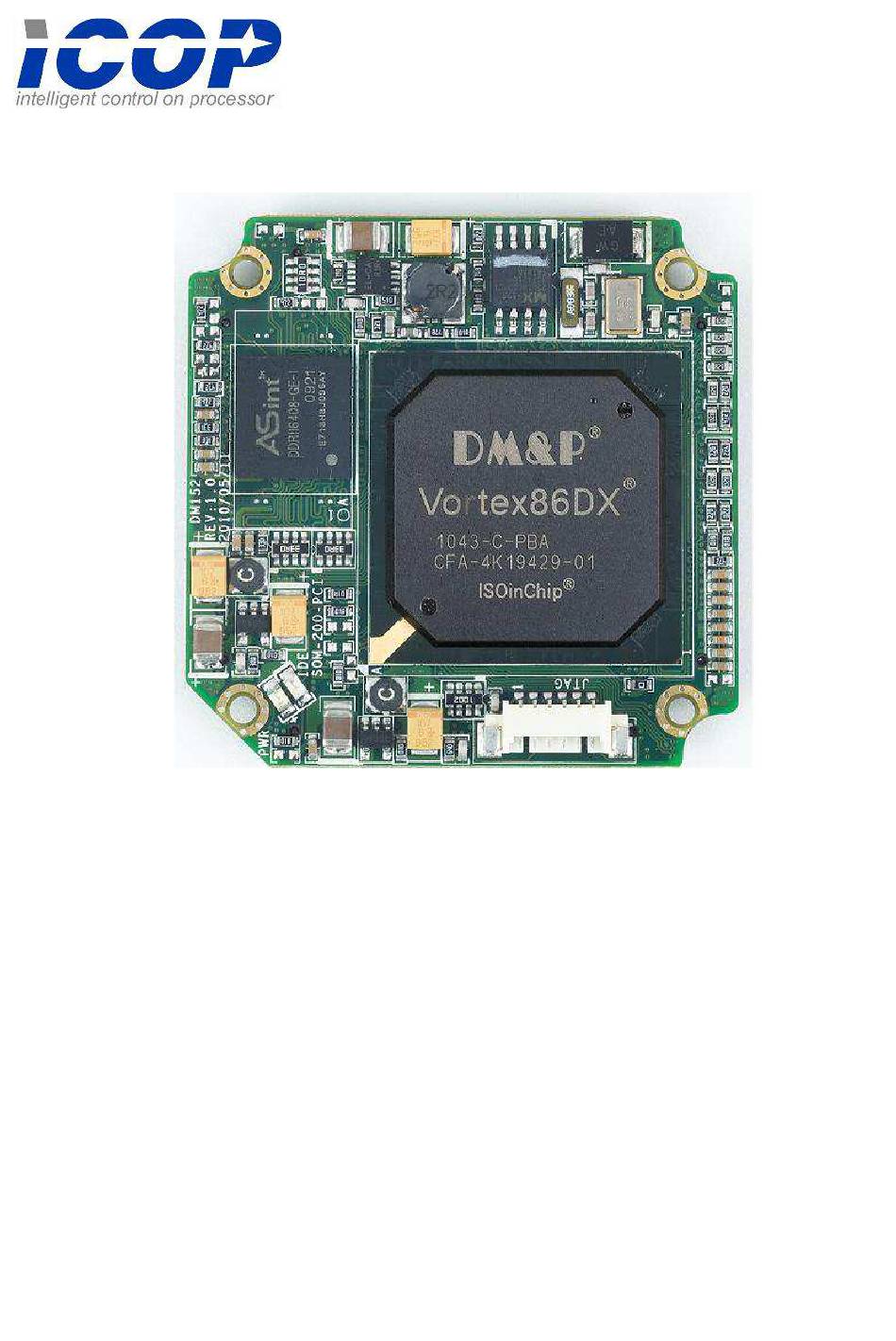

- Page 1 SOM200RD-PC Development Kit with 5S / 4 USB / LAN / 2GPIO / PWMx24 256MB DDR2 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc.
-
Page 3: Table Of Contents
PWM ..............31 IDE to SD ............. 32 C h a p t e r 3 Driver Installation……………………………………33 Appendix ………………………………………………………………..34 A. TCP/IP library for DOS real mode ......34 B. SOM200RD-PC & SOM200DX-DEV-PC Schematic . 35 C. BIOS Default Setting......……………………36 Warranty.................... 37... -
Page 4: Table O F C O N T E N T S
GPIO cable (2.54mm) x 2 USB (2.54mm) x 1 Print cable (2.54mm ) x 1 Product Name Package SOM200RD-PC SOM200RD-PC CPU Module x 1 Product Name Package PCI-VGA-Z9s XGI Z9s VGA/DVI PCI Display Board x 1 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 5: Product Description
25pin connector, SOM200RD-PC is able to provide multiple functions, such as RS-232, IDE, LAN, USB and GPIO. To assist users easily adapt SOM200RD-PC Module into their applications, ICOP offers a complete development board and referential circuit diagram for SOM200RD-PC Module in order to reduce users’... -
Page 6: Specifications
External 6-pin Mini DIN connector for Mouse x1 External Audio Phone Jack x1 Single Voltage +5V @80mA Power Requirement 170 X 170 mm (6.69 x 6.69 inches) Dimension 280g Weight C ~ +70 Operating -40°C ~ +85°C (Optional) Temperature SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... - Page 7 1.25mm 6-pin Wafer for JTAG x1 Single Voltage +5V @ 420mA Power Requirement 52 mm (L) x 52 mm (W) x 10.5 mm (H) (With Cover) Dimension Weight C ~ +70 Operating Temperature -40°C ~ +85°C (Optional) SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
-
Page 8: Board Dimension
Board Dimension SOM200DX-DEV-PC SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... - Page 9 SOM200RD-PC SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 10 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
-
Page 11: Chapter 2 Installation
Interface Connector Console Redirection Parallel Port COM4 GPIO 0, 1 GPIO 2, 3 PCI Slot ATX Power Input Reset PWR - SW PS/2 KB/Mouse COM1 Audio COM2 COM1 COM2 USB 0, 1 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... - Page 12 SOM200DX-DEV-PC with PCI-VGA-Z9s PCI-VGA-Z9s Board LINE-IN COM2 PS/2 Mouse PS/2 KBD COM1 MIC-IN LINE-OUT SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 13 SOM200RD-PC JTAG SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
-
Page 14: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors SOM200DX-DEV-PC J13 USB1 J46 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 15: Connectors & Jumpers Summary
Box Header, 2.54∅, 5x2 COM1 9-pin J45A D-Sub Male COM2 9-pin J45B D-Sub Male Audio Mic-In 1.25mm Phone Jack J46A Audio Line-Out 1.25mm Phone Jack J46B Audio Line-In 1.25mm Phone Jack J46C BUZZER PWR-SW Reset SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 16: Pin Assignments & Jumper Settings
Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS-0 IDECS1 IDELED SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... - Page 17 LUSBD1- LUSBD0+ LUSBD1+ GGND GGND Note: USB port 0, 1 will be occupied if audio function is available. USB1A: USB0/1 Pin # Signal Name Pin # Signal Name -DATA -DATA +DATA +DATA SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 18 J9: TTL/RS232 Mode Selector (Open: On, Close: Off) Pin # Signal Name Pin # Signal Name J10: COM1/P4/PWM Signal Pin # Pin # Signal Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 TXDEN1/VCC SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 19 If you Enable 4M SPI flash Disk on the BIOS setting, you cannot use GP30~GP37 Pins. J13: TTL/RS232 Mode Selector (Open: On, Close: Off) Pin # Signal Name Pin # Signal Name SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 20 +12V -12V SB5V J17: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J18: COM3 TTL Mode Signal Signal Pin # Pin # Name Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 21 Signal Pin # Pin # Name Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 J37: LPC Pin # Signal Name Pin # Signal Name 24MHZ LAD0 LFRAME- LAD1 LAD2 LDRQ- LAD3 SERIRQ SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 22 Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J45B: COM 2 Signal Signal Pin # Pin # Name Name DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 23 SOM200RD-PC SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 24 SOM200RD-PC J1/J2/J3/J4: SOM200RD-PC Signal Assignment SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 25 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
-
Page 26: System Mapping
FEFAF800 - FFFFFF00 Standard OpenHCD USB Host Controller FEFAF400 - FFFFFF00 On board Ethernet Adapter FEFAE000 - FFFFF000 Standard Enhanced PCI to USB Host Controller FEFAFC00 - FFFFFF00 Standard Enhanced PCI to USB Host Controller SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... - Page 27 CMOS RAM port 0072h - 0075h MTBF control register 0078h - 007Ch GPIO port 0,1,2,3,4 default setup 0080h - 008Fh DMA page register 0092h System control register 0098h - 009Ch GPIO direction control SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 28 8259 Edge / level control register 0CF8h – 0CFFh PCI configuration port DE00h – DEFFh On board LAN FC00h – FC05h SPI Flash BIOS control register FC08h – FC0Dh External SPI BUS control register SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 29 Printer Port IRQ8 Real Time Clock IRQ9 USB/ Ethernet 10/100M LAN IRQ10 Serial Port 3 IRQ11 Serial Port 4 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Hard Disk Controller#1 IRQ15 Hard Disk Controller#2 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
- Page 30 DMA Mapping DMA# Description Usage DMA0 DMA1 DMA2 Floppy Disk Controller DMA3 DMA4 DMA5 DMA6 DMA7 SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
-
Page 31: Watchdog Timer
The M6117D compatible watchdog timer is called WDT0 and the new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 32: Gpio
We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 33: Spi Flash
Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 34: Pwm
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 35: Ide To Sd
44 pins IDE to SD Adapter can be easily installed on all Vortex86DX CPU boards. You or your customers just do the BIOS setting and use SD-1917 to connect IDE connector of Vortex86DX boards directly. For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. -
Page 36: Chapter 3 Driver Installation
The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection. Operating system support The SOM200RD-PC CPU module provides LAN drivers for DOS 6.22 Windows CE 5.0, CE 6.0, Windows 98, Windows XP Professional, Windows Embedded standard (XPE) and Windows 2000 (SP4). -
Page 37: Appendix
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 38: Som200Rd-Pc & Som200Dx-Dev-Pc Schematic
Designer can place connectors precisely where needed for the application on a baseboard designed to optimally fit a system’s packaging. Please contact or e-mail our regional sales to get SOM200RD-PC CPU module and SOM200DX-DEV-PC Schematic. SOM200RD-PC Development Kit... -
Page 39: Bios Default Setting
CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9” to Load Optimized Defaults Press “F10” to Save configuration changes and exit setup SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module... -
Page 40: Warranty
Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. SOM200RD-PC Development Kit Vortex86DX™ SOM 200-Pin CPU Module...
