Icop VDX-6319D-FB-D User Manual

Mity-soc development kit & mity-soc cpu module with 2s/usb/gpio 256mb ddr2 onboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mity-SoC Development Kit
&
Mity-SoC CPU Module
with 2S/USB/GPIO 256MB DDR2 Onboard
(Onboard EmbedDisk 512MB)
User's Manual
(Revision 1.1A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDX-6319D-FB-D and is the answer not in the manual?

Questions and answers

Related Manuals for Icop VDX-6319D-FB-D

Summary of Contents for Icop VDX-6319D-FB-D

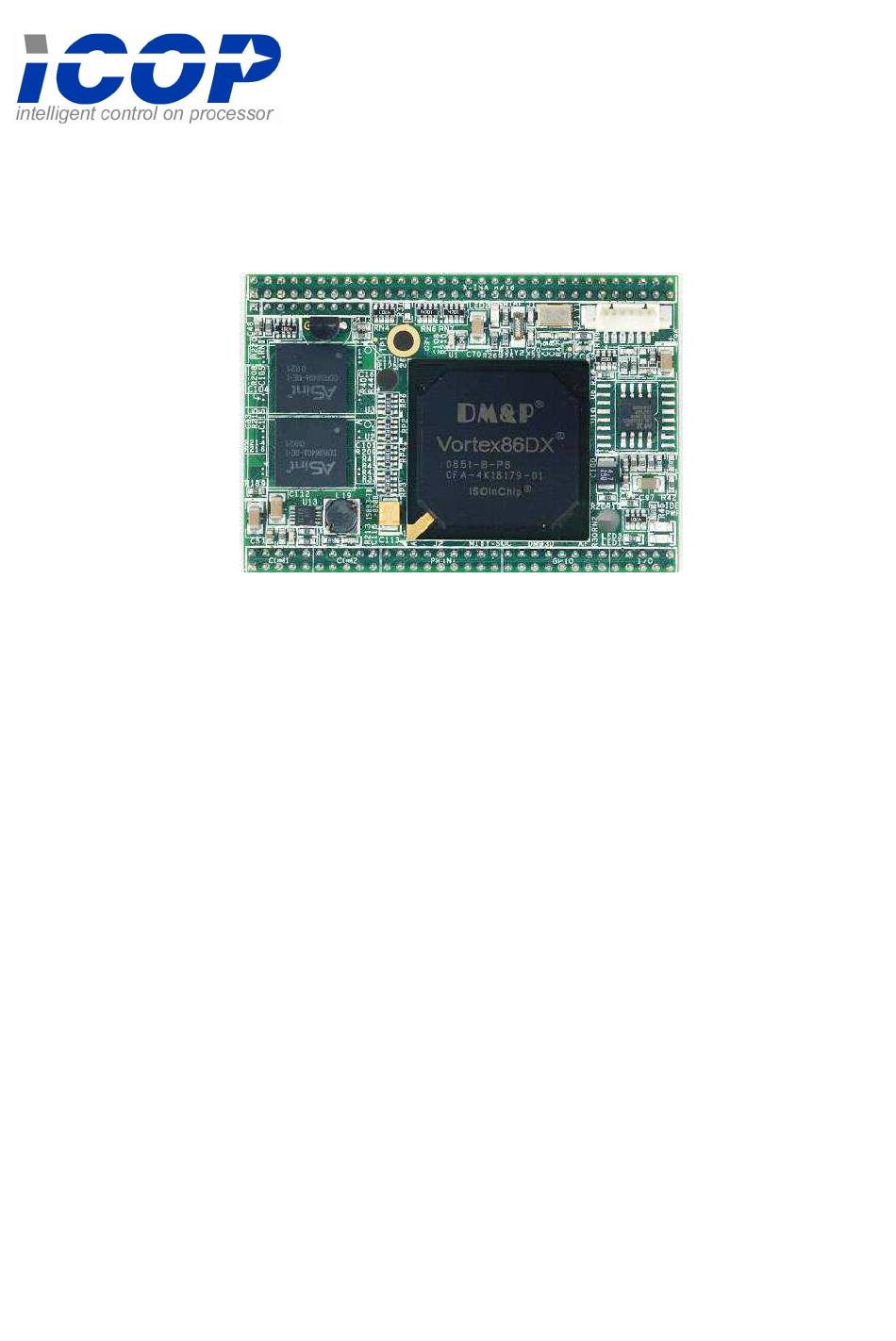

  • Page 1 Mity-SoC Development Kit & Mity-SoC CPU Module with 2S/USB/GPIO 256MB DDR2 Onboard (Onboard EmbedDisk 512MB) User’s Manual (Revision 1.1A)
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc.

  • Page 3: Table Of Contents

    Flat Panel Jumper Settings ........37 Flat Panel BIOS and Wiring........38 C h a p t e r 4 Driver Installation……………………………………47 Appendix ………………………………………………………………..48 A. TCP/IP library for DOS real mode ......48 B. VDX-6319D-FB-D & VSX-6119-1 Schematic .... 49 Warranty .................... 50...
  • Page 4 This page is blank...

  • Page 5: Chapter 1 Introduction

    (USB port x 2 GPIO cable x 1 YKB for PS/2 Keyboard & Mouse x 1 Product Name Package VDX-6319RD-FB-D (Onboard EmbedDiSk Embedded Vortex86DX Mity-SoC CPU Module x1 512MB) Product Name Package ICOP-6019-VGA Mity-SoC VGA/LCD development Kit x1 VDDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 6: Product Description

    Product Description The VDX-6319RD-FB-D family of low-power x86 embedded controller is designed to meet Mity-SoC specification, and integrated with the following features. 800MHz Vortex86DX System-On-Chip JTAG interface 256MB DDR2 system memory AMI BIOS 1 USB 2.0 (host) Onboard EmbedDisk 512MB Up to 2 serial ports 4MB SPI flash 16-bit GPIO x1...

  • Page 7: Specifications

    Specifications VSX-6119-1 (Mity-SoC ISA bus Development board) Features VSX-6119-1 Bus Interface 16-bit x-ISA interface PC/104 standard compliant Status indicator Digit Type 7-Segment LED Display for POST Code x2 GPIO LED x16 Connectors 2.54mm 26-pin box header for Printer x1 2.54mm 20-pin box header for 16-bit GPIO x1 2.54mm 10-pin box header for RS-232 x1 2.54mm 5-pin box header for Keyboard x1 2.54mm 10-pin box header for USB x1...
  • Page 8 VDX-6319RD-FB-D Features VDX-6319RD-FB-D DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2:128KB Cache Cache AMI BIOS BIOS 16-bit x-ISA interface Bus Interface 256MB DDR2 onboard System Memory Software programmable from 30.5 us to 512 seconds x2 Watchdog Timer sets(W atchdog 1 fully compatible with M6117D) I /O Interface...
  • Page 9 ICOP-6019-VGA Features ICOP-6019-VGA TOPRO TP6508IQ Chipset VGA and Mono/STN/DSTN/TFT Flat Panel interface support 16-bit x-ISA interface Onboard 1MB EDO RAM, support resolution up to Video Memory 1024x768, 256 colors PC/104+ standard compliant Bus Interface 2.0mm 44-pin box header for LCD x1 2.0mm 10-pin box header for VGA x1...

  • Page 10: 1.4 Order Selection

    1.4 Order Selection VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 11: Board Dimension

    Board Dimension VDX-6319RD-FB-D VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 12: Chapter 2 Installation

    C h a p t e r 2 Installation Board Outline VSX-6119-1 (Mity-SoC ISA bus Development board) VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 13 VDX-6319RD-FB-D Note: VGA, ICOP-6019-VGA, function support via x-ISA Interface VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 14 ICOP-6019-VGA If you need more information about ICOP-6019-VGA, please visit our website at http://www.icop.com.tw/en/product/Processor-Module-ICOP-6019-VGA/ICOP-6019-VGA .html VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 15: Connectors & Jumpers Location

    Connectors & Jumpers Location Connectors VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 16 Jumpers & LEDs VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 17: Connectors & Jumpers Summary

    Connectors & Jumpers Summary VSX-6119-1 (Mity-SoC ISA bus Development board) Summary Table Description Type of Connections Pin nbrs. x-ISA Connector – 64 pin 64-pin Box Header, 2.0∅, 32x2 ISA bus Connector, SL62 62-pin 62-pin Gold finger ISA bus Connector, SL36 36-pin 36-pin Gold finger PC104 Connector –...

  • Page 18: Pin Assignments & Jumper Settings

    Pin Assignments & Jumper Settings VSX-6119-1 (Mity-SoC ISA bus Development board) J1: x-ISA Connector – 64pin Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 SA18 SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 ICOS16...
  • Page 19 J2: ISA Bus SL62 – 62-pin Gold finger (Total 98 pins) Signal Pin # Signal Name Pin # Name 1 (A1) IOCHCK 2 (B1) RSTDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW SA19 SMEMR SA18 SA17 SA16 DACK3 SA15 DRQ3 SA14 DACK1 SA13 DRQ1...
  • Page 20 J3: ISA bus SL36 – 36-pin Gold finger (Total 98 pins) Signal Pin # Signal Name Pin # Name 1 (A1) SBHE 2 (B1) MEMCS16 LA23 IOCS16 LA22 IRQ10 LA21 IRQ11 LA20 IRQ12 LA19 IRQ15 LA18 IRQ14 LA17 DACK0 MEMR DRQ0 MEMW DACK5...
  • Page 21 J4: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH *...
  • Page 22 J5: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
  • Page 23 J6: Mity-Mite VGA Connector Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 XIOW SA18 XIOR SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 TOCS16 SA13 REFRESH SA12 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4...
  • Page 24 J7: USB Pin # Signal Name Pin # Signal Name LUSBD0- LUSBD1- LUSBD0+ LUSBD1+ GGND GGND J8: I /O Connector – 64pin Pin # Signal Name Pin # Signal Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 TXD2 DTR2 DSR2 RTS2 CTS2...
  • Page 25 J9: GPIO Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J10: COM 1 Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1...
  • Page 26 J12: RESET Pin # Signal Name Pin # Signal Name Reset J13: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J14: VGA Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC...
  • Page 27 J17: Power Connector – 4-pin Header (P4 Molex 5mm) Signal Pin # Name +12V J18: VGA Signal Signal Pin # Pin # Name Name R OUT G OUT B OUT HSYNC VSYNC J19: PS/2 Keyboard / Mouse Pin # Signal Name Pin # Signal Name KBDATA KBCLK MSDATA...
  • Page 28 VDX-6319RD-FB-D Summary Table Description Type of Connections Pin nbrs. x-ISA Connector – 64 pin 64-pin Pin Header, 2.0∅, 32x2 Multi I/O Connector – 64 pin 64-pin Pin Header, 2.0∅, 32x2 DMA control 9-pin Pin Header, 2,0∅,1x9 JTAG 6-pin Wafer, 1.25∅ , 6x1 PWR-LED Power Active LED (Red) LED-SMD MTBF-...
  • Page 29 J1: x-ISA Connector – 64pin Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 SA18 SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 ICOS16 SA13 REFRESH SA12 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4 IRQ3...
  • Page 30 J2: I /O Connector – 64pin Pin # Signal Name Pin # Signal Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 TXD2 DTR2 DSR2 RTS2 CTS2 SLCT BUSY ACK\ SLCTIN\ INIT\ ERROR\ AUTOFD\ STORBE\ GP10 GP11 GP12 GP13 GP14 GP15 GPCS0 VBAT...
  • Page 31 JP1: JTAG Pin # Signal Name Pin # Signal Name VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 32: System Mapping

    System Mapping VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 33 VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 34 VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 35: Watchdog Timer

    Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:...

  • Page 36: Gpio

    GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:...

  • Page 37: Spi Flash

    SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver).

  • Page 38: Chapter 3 Svga Setup

    3.1.1 Chipset The ICOP-6019-VGA uses a HMC HM86508 for its SVGA controller, which supports conventional analog CRT monitor or flat panel. In addition, it also supports interlaced and non-interlaced analog monitors (color and monochrome VGA) in high-resolution modes while maintaining complete IBM VGA compatibility.

  • Page 39: Flat Panel Pin Assignment

    Flat Panel Connectors Flat Panel Pin Assignment Description Description +12V +12V PVcc PVcc ENAVEE ENAVEE SHFCLK ENABKL ASHFCLK VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 40 Description for the Pin of the Flat Panel Connector Name Description P0~P23 Flat panel data output ENABKL Activity Indicator and Enable Backlight outputs SHFCLK Shift clock. Pixel clock for flat panel data M signal for panel AC drive control Latch pulse. Flat panel equivalent of HSYNC First line marker.

  • Page 41: Flat Panel Jumper Settings

    Flat Panel Jumper setting J1: LCD Type Select Type of Display 1-2 3-4 5-6 Address of VGA BIOS Standard CRT 00000~07FFF Hex 2 Mono DSTN 640x480 08000~0FFFF Hex 3 Color DSTN 640x480 10000~17FFF Hex 4 16-bit TFT 640x480 18000~1FFFF Hex 5 18/24-bit TFT 640x480 20000~27FFF Hex 6 16-bit TFT 800x600...

  • Page 42: Flat Panel Bios And Wiring

    Flat Panel BIOS and Wiring Below is a list of optional Flat Panel SVGA BIOS. The VGA BIOS is combined with the system BIOS in a single. To change to another BIOS please contact your local dealer. MLCD.dat - Data File for MONO DSTN640*480 (Default) Example: (1) HOSIDEN HLM6667 (2) HITACHI LMG5160XUFC...
  • Page 43 CRT / Flat Panel Mode All the above BIOS support either CRT only, Flat Panel only or CRT/Flat Panel simultaneously. To set the mode a Panel Switching Utility is used. USAGE: At DOS prompt type >SW508 then Screen will show 1.
  • Page 44 NEC NL6448AC33-18 wiring NEC NL6448AC33-18 ICOP-2820V CON1 Pin Name Pin Name CN1-1 CN1-2 SHFCLK CN1-3 Hsync CN1-4 Vsync CN1-5 CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13 CN1-14 CN1-15 CN1-16 CN1-17 CN1-18 CN1-19 CN1-20 CN1-21 CN1-22 VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 45 CN1-23 CN1-24 CN1-25 CN1-26 CN1-27 ENAB CN1-28 CN1-29 CN1-30 CN1-31 NEC NL6448AC30-10 wiring NEC NL6448AC30-10 ICOP-2820V CON1 Pin Name Pin Name CN1-1 SHFCLK CN1-2 Hsync CN1-3 Vsync CN1-4 CN1-5 CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 46 CN1-13 CN1-14 CN1-15 CN1-16 CN1-17 CN1-18 CN1-19 CN1-20 CN1-21 CN1-22 CN1-23 CN1-24 CN1-25 CN1-26 CN1-27 CN1-28 CN1-29 PVcc LCD Vdd CN1-30 CN1-31 MODE CN1-32 CN1-33 CN1-34 Vdd +12 CN1-35 ENABKL ENABKL CN1-36 VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 47 LJ32H028 wiring LJ32H028 ICOP-2820V CON1 Pin Name Pin Name CN1-1 CN1-2 CN1-3 CN1-4 CN1-5 SHF_CLK CN1-6 CN1-7 CN1-8 33,34 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13 43,44 +5V(Vdd) CN1-14 CN1-15 +12V +12V SHARP LQ10D42 wiring (640 X 480 TFT Color) SHARP LQ10D42...
  • Page 48 CN1-2 SHFCLK CN1-3 Hsync CN1-4 Vsync CN1-5 CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13 CN1-14 CN1-15 CN1-16 CN1-17 CN1-18 CN1-19 CN1-20 CN1-21 CN1-22 CN1-23 CN1-24 CN1-25 CN1-26 CN1-27 ENAB VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...
  • Page 49 CN1-28 43,44 Vcc +5V CN1-29 43,44 Vcc +5V CN1-30 CN1-31 SHARP LQ12S31 wiring (800 X 600 TFT Color) SHARP LQ12S31 ICOP-2820V CON1 Pin Name Pin Name CN1-1 CN1-2 SHFCLK CN1-3 CN1-4 Hsync CN1-5 Vsync CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11...
  • Page 50 CN1-17 CN1-18 CN1-19 CN1-20 CN1-21 CN1-22 CN1-23 CN1-24 CN1-25 CN1-26 CN1-27 CN1-28 CN1-29 CN1-30 CN1-31 CN1-32 CN1-33 CN1-34 CN1-35 CN1-36 CN1-37 ENAR CN1-38 CN1-39 +5Vcc CN1-40 +5Vcc CN1-41 VDX-6319RD-FB-D Vortex86DX™ Mity-SoC CPU Module...

  • Page 51: Chapter 4 Driver Installation

    C h a p t e r Driver Installation The Vortex86DX processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection.

  • Page 52: Appendix

    Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs.

  • Page 53: Vdx-6319D-Fb-D & Vsx-6119-1 Schematic

    VDX-6319RD-FB-D & VSX-6119-1 Schematic Schematic information can help baseboard designer to optimize exactly how each of these functions implements physically. Designer can place connectors precisely where needed for the application on a baseboard designed to optimally fit a system’s packaging. Please contact or e-mail our regional sales to get VDX-6319RD-FB-D &...

  • Page 54: Warranty

    Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
