FF240002
Owner's Manual
EN
BL00005372-200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-M5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FujiFilm X-M5

Summary of Contents for FujiFilm X-M5

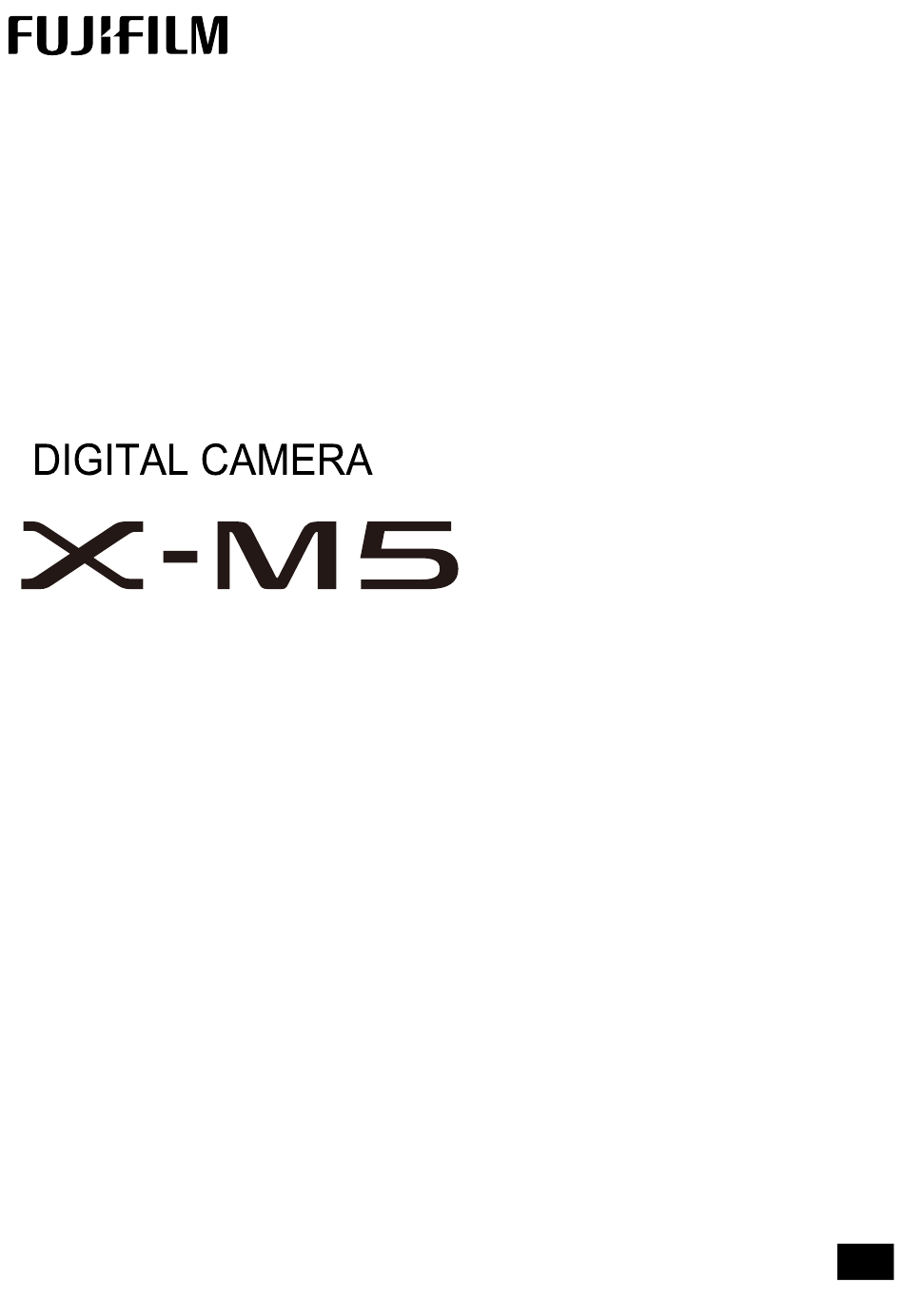

  • Page 1 FF240002 Owner’s Manual BL00005372-200...

  • Page 2: For The Latest Information

    For the Latest Information The latest versions of the manuals are available from: https://fujifilm-dsc.com/en/manual/ The website can be accessed not only from your computer but also from smartphones and tablets. It also contains information on the software license.
  • Page 3 Chapter Index Menu List Before You Begin First Steps Basic Photography and Playback Movie Recording and Playback Taking Photographs The Shooting Menus Playback and the Playback Menu Network/USB Features and Settings The Setup Menus Shortcuts Peripherals and Optional Accessories Technical Notes...

  • Page 4: Menu List

    Menu List Camera menu options are listed below. Shooting Menus Adjust settings when shooting photos or movies. See page 129 for details. Photo Menus Items marked with both x and F icons are available in both the still photography and movie shooting menus. Changes to these items in either menu also apply to the item in the remaining menu.
  • Page 5 Menu List G AF/MF SETTING A SHOOTING SETTING FOCUS AREA FILM SIMULATION BKT FOCUS MODE FOCUS BKT SETTING AF MODE PHOTOMETRY ZONE CUSTOM SETTING SHUTTER TYPE 1⁄3 1⁄3 2⁄3 2⁄3 AF MODE ALL SETTING INTERVAL TIMER SHOOTING AF-C CUSTOM SETTINGS INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING STORE AF MODE BY ORIENTATION 157...
  • Page 6 Movie Menus Items marked with both x and F icons are available in both the still photography and movie shooting menus. Changes to these items in either menu also apply to the item in the remaining menu. B MOVIE SETTING H IMAGE QUALITY SETTING MOVIE SETTING LIST F FILM SIMULATION DIAL...
  • Page 7 Menu List G AF/MF SETTING P AUDIO SETTING F FOCUS AREA INTERNAL MIC LEVEL ADJUSTMENT 223 EXTERNAL MIC LEVEL ADJUSTMENT 223 F FOCUS MODE MICROPHONE DIRECTION SETTING 224 F AF MODE NOISE REDUCTION SETTING F AF-C CUSTOM SETTING 1⁄2 1⁄2 1⁄3 1⁄3 MIC LEVEL LIMITER...

  • Page 8: The Playback Menu

    The Playback Menu Adjust playback settings. See page 240 for details. C PLAY BACK MENU C PLAY BACK MENU RAW CONVERSION RATING HEIF TO JPEG/TIFF CONVERSION TRANSFER IMAGE TO SMARTPHONE 252 ERASE xF WIRELESS COMMUNICATION 254 CROP SLIDE SHOW 1⁄2 1⁄2 2⁄2 2⁄2...

  • Page 9: Setup Menus

    Menu List Setup Menus Adjust basic camera settings. See page 301 for details. D USER SETTING D SOUND SETTING FORMAT AF BEEP VOL. b AREA SETTING SELF-TIMER BEEP VOL. OPERATION VOL. DATE/TIME F REC START/STOP VOLUME TIME DIFFERENCE 1⁄2 1⁄2 tt ELECTRONIC SHUTTER 1⁄2 1⁄2...
  • Page 10 D SCREEN SETTING D BUTTON/DIAL SETTING LCD BRIGHTNESS FOCUS LEVER SETTING LCD COLOR x EDIT/SAVE QUICK MENU LCD COLOR ADJUSTMENT F EDIT/SAVE QUICK MENU IMAGE DISP. FUNCTION (Fn) SETTING 1⁄3 1⁄3 1⁄3 1⁄3 AUTOROTATE DISPLAYS POWER ZOOM LENS FUNCTION (Fn) SETTING PREVIEW EXP./WB IN MANUAL MODE 314 COMMAND DIAL SETTING NATURAL LIVE VIEW...
  • Page 11 Menu List D POWER MANAGEMENT D SAVE DATA SETTING AUTO POWER OFF FRAME NO. PERFORMANCE EDIT FILE NAME BOOST SETTING SELECT FOLDER AUTO POWER OFF TEMP. COPYRIGHT INFO GEOTAGGING...

  • Page 12: The Network/Usb Settings Menu

    Menu List The Network/USB Settings Menu Adjust camera network and USB settings. See page 290 for details. I NETWORK/USB SETTING Bluetooth/SMARTPHONE SETTING 290 AIRPLANE MODE NETWORK SETTING instax PRINTER CONNECTION SETTING 1⁄2 1⁄2 Frame.io Camera to Cloud CONNECTION MODE USB POWER SUPPLY/ COMM SETTING INFORMATION 2⁄2 2⁄2 RESET NETWORK/USB SETTING...

  • Page 13: Table Of Contents

    Table of Contents Introduction ......................ii For the Latest Information ..................ii Menu List .......................iv Shooting Menus ......................iv The Playback Menu ......................viii Setup Menus ........................ix The Network/USB Settings Menu ................xii Supplied Accessories ..................xxvii About This Manual ..................xxviii Symbols and Conventions .................xxviii Terminology ........................xxviii Before You Begin Before You Begin...
  • Page 14 First Steps First Steps Attaching the Strap ..................32 Attaching a Lens ....................33 Inserting the Battery and a Memory Card ..........35 Compatible Memory Cards ..................37 Charging the Battery ..................38 Turning the Camera On and Off ..............41 Checking the Battery Level ................
  • Page 15 Table of Contents Custom Modes ....................... 86 Dial Operations by Shooting Mode ..............94 Autofocus ......................95 Focus Mode ........................96 Autofocus Options (AF Mode) ................98 Focus-Point Selection ....................100 Manual Focus ....................104 Checking Focus ......................105 Sensitivity ......................108 AUTO ..........................
  • Page 16 WHITE BALANCE ......................138 DYNAMIC RANGE ....................... 142 D RANGE PRIORITY ....................143 TONE CURVE........................144 COLOR ..........................144 SHARPNESS ........................144 HIGH ISO NR ........................144 PORTRAIT ENHANCER LV ..................145 CLARITY ..........................145 LONG EXPOSURE NR ....................145 LENS MODULATION OPTIMIZER ...............
  • Page 17 Table of Contents INTERLOCK SPOT AE & FOCUS AREA .............. 167 xF INSTANT AF SETTING ................. 167 xF DEPTH-OF-FIELD SCALE ................168 RELEASE/FOCUS PRIORITY ................... 168 xF AF RANGE LIMITER..................169 TOUCH SCREEN MODE ................... 170 SHOOTING SETTING (Still Photography) ..........172 AUTO MODE SETTING .....................
  • Page 18 MOVIE SETTING (Still Photography) ............187 MOVIE MODE ........................ 187 HIGH SPEED REC ......................187 MEDIA REC SETTING ....................187 F IS MODE ........................187 F IS MODE BOOST ....................187 AUDIO SETTING ......................188 MIC/REMOTE RELEASE .................... 192 F REC FRAME INDICATOR ................... 192 MOVIE SETTING (Movie Recording) ............193 MOVIE SETTING LIST ....................
  • Page 19 Table of Contents xF CUSTOM MODE SETTING ................ 208 xF WIRELESS COMMUNICATION..............208 IMAGE QUALITY SETTING (Movie Recording) ........209 F FILM SIMULATION DIAL SETTING .............. 209 F FILM SIMULATION ....................209 F MONOCHROMATIC COLOR ................209 F WHITE BALANCE ....................209 F DYNAMIC RANGE ....................
  • Page 20 AUDIO SETTING (Movie Recording)............223 INTERNAL MIC LEVEL ADJUSTMENT ............... 223 EXTERNAL MIC LEVEL ADJUSTMENT .............. 223 MICROPHONE DIRECTION SETTING ............... 224 NOISE REDUCTION SETTING ................225 MIC LEVEL LIMITER ....................226 MIC JACK SETTING ..................... 226 HEADPHONES VOLUME ..................226 MIC/REMOTE RELEASE ....................
  • Page 21 Table of Contents xF WIRELESS COMMUNICATION ..............254 SLIDE SHOW ........................255 PHOTOBOOK ASSIST ....................256 PRINT ORDER (DPOF) ....................258 instax PRINTER PRINT ....................259 DISP ASPECT........................260 Network/USB Features and Settings Network/USB Features and Settings Overview ......................262 Supported Features ....................262 Connecting to Smartphones (Bluetooth) ..........265 Installing Smartphone Apps ................
  • Page 22 Network/USB Setting Menus ..............290 Bluetooth/SMARTPHONE SETTING ..............290 AIRPLANE MODE ......................294 NETWORK SETTING ....................294 instax PRINTER CONNECTION SETTING ............294 Frame.io Camera to Cloud ..................295 CONNECTION MODE ....................298 USB POWER SUPPLY/COMM SETTING ............300 INFORMATION ......................300 RESET NETWORK/USB SETTING ................
  • Page 23 Table of Contents SCREEN SETTING ....................312 LCD BRIGHTNESS ......................312 LCD COLOR ........................312 LCD COLOR ADJUSTMENT ..................312 IMAGE DISP........................313 AUTOROTATE DISPLAYS ..................313 PREVIEW EXP./WB IN MANUAL MODE ............314 NATURAL LIVE VIEW ....................314 F-Log VIEW ASSIST ..................... 315 ELECTRONIC LEVEL SETTING ................
  • Page 24 AE/AF-LOCK MODE ....................330 AWB-LOCK MODE ...................... 330 a REC BUTTON SETTING ..................331 TOUCH SCREEN SETTING ..................332 LOCK ........................... 333 POWER MANAGEMENT ................334 AUTO POWER OFF ..................... 334 PERFORMANCE ......................334 BOOST SETTING ......................335 AUTO POWER OFF TEMP..................335 SAVE DATA SETTING ..................336 FRAME NO.
  • Page 25 Software and Services for Use with Your Camera .......387 Smartphone Apps ..................... 387 RAW FILE CONVERTER EX powered by SILKYPIX ........387 FUJIFILM RAW Converter ..................388 Capture One ........................388 FUJIFILM TETHER APP ....................388 FUJIFILM X RAW STUDIO ..................389 Frame.io Camera to Cloud ..................389...
  • Page 26 Table of Contents For Your Safety ....................390 Product Care ....................403 Cleaning the Image Sensor ................404 Firmware Updates ..................405 Downloading Firmware ..................405 Updating Firmware ....................405 Troubleshooting .....................408 Power and Battery ..................... 408 Menus and Displays ....................410 Shooting .......................... 411 Playback ...........................

  • Page 27: Supplied Accessories

    Supplied Accessories The following are included with the camera: • NP-W126S rechargeable battery • Body cap (comes attached to camera) • Shoulder strap • Cooling fan connector cover (comes attached to camera) The battery is not charged at shipment. Charge the battery before use (P 38).

  • Page 28: About This Manual

    About This Manual This manual contains instructions for your FUJIFILM X-M5 digital camera. Be sure you have read and understood its contents before proceeding. Symbols and Conventions The following symbols are used in this manual: Information that should be read to prevent damage to the product.

  • Page 29: Before You Begin

    Before You Begin...

  • Page 30: Parts Of The Camera

    Parts of the Camera t (movie recording) button .......56 Speaker ............ 65, 311 Lens signal contacts Rear command dial .......9, 238, 322 Shutter button ..........49 Lens release button ........33 Q (quick menu) button .......343 AF-assist illuminator........159 Mode dial ..........5, 48, 56 Self-timer lamp ..........174 Tally light ............207 Microphone ..........
  • Page 31 Parts of the Camera DRIVE button ............6 Cable channel cover for DC coupler b (delete) button ...........53 Battery-chamber cover .........35 Microphone/remote release connector Battery-chamber cover latch ......35 cover Tripod mount a (playback) button ........50 Vari-angle LCD monitor ......13, 14 Touch screen .........24, 170, 332 AEL (exposure lock)/AFL (focus lock) Microphone/remote release connector button ..........113, 349...
  • Page 32 Cooling fan connector cover ....379 Serial number plate........13 Cooling fan connector .......379 Hole to screw cooling fan ......379...

  • Page 33: The Mode Dial

    Parts of the Camera The Mode Dial To select a shooting mode, rotate the dial until the icon for the desired mode aligns with the index. Mode Mode Description Description AUTO (AUTO) The camera automatically optimizes settings to the scene. You also have the option of choosing the desired scene mode yourself.

  • Page 34: The Focus Stick (Focus Lever)

    The Focus Stick (Focus Lever) Tilt or press the focus stick to select the fo- cus area. The focus stick can also be used to navigate the menus. N • To choose the role played by the focus stick, press and hold the cen- ter of the stick or use D BUTTON/DIAL SETTING >...

  • Page 35: Film Simulation Dial

    Parts of the Camera Film Simulation Dial Rotate the fi lm simulation dial and set the icon to the indicator to confi gure the fi lm simulation. Film Simulation Dial Film Simulation Dial Description Description PROVIA/STANDARD Velvia/VIVID ASTIA/SOFT Shoot with each fi lm simulation. When shoot- ing with a ACROS, use H IMAGE QUALITY CLASSIC CHROME SETTING ...
  • Page 36 The following settings are valid only when the fi lm simulation dial is set to C. • Settings of H IMAGE QUALITY SETTING  > FILM SIMULATION or F FILM SIMULATION • Settings of the fi lm simulation in the Q menu •...

  • Page 37: The Command Dials

    Parts of the Camera The Command Dials The rear and front command dials are used for the operations below. Front command dial Rear command dial AUTO Choose an auto/scene mode. Choose the desired combina- Adjust exposure compensa- tion of shutter speed and tion.

  • Page 38: Command Dial Setting

    Choosing a Function for the Front Command Dial Press the center of the front command dial during shooting to choose a function assigned in DBUTTON/DIAL SETTING  > COMMAND DIAL SETTING. The following functions can be assigned. Function Function Description Description Select a shutter speed in mode S or M.
  • Page 39 Parts of the Camera Choosing a Function for the Rear Command Dial Values of the functions assigned by REAR COMMAND DIAL in D BUTTON/DIAL SETTING > COMMAND DIAL SETTING can be adjusted by the rear command dial during shooting. The follow- ing functions can be assigned to the dial.

  • Page 40: The Indicator Lamp

    The Indicator Lamp Camera status is shown by the indicator lamp. Indicator lamp Indicator lamp Camera status Camera status Glows green Focus locked. Focus or slow shutter speed warning. Pictures can be Blinks green taken. • Camera on: Recording pictures, or picture displayed for confi...

  • Page 41: The Serial Number Plate

    Parts of the Camera The Serial Number Plate Do not remove the serial number plate, which provides the CMIIT ID, serial num- ber, and other important information. Serial number plate The LCD Monitor You can adjust the angle of the LCD moni- tor when framing shots, but be careful not to trap your fi ngers or other objects.

  • Page 42: Camera Displays

    Camera Displays This section lists the indicators that may be displayed dur- ing shooting. For illustrative purposes, displays are shown with all indicators lit. The LCD Monitor Crop factor ..........173, 201 Focus check ..........106, 166 Wireless connection Depth-of-fi eld preview ......79, 105 Bluetooth ON/OFF Movie compression ........198 Image transfer status ......265, 290...
  • Page 43 Camera Displays Location data download status ..265, 338 Power supply ............40 Frame.io connection status ......281 Sensitivity ............108 Movie mode ........... 56, 194 Histogram ............19 High-speed recording indicator ....196 Exposure compensation ......111 Focus frame ..........100, 112 Distance indicator ........105 Recording time available/ Aperture ..........74, 78, 80 elapsed recording time ......56 Time code ............228...

  • Page 44: Adjusting Display Brightness

    Adjusting Display Brightness The display may become diffi cult to see when used outdoors due to light sources such as sunlight. Adjust the LCD monitor bright- ness and saturation with LCD BRIGHTNESS and LCD COLOR in the D SCREEN SET-UP menu. Display Rotation When ON is selected for D SCREEN SET-UP ...

  • Page 45: The Disp/Back Button

    Camera Displays The DISP/BACK Button The DISP/BACK button controls the display of indicators in the LCD monitor. Standard indicators No indicators Info display (still photography only)

  • Page 46: Customizing Display Indicators

    Customizing Display Indicators To choose the items shown in the standard indicator display: Select DISP. CUSTOM SETTING. Select D SCREEN SET-UP  > DISP. CUSTOM SETTING in the setup menu. Choose items. Highlight items and press MENU/OK to select or deselect. •...
  • Page 47 Camera Displays Framing Outline Enable FRAMING OUTLINE to make the borders of the frame easier to see against dark backgrounds. Histograms Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis. Number of pixels Shadows Highlights...

  • Page 48: Virtual Horizon

    Camera Displays Virtual Horizon Check whether the camera is level. The display type can be cho- sen using D SCREEN SET-UP  > ELECTRONIC LEVEL SETTING. Use the virtual horizon to level the camera when mounting it on a tripod or the like. Pitch Roll •...

  • Page 49: Using The Menus

    Using the Menus To display the menus, press MENU/OK. The Menus Diff erent menus are displayed during still photography, movie recording, and playback. Still Photography (All Modes Except F (Movie) and Vlog) Pressing MENU/OK during still photography displays the photo menus. IMAGE QUALITY SETTING IMAGE SIZE IMAGE QUALITY...
  • Page 50 Movie Recording (F (Movie) and Vlog Modes) Pressing MENU/OK in movie mode displays the movie menus. MOVIE SETTING MOVIE SETTING LIST SHOOTING MODE MOVIE MODE BACKGROUND DEFOCUS MODE HIGH SPEED REC 9:16 SHORT MOVIE MODE FSELF-TIMER MEDIA REC SETTING EXIT In modes C1 through C4, photo menus will be displayed if F MOVIE is selected for the chosen bank using either H IMAGE QUALITY  ...

  • Page 51: Selecting A Menu Tab

    Using the Menus Selecting a Menu Tab To navigate the menus: Press MENU/OK to display the menus. IMAGE QUALITY SETTING IMAGE SIZE IMAGE QUALITY RAW RECORDING SELECT JPEG/HEIF FILM SIMULATION DIAL SETTING FILM SIMULATION MONOCHROMATIC COLOR GRAIN EFFECT EXIT Press the focus stick (focus lever) left IMAGE QUALITY SETTING IMAGE SIZE to highlight the tab for the current...

  • Page 52: Touch Screen Mode

    Touch Screen Mode The LCD monitor also functions as a touch screen. Shooting Touch Controls To enable touch controls, select ON for TOUCH SCREEN SETTINGS D BUTTON/DIAL SETTING > TOUCH TOUCH SCREEN SETTING DOUBLE TAP SETTING SCREEN SETTING > x TOUCH SCREEN TOUCH FUNCTION TOUCH ZOOM TOUCH SCREEN SETTING...
  • Page 53 Touch Screen Mode Mode Mode Description Description Tap to select a point for focus or zoom. The focus frame will AREA AREA move to the selected point. Touch screen mode off . • The behavior of the touch screen varies with the AF mode. •...
  • Page 54 MOVIE OPTIMIZED CONTROL oL Selecting ON for B MOVIE SETTING  > MOVIE OPTIMIZED CONTROL oL or tapping the movie-optimized mode but- ton in the shooting display optimizes the command dials and touch controls for movie recording. This can be used to pre- vent camera sounds being recorded with Movie-optimized movie footage.
  • Page 55 Touch Screen Mode Touch Function Functions can be assigned to the follow- ing fl ick gestures in much the same way as function buttons (P 349): • Flick up: T-Fn1 • Flick left: T-Fn2 • Flick right: T-Fn3 • Flick down: T-Fn4 N •...
  • Page 56 Touch Zoom If the lens supports touch zoom, you can zoom in and out by touching the display. Tap the touch zoom button in the display to enable touch zoom. Touch zoom is controlled using the but- tons in the display. Button Button Description...

  • Page 57: Playback Touch Controls

    Touch Screen Mode Playback Touch Controls When ON is selected for D BUTTON/DIAL SETTING  > TOUCH SCREEN SETTING > a TOUCH SCREEN SETTING, touch controls can be used for the following playback operations: • Swipe: Swipe a fi nger across the display to view other images.
  • Page 58 MEMO...

  • Page 59: First Steps

    First Steps...

  • Page 60: Attaching The Strap

    Attaching the Strap Attach the strap. Attach the strap to the two strap eyelets as shown below. O • To avoid dropping the camera, be sure the strap is correctly secured. • Do not attach the strap buckles to the strap eyelets. Failure to observe this precaution could deform or break the strap eyelets.

  • Page 61: Attaching A Lens

    To prevent dust accumulating on the lens or inside the camera, replace the lens caps and camera body cap when the lens is not attached. Lenses and Other Optional Accessories The camera can be used with lenses and accessories for the FUJIFILM X-mount.
  • Page 62 Attaching a Lens Observe the following precautions when attaching or removing (ex- changing) lenses. • Check that the lenses are free of dust and other foreign matter. • Do not change lenses in direct sunlight or under another bright light source.

  • Page 63: Inserting The Battery And A Memory Card

    Inserting the Battery and a Memory Card Insert the battery and memory card as described below. Open the battery-chamber cover. Slide the battery-chamber cover latch as shown and open the battery- chamber cover. O • Do not open the battery-chamber cover when the camera is on.
  • Page 64 Close the battery-chamber cover and slide the battery-cham- ber latch closed. If the cover does not close, check that the battery is in the correct orienta- tion. Do not attempt to force the cover shut. Removing the Battery Turn the camera off , open the battery-chamber cover, press the battery latch to the side, and slide the battery out of the camera.

  • Page 65: Compatible Memory Cards

    • A list of supported memory cards is available on the Fujifi lm website. For details, visit: https://fujifilm-x.com/support/compatibility/cameras/. O • Do not turn the camera off or remove the memory card while the memo- ry card is being formatted or data are being recorded to or deleted from the card.

  • Page 66: Charging The Battery

    Charging the Battery The battery is not charged at shipment. Charge the battery before use. An NP-W126S rechargeable battery is supplied with the camera. • The camera can be charged via USB. USB charging is available with computers with a manufacturer-approved operating sys- tem and USB interface.
  • Page 67 Charging the Battery Charge Status The indicator lamp shows battery charge status as follows: Indicator lamp Indicator lamp Battery status Battery status Battery charging Off Charging complete Blinks Charging error...
  • Page 68 Charging the Battery O • Do not affi x labels or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera. • Do not short the battery terminals. The battery could overheat. •...

  • Page 69: Turning The Camera On And Off

    Turning the Camera On and Off Use the ON/OFF switch to turn the camera on and off . Slide the switch to ON to turn the camera on, or to OFF to turn the camera off . Fingerprints and other marks on the lens can aff ect pictures. Keep the lens clean.

  • Page 70: Checking The Battery Level

    Checking the Battery Level After turning the camera on, check the battery level in the display. Battery level is shown as follows: Indicator Indicator Description Description Battery partially discharged. Battery about 80% full. Battery about 60% full. Battery about 40% full. Battery about 20% full.

  • Page 71: Basic Setup

    Basic Setup When you turn the camera on for the fi rst time, you can choose a language and set the camera clock. Follow the steps below when turning the camera on for the fi rst time. Turn the camera on. A language-selection dialog will be displayed.
  • Page 72 Set the clock. Press MENU/OK to proceed to the next DATE/TIME GMT +1:00 BERLIN/PARIS step. MM/DD/YY 2024 31 12 YY.MM.DD DD.MM.YY View information on the smartphone app. • The camera will display a QR code APPLICATION you can scan with your smartphone IMAGES CAN BE EASILY TRANSFERRED TO THE SMARTPHONE.

  • Page 73: Choosing A Diff Erent Language

    Basic Setup Choosing a Diff erent Language To change the language: Display language options. Select D USER SETTING > Qa. Choose a language. Highlight the desired option and press MENU/OK. Changing the Time and Date To set the camera clock: Display DATE/TIME options. Select D USER SETTING >...
  • Page 74 MEMO...

  • Page 75: Basic Photography And Playback

    Basic Photography and Playback...

  • Page 76: Taking Photographs

    Taking Photographs This section explains basic photography. Rotate the mode dial to AUTO to view the Y shooting display. The camera will display the type of scene and focus target detected. In Y (AUTO) mode, the camera continuously adjusts focus and searches for eyes, increasing the drain on the battery;...

  • Page 77: Frame The Picture

    Taking Photographs Frame the picture. Lenses with Zoom Rings Use the zoom ring to frame the picture in the display. Rotate the ring left to zoom out, right to zoom in. Focus. Press the shutter button halfway to focus. Focus indicator Focus frame •...

  • Page 78: Viewing Pictures

    Viewing Pictures Pictures can be viewed in the LCD monitor. To view pictures full frame, press a. 100-0001 Additional pictures can be viewed by pressing the focus stick (fo- cus lever) left or right or rotating the front command dial. Press the focus stick or rotate the dial right to view pictures in the order recorded, left to view pictures in reverse order.

  • Page 79: Hdmi Output

    Viewing Pictures HDMI Output Camera shooting and playback displays can be output to HDMI devices. Connecting to HDMI Devices Connect the camera to TVs or other HDMI devices using a third- party HDMI cable. Turn the camera off . Connect the cable as shown below. Insert into HDMI connector Insert into HDMI Micro...
  • Page 80 Viewing Pictures Shooting Display live view or movie footage on a TV or save it to an exter- nal recorder that supports HDMI input. Playback To start playback, press the camera a button. The camera moni- tor turns off and pictures and movies are output to the HDMI de- vice.

  • Page 81: Deleting Pictures

    Deleting Pictures Use the b button to delete pictures. Deleted pictures cannot be recovered. Protect important pictures or copy them to a computer or other storage device before proceeding. With a picture displayed full frame, press the b button and select FRAME.
  • Page 82 MEMO...

  • Page 83: Movie Recording And Playback

    Movie Recording and Playback...

  • Page 84: Recording Movies

    Recording Movies Record movies with sound. Movies can be recorded by pressing the t  (movie recording) button or rotating the mode dial to F (movie) or Vlog. The t (Movie Recording) Button Use the t (movie recording) button to quickly and easily record movies while in still photography mode.

  • Page 85: F (Movie) Mode

    Recording Movies F (Movie) Mode For more control over camera settings, rotate the mode dial to F (movie) and record movies using the shutter button. Rotate the mode dial to F (movie). Press the shutter button to start recording. • A recording indicator (V) is dis- played while recording is in prog- ress.

  • Page 86: Vlog

    Vlog When the mode dial is rotated to Vlog, the shutter button can be used to record movies at settings appropriate for vlogs (video blogs). Settings can be adjusted using touch controls. N • Settings for Vlog mode are stored separately from those used when movies are recorded in F mode or via the t (movie recording) but- ton.
  • Page 87 Recording Movies Press the shutter or REC button to start recording. • A recording indicator (V) is dis- played while recording is in prog- ress. • The borders of the display turn red during movie recording, green dur- ing high-speed recording. •...
  • Page 88 The Vlog Mode Shooting Display In vlog mode, vlog recording indicators appear on the LCD moni- tor. Touch zoom MENU button Touch screen mode Vlog shooting mode Play back button Mic level REC button 1 Displayed only when attaching a lens that supports touch zoom (P 28). 2 Not displayed when touch zoom is enabled.
  • Page 89 Recording Movies Changing Settings To view shooting settings, tap the MENU button. Tap each item to display setting options. To hide the setting options, tap a se- lected item or the o button, or touch the shooting display. SHOOTING MODE Settings Setting options The following settings can be changed.
  • Page 90 O • Sound is recorded via the built-in microphone or an optional external microphone. Do not cover the microphone during recording. • Note that the microphone may pick up lens noise and other sounds made by the camera during recording. •...
  • Page 91 Recording Movies Temperature Warnings The camera automatically turns off to protect itself when its temperature or the temperature of the battery rises. If a temperature warning is displayed, image noise may increase. Turn the camera off and wait for it to cool before turning it on again.

  • Page 92: Adjusting Movie Settings

    Recording Movies Adjusting Movie Settings Movie settings can be adjusted from the movie menus or using the B MOVIE SETTING item in the photo menus (P 21). • Use the B MOVIE SETTING item in the photo menus to quickly adjust settings when recording movies via the t  (movie re- cording) button (P 187).

  • Page 93: Viewing Movies

    Viewing Movies View movies on the camera. Any movie selected after the a button is pressed to begin playback will be indicat- ed by a W icon. Press the focus stick (fo- cus lever) down to start movie playback. PLAY AUDIO SET.

  • Page 94: Viewing Movies During Vlog Recording

    Do not cover the speaker during playback. N • Press MENU/OK to pause playback and display volume controls. Press the focus stick (focus lever) up or down to adjust the volume; press MENU/OK again to resume playback. Volume can also be adjusted us- ing D SOUND SET-UP >...
  • Page 95 Viewing Movies Playback controls can be displayed by tapping l during playback. 1m23s Control Control Function Function Pause playback. Tap again to resume. Pause Pause Rewind or advance the movie. When playback paused, you can tap these buttons to rewind or Advance/rewind Advance/rewind advance a frame at a time.
  • Page 96 MEMO...

  • Page 97: Taking Photographs

    Taking Photographs...

  • Page 98: Choosing A Shooting Mode

    Choosing a Shooting Mode Modes P, S, A, and M can be selected via adjustments to shutter speed and/or aperture. In auto mode (AUTO), you can let the camera automatically recognize the scene and the subject to adjust settings, or you can choose the scene yourself.
  • Page 99 Choosing a Shooting Mode Icon Icon Description Description • • C : LANDSCAPE h : PORTRAIT • • d : NIGHT g : BACKLIT PORTRAIT • • h : NIGHT (TRIPOD) c : MOVING OBJECT • • e : MACRO a : PORTRAIT&MOTION Scene •...
  • Page 100 Choosing a Scene Mode After rotating the mode dial to AUTO, you can rotate the front command dial to choose from the scene modes listed below, op- timizing camera settings for the selected subject type. Scene Scene Description Description The camera automatically optimizes settings to suit the Y AUTO AUTO scene and subject.
  • Page 101 Choosing a Shooting Mode N • You can also choose the scene mode via A SHOOTING SETTING > AUTO MODE SETTING. • When p FIREWORKS is selected, you can use the rear command dial to choose a shutter speed.

  • Page 102: Program Ae (P)

    Program AE (P) Let the camera choose shutter speed and aperture for optimal exposure. Other values that produce the same exposure can be selected with program shift. Rotate the mode dial to P. P will appear in the display. If the subject is outside the metering range of the camera, the shutter speed and aperture displays will show “–...
  • Page 103 Choosing a Shooting Mode Program Shift If desired, you can rotate the front command dial to select other combinations of shutter speed and aperture without altering exposure (program shift). Aperture Shutter speed Program shift is not available in any of the following circumstances: •...

  • Page 104: Shutter-Priority Ae (S)

    Shutter-Priority AE (S) Choose a shutter speed and let the camera adjust aperture for optimal exposure. Rotate the mode dial to S. S will appear in the display. Rotate the front command dial to choose a shutter speed. The roles played by the front command dial can be changed using D BUTTON/DIAL SETTING >...
  • Page 105 Choosing a Shooting Mode O • If the correct exposure cannot be achieved at the selected shutter speed, aperture will be displayed in red. • If the subject is outside the metering range of the camera, the aper- ture display will show “– – –”. N •...

  • Page 106: Aperture-Priority Ae (A)

    Aperture-Priority AE (A) Choose an aperture and let the camera adjust shutter speed for optimal exposure. Rotate the mode dial to A. A will appear in the display. Rotate the lens aperture ring to choose an aperture. N • If the lens is not equipped with an aperture ring or if the aperture ring is in the A position, aperture can be adjusted by rotating the front command dial.
  • Page 107 Choosing a Shooting Mode Previewing Depth of Field When PREVIEW DEPTH OF FIELD is assigned to a function button, pressing the button dis- plays a L icon and stops aperture down to the selected setting, allowing depth of fi eld to be previewed in the display (P 349).

  • Page 108: Manual Exposure (M)

    Manual Exposure (M) In manual mode, the user controls both shutter speed and aperture. Shots can be deliberately overexposed (brighter) or underexposed (darker), opening the door for a variety of individual creative ex- pression. The amount the picture would be under- or over-exposed at current settings is shown by the exposure indicator;...
  • Page 109 Choosing a Shooting Mode Rotate the rear command dial to choose a shutter speed and the lens aperture ring to choose an aperture. N • The manual exposure display includes an exposure indicator that shows the amount the picture would be under- or over- exposed at current settings.
  • Page 110 Bulb (B) Select a shutter speed of BULB for long time-exposures in which you open and close the shutter manually. Use of a tripod is rec- ommended to prevent the camera moving during the exposure. Set shutter speed to BULB. Press the shutter button all the way down.
  • Page 111 Choosing a Shooting Mode Using a Remote Release A remote release can be used for long time- exposures. When using an optional RR-100 remote release or an electronic release from third-party suppliers, connect it to the camera’s microphone/remote release connector via a third-party ⌀2.5 mm to 3.5 mm adapter.

  • Page 112: Filter

    FILTER Take photos with fi lter eff ects. Rotate the mode dial to FILTER. Choose a fi lter via A SHOOTING SETTING > FILTER SETTING. Filter Filter Description Description G TOY CAMERA Choose for a retro toy camera eff ect. The tops and bottoms of pictures are blurred for H MINIATURE a diorama eff...
  • Page 113 Choosing a Shooting Mode Depending on the subject and camera settings, images may in some cases be grainy or vary in brightness or hue. You can also select fi lters from the quick menu that appears when you press the Q button.

  • Page 114: Custom Modes

    Custom Modes Rotate the mode dial to any of modes C1 (CUSTOM  1) through C4 (CUSTOM  4) to take pictures using previously-saved shooting menu settings. Mode Selection: Still Photography or Movie Choose whether the selected custom settings bank (C1 through C4) is for still photography (x STILL) or movie recording (F MOVIE).
  • Page 115 Choosing a Shooting Mode Saving Current Settings Save current settings in a custom settings bank. Navigate to H IMAGE QUALITY SETTING in the photo menus, highlight x EDIT/SAVE CUSTOM SETTING, and press MENU/OK. To save settings for movie recording, navigate to B MOVIE SETTING in the movie menus and select F EDIT/SAVE CUSTOM SETTING.
  • Page 116 Editing Custom Settings Edit existing custom settings banks. Navigate to H IMAGE QUALITY SETTING in the photo menus, highlight x EDIT/SAVE CUSTOM SETTING, and press MENU/OK. To save settings for movie recording, navigate to B MOVIE SETTING in the movie menus and select F EDIT/SAVE CUSTOM SETTING.
  • Page 117 Choosing a Shooting Mode Press MENU/OK to save the changes and return to the shooting menu list. Adjust additional items as desired. If DISABLE is selected for H IMAGE QUALITY SETTING > AUTO UPDATE CUSTOM SETTING in the photo menu or for B MOVIE SETTING ...
  • Page 118 Copying Custom Settings Copy custom settings from one bank to another, overwriting the settings in the destination bank. If the source bank has been re- named, the name will also be copied to the destination bank. Navigate to H IMAGE QUALITY SETTING in the photo menus, highlight x EDIT/SAVE CUSTOM SETTING, and press MENU/OK.
  • Page 119 Choosing a Shooting Mode COPY TO Highlight the destination bank (C1 CUSTOM 1 through C4) and press MENU/OK. CUSTOM 2 CUSTOM 3 A confi rmation dialog will be dis- CUSTOM 4 played. Any changes to custom settings in the destination bank will be overwritten.
  • Page 120 Resetting Custom Settings Reset selected custom settings banks. Select H IMAGE QUALITY SETTING >x EDIT/SAVE CUSTOM SETTING in the shooting menu and press MENU/OK. This assumes that you wish to reset settings for still photography. To reset movie settings, navigate to B MOVIE SETTING in the movie menus and select F EDIT/SAVE CUSTOM SETTING.
  • Page 121 Choosing a Shooting Mode Renaming Custom Settings Banks Rename selected custom settings banks. Select H IMAGE QUALITY SETTING >x EDIT/SAVE CUSTOM SETTING in the shooting menu and press MENU/OK. This assumes that you wish to rename settings for still photogra- phy. To rename movie settings, navigate to B MOVIE SETTING in the movie menus and select F EDIT/SAVE CUSTOM SETTING.

  • Page 122: Dial Operations By Shooting Mode

    Choosing a Shooting Mode Dial Operations by Shooting Mode Dial operations vary by shooting mode. Front command dial Rear command dial Auto/ AUTO Scene Position (AUTO) Program shift (PROGRAM AE) Exposure compensation Shutter speed (SHUTTER PRIORITY AE) (APERTURE PRIORITY AE) Aperture Shutter speed (MANUAL)

  • Page 123: Autofocus

    Autofocus Take pictures using autofocus. Select single or continuous AF for G AF/MF SETTING  > FOCUS MODE in the shooting menu (P 96). Use G AF/MF SETTING > AF MODE to choose an AF mode (P 98). Select G AF/MF SETTING  > FOCUS AREA and choose the position and size of the focus frame (P 100).

  • Page 124: Focus Mode

    Focus Mode Choose how the camera focuses. Press MENU/OK to display the menus. Select G AF/MF SETTING  > FOCUS MODE in the shooting menu. Choose from the following options: Mode Mode Description Description Focus manually using the lens focus ring. Choose for man- ual control of focus or in situations in which the camera is MANUAL FOCUS unable to focus using autofocus (P 104).
  • Page 125 Autofocus The Focus Indicator Focus status is shown by the focus indicator. Focus indicator Focus indicator Focus indicator Focus status Focus status Camera focusing. Subject in focus; focus locked (focus mode l). (lights green) Subject in focus (focus mode k). Focus is automatically ad- (lights green) justed for changes in distance to subject.

  • Page 126: Autofocus Options (Af Mode)

    Autofocus Options (AF Mode) Focus can be adapted to a variety of subjects by changing the combination of settings selected for focus and AF modes. Press MENU/OK and go to the shooting menu. Select G AF/MF SETTING > AF MODE. Choose an AF mode. How the camera focuses depends on the focus mode.
  • Page 127 Autofocus Focus Mode k k (CONTINUOUS AF) Focus Mode (CONTINUOUS AF) Option Option Description Description Sample image Sample image Focus tracks subject at selected fo- cus point. Use for subjects moving SINGLE POINT toward or away from camera. Camera tracks focus in selected fo- cus zone.

  • Page 128: Focus-Point Selection

    Focus-Point Selection Choose a focus point for autofocus. Viewing the Focus-Point Display Press MENU/OK and go to the shooting menu. Select G AF/MF SETTING > FOCUS AREA to view the focus- point display. Use the focus stick (focus lever) and rear command dial to choose a focus area.
  • Page 129 Autofocus Selecting a Focus Point Use the focus stick (focus lever) to choose the focus point and the rear command dial to choose the size of the focus frame. The procedure varies with the option se- lected for AF mode. Rear command Rear command DISP/BACK...
  • Page 130 The Focus-Point Display The focus-point display varies with the option selected for AF mode. N • Focus frames are shown by small squares (), focus zones by the large squares. • The dimensions of ZONE CUSTOM 1, ZONE CUSTOM 2, and ZONE CUSTOM 3 can be selected using G AF/MF SETTING ...
  • Page 131 Autofocus Checking Focus To zoom in on the current focus area for precise focus, press the center of the focus stick (focus lever). Use the focus stick (focus lever) to choose another focus area. Press again to cancel zoom. Normal display Focus zoom N •...

  • Page 132: Manual Focus

    Manual Focus Adjust focus manually. Select MANUAL FOCUS for G AF/MF SETTING > FOCUS MODE. Focus manually using the lens focus ring. Rotate the ring left to reduce the focus distance, right to increase. Take pictures. N • Use D BUTTON/DIAL SETTING > LENS ZOOM/FOCUS SETTING > FOCUS RING ROTATE to reverse the direction of rotation of the focus ring.

  • Page 133: Checking Focus

    Manual Focus Checking Focus A variety of options are available for checking focus in manual focus mode. The Manual Focus Indicator The white line indicates the distance to the subject in the fo- cus area (in meters or feet according to the option selected for D SCREEN SET-UP >...
  • Page 134 Focus Zoom If ON is selected for G AF/MF SETTING > FOCUS CHECK, the cam- era will automatically zoom in on the selected focus area when the focus ring is rotated. Press the center of the focus stick (focus lever) to exit zoom. While zoom is in eff ect, the focus stick can be used to select the focus area and zoom can be adjusted by rotating the rear command dial.
  • Page 135 Manual Focus • FOCUS PEAK HIGHLIGHT: Highlights high- contrast outlines. Rotate the focus ring until the subject is highlighted. • FOCUS METER: A meter is displayed below the focus point indicating whether fo- cus is in front of or behind the subject. The needle swings left when focus is in front of the subject and right when it is behind the subject.

  • Page 136: Sensitivity

    Sensitivity Adjust the camera’s sensitivity to light. Set sensitivity using A SHOOTING SETTING > ISO. Option Option Description Description Sensitivity is automatically adjusted in response to shoot- AUTO1 ing conditions according to combination of standard and AUTO2 maximum sensitivity and minimum shutter speed cho- sen for A SHOOTING SETTING ...

  • Page 137: Auto

    Sensitivity AUTO Choose the base sensitivity, maximum sensitivity, and minimum shutter speed for AUTO1, AUTO2, and AUTO3. Default Default Item Item Options Options AUTO1 AUTO1 AUTO2 AUTO2 AUTO3 AUTO3 DEFAULT SENSITIVITY 160–12800 MAX. SENSITIVITY 400–12800 3200 12800 MIN. SHUTTER SPEED ¼ –30 SEC, AUTO AUTO The camera automatically chooses a sensitivity between the de- fault and maximum values;...

  • Page 138: Metering

    Metering Choose how the camera meters exposure. A SHOOTING SETTING  > PHOTOMETRY off ers a choice of the following metering options: The selected option will only take eff ect if OFF is selected for g FACE/ EYE DETECTION SETTING and SUBJECT DETECTION SETTING in the G AF/MF SETTING menu.

  • Page 139: Exposure Compensation

    Exposure Compensation Adjust exposure. Rotate the rear command dial to adjust exposure. N • The command dial used in this role can be chosen using D BUTTON/ DIAL SETTING > COMMAND DIAL SETTING. • In manual mode, assign EXPOSURE COMPENSATION to the front command dial or rear command dial.

  • Page 140: Focus/Exposure Lock

    Focus/Exposure Lock Focus and exposure lock when the shutter button is pressed halfway. Position the subject in the focus frame and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

  • Page 141: Other Controls

    Focus/Exposure Lock Other Controls Pressing the AEL/AFL button locks both fo- cus and exposure. • While the assigned control is pressed, pressing the shutter button halfway will not end the lock. • If AE&AF ON/OFF SWITCH is selected AEL/AFL button for D BUTTON/DIAL SETTING ...

  • Page 142: Bracketing

    Bracketing Automatically vary settings over a series of pictures. Press the DRIVE button to display drive mode options. Press the focus stick (focus lever) up or down to highlight one of the following: Option Option Option Option W ISO BKT s Bracketing V WHITE BALANCE BKT Press the focus stick left or right to highlight the desired...

  • Page 143: White Balance Bkt

    Bracketing V WHITE BALANCE BKT Select a bracketing amount (±1, ±2, or ±3) in the drive mode dis- play. Each time the shutter is released, the camera takes one shot and processes it to create three copies: one at the current white balanced setting, one with fi ne-tuning increased by the selected amount, and another with fi ne-tuning decreased by the selected amount.
  • Page 144 Z FOCUS BKT Each time the shutter button is pressed, the camera takes a se- ries of photos, varying focus with each shot. The A SHOOTING SETTING > FOCUS BKT SETTING item off ers a choice of MANUAL and AUTO bracketing. N •...

  • Page 145: Take Photographs

    Bracketing AUTO AUTO In AUTO mode, the camera calculates FRAMES and STEP auto- matically. Select A SHOOTING SETTING in the shooting menu, high- light FOCUS BKT SETTING, and press MENU/OK. Select AUTO and choose an INTERVAL. The view through the lens will be displayed. Focus on the nearest end of the sub- FOCUS BKT SETTING SET POINT A...

  • Page 146: Continuous Shooting (Burst Mode)

    Continuous Shooting (Burst Mode) Capture motion in a series of pictures. Press the DRIVE button to display drive mode options. If J CH HIGH SPEED BURST or O CL LOW SPEED BURST is selected, the camera will take pictures continuously while the shutter-release button is pressed.
  • Page 147 Continuous Shooting (Burst Mode) Focus and Exposure • Select focus mode CONTINUOUS AF to vary focus with shot. • To vary exposure with each shot, select OFF for D BUTTON/DIAL SETTING > SHUTTER AE. Depending on such factors as aperture, sensitivity, and exposure com- pensation, exposure may not be adjusted automatically.

  • Page 148: Hdr

    Each time the shutter button is pressed, the camera takes three shots, varying exposure each time, and combines them into a single picture. The resulting photograph pre- serves details in highlights and shadows. Press the DRIVE button to display the drive mode options and select HDR.
  • Page 149 O • Keep the camera steady. • The desired results may not be achieved in the subject moves or the composition or lighting changes during shooting. • The picture will be cropped a very small amount and the resolution will drop slightly. •...

  • Page 150: Panoramas

    Panoramas Follow an on-screen guide to create a panorama. Press the DRIVE button to display the drive mode options and select PANORAMA. To select the size of the angle through which you will pan the camera while shooting, press the focus stick (focus lever) left. Highlight a size and press MENU/OK.
  • Page 151 Panoramas For Best Results • Move the camera slowly in a small circle at a steady speed • Keep the camera parallel or at right angles to the horizon and be sure to pan only in the direction shown by the guides •...
  • Page 152 Panoramas Viewing Panoramas With the panorama displayed full frame, press the focus stick (focus lever) down to start panorama playback. Vertical panoramas will scroll vertically, horizontal panoramas horizontally. PLAY STOP PAUSE • In full-frame playback, you can use the rear command dial to zoom pan- oramas in or out.

  • Page 153: Multiple Exposures

    Multiple Exposures Create a photograph that combines multiple exposures. Press the DRIVE button to display the drive mode options and select MULTIPLE EXPOSURE. Choose a blend mode. Option Option Description Description The camera adds the exposures together. You may need ADDITIVE to lower exposure compensation depending on the number of shots.
  • Page 154 Press MENU/OK. The fi rst shot will be shown superimposed on the view through the lens and you will be prompted to take the second shot. NEXT RETRY EXIT N • To return to the previous step and retake the fi rst shot, press the focus stick (focus lever) left.
  • Page 155 Make additional exposures. Each photograph can contain up to nine exposures. Press DISP/BACK to end shooting. The camera will create the combined image and multiple ex- posure shooting will end.
  • Page 156 MEMO...

  • Page 157: The Shooting Menus

    The Shooting Menus...

  • Page 158: Image Quality Setting (Still Photography)

    IMAGE QUALITY SETTING (Still Photography) Adjust image quality settings for still photography. To display image quality settings, press IMAGE QUALITY SETTING IMAGE SIZE MENU/OK in the photo shooting display and IMAGE QUALITY RAW RECORDING select the H (IMAGE QUALITY SETTING) SELECT JPEG/HEIF FILM SIMULATION DIAL SETTING tab.

  • Page 159: Image Quality

    IMAGE QUALITY SETTING (Still Photography) IMAGE QUALITY Choose a fi le format and compression ratio. Option Option Description Description FINE Low compression ratios are used for higher-quality images. Higher compression ratios are used to increase the number of NORMAL images that can be stored. FINE + RAW Record both RAW and fi...

  • Page 160: Raw Recording

    , RAW FILE CONVERTER EX powered by SILK- LOSSLESS COMPRESSED YPIX , FUJIFILM X RAW STUDIO, or other software that sup- ports “lossless” RAW compression. Quality is the same as UNCOMPRESSED, but the resulting fi les are anywhere from about 30 to 90 percent of their uncompressed size.

  • Page 161: Select Jpeg/Heif

    IMAGE QUALITY SETTING (Still Photography) SELECT JPEG/HEIF Choose whether pictures are recorded in JPEG or HEIF. Option Option Description Description Pictures are recorded in the widely-supported JPEG for- JPEG mat. Pictures are recorded in HEIF, a format with excellent com- HEIF pression but limited options for viewing and sharing.

  • Page 162: Film Simulation

    FILM SIMULATION Simulate the eff ects of diff erent kinds of fi lm, including black- and-white (with or without color fi lters). Choose a palette ac- cording to your subject and creative intent. Option Option Description Description The camera will automatically select the best fi lm simula- tion mode according to the scene.
  • Page 163 MONOCHROME+G FILTER: Produces pleasing skin tones in portrait. Shoots in sepia tone. SEPIA N • Film simulation options can be combined with tone and sharpness settings. • Film simulation settings can also be accessed via shortcuts (P 340). • For more information, visit: https://fujifilm-x.com/products/film-simulation/...

  • Page 164: Monochromatic Color

    MONOCHROMATIC COLOR Add a reddish or bluish tinge (warm or MONOCHROMATIC COLOR cool color cast) to the a ACROS and b MONOCHROME monochrome fi lm simulations. Color can be adjusted on the WARM–COOL and G (Green)–M (Magenta) axes. GRAIN EFFECT Add a fi lm grain eff ect.

  • Page 165: Color Chrome Effect

    IMAGE QUALITY SETTING (Still Photography) COLOR CHROME EFFECT Increase the range of tones available for rendering colors that tend to be highly saturated, such as reds, yellows, and greens. Option Option Description Description STRONG Choose for a strong eff ect. WEAK Choose for a weak eff...

  • Page 166: White Balance

    WHITE BALANCE For natural colors, choose a white balance option that matches the light source. Option Option Description Description WA WHITE White balance is adjusted automatically. Choose for whiter PRIORITY whites in scenes lit by incandescent bulbs. AUTO White balance is adjusted automatically. AA AMBIENCE White balance is adjusted automatically.
  • Page 167 IMAGE QUALITY SETTING (Still Photography) N • In conditions in which AUTO fails to produce the desired results—for example, under certain types of lighting or in close-ups of portrait subjects—use custom white balance or choose a white balance op- tion suited to the light source. •...
  • Page 168 Custom White Balance Choose k, l, or m to adjust white CUSTOM 1 balance for unusual lighting conditions using a white object as a reference (col- ored objects can also be used to lend photos a color cast). A white balance tar- SHUTTER : NEW WB get will be displayed;...
  • Page 169 IMAGE QUALITY SETTING (Still Photography) Select k in the white balance menu. WHITE BALANCE The option currently selected for col- or temperature will be displayed. COLOR TEMPERATURE R:0 B:0 SHIFT Edit the color temperature using the COLOR TEMPERATURE focus stick (focus lever) and press MENU/OK.

  • Page 170: Dynamic Range

    DYNAMIC RANGE Adjust dynamic range. Wide dynamic ranges reduce loss of de- tail in highlights for more natural results with high-contrast or backlit scenes. Option Option Description Description V 100% Choose for increased contrast. AUTO W 200% Reduce loss of detail in highlights. X 400% Mottling may appear in pictures taken at higher values.

  • Page 171: D Range Priority

    IMAGE QUALITY SETTING (Still Photography) D RANGE PRIORITY Reduce loss of detail in highlights and shadows for natural-look- ing results when photographing high-contrast scenes. Option Option Description Description Contrast is adjusted automatically in response to lighting condi- AUTO tions. Adjust dynamic range by a large amount for very high-contrast STRONG scenes.

  • Page 172: Tone Curve

    TONE CURVE With reference to a tone curve, adjust the TONE CURVE HIGHLIGHTS SHADOWS appearance of highlights or shadows, making them harsher or softer. Choose higher values to make shadows and highlights harsher, lower values to make them softer. CANCEL Option Option Description...

  • Page 173: Portrait Enhancer Lv

    IMAGE QUALITY SETTING (Still Photography) PORTRAIT ENHANCER LV Choose the portrait enhancement level. Options Options WEAK MEDIUM STRONG CLARITY Increase defi nition while altering tones in highlights and shad- ows as little as possible. Choose higher values for increased defi - nition, lower values for a softer eff ect.

  • Page 174: Lens Modulation Optimizer

    LENS MODULATION OPTIMIZER Select ON to improve defi nition by adjusting for diff raction and the slight loss of focus at the periphery of the lens. Options Options COLOR SPACE Choose the gamut of colors available for color reproduction. Option Option Description Description...

  • Page 175: Edit/Save Custom Setting

    IMAGE QUALITY SETTING (Still Photography) x EDIT/SAVE CUSTOM SETTING Save custom camera settings for commonly-encountered situa- tions. Saved settings can be recalled by rotating the mode dial to positions C1 (CUSTOM 1) through C4 (CUSTOM 4) (P 86). AUTO UPDATE CUSTOM SETTING Choose whether changes to saved custom settings apply auto- matically.

  • Page 176: Xf Mount Adaptor Setting

    xF MOUNT ADAPTOR SETTING Adjust settings for lenses attached via a mount adapter. The camera can store settings for multiple lenses (LENS  1 through LENS 6). N • DISTORTION CORRECTION, COLOR SHADING CORRECTION, and PERIPHERAL ILLUMINATION CORRECTION are available with lens- es connected via an M mount adapter.
  • Page 177 IMAGE QUALITY SETTING (Still Photography) COLOR SHADING CORRECTION Color (shading) variations between the center and edges of the frame can be ad- justed separately for each corner. To use color shading correction, follow the steps below. NEXT Rotate the rear command dial to choose a corner. The se- lected corner is indicated by a triangle.
  • Page 178 IMAGE QUALITY SETTING (Still Photography) PERIPHERAL ILLUMINATION CORRECTION Choose from values between –5 and +5. Choosing positive values increases peripheral illumination, while choosing negative values reduces peripheral il- lumination. Positive values are recom- CANCEL mended for vintage lenses, negative val- ues to create the eff ect of images taken with an antique lens or a pinhole camera.

  • Page 179: Af/Mf Setting (Still Photography)

    AF/MF SETTING (Still Photography) Adjust focus settings for still photography. To display AF/MF settings, press MENU/OK AF/MF SETTING FOCUS AREA in the photo shooting display and select FOCUS MODE AF MODE the G (AF/MF SETTING) tab. ZONE CUSTOM SETTING AF MODE ALL SETTING AF-C CUSTOM SETTINGS STORE AF MODE BY ORIENTATION AF POINT DISPLAY...

  • Page 180: Zone Custom Setting

    ZONE CUSTOM SETTING Create custom focus zones for use when ZONE is selected for AF MODE. Option Option ZONE CUSTOM 1 ZONE CUSTOM 2 ZONE CUSTOM 3 AF MODE ALL SETTING Choose the focus area to be selected when AF MODE is ALL. You can match the shooting style and set only the focus area to be used.

  • Page 181: Af-C Custom Settings

    AF/MF SETTING (Still Photography) AF-C CUSTOM SETTINGS Select focus-tracking options AF-C CUSTOM SETTINGS SET 1 MULTI PURPOSE CONTINUOUS AF focus mode. Choose from Sets 1 (SET 1) through 5 (SET 5) ac- cording to your subject or select SET 6 TRACKING SENSITIVITY CUSTOM for custom focus-tracking op- SPEED TRACKING SENSITIVITY ZONE AREA SWITCHING AUTO...
  • Page 182 Focus Tracking Options The individual parameters that are part of a focus tracking set are described below. TRACKING SENSITIVITY TRACKING SENSITIVITY This parameter determines how long the TRACKING SENSITIVITY camera waits to switch focus when an QUICK LOCKED ON object enters the focus area behind or in front of the current subject.
  • Page 183 AF/MF SETTING (Still Photography) ZONE AREA SWITCHING ZONE AREA SWITCHING This parameter determines the focus ZONE AREA SWITCHING area given priority in zone AF. CENTER AUTO FRONT SETS THE SWITCHING SENSITIVITY OF FOCUS FRAME IN ZONE AREA ADJUST SWITCH Option Option Description Description...
  • Page 184 Custom Focus Tracking Options Follow the steps below to adjust settings for Set 6. Select AF-C CUSTOM SETTINGS  > AF-C CUSTOM SETTINGS SET 6 CUSTOM SET 6 CUSTOM. TRACKING SENSITIVITY SPEED TRACKING SENSITIVITY AUTO ZONE AREA SWITCHING ADJUST SET DETAIL RESET Highlight items using the focus stick (focus lever) and rotate the front command dial to change.

  • Page 185: Store Af Mode By Orientation

    AF/MF SETTING (Still Photography) STORE AF MODE BY ORIENTATION Choose whether the AF mode used when the camera is in por- trait orientation is stored separately from that used when the camera is in landscape orientation. Option Option Description Description The same settings are used in both orientations.

  • Page 186: Xf Wrap Focus Point

    xF WRAP FOCUS POINT Choose whether focus-area selection is bounded by the borders of the display or “wraps around” from one edge of the display to another. Option Option Description Description Focus-area selection “wraps around” from one edge of the ENABLE display to another.

  • Page 187: Pre-Af

    AF/MF SETTING (Still Photography) PRE-AF If ON is selected, the camera will continue to adjust focus even when the shutter button is not pressed halfway. The camera adjusts focus continuously, allowing it to focus faster when the shutter button is pressed halfway. Choosing this option helps prevent missed shots.

  • Page 188: Face/Eye Detection Setting

    g FACE/EYE DETECTION SETTING If the camera detects human faces, it will assign them priority over the background and adjust settings appropriately for por- traits when setting focus and exposure. You can also choose whether the camera focuses on the left or right eye when face detection is on.
  • Page 189 AF/MF SETTING (Still Photography) N • If Y AUTO selected for AUTO MODE SETTING, the camera will au- tomatically select the face (of if eye detection is enabled, the eye) when the mode dial is in the AUTO position. • A single face detected in or near the focus area will be marked with a white frame.

  • Page 190: Subject Detection Setting

    SUBJECT DETECTION SETTING Choose whether the camera prioritizes subjects of a selected type, such as animals or vehicles, when setting focus. Option Option Description Description Select one of the subject types listed below to enable subject detection. • E ANIMAL: The camera detects and tracks focus on dogs and cats.
  • Page 191 AF/MF SETTING (Still Photography) N • If Y AUTO selected for AUTO MODE SETTING, the camera will au- tomatically select the subject when the mode dial is in the AUTO posi- tion. • A single subject of the chosen type detected in or near the focus area will be marked with a white frame.

  • Page 192: Af+Mf

    AF+MF If ON is selected and focus has been locked (whether by pressing the shutter button halfway or by other means), focus lock can be ended and focus adjusted manually by rotating the focus ring. Options Options O • Lenses with a focus distance indicator must be set to manual focus mode (MF) before this option can be used.

  • Page 193: Mf Assist

    AF/MF SETTING (Still Photography) MF ASSIST Choose how focus is displayed in manual focus mode (P 106). Option Option Description Description Displays a black-and-white (MONOCHROME) or color (COLOR) DIGITAL SPLIT split image in the center of the frame. Frame the subject in the IMAGE split-image area and rotate the focus ring until the four parts of the split image are correctly aligned.

  • Page 194: Interlock Mf Assist & Focus Ring

    INTERLOCK MF ASSIST & FOCUS RING If ON is selected, the display confi gured by MF ASSIST appears only when the focus ring was turned during manual focus mode. Options Options MF ASSIST ends if no operations are performed for a set period after the focus ring is rotated.

  • Page 195: Interlock Spot Ae & Focus Area

    AF/MF SETTING (Still Photography) INTERLOCK SPOT AE & FOCUS AREA Choose ON to meter the current focus frame when SPOT or MULTI metering is selected. Options Options xF INSTANT AF SETTING Chooses how the camera focuses when a button to which focus lock or AF-ON is assigned is pressed with MANUAL FOCUS se- lected for FOCUS MODE.

  • Page 196: Xf Depth-Of-Field Scale

    xF DEPTH-OF-FIELD SCALE Choose the basis for the depth-of-fi eld scale. Option Option Description Description Provides a precision reference for use when assessing depth of fi eld PIXEL BASIS for pictures that will be viewed at high resolutions on computers or other electronic displays.

  • Page 197: Xf Af Range Limiter

    AF/MF SETTING (Still Photography) xF AF RANGE LIMITER Limit the range of available focus distances for increased focus speed. Option Option Description Description Focus limiter disabled. Limit focus to a range of distances defi ned by a minimum and maximum. •...

  • Page 198: Touch Screen Mode

    TOUCH SCREEN MODE Choose the shooting operations performed using touch controls. Mode Mode Description Description Tap your subject in the display to focus and release the shutter. TOUCH In burst mode, pictures will be taken while you keep your fi nger SHOOTING on the display.
  • Page 199 AF/MF SETTING (Still Photography) Touch Controls for Focus Zoom Diff erent touch controls are used during focus zoom (focus check enabled). Central Area Central Area Tapping the center of the display performs the operations below. Mode Mode Operation performed Operation performed TOUCH SHOOTING TOUCH SHOOTING SINGLE AF/MANUAL FOCUS: Take a picture...

  • Page 200: Shooting Setting (Still Photography)

    SHOOTING SETTING (Still Photography) Adjust shooting options for still photography. To display shooting settings, press MENU/OK SHOOTING SETTING AUTO MODE SETTING in the photo shooting display and select FILTER SETTING SPORTS FINDER MODE the A (SHOOTING SETTING) tab. PRE-SHOT SELF-TIMER SAVE SELF-TIMER SETTING SELF-TIMER LAMP AE BKT SETTING EXIT...

  • Page 201: Sports Finder Mode

    SHOOTING SETTING (Still Photography) SPORTS FINDER MODE Take pictures using the crop in the center of the display. Choose this option for pic- tures of athletes, birds, and other moving subjects. Option Option Description Description Pictures are taken using a 1.25× crop, reducing the picture angle by an amount equivalent to increasing lens focal length by 1.25×;...

  • Page 202: Self-Timer

    SELF-TIMER Choose a shutter release delay. Option Option Description Description The shutter is released two seconds after the shutter button is pressed. Use to reduce blur caused by the camera moving when R 2 SEC the shutter button is pressed. The self-timer lamp blinks as the timer counts down.

  • Page 203: Self-Timer Lamp

    SHOOTING SETTING (Still Photography) SELF-TIMER LAMP If ON is selected, the self-timer lamp will light during self-timer photography. Select OFF when shooting night scenes or in other situations in which you would prefer that the lamp remain unlit. Options Options AE BKT SETTING Adjust exposure bracketing settings.

  • Page 204: Film Simulation Bkt

    FILM SIMULATION BKT Choose the three fi lm simulation types used for fi lm simulation bracketing (P 134). FOCUS BKT SETTING Choose from AUTO and MANUAL focus bracketing modes (P 116). PHOTOMETRY Choose how the camera meters exposure (P 110).

  • Page 205: Shutter Type

    SHOOTING SETTING (Still Photography) SHUTTER TYPE Choose the shutter type. Choose the electronic shutter to mute the shutter sound. Option Option Description Description t MECHANICAL SHUTTER Take pictures with the mechanical shutter. s ELECTRONIC SHUTTER Take pictures with the electronic shutter. t E-FRONT CURTAIN Take pictures with the electronic front curtain shutter.

  • Page 206: Interval Timer Shooting

    INTERVAL TIMER SHOOTING Confi gure the camera to take photos automatically at a preset interval. Highlight INTERVAL TIMER SHOOTING INTERVAL TIMER SHOOTING in the A (SHOOTING SETTING) tab and press MENU/OK. WITH IN-CAMERA TIMER WITH EXTERNAL TIMER Highlight WITH IN-CAMERA TIMER INTERVAL/NUMBER OF TIMES INTERVAL NUMBER OF TIMES...
  • Page 207 SHOOTING SETTING (Still Photography) Use the focus stick to choose the starting time and then press MENU/OK. Shooting will start automatically. CANCEL Interval timer photography cannot be used at a shutter speed of “bulb” or with multiple exposure photography. In burst mode, only one pic- ture will be taken each time the shutter is released.

  • Page 208: Interval Timer Shooting Exposure Smoothing

    INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING Select ON to automatically adjust exposure during interval-timer photography to prevent it changing dramatically between shots. Options Options O • Large changes in subject brightness may make exposure appear er- ratic. We recommend that you choose shorter values for INTERVAL TIMER SHOOTING >...

  • Page 209: Flicker Reduction

    SHOOTING SETTING (Still Photography) FLICKER REDUCTION Reduce fl icker in pictures and the display when shooting under fl uorescent lighting and other similar light sources. Option Option Description Description Flicker reduction is applied to all frames continuous ALL FRAMES shooting frame rate reduces. Flicker measurement is taken prior to the fi...

  • Page 210: Is Mode

    IS MODE Reduce blur caused by camera shake or subject motion. Option Option Description Description L CONTINUOUS Image stabilization on. If + MOTION is selected, the camera + MOTION will adjust shutter speed to reduce motion blur when mov- ing objects are detected. l CONTINUOUS As above, except that image stabilization is performed only M SHOOTING...

  • Page 211: Xf Cooling Fan Setting

    • Control the camera and take pictures remotely • Receive pictures uploaded from the camera • Browse the pictures on the camera and download selected pic- tures • Upload location data to the camera For more information, visit: https://fujifilm-dsc.com/...

  • Page 212: Flash Setting (Still Photography)

    FLASH SETTING (Still Photography) Adjust fl ash-related settings for still photography. To display fl ash settings, press MENU/OK FLASH SETTING in the photo shooting display and select FLASH FUNCTION SETTING RED EYE REMOVAL the F (FLASH SETTING) tab. TTL-LOCK MODE LED LIGHT SETTING COMMANDER SETTING CH SETTING EXIT...

  • Page 213: Ttl-Lock Mode

    FLASH SETTING (Still Photography) TTL-LOCK MODE Instead of adjusting fl ash level with each shot, TTL fl ash control can be locked for consistent results across a series of photo- graphs. Option Option Description Description Flash output is locked at the value metered for the most LOCK WITH LAST FLASH recent photo.

  • Page 214: Commander Setting

    FLASH SETTING (Still Photography) COMMANDER SETTING Choose groups when using the camera fl ash unit as a command- er for Fujifi lm optical wireless remote fl ash control. This option is available when the camera is used with clip-on fl ash units that support Fujifi lm optical wireless fl ash control.

  • Page 215: Movie Setting (Still Photography)

    MOVIE SETTING (Still Photography) Adjust options for movies shot during still photography us- ing the t (movie recording) button. To display movie settings, press MENU/OK MOVIE SETTING MOVIE MODE in the photo shooting display and select HIGH SPEED REC MEDIA REC SETTING the B (MOVIE SETTING) tab.

  • Page 216: Audio Setting

    AUDIO SETTING Adjust audio-related settings for movie recording. INTERNAL MIC LEVEL ADJUSTMENT Adjust the recording level for the built-in microphone. Option Option Description Description AUTO The camera adjusts the recording level automatically. Adjust the recording level manually. Choose from 25 MANUAL recording levels.
  • Page 217 MOVIE SETTING (Still Photography) NOISE REDUCTION SETTING Choose whether to reduce noise during movie recording. WIND FILTER WIND FILTER Choose whether to enable wind noise reduction during movie recording. Options Options STEADY-STATE NOISE REDUCTION STEADY-STATE NOISE REDUCTION Choose whether to enable the steady-state noise reduction, re- ducing continuous noise at a constant level, such as the sound of air conditioning equipment, during movie recording.
  • Page 218 MIC JACK SETTING Specify the type of hardware connected via the microphone/re- mote release connector. Option Option Description Description Choose this option for direct connection to an external micro- phone. Choose this option for external audio devices connected via LINE line output.
  • Page 219 MOVIE SETTING (Still Photography) XLR MIC ADAPTER SETTING Adjust microphone input channel settings and the like for use with XLR microphone adapters. Option Option Description Description Record four-channel (quadraphonic) sound with the help of the camera’s built-in microphone, or two-chan- nel (stereo) sound using only a microphone connected via the XLR microphone adapter.

  • Page 220: Mic/Remote Release

    MOVIE SETTING (Still Photography) MIC/REMOTE RELEASE This item is also found in the movie menus (P 226). Changes here also apply to the item in the movie menus. F REC FRAME INDICATOR This item is also found in the movie menus (P 206). Changes here also apply to the item in the movie menus.

  • Page 221: Movie Setting (Movie Recording)

    MOVIE SETTING (Movie Recording) Adjust movie-recording options. To display options for movie recording, MOVIE SETTING MOVIE SETTING LIST press MENU/OK in the movie shooting dis- SHOOTING MODE MOVIE MODE play and select the B (MOVIE SETTING) BACKGROUND DEFOCUS MODE HIGH SPEED REC tab.

  • Page 222: Movie Mode

    MOVIE MODE Before shooting movies, choose the MOVIE MODE frame rate and the frame size and aspect ratio. CANCEL In the shooting menu, select B MOVIE SETTING, then high- light MOVIE MODE and press MENU/OK. Press the focus stick (focus lever) up or down to highlight the desired frame size and aspect ratio ( ) and press the stick right.

  • Page 223: Background Defocus Mode

    MOVIE SETTING (Movie Recording) BACKGROUND DEFOCUS MODE If ON is selected, the camera will automatically set aperture to the lowest f-stop (maximum aperture) regardless of the setting selected by the user. This option takes eff ect only when the mode dial is in the Vlog position.

  • Page 224: High Speed Rec

    HIGH SPEED REC Record high-frame-rate movies. High-frame-rate movies can be played back in slow motion, giving you time to view fast-moving subjects or details too fl eeting for the naked eye. Select ON to choose the recording and playback rates separately. Choose ON HDMI ONLY to record footage only to external recorders con- nected via HDMI.

  • Page 225: 9:16 Short Movie Mode

    MOVIE SETTING (Movie Recording) 9:16 SHORT MOVIE MODE Preset the recording time to record vertical movies with small fi le sizes. This option takes eff ect only when the mode dial is in the Vlog position. Options Options 15 sec. 30 sec.

  • Page 226: Media Rec Setting

    MEDIA REC SETTING Choose movie fi le settings, including destination, fi le type, com- pression, and bit rate. Destination Choose save options and save and output destinations for mov- ies. Option Option Description Description Movies are saved solely to the memory card. Movies are recorded only to devices connected via HDMI.
  • Page 227 MOVIE SETTING (Movie Recording) N • 4 : 2 : 2 chroma sub-sampling is used for footage output to external devices connected via HDMI; H.264 footage is output at a bit depth of 8 bits and footage in other formats at a depth of 10 bits. •...

  • Page 228: Hdmi Output Setting

    HDMI OUTPUT SETTING Adjust settings for use when the shooting display is output to an HDMI device. HDMI OUTPUT INFO DISPLAY If ON is selected, HDMI devices to which the camera is connected will mirror the information in the camera display. Options Options HDMI REC CONTROL...

  • Page 229: Fix Movie Crop Magnification

    MOVIE SETTING (Movie Recording) N • RAW footage output to external devices is not saved to the memory cards inserted in the camera. • In-camera image enhancements are not applied to the RAW output. • ISO sensitivity is restricted to values between ISO 1000 and ISO 12800. •...

  • Page 230: F-Log/Hlg Recording

    F-Log/HLG RECORDING Choose the destination for F‐Log and HLG (Hybrid Log-Gamma) movies shot while the camera is connected to an HDMI device. Option Option Description Description The footage is processed using fi lm simulation and both saved to the memory card and output to the HDMI device. The footage is recorded to the memory card and output to the HDMI device in F-Log format.

  • Page 231: Data Level Setting

    MOVIE SETTING (Movie Recording) DATA LEVEL SETTING Choose a signal range for movie recording. Option Option Description Description The signal range for 8-bit movies is limited to 16–235 and that VIDEO RANGE for 10-bit movies to 64–940. The signal ranges for 8-bit and 10-bit movies are respectively FULL RANGE 0–255 and 0–1023.

  • Page 232: F Is Mode

    F IS MODE Choose the image stabilization mode. Option Option Description Description Enable optical image stabilization (OIS). Enable digital image stabilization (DIS) in addition to optical image stabilization (OIS). The crop is adjusted ac- OIS + DIS cording to the option selected for MOVIE MODE. This setting can compensate for more severe camera shake.

  • Page 233: F Iso

    MOVIE SETTING (Movie Recording) F ISO Adjust the camera’s sensitivity to light. Option Option Description Description Choose for special situations. Note that dynamic range may H (25600) be reduced and that pictures may be mottled. Adjust sensitivity manually. Selected value is shown in 160–12800 display.

  • Page 234: Movie Optimized Control Ol

    MOVIE OPTIMIZED CONTROL oL Select ON to allow movie settings to be adjusted using only the command dials and touch-screen controls. You may fi nd this helpful in preventing the sounds of camera controls being re- corded with movies (P 26). Options Options F REC FRAME INDICATOR...

  • Page 235: Tally Light

    MOVIE SETTING (Movie Recording) TALLY LIGHT Choose the lamp (indicator or AF-assist) that lights during movie recording and whether the lamp blinks or remains steady. Indicator lamp AF-assist illuminator Option Option Description Description FRONT OFF The indicator lamp lights during movie recording. REAR z FRONT OFF The indicator lamp blinks during movie recording.

  • Page 236: Xf Cooling Fan Setting

    MOVIE SETTING (Movie Recording) xF COOLING FAN SETTING This item is also found in the photo menus (P 183). F EDIT/SAVE CUSTOM SETTING Options are the same as those for still photography, but settings must be adjusted separately (P 147). F AUTO UPDATE CUSTOM SETTING This item is also found in the photo menus (P 147).

  • Page 237: Image Quality Setting (Movie Recording)

    IMAGE QUALITY SETTING (Movie Recording) Adjust image quality settings for movies. To display image quality settings, press IMAGE QUALITY SETTING FILM SIMULATION DIAL SETTING MENU/OK in the movie shooting display and FILM SIMULATION MONOCHROMATIC COLOR select the H (IMAGE QUALITY SETTING) WHITE BALANCE DYNAMIC RANGE tab.

  • Page 238: F Dynamic Range

    F DYNAMIC RANGE Choose a dynamic range for movie recording. Option Option Description Description V100% W200% See “DYNAMIC RANGE” (P 142). X400% N • AUTO  (automatic dynamic range control) is not available during movie recording. • W200% is available at sensitivities of from ISO 320 to ISO 12800, X400% at sensitivities of from ISO 640 to 12800.

  • Page 239: F Sharpness

    IMAGE QUALITY SETTING (Movie Recording) F SHARPNESS Options are the same as those for still photography, but settings must be adjusted separately (P 144). F HIGH ISO NR Options are the same as those for still photography, but settings must be adjusted separately (P 144). F PORTRAIT ENHANCER LV Options are the same as those for still photography, but settings must be adjusted separately (P 145).

  • Page 240: F Peripheral Light Correction

    IMAGE QUALITY SETTING (Movie Recording) F PERIPHERAL LIGHT CORRECTION Select ON to enable peripheral illumination correction during movie recording. Options Options N • If ON is selected when a lens that does not transmit data to the camera is attached, peripheral illumination will be adjusted ac- cording to the option selected for H IMAGE QUALITY SETTING >...

  • Page 241: Af/Mf Setting (Movie Recording)

    AF/MF SETTING (Movie Recording) Adjust focus settings for movies. To display AF/MF settings, press MENU/OK AF/MF SETTING FFOCUS AREA in the movie shooting display and select FFOCUS MODE FAF MODE the G (AF/MF SETTING) tab. FAF-C CUSTOM SETTING xFWRAP FOCUS POINT PRODUCT PRIORITY MODE FgFACE/EYE DETECTION SETTING FSUBJECT DETECTION SETTING...

  • Page 242: F Af Mode

    F AF MODE Choose how the camera selects the focus point for movie recording. Option Option Description Description MULTI The camera selects the focus area automatically. The camera tracks the subject automatically if the focus stick (focus lever) is pushed to the center or the screen is WIDE/TRACKING touched when the focus mode is CONTINUOUS AF.

  • Page 243: F Af-C Custom Setting

    AF/MF SETTING (Movie Recording) F AF-C CUSTOM SETTING Select focus-tracking options when recording movies with CONTINUOUS AF selected for F FOCUS MODE. TRACKING SENSITIVITY Choose how long the camera waits to switch focus when an ob- ject enters the focus area behind or in front of the current sub- ject.

  • Page 244: Xf Wrap Focus Point

    xF WRAP FOCUS POINT This item is also found in the photo menus (P 158). Changes to one apply to the other. PRODUCT PRIORITY MODE Selecting ON automatically optimizes settings for fi lming prod- uct reviews and the like. This option takes eff ect only when the mode dial is in the Vlog position.

  • Page 245: F Subject Detection Setting

    AF/MF SETTING (Movie Recording) F SUBJECT DETECTION SETTING Options are the same as those for still photography, but settings must be adjusted separately (P 162). The camera automatically switches to continuous AF when SUBJECT DETECTION ON is selected for G AF/MF SETTING  > F SUBJECT DETECTION SETTING, even if SINGLE AF is selected for FOCUS MODE.

  • Page 246: F Mf Assist

    F MF ASSIST Choose how focus is displayed when MANUAL FOCUS is select- ed for FOCUS MODE (P 106). Option Option Description Description The camera heightens high-contrast outlines. Choose a FOCUS PEAK HIGHLIGHT color and peaking level. A needle indicates whether focus is in front of or behind FOCUS METER the subject.

  • Page 247: F Interlock Mf Assist & Focus Ring

    AF/MF SETTING (Movie Recording) F INTERLOCK MF ASSIST & FOCUS RING Options are the same as those for still photography, but settings must be adjusted separately (P 166). F FOCUS CHECK Options are the same as those for still photography, but settings must be adjusted separately (P 166).

  • Page 248: F Touch Screen Mode

    F TOUCH SCREEN MODE Choose the shooting operations performed using touch controls. Mode Mode Description Description Tapping the display focuses the camera on the selected point. Use the shutter button to start and stop recording. • When SINGLE AF is selected for FOCUS MODE, you can refocus at any time by tapping your subject in the display.
  • Page 249 AF/MF SETTING (Movie Recording) Touch Controls for Focus Zoom Diff erent touch controls are used during focus zoom (focus check enabled). Central Area Central Area Tapping the center of the display performs the operations below. Mode Mode Operation performed Operation performed SINGLE AF: AF AF AF MANUAL FOCUS: Instant AF...

  • Page 250: Focus Check Lock

    AF/MF SETTING (Movie Recording) FOCUS CHECK LOCK Choose whether focus zoom remains in eff ect once movie re- cording begins. Options Options...

  • Page 251: Audio Setting (Movie Recording)

    AUDIO SETTING (Movie Recording) Adjust settings for audio recorded during fi lming. To display audio settings, press MENU/OK AUDIO SETTING INTERNAL MIC LEVEL ADJUSTMENT in the movie shooting display and select EXTERNAL MIC LEVEL ADJUSTMENT MICROPHONE DIRECTION SETTING the P (AUDIO SETTING) tab. NOISE REDUCTION SETTING MIC LEVEL LIMITER MIC JACK SETTING...

  • Page 252: Microphone Direction Setting

    MICROPHONE DIRECTION SETTING Choose the directivity of the built-in microphone. Option Option Description Description SURROUND Record sound evenly from all directions from the camera. FRONT PRIORITY Record sound preferentially from the front of the camera. BACK PRIORITY Record sound preferentially from the rear of the camera. Record sound preferentially from both the front and rear FRONT &...

  • Page 253: Noise Reduction Setting

    AUDIO SETTING (Movie Recording) NOISE REDUCTION SETTING Choose whether to reduce noise during movie recording. WIND FILTER Choose whether to enable wind noise reduction during movie recording. Options Options STEADY-STATE NOISE REDUCTION Choose whether to enable the steady-state noise reduction, re- ducing continuous noise at a constant level, such as the sound of air conditioning equipment, during movie recording.

  • Page 254: Mic Level Limiter

    MIC LEVEL LIMITER Reduces distortion caused by input that exceeds the limits of the microphone’s audio circuits. Options Options MIC JACK SETTING Specify the type of hardware connected via the microphone/re- mote release connector. Option Option Description Description Choose this option for direct connection to an external micro- phone.

  • Page 255: Xlr Mic Adapter Setting

    AUDIO SETTING (Movie Recording) XLR MIC ADAPTER SETTING Adjust microphone input channel settings and the like for use with XLR microphone adapters. Option Option Description Description Record four-channel (quadraphonic) sound with the help of the camera’s built-in microphone, or two-channel (stereo) sound using only a microphone connected via the XLR microphone adapter.

  • Page 256: Time Code Setting (Movie Recording)

    TIME CODE SETTING (Movie Recording) Adjust time code (hour, minute, second, and frame num- ber) display settings for movie recording. To display time code settings, press TIME CODE SETTING TIME CODE DISPLAY MENU/OK in the movie shooting display START TIME SETTING COUNT UP SETTING and select the Q (TIME CODE SETTING) DROP FRAME...

  • Page 257: Drop Frame

    TIME CODE SETTING (Movie Recording) DROP FRAME At frame rates of 59.94P, and 29.97P, a discrepancy will gradu- ally develop between the time code (measured in seconds) and the actual recording time (measured in fractions of a second). Choose whether the camera drops frames as necessary to match the recording time to the time code.

  • Page 258: Time Code Sync. Setting

    TIME CODE SYNC. SETTING Choose whether to synchronize time codes with an external de- vice. CONNECT TO ATOMOS AirGlu BT If ON is selected, the camera connects with paired external de- vices and synchronizes time codes. Because simultaneous con- nection with a smartphone is not possible, the smartphone icon is displayed in the yellow on the screen.
  • Page 259 TIME CODE SETTING (Movie Recording) Time code synchronization state You can check the time code synchronization state by the icons displayed on the LCD. Icon Icon Synchronization state Synchronization state The time code synchronization function is not being used. (white) Time codes are being synchronized.
  • Page 260 MEMO...

  • Page 261: Playback And The Playback Menu

    Playback and the Playback Menu...

  • Page 262: The Playback Display

    The Playback Display This section lists the indicators that may be displayed during playback. For illustrative purposes, displays are shown with all indicators lit. 12/31/2024...
  • Page 263 The Playback Display Date and time ........43, 45, 303 Sensitivity ............108 Frame-number display Exposure compensation ......111 Image transfer order Aperture ..........75, 78, 80 Frame.io image transfer order Time code ............228 Image transfer status Shutter speed ........75, 76, 80 Frame.io upload progress Playback mode indicator ......50 Frame number ..........336 Movie icon ............65...

  • Page 264: The Disp/Back Button

    The DISP/BACK Button The DISP/BACK button controls the display of indicators during playback. Standard Information off 12/31/2024 1/999 12/31/2024 1/999 NEXT Info display...
  • Page 265 The Playback Display Viewing Photo Information The photo information display changes each time the focus stick (focus lever) is pressed up. Basic data Info display 1 12/31/2024 1/999 12/31/2024 1/999 NEXT 12/31/2024 1/1000 12800 +1.0 1/1000 12800 +1.0 BACK NEXT Info display 3 Info display 2 Zooming in on the Focus Point...

  • Page 266: Viewing Pictures

    Viewing Pictures Read this section for information on playback zoom and multi-frame playback. Use the rear command dial to go from full-frame playback to playback zoom or multi-frame playback. Rotate the rear com- mand dial to right or left, the display changes as shown. The dis- play changes in reverse order when rotate the dial to opposite direction.

  • Page 267: Playback Zoom

    Viewing Pictures Playback Zoom Rotate the rear command dial right to zoom in on the current picture, left to zoom out. To exit zoom, press DISP/BACK or MENU/OK. The maximum zoom ratio varies with the option selected for H IMAGE QUALITY SETTING >...

  • Page 268: The Playback Menu

    The Playback Menu Adjust playback settings. The playback menu is displayed when PLAY BACK MENU RAW CONVERSION you press MENU/OK in playback mode. HEIF TO JPEG/TIFF CONVERSION ERASE CROP RESIZE PROTECT IMAGE ROTATE VOICE MEMO SETTING EXIT RAW CONVERSION Even if you don’t have a computer, you can use the camera to modify RAW pictures and save them in other formats.
  • Page 269 The Playback Menu Press the focus stick up or down to highlight the desired option. Press MENU/OK to select the highlighted option. The settings list shown in Step 3 will be displayed. Repeat Steps 4 to 7 to adjust additional settings. Press the Q button.
  • Page 270 The settings that can be adjusted when converting pictures from RAW to another format are: Setting Setting Description Description Create a copy using the settings in eff ect at the time REFLECT SHOOTING COND. the photo was taken. FILE TYPE Choose a fi...
  • Page 271 The Playback Menu Setting Setting Description Description COLOR SPACE Choose the color space used for color reproduction. HDR MODE Reduce loss of detail in highlights and shadows. Some settings may be unavailable depending on the options chosen when the picture was taken.

  • Page 272: Heif To Jpeg/Tiff Conversion

    HEIF TO JPEG/TIFF CONVERSION Convert HEIF pictures to JPEG or TIFF. SELECT IMAGES Select HEIF pictures for conversion. FILE FORMAT Choose a format for the converted pictures. Options Options JPEG TIFF 8bit TIFF 16bit ERASE Delete individual pictures, multiple selected pictures, or all pic- tures.
  • Page 273 The Playback Menu SELECTED FRAMES Select SELECTED FRAMES for ERASE in the playback menu. Highlight pictures and press MENU/OK to select. • Selected pictures are indicated by check marks (R). • To deselect a highlighted picture, press MENU/OK again. When the operation is complete, press DISP/BACK to display a confi rmation dialog.

  • Page 274: Crop

    CROP Create a cropped copy of the current picture. Display the desired picture. Select CROP in the playback menu. Use the rear command dial to zoom in and out and press the focus stick (focus lever) up, down, left, or right to scroll the picture until the desired portion is displayed.

  • Page 275: Resize

    The Playback Menu RESIZE Create a small copy of the current picture. Display the desired picture. Select RESIZE in the playback menu. Highlight a size and press MENU/OK to display a confi rmation dialog. Press MENU/OK again to save the resized copy to a separate fi le.

  • Page 276: Protect

    PROTECT Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK. Option Option Description Description Protect selected pictures. Press the focus stick (focus lever) left or FRAME right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete.

  • Page 277: Image Rotate

    The Playback Menu IMAGE ROTATE Rotate pictures. Select ON for D SCREEN SET-UP > AUTOROTATE PB. Display the desired picture. Select IMAGE ROTATE in the playback menu. Press the focus stick (focus lever) down to rotate the picture 90° clockwise, up to rotate it 90° counterclockwise. Press MENU/OK.

  • Page 278: Voice Memo Setting

    VOICE MEMO SETTING Add a voice memo to the current photograph. Select ON for VOICE MEMO SETTING in the playback menu. Display a photo to which you wish to add a voice memo. Press and hold the center of the front command dial to re- cord the memo.

  • Page 279: Rating

    The Playback Menu RATING Rate pictures using stars. Select RATING in the playback menu. Rotate the front command dial to choose a picture and the rear command dial to choose a rating of from 0 to 5 stars (“I”). N • The focus stick (focus lever) can be used in place of the front com- mand dial to choose a picture.

  • Page 280: Transfer Image To Smartphone

    TRANSFER IMAGE TO SMARTPHONE Select photos for upload to a paired smartphone or tablet via Bluetooth (P 265). Select TRANSFER IMAGE TO SMARTPHONE > SELECT IMAGE & TRANSFER. Select RESET ORDER to remove “upload to smartphone” marking from all pictures before proceeding. Mark pictures for upload.
  • Page 281 The Playback Menu Filtering Pictures To display only pictures that meet selected cri- SELECT IMAGE & TRANSFER teria, press DISP/BACK in the picture-selection START TRANSFER dialog and select FILTERING. FILTERING FILTERING THE IMAGE WITH CONDITIONS Selecting FILTERING removes any existing upload marking. N •...

  • Page 282: Xf Wireless Communication

    • Upload location data to the camera N • For downloads and other information, visit: https://fujifilm-dsc.com/ • If r WIRELESS COMMUNICATION is selected for D BUTTON/ DIAL SETTING > a REC BUTTON SETTING, you can connect to the smartphone using the t (movie recording) button.

  • Page 283: Slide Show

    The Playback Menu SLIDE SHOW View pictures in an automated slide show. Press MENU/OK to start and press the focus stick (focus lever) right or left to skip ahead or back. Press DISP/BACK at any time during the show to view on- screen help.

  • Page 284: Photobook Assist

    PHOTOBOOK ASSIST Create books from your favorite photos. Creating a Photobook Select NEW BOOK for C PLAY BACK MENU > PHOTOBOOK ASSIST. Scroll through the images and press the focus stick (focus le- ver) up to select or deselect. Press MENU/OK to exit when the book is complete.
  • Page 285 The Playback Menu Editing and Deleting Photobooks Display the photobook and press MENU/OK. The following options will be displayed; select the desired option and follow the on- screen instructions. • EDIT: Edit the book as described in “Creating a Photobook”. •...

  • Page 286: Print Order (Dpof)

    PRINT ORDER (DPOF) Create a digital “print order” for DPOF-compatible printers. Select C PLAY BACK MENU > PRINT ORDER (DPOF). Select WITH DATE s to print the date of recording on pic- tures, WITHOUT DATE to print pictures without dates, or RESET ALL to remove all pictures from the print order before proceeding.

  • Page 287: Instax Printer Print

    Select C PLAY BACK MENU > instax PRINTER PRINT PRINTER PRINT. The camera will con- instax-12345678 nect to the printer. CONNECTING FUJIFILM-CAMERA-1234 CANCEL Use the focus stick (focus lever) to PRINTER PRINT 100-0020 display the picture you want to print, then press MENU/OK. The picture will be sent to the printer and printing will start.

  • Page 288: Disp Aspect

    The Playback Menu DISP ASPECT Choose the aspect ratio used for the display of still pictures on High Defi nition (HD) devices (this option is available only when an HDMI cable is connected). Options Options 16 : 9 3 : 2 Choose 16 : 9 to display photos with an aspect ratio of 3 : 2 full screen.

  • Page 289: Network/Usb Features And Settings

    Network/USB Features and Settings...

  • Page 290: Overview

    Overview This chapter outlines features that can among other things be used to upload pictures to, or control the camera and take pictures remotely from, a smartphone or computer. Supported Features This camera supports the following features: Feature Feature Description Description Connect to smartphones via Bluetooth ®...
  • Page 291 Overview Camera indicator lamp display The camera indicator lamp shows the status of its connection to computers, Frame.io, and the like. Indicator lamp Indicator lamp Connection status Connection status Blinks red No network connection. Glows red No network connection; pictures awaiting upload. Connected to network but not to computer teth- Blinks orange ered photography software or Frame.io.
  • Page 292 Overview The LCD Displays The status of the connection to computers and the like is also shown by an icon in the LCD monitor. Icon Icon Connection status Connection status No network connection. Connected to network but not to computer teth- ered photography software.

  • Page 293: Connecting To Smartphones (Bluetooth)

    Before establishing a connection between the smartphone and camera, you will need to install at least one dedicated smart- phone app. Visit the following website and install the desired apps on your phone. https://fujifilm-dsc.com/ The apps available vary with the smartphone operating system.

  • Page 294: Connecting To A Smartphone Via Bluetooth

    Connecting to a Smartphone via Bluetooth ® Pair the camera with the smartphone and connect via Bluetooth®. Press the x(Bluetooth) button when the camera is in shooting mode. DISP/BACK You can also proceed directly to Step 3 by holding the button during playback.

  • Page 295: Connecting To A Smartphone Via A Usb Cable

    Select POWER SUPPLY OFF/COMM ON for USB POWER SUPPLY/COMM SETTING in the network/USB setting menu. Select USB CARD READER for CONNECTION MODE. Launch the FUJIFILM XApp on your smartphone. Turn the camera on and connect the camera and smart- phone with a USB cable (P 287).

  • Page 296: Using The Smartphone App

    You can download selected pictures to a smartphone using the smartphone app. More information is available from the following website: https://fujifilm-dsc.com/ Uploading Pictures as They Are Taken Pictures taken with ON selected for Bluetooth/SMARTPHONE SETTING > AUTO IMAGE TRANSFER ORDER in the network/USB setting menu will automatically be uploaded to the paired de- vice.
  • Page 297 Connecting to Smartphones (Bluetooth) Selecting Pictures for Upload in the Playback Menu Use TRANSFER IMAGE TO SMARTPHONE  > SELECT IMAGE & TRANSFER to select pictures for upload to a paired smartphone or tablet via Bluetooth® (P 252).

  • Page 298: Connecting To Smartphones (Usb)

    Connecting to Smartphones (USB) Connect to smartphones and computers via USB to upload pictures from the camera. Copying Pictures to a Smartphone Before connecting to the smartphone to upload pictures via USB, select either AUTO or POWER SUPPLY OFF/COMM ON for USB POWER SUPPLY/COMM SETTING in the network/USB setting menu.

  • Page 299: Connecting The Camera And Computer

    Connecting to Smartphones (USB) For Customers Using iOS Select POWER SUPPLY OFF/COMM ON for USB POWER SUPPLY/COMM SETTING in the network/USB setting menu. Select USB CARD READER for CONNECTION MODE. Connect the camera and smartphone using a USB cable (P 287). Launch the Photos app to import photos and movies to your smartphone.
  • Page 300 Connecting to Smartphones (USB) O • Turn the camera off before disconnecting the USB cable. • When connecting USB cables, be sure the connectors are fully in- serted in the correct orientation. Connect the camera directly to the computer; do not use a USB hub or keyboard. •...

  • Page 301: Using The Camera As A Webcam

    Using the Camera as a Webcam The camera can be connected to a computer for use as a webcam. Select either AUTO or POWER SUPPLY OFF/COMM ON for USB POWER SUPPLY/COMM SETTING in the network/USB setting menu. Select USB WEBCAM for CONNECTION MODE. Connect the camera to the computer via USB and then turn the camera on (P 289).

  • Page 302: Instax Share Printers

    instax SHARE Printers Print pictures from your digital camera to instax SHARE printers. Establishing a Connection Select instax PRINTER CONNECTION SETTING in the network/USB setting menu and enter the instax SHARE printer name (SSID) and password. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer;...

  • Page 303: Printing Pictures

    Select C PLAY BACK MENU > instax PRINTER PRINT PRINTER PRINT. The camera will con- instax-12345678 nect to the printer. CONNECTING FUJIFILM-CAMERA-1234 CANCEL Use the focus stick (focus lever) to PRINTER PRINT 100-0020 display the picture you want to print, then press MENU/OK.

  • Page 304: Tethered Photography

    Tethered Photography Computers connected via USB or wireless LAN can be used to control the camera and take photographs remotely or to download pictures from the camera for storage. Tethered Photography via USB Connect the camera to a computer via USB for tethered photog- raphy.

  • Page 305: Tethered Photography Via Wireless Lan

    Tethered Photography Take pictures via tethered photography. Use software such as “FUJIFILM TETHER APP” or “Capture One”. N • For more information on tethered photography, visit the website be- low. https://app.fujifilm-dsc.com/en/tether/ • Visit the website below for information on the software used.

  • Page 306: Uploading Files To Frame.io

    Uploading Files to Frame.io Upload fi les to Frame.io (P 389). Confi rm that the camera clock is set to the correct time and date be- fore proceeding. Connecting via Wireless LAN Connect to Frame.io via wireless LAN. Select NETWORK SETTING in the network/USB setting menu. Select NOT CREATED.
  • Page 307 Uploading Files to Frame.io Follow the on-screen instructions to SIMPLE SETUP ready the wireless LAN router. PUSH WPS BUTTON ON Wi-Fi ROUTER UNTIL LAMP ON Wi-Fi ROUTER STARTS FLASHING CONNECT BY PIN CODE CANCEL You also have the option of connecting using a PIN. Display the camera PIN by pressing the focus stick (focus lever) up and enter it on the wireless LAN router.

  • Page 308: Select Manual

    Connecting Using an IP Address Connect to Frame.io using a manually-created network/USB set- ting profi le giving the IP address and other network settings. Select MANUAL. WIRELESS LAN WIRELESS LAN ACCESS POINT SETTING ACCESS P AUTO IP ADDRESS SETTING IP ADDRES 000.000.000.000 MANUAL NEXT...
  • Page 309 Uploading Files to Frame.io • Select GATEWAY ADDRESS and en- GATEWAY ADDRESS ter a gateway address. ENTER CANCEL • Select DNS SERVER ADDRESS and DNS SERVER ADDRESS enter a DNS server address. ENTER CANCEL Connection Status The status of the connection to Frame.io is shown by an icon in the LCD monitor.

  • Page 310: Uploading Items To Frame.io

    Uploading Items to Frame.io Uploading Selected Items Using “Frame.io Camera to Cloud” Select Frame.io Camera to Cloud in network/USB settings menu. Select UPLOAD SETTING  > SELECT UPLOAD SETTING SELECT IMAGE & TRANSFER IMAGE & TRANSFER. AUTO IMAGE TRANSFER ORDER TRANSFER/SUSPEND IMAGE TRANSFER WHILE POWER OFF ROOT CERTIFICATE NETWORK...
  • Page 311 Uploading Files to Frame.io Press DISP/BACK and select START SELECT IMAGE & TRANSFER TRANSFER. START TRANSFER FILTERING The selected items will be uploaded to Frame.io. FINISH IMAGE SELECT AND START TRANSFER BACK Filtering Items To display only items that meet selected crite- SELECT IMAGE &...
  • Page 312 Uploading Files to Frame.io Uploading Photos and Movies as They Are Taken Photos and movies shot with ON selected for Frame.io Camera to Cloud > UPLOAD SETTING > AUTO IMAGE TRANSFER ORDER in the network/USB setting menu are automatically marked for upload. Selecting Photos and Movies for Upload During Playback If H Frame.io TRANSFER ORDER is selected for D BUTTON/ DIAL SETTING ...

  • Page 313: Raw Processing

    Connect the camera to the computer via USB and then turn the camera on (P 289). Launch X RAW STUDIO. RAW processing can be performed using X RAW STUDIO. Visit the website below for information on the software used. https://fujifilm-x.com/products/software/...

  • Page 314: Saving And Loading Settings

    Connect the camera to the computer via USB and then turn the camera on (P 289). Launch FUJIFILM TETHER APP. Camera settings can be saved or loaded using FUJIFILM TETHER APP. N • Visit the website below for information on the software used.

  • Page 315: Connecting Via A Usb Cable

    Connecting via a USB Cable Depending on the Network/USB features used, you can connect the camera to smartphones or computers via a USB cable. Connecting to a Smartphone How you connect the camera depends on your smartphone model or the type of USB connector on your smartphone. USB Type-C Connector (Android/iOS) Ready a cable equipped with connectors matching the USB (Type-C) connector on the camera.
  • Page 316 Lightning Connector (iOS) Requires a third-party USB cable and an Apple adapter. Third-party USB cable Apple adapter Type-C connector (plug) Use an Apple adapter. Type-A connector (plug) * Use an Apple Lightning to USB Camera Adapter or Lightning to USB 3 Camera Adapter. The desired results cannot be achieved with a USB Type-C–to–...

  • Page 317: Connecting To A Computer

    Connecting via a USB Cable Connecting to a Computer Turn the camera off . Turn the computer on. Connect a USB cable. USB connector (Type-C) The USB cable must be no more than 1 m (3.3 ft.) long and be suit- able for data transfer.

  • Page 318: Network/Usb Setting Menus

    Network/USB Setting Menus Adjust camera network and USB settings. To access network/USB settings from NETWORK/USB SETTING Bluetooth/SMARTPHONE SETTING the shooting or playback display, press AIRPLANE MODE NETWORK SETTING MENU/OK and select the I (network/USB PRINTER CONNECTION SETTING Frame.io Camera to Cloud setting) tab.
  • Page 319 Network/USB Setting Menus Bluetooth DEVICE LIST List the devices with which the camera is paired (other than the smartphone) or end pairing with selected devices. Bluetooth ON/OFF If ON is selected, the camera will automatically connect with paired smartphones or tablets running the smartphone app. Options Options AUTO IMAGE TRANSFER ORDER...
  • Page 320 Select ON to maintain a Bluetooth connection with a smart- phone even when the camera is turned off . With the smartphone app FUJIFILM XApp, images can be transferred and the camera can be turned on to take photos even when the camera is turned off .
  • Page 321 Network/USB Setting Menus SELECT FILE TYPE Choose the types of fi les uploaded. You can select or deselect each fi le type individually. Options Options JPEG HEIF...

  • Page 322: Airplane Mode

    AIRPLANE MODE Select ON to disable the camera’s wireless LAN and Bluetooth features. Options Options NETWORK SETTING Adjust settings for connection to wireless networks. Select a reg- istered network and then select EDIT to change the selected net- work setting. Option Option Description...

  • Page 323: Frame.io Camera To Cloud

    Network/USB Setting Menus Frame.io Camera to Cloud Adjust settings for use with Frame.io. CONNECT You can connect to the Frame.io project via wireless LAN. If you have not registered the network, register the network in the NETWORK SETTING before proceeding. DISCONNECT End the connection to the Frame.io project and terminate the network connection.
  • Page 324 UPLOAD SETTING Adjust settings Frame.io upload settings. SELECT IMAGE & TRANSFER SELECT IMAGE & TRANSFER Mark picture for upload. AUTO IMAGE TRANSFER ORDER AUTO IMAGE TRANSFER ORDER Select ON to automatically mark photos and movies for upload as they are taken. Options Options TRANSFER/SUSPEND...
  • Page 325 Network/USB Setting Menus UPLOAD STATUS View Frame.io upload status. TRANSFER QUEUE View a list of the fi les awaiting upload. RESET TRANSFER ORDER Remove upload marking from all fi les selected for upload to Frame.io.

  • Page 326: Connection Mode

    Photographs can be taken remotely and automatically SHOOTING AUTO downloaded to computers running Capture One or FUJIFILM TETHER APP. FUJIFILM TETHER APP can also be used to save and load camera settings. • Remote photography and movie recording are available when the camera is connected to a compatible device such as a gimbal or drone.
  • Page 327 USB RAW conversion/backup restore mode. The camera functions normally when not connected. • USB RAW CONV. (requires FUJIFILM X RAW STUDIO): Use the cam- USB RAW CONV./ era’s image processing engine to rapidly convert RAW fi les BACKUP RESTORE to other formats while maintaining image quality.

  • Page 328: Usb Power Supply/Comm Setting

    Network/USB Setting Menus USB POWER SUPPLY/COMM SETTING Choose whether USB connections to computers, smartphones, or other devices are used for power delivery or data transfer. Option Option Description Description The camera switches between power delivery and data trans- AUTO fer automatically. POWER SUPPLY ON/ The camera draws power from the connected device, reducing COMM OFF...

  • Page 329: The Setup Menus

    The Setup Menus...

  • Page 330: User Setting

    USER SETTING Adjust basic camera settings. To access basic camera settings, press USER SETTING FORMAT MENU/OK, select the D (SET UP) tab, and bAREA SETTING DATE/TIME TIME DIFFERENCE choose USER SETTING. x MY MENU SETTING F MY MENU SETTING SENSOR CLEANING EXIT FORMAT To format a memory card:...

  • Page 331: Area Setting

    USER SETTING b AREA SETTING Adjust settings for your current time zone. AREA SETTING Choose your time zone from a map. DAYLIGHT SAVINGS Turn daylight saving time on or off . Option Option Description Description Daylight saving time on. Daylight saving time off . DATE/TIME To set the camera clock: Select D USER SETTING >...

  • Page 332: Time Difference

    TIME DIFFERENCE Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the diff erence between your local and home time zone: Use b AREA SETTING to choose your home time zone before select- ing a local time zone using g LOCAL.

  • Page 333: My Menu Setting

    USER SETTING Choose a language. x MY MENU SETTING Edit the items listed in the E (MY MENU) tab, a personalized cus- tom menu of frequently-used photo menu options (P 341). F MY MENU SETTING Edit the items listed in the E (MY MENU) tab, a personalized cus- tom menu of frequently-used movie menu options (P 341).

  • Page 334: Sensor Cleaning

    SENSOR CLEANING Remove dust from the camera image sensor. Option Option Description Description Clean the sensor immediately. Sensor cleaning will be performed when the camera is WHEN SWITCHED ON turned on. Sensor cleaning will be performed when the camera turns WHEN SWITCHED OFF off...

  • Page 335: Reset

    USER SETTING RESET Reset shooting or setup menu options to default values. Highlight the desired option and press MENU/OK. Option Option Description Description Reset all photo menu settings other than custom white STILL MENU RESET balance and custom settings banks created using x EDIT/SAVE CUSTOM SETTING to default values.

  • Page 336: Sound Setting

    SOUND SETTING Make changes to camera sounds. To access sound settings, press MENU/OK, SOUND SETTING AF BEEP VOL. select the D (SET UP) tab, and choose SELF-TIMER BEEP VOL. OPERATION VOL. SOUND SET-UP. FREC START/STOP VOLUME ttELECTRONIC SHUTTER VOLUME ttELECTRONIC SHUTTER SOUND sELECTRONIC SHUTTER VOLUME sELECTRONIC SHUTTER SOUND EXIT...

  • Page 337: Operation Vol

    SOUND SETTING OPERATION VOL. Adjust the volume of the sounds produced when camera con- trols are operated. Choose eOFF to disable control sounds. Options Options b (high) c (medium) d (low) eOFF (mute) F REC START/STOP VOLUME Choose the volume at the start and end of movie recording. Options Options b (high)

  • Page 338: Tt Electronic Shutter Sound

    tt ELECTRONIC SHUTTER SOUND Choose the sound made by the mechanical or electronic front- curtain shutter. Options Options i SOUND 1 j SOUND 2 k SOUND 3 s ELECTRONIC SHUTTER VOLUME Adjust the volume of the sounds produced by the electronic shutter.

  • Page 339: Playback Volume

    SOUND SETTING PLAYBACK VOLUME Adjust the volume for movie playback. Options Options 4ch AUDIO PLAYBACK Adjust audio settings for use when viewing 4ch movies. Option Option Description Description The camera plays audio recorded via external micro- phones connected via the XLR microphone adapter. The camera plays audio recorded via the camera’s built-in CAMERA microphone or external microphones connected via the...

  • Page 340: Screen Setting

    SCREEN SETTING Make changes to display settings. To access display settings, press MENU/OK, SCREEN SETTING LCD BRIGHTNESS select the D (SET UP) tab, and choose LCD COLOR LCD COLOR ADJUSTMENT SCREEN SET-UP. IMAGE DISP. AUTOROTATE DISPLAYS PREVIEW EXP./WB IN MANUAL MODE NATURAL LIVE VIEW F-Log VIEW ASSIST EXIT...

  • Page 341: Image Disp

    SCREEN SETTING IMAGE DISP. Choose how long images are displayed after shooting. Option Option Description Description Pictures are displayed until the MENU/OK button is pressed or the shutter button is pressed halfway. To zoom in on the active focus CONTINUOUS point, press the center of the focus stick (focus lever);...

  • Page 342: Preview Exp./Wb In Manual Mode

    PREVIEW EXP./WB IN MANUAL MODE Choose whether to enable exposure and/or white balance preview in manual exposure mode. Option Option Description Description PREVIEW EXP./WB Enable exposure and white balance preview. Preview white balance only. Choose this option in situations in PREVIEW WB which exposure is likely to change during shooting, as may be the case when you use a fl...

  • Page 343: F-Log View Assist

    SCREEN SETTING F-Log VIEW ASSIST Select ON to display a tone-corrected preview (equivalent to BT.709) when recording or viewing F-log movies. Options Options ELECTRONIC LEVEL SETTING Adjust settings for use when taking pictures using the virtual ho- rizon display (P 20). FRAMING GUIDELINE Choose a framing grid for shooting mode.

  • Page 344: Autorotate Pb

    AUTOROTATE PB Choose ON to automatically rotate “tall” (portrait-orientation) pictures during playback. Options Options FOCUS SCALE UNITS Choose the units used for the focus distance indicator. Options Options METERS FEET APERTURE UNIT FOR CINEMA LENS Choose whether the camera displays aperture as a T-number (used for movie camera lenses) or an f/-number (used for still camera lenses) when an optional FUJINON MKX-series lens is at- tached.

  • Page 345: Disp. Custom Setting

    SCREEN SETTING DISP. CUSTOM SETTING Choose the items shown in the standard indicator display (P 18). LARGE INDICATORS MODE(LCD) Select ON to display large indicators in the LCD monitor. The in- dicators displayed can be selected using D SCREEN SET-UP  > LARGE INDICATORS DISP.

  • Page 346: Large Indicators Disp. Setting

    LARGE INDICATORS DISP. SETTING Choose the indicators displayed when LARGE INDICATORS DISP. SETTING Expo. DISP. ON is selected for D SCREEN SET-UP > Scale LARGE INDICATORS MODE(LCD). Option Option Description Description Choose the items listed at the bottom of the display. A Expo.

  • Page 347: Location Info

    SCREEN SETTING LOCATION INFO Select ON to display location info downloaded from a smart- phone. Options Options x Q MENU BACKGROUND Choose the background color used for the quick menu when it is displayed during still photography. Options Options TRANSPARENT BLACK F Q MENU BACKGROUND Choose the background color used for the quick menu when it is...

  • Page 348: Button/Dial Setting

    BUTTON/DIAL SETTING Access options for camera controls. To access control options, press MENU/OK, BUTTON/DIAL SETTING FOCUS LEVER SETTING select the D (SET UP) tab, and choose EDIT/SAVE QUICK MENU EDIT/SAVE QUICK MENU BUTTON/DIAL SETTING. FUNCTION (Fn) SETTING POWER ZOOM LENS FUNCTION (Fn) SETTING COMMAND DIAL SETTING o S.S.

  • Page 349: Edit/Save Quick Menu

    BUTTON/DIAL SETTING TILT o Option Option Description Description Pressing the stick up, down, left, or right has no eff ect. DIRECT AF POINT Choose the focus area without leaving the shooting display. SELECTION Press the stick up, down, left, or right to view a focus-area EDIT FOCUS AREA display and choose the focus area.

  • Page 350: Command Dial Setting

    COMMAND DIAL SETTING The functions of the front command dials and the rear command dial can be confi gured for each shooting mode. Select D BUTTON/DIAL SETTING  > COMMAND DIAL SETTING. BUTTON/DIAL SETTING Select a shooting mode. FOCUS LEVER SETTING EDIT/SAVE QUICK MENU EDIT/SAVE QUICK MENU FUNCTION (Fn) SETTING...
  • Page 351 BUTTON/DIAL SETTING FRONT COMMAND DIAL 1 Select the function to assign. PROGRAM SHIFT Assignable functions vary depend- EXPOSURE COMPENSATION ing on the shooting mode. FILM SIMULATION NONE Shooting Mode Shooting Mode Function Function • PROGRAM SHIFT • FILM SIMULATION • EXPOSURE COMPENSATION •...

  • Page 352: S.s. Operation

    o S.S. OPERATION Select OFF to disable shutter-speed fi ne-tuning using the com- mand dials. Options Options COMMAND DIAL DIRECTION Choose the direction in which the command dials are rotated to choose values. Settings for the front and rear command dials can be adjusted separately.

  • Page 353: Shutter Af

    BUTTON/DIAL SETTING SHUTTER AF Choose whether the camera focuses when the shutter button is pressed halfway. Option Option Description Description • ON: Focus locks when the shutter button is pressed halfway. • AF-S OFF: No focus operation is performed when the shutter but- ton is pressed halfway.

  • Page 354: Shoot Without Lens

    SHOOT WITHOUT LENS Choose ON to enable the shutter release when no lens is at- tached. Options Options SHOOT WITHOUT CARD Choose whether the shutter can be released without a memory card inserted in the camera. Option Option Description Description When no memory card is inserted, the shutter can be released to test camera function and the shooting and setup menus can be displayed.

  • Page 355: Lens Zoom/Focus Setting

    BUTTON/DIAL SETTING LENS ZOOM/FOCUS SETTING Adjust settings for compatible lenses with focus rings or power zoom. FOCUS RING ROTATE Choose the direction in which the focus ring is rotated to in- crease the focus distance. Options Options X CW (clockwise) Y CCW (counterclockwise) x FOCUS RING OPERATION Adjust settings for the focus shift when operating the focus ring...
  • Page 356 F FOCUS RING OPERATION Adjust settings for the focus shift when operating the focus ring during movie recording. NONLINEAR NONLINEAR Focus is adjusted at the same rate as the ring is rotated. LINEAR LINEAR Focus is adjusted linearly according to the amount the ring is ro- tated.
  • Page 357 BUTTON/DIAL SETTING CONSTANT SPEED ZOOM (Fn) Choose the rate at which compatible power zoom lenses can be zoomed in or out using function buttons. The higher the number, the higher the rate. Options Options 1(SLOW) 8(FAST) CONSTANT SPEED ZOOM/FOCUS (Fn) OPERATION Choose whether the function buttons on compatible power zoom lenses need only be pressed once to start and stop power focus or power zoom.

  • Page 358: Ae/Af-Lock Mode

    AE/AF-LOCK MODE This option determines the behavior of the button to which exposure and/or focus lock is assigned. Option Option Description Description AE&AF ON WHEN Exposure and/or focus will lock while the button is pressed. PRESSING AE&AF ON/OFF Exposure and/or focus will lock when the button is pressed and re- SWITCH main locked until it is pressed again.

  • Page 359: Rec Button Setting

    BUTTON/DIAL SETTING a REC BUTTON SETTING Choose the role performed by the t (movie recording) button during playback. Option Option Description Description Pressing the button marks the current picture for transfer. If the a SMARTPHONE camera is not currently paired with a smartphone, Bluetooth/ TRANSFER ORDER SMARTPHONE SETTING options will be displayed.

  • Page 360: Touch Screen Setting

    TOUCH SCREEN SETTING Enable or disable touch-screen controls. x TOUCH SCREEN SETTING Option Option Description Description The LCD monitor functions as a touch screen during shooting. Touch controls disabled. x DOUBLE TAP SETTING Option Option Description Description Tap the LCD monitor twice to zoom in on your subject during shooting.

  • Page 361: Lock

    BUTTON/DIAL SETTING a TOUCH SCREEN SETTING Option Option Description Description The LCD monitor functions as a touch screen during playback. Touch controls disabled. LOCK Lock selected controls to prevent unintended operation. Option Option Description Description Choose from the following: • UNLOCK: Reset lock options.

  • Page 362: Power Management

    POWER MANAGEMENT Adjust power management settings. To access power management settings, POWER MANAGEMENT press MENU/OK, select the D (SET UP) tab, AUTO POWER OFF and choose POWER MANAGEMENT. PERFORMANCE BOOST SETTING AUTO POWER OFF TEMP. EXIT AUTO POWER OFF Choose the length of time before the camera turns off automati- cally when no operations are performed.

  • Page 363: Boost Setting

    POWER MANAGEMENT BOOST SETTING Adjust the behavior of the LCD monitor when BOOST is selected for PERFORMANCE. Option Option Description Description Display brightness is adjusted to make subjects in shad- LOW LIGHT PRIORITY ows easier to see. Motion blur may cause ghosting. Display resolution is increased to make details easier to RESOLUTION PRIORITY see.

  • Page 364: Save Data Setting

    SAVE DATA SETTING Make changes to fi le management settings. To access fi le management settings, SAVE DATA SETTING press MENU/OK, select the D (SET UP) tab, FRAME NO. EDIT FILE NAME and choose SAVE DATA SET-UP. SELECT FOLDER COPYRIGHT INFO GEOTAGGING EXIT FRAME NO.

  • Page 365: Edit File Name

    SAVE DATA SETTING EDIT FILE NAME Change the fi le name prefi x. sRGB images use a four-letter prefi x (default “DSCF”), Adobe RGB images a three-letter prefi x (“DSF”) preceded by an underscore. Option Option Default prefi x Default prefi x Sample fi le name Sample fi le name sRGB...

  • Page 366: Copyright Info

    SAVE DATA SETTING COPYRIGHT INFO Copyright information, in the form of Exif tags, can be added to new images as they are taken. Changes to copyright information are refl ected only in images taken after the changes are made. Option Option Description Description...

  • Page 367: Shortcuts

    Shortcuts...

  • Page 368: Shortcut Options

    Shortcut Options Customize camera controls to suit your style or situation. Frequently-used options can be added to the Q menu or a cus- tom “my” menu or assigned to a function button or touch-func- tion gesture for direct access: Shortcut Option Shortcut Option Description Description...

  • Page 369: My Menu

    MY MENU Access a personalized menu of frequently-used options. To display “my menu”, press MENU/OK in the MY MENU SELF-TIMER shooting display and select the E (MY INTERVAL TIMER SHOOTING FILM SIMULATION MENU) tab. GRAIN EFFECT PHOTOMETRY SHUTTER TYPE IS MODE FACE/EYE DETECTION SETTING EXIT The E tab is only available if options have been assigned to...
  • Page 370 MY MENU Select a menu to be registered and press the MENU/OK button. Press the MENU/OK button again to return to the menu selec- tion screen. SELECT ITEM LOCATION Select a menu to be registered next 1 IMAGE SIZE and press the MENU/OK button. Select 2 IMAGE QUALITY the order of the menus to be regis- tered and press the MENU/OK button.

  • Page 371: The Quick Menu

    The Quick Menu Use the quick menu for quick access to selected options. To view the quick menu, press the Q button. The Quick Menu Display The quick menu off ers diff erent options in photo and movie modes. At default settings, it contains the following items: Still photography SHOOTING MODE APERTURE PRIORITY AE...
  • Page 372 Movie recording SHOOTING MODE APERTURE PRIORITY AE SETTING LIST LONG PRESS EDIT/SAVE CUSTOM Default Default A A SHOOTING MODE E E F FILM SIMULATION F F F ISO B B SHUTTER SPEED MOVIE MODE RESOLUTION/ G G MOVIE MODE FRAME RATE ASPECT RATIO F WHITE BALANCE COLOR D F WHITE BALANCE...

  • Page 373: Viewing And Changing Settings

    The Quick Menu Viewing and Changing Settings Press Q to display the quick menu during shooting. Use the focus stick (focus lever) to SHOOTING MODE APERTURE PRIORITY AE highlight items and rotate the rear command dial to change. LONG PRESS EDIT/SAVE CUSTOM To jump to the x EDIT/SAVE CUSTOM SETTING or F EDIT/ SAVE CUSTOM SETTING menu, press and hold the Q button when the quick menu is displayed.

  • Page 374: Editing The Quick Menu

    Editing the Quick Menu To choose the items displayed in the quick menu: Press and hold the Q button during shooting. The camera displays the photo quick menu during still photogra- phy and the movie quick menu when in movie mode. The current quick menu will be displayed;...
  • Page 375 The Quick Menu Available Items (Still Photography) Choose from: • • IMAGE SIZE MF ASSIST • • IMAGE QUALITY TOUCH SCREEN MODE • • FILM SIMULATION SELF-TIMER • • GRAIN EFFECT PHOTOMETRY • • COLOR CHROME EFFECT SHUTTER TYPE • •...
  • Page 376 The Quick Menu Available Items (Movies) • • FILM SIMULATION BIT RATE • • DYNAMIC RANGE HIGH SPEED REC • • WHITE BALANCE 9:16 SHORT MOVIE MODE • • F SELF-TIMER WHITE BALANCE COLOR TEMP. • (WHEN k SELECTED) BACKGROUND DEFOCUS MODE •...

  • Page 377: Function Controls

    Function Controls Assign a role to each function button or touch-function gesture for quick access to the selected feature. The Function Buttons Assign a role to the function buttons for quick access to the se- lected feature. Function Button Defaults The default assignments are: Back-of-Camera Function Buttons Back-of-Camera Function Buttons...
  • Page 378 Assigning Roles to the Function Buttons The roles played by the function buttons can be selected using the D BUTTON/DIAL SETTING  > FUNCTION (Fn) SETTING op- tion in the setup menu. • • IMAGE SIZE SHUTTER TYPE • • IMAGE QUALITY FLICKER REDUCTION •...
  • Page 379 Function Controls • • HISTOGRAM AF LOCK ONLY • • ELECTRONIC LEVEL SWITCH AE/AF LOCK • • LARGE INDICATORS MODE AF-ON • • F-Log VIEW ASSIST AWB LOCK ONLY • • COMMAND DIAL LOCK LOCK SETTING • • ZOOM/FOCUS CONTROL RING PERFORMANCE •...
  • Page 380 AF-ON Controls to which AF-ON is assigned can be used for autofocus. MODELING FLASH If MODELING FLASH is selected when a compatible shoe-mount- ed fl ash unit is attached, you can press the control to test-fi re the fl ash and check for shadows and the like (modeling fl ash). TTL-LOCK If TTL-LOCK is selected, you can press the control to lock fl ash output according to the option selected for F FLASH SETTING >...

  • Page 381: Touch-Function Gestures

    Function Controls Touch-Function Gestures Assign roles to touch-function gestures (T-Fn1, T-Fn2, T-Fn3, or T-Fn4) for quick access to selected features. Touch-function gestures are disabled by default. To enable touch- function gestures, select ON for D BUTTON/DIAL SETTING > TOUCH SCREEN SETTING > c TOUCH FUNCTION. Touch-Function Gesture Defaults The default assignments for the diff erent gestures are: Touch-Function Gestures...
  • Page 382 Assigning Roles to Touch-Function Gestures The roles played by touch-function gestures can be selected us- ing the D BUTTON/DIAL SETTING  > FUNCTION (Fn) SETTING option in the setup menu. • • IMAGE SIZE FOCUS BKT SETTING • • IMAGE QUALITY PHOTOMETRY •...

  • Page 383: Lens Function Buttons

    Function Controls • • HISTOGRAM PERFORMANCE • • ELECTRONIC LEVEL SWITCH AUTO IMAGE TRANSFER ORDER • • LARGE INDICATORS MODE Bluetooth ON/OFF • • F-Log VIEW ASSIST QUICK MENU • • COMMAND DIAL LOCK PLAYBACK • • ZOOM/FOCUS CONTROL RING NONE •...
  • Page 384 Assigning Roles to the Lens Function Buttons The roles played by the lens function buttons can be selected using the D BUTTON/DIAL SETTING  > POWER ZOOM LENS FUNCTION (Fn) SETTING option in the setup menu. • • IMAGE SIZE SHUTTER TYPE •...
  • Page 385 Function Controls • • NATURAL LIVE VIEW AF LOCK ONLY • • HISTOGRAM AE/AF LOCK • • ELECTRONIC LEVEL SWITCH AF-ON • • LARGE INDICATORS MODE AWB LOCK ONLY • • F-Log VIEW ASSIST LOCK SETTING • • COMMAND DIAL LOCK PERFORMANCE •...
  • Page 386 MEMO...

  • Page 387: Peripherals And Optional Accessories

    Peripherals and Optional Accessories...

  • Page 388: Lenses

    Lenses The camera can be used with lenses for the FUJIFILM X-mount. Lens Parts Lens hood Mounting marks (focal length) Mounting marks Aperture mode switch Focus ring Lens signal contacts Zoom ring Front lens cap Aperture ring Rear lens cap A XF16-50mmF2.8-4.8 R LM WR lens is used here for illustrative pur-...

  • Page 389: Lens Care

    Lenses Lens Care • Use a blower to remove dust, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of Fujifi lm lens-cleaning paper to which a small amount of lens-cleaning fl uid has been applied. •...

  • Page 390: Attaching Lens Hoods

    Attaching Lens Hoods When attached, lens hoods reduce glare and protect the front lens element.

  • Page 391: Lenses With Aperture Rings

    Lenses Lenses with Aperture Rings At settings other than A, you can adjust aperture by rotating the lens aperture A 16 11 8 5.6 4 2.8 ring (exposure modes A and M). A 16 11 8 5.6 4 Aperture ring N •...

  • Page 392: Lenses With No Aperture Rings

    Lenses with No Aperture Rings Aperture can be adjusted using the front command dial in modes A (aperture-pri- ority AE) and M (manual). Aperture control can be reassigned to the rear command dial using D BUTTON/DIAL SETTING > COMMAND DIAL SETTING. Lenses with O.I.S.

  • Page 393: Manual Focus Lenses

    Lenses Manual Focus Lenses Slide the focus ring to the front for auto- focus. For manual focus, slide the focus ring to the back and rotate it while checking the results in the camera display. The focus distance and depth-of-fi eld indicators can be used to assist manual focus.

  • Page 394: Power Zoom Lenses

    Lenses Power Zoom Lenses Zoom can be adjusted on power zoom lenses using the zoom/ focus control ring, zoom button, or zoom ring. Adjusting zoom while the lens is wet makes it easier for water to fi nd its way inside the lens. Wipe any water from the lens before adjusting zoom.

  • Page 395: External Flash Units

    External Flash Units Use optional external fl ash units for fl ash photography. Some units support high-speed sync (FP) and can be used at shutter speeds faster than the fl ash sync speed, while others can function as commanders controlling remote units via optical wireless fl ash control.

  • Page 396: Using An External Flash

    Using an External Flash Connect the unit to the camera. In shooting mode, select FLASH FLASH SETTING FUNCTION SETTING in the F (FLASH FLASH FUNCTION SETTING RED EYE REMOVAL SETTING) menu tab. The options TTL-LOCK MODE LED LIGHT SETTING available vary with the fl ash unit. COMMANDER SETTING CH SETTING EXIT...

  • Page 397: Ef-X8

    External Flash Units EF-X8 The following settings are available when an optional EF-X8 shoe-mounted fl ash unit is attached. MODE EF-X8 ADJUST Setting Setting Description Description Choose from the following options: • TTL: TTL mode. Adjust fl ash compensation ( ) and choose a fl...
  • Page 398 Setting Setting Description Description Choose a fl ash mode for TTL fl ash control. The options avail- able vary with the shooting mode (P, S, A, or M) selected. • E (FLASH AUTO): The fl ash fi res only as required; fl ash level is adjusted according to subject brightness.

  • Page 399: Sync Terminal

    External Flash Units SYNC TERMINAL SYNC TERMINAL is displayed if the built-in fl ash is lowered and either no fl ash unit, or an incompatible fl ash unit, is mounted on the hot shoe. MODE SYNC TERMINAL ADJUST Setting Setting Description Description Choose from the following options:...

  • Page 400: Shoe Mount Flash

    SHOE MOUNT FLASH The following options are available when an optional shoe- mounted fl ash unit is attached and turned on. MODE SHOE MOUNT FLASH ADJUST Setting Setting Description Description The fl ash control mode selected with the fl ash unit. This can in some cases be adjusted from the camera;...
  • Page 401 External Flash Units Setting Setting Description Description The options available vary with fl ash control mode. • TTL: Adjust fl ash compensation (the full value may not be applied if the limits of the fl ash control system are exceed- ed).
  • Page 402 Setting Setting Description Description Control fl ash timing. • H (1ST CURTAIN): The fl ash fi res immediately after the shut- ter opens (generally the best choice). • I (2ND CURTAIN): The fl ash fi res immediately before the shutter closes. •...

  • Page 403: Commander(Optical)

    External Flash Units COMMANDER(OPTICAL) The options will be displayed if the unit is currently functioning as a commander for Fujifi lm optical wireless remote fl ash control. MODE COMMANDER(OPTICAL) ADJUST Fujifi lm optical wireless remote fl ash control off ers a choice of four channels (Channels 1 through 4) for the exchange of optical signals between the commander and remote fl ash units.
  • Page 404 Setting Setting Description Description Choose fl ash control modes for groups A, B, and C. TTL% is available for groups A and B only. Flash control mode • TTL: The units in the group fi re in TTL mode. Flash com- (group A) pensation can be adjusted separately for each group.
  • Page 405 External Flash Units Setting Setting Description Description Choose a fl ash mode for TTL fl ash control. The options available vary with the shooting mode (P, S, A, or M) se- lected. • E (FLASH AUTO): The fl ash fi res only as required; fl ash level is adjusted according to subject brightness.
  • Page 406 External Flash Units Setting Setting Description Description If the unit supports this feature, choose from: • J (FLASH POWER PRIORITY): Gain range by slightly re- ducing coverage. Lighting • K (STANDARD): Match coverage to picture angle. • L (EVEN COVERAGE PRIORITY): Slightly increase coverage for more even lighting.

  • Page 407: Cooling Fans

    Cooling Fans Cooling fans help keep the camera cool, allowing longer periods of non-stop movie recording. Attaching a Cooling Fan Open the monitor and attach an FAN-001 cooling fan. Turn the camera off before attaching or removing the fan. Open the monitor. Remove the camera cooling fan connector cover and the fan connector cap.
  • Page 408 Place the fan on the camera, making sure the screws and connectors are correctly aligned. Tighten the screws. The cooling fan may fall off if the screws are not suffi ciently tight- ened.

  • Page 409: Using The Fan

    Cooling Fans Using the Fan Fan speed can be adjusted using the A SHOOTING SETTING > xF COOLING FAN SETTING and B MOVIE SETTING  > xF COOLING FAN SETTING options in the photo and movie menus, respectively. Select OFF to turn the fan off . At some speeds, the noise of the fan may be audible in movies re- corded with the camera.
  • Page 410 MEMO...

  • Page 411: Technical Notes

    Technical Notes...

  • Page 412: Accessories From Fujifi Lm

    XF1.4X TC WR: Increases the focal length of the compatible lenses by about 1.4×. XF2X TC WR: Increases the focal length of the compatible lenses by about 2.0×. Mount adapters Mount adapters FUJIFILM M MOUNT ADAPTER: Allows the camera to be used with a wide selection of M-mount lenses.
  • Page 413 Accessories from Fujifi lm Shoe-mounted fl ash units Shoe-mounted fl ash units EF-X500: In addition to manual and TTL fl ash control, this clip-on fl ash unit has a Guide Number of 50/164 (ISO 100, m/ft.) and supports FP (high-speed sync), al- lowing it to be used at shutter speeds that exceed the fl...
  • Page 414 Accessories from Fujifi lm Cooling fans Cooling fans FAN-001: See “Cooling Fans” (P 379). Tripod grips Tripod grips TG-BT1: Record movies, take photographs, or adjust zoom on compatible power zoom lenses while holding this Bluetooth tripod grip. Grip belts Grip belts GB-001: Improves grip.

  • Page 415: Software And Services For Use With Your Camera

    Software and Services for Use with Your Camera The camera can be used with the following software and services. For the latest information on software available from Fujifi lm, visit https://fujifilm-x.com/support/compatibility/cameras/. Smartphone Apps Establish a wireless connection between your camera and a smartphone or tablet. https://fujifilm-dsc.com/...

  • Page 416: Fujifilm Raw Converter

    FUJIFILM RAW Converter View RAW pictures on your computer and convert them into oth- er formats. FUJIFILM RAW Converter is available free of charge from Capture One A/S. https://www.captureone.com/a/leaflet-fujifilm#rawconverter Visit the website above for information on when support will be avail- able.

  • Page 417: Fujifilm X Raw Studio

    Software and Services for Use with Your Camera FUJIFILM X RAW STUDIO When the camera is connected to a computer via USB, FUJIFILM X RAW STUDIO can use the camera’s unique image processing engine to rapidly convert RAW fi les to create high-quality images in other formats.

  • Page 418: For Your Safety

    For Your Safety IMPORTANT SAFETY INSTRUCTIONS • Read Instructions Read Instructions: All the safety and operating instructions Power-Cord Protection: Power-supply cords should be routed should be read before the appliance is operated. so that they are not likely to be walked on or pinched by •...
  • Page 419 For Your Safety Power Lines: An outside antenna system should not be locat- Damage Requiring Service: Unplug this video product from ed in the vicinity of overhead power lines or other electric the wall outlet and refer servicing to qualifi ed service person- light or power circuits, or where it can fall into such power nel under the following conditions: •...
  • Page 420  WARNING  WARNING  WARNING  WARNING If the b If the battery leaks and fl u attery leaks and fl uid gets in contact w id gets in contact with your ith your Do not us Do not use the camera in the e the camera in the bathroom or shower.
  • Page 421 For Your Safety  CAUTION  CAUTION Do Do not use this camera not use this camera in locations aff ecte in locations aff ected by oil d by oil fumes, stea fumes, steam, humidity or dust. m, humidity or dust. This can cause a fi re or electric shock.
  • Page 422 The Battery and Power Supply Note: Check the type of battery used in your camera and read Cautions: Handling the Battery Cautions: Handling the Battery • the appropriate sections. Do not transport or store with metal objects such as neck- laces or hairpins.
  • Page 423 Digital Split Image is a trademark or registered trademark of such as the sun in a cloudless sky. Failure to observe this FUJIFILM Corporation. Digital Micro Prism is a trademark or precaution could damage the camera image sensor. registered trademark of FUJIFILM Corporation. The typefaces •...
  • Page 424 NOTICES To prevent fire or shock hazard, do not expose the unit to rain or moisture. Please read the “Safety Notes” and make sure you understand them before using the camera. Perchlorate Material—special handling may apply. See: http://www.dtsc.ca.gov/hazardouswaste/perchlorate For Customers in the U. S. A. For Customers in the U.
  • Page 425 fi ndings Liechtenstein: If you wish to discard this product, including have not been confi rmed by additional research. X-M5 has the batteries or accumulators, please contact your local au- been tested and found to comply with IC radiation exposure thorities and ask for the correct way of disposal.
  • Page 426 RoHS Directive 2011/65/EU • RE Directive 2014/53/EU Hereby, FUJIFILM Corporation declares that the radio equipment type FF240002 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://dl.fujifilm-x.com/global/products/cameras/x-m5/pdf/x-m5_doc-sti.pdf The full text of the UK declaration of conformity is available at the following internet address: https://dl.fujifilm-x.com/en-gb/products/cameras/x-m5/pdf/x-m5_doc-sti_uk.pdf...
  • Page 427 The power delivered by the charger must be between min 2.5 Watts required by the radio equipment, and max 7.5 Watts in order to achieve the maximum charging speed. U.K. Importer: FUJIFILM UK Limited Fujifi lm House, Whitbread Way, Bedford, Bedfordshire, MK42 0ZE, United Kingdom EU Importer: FUJIFILM Electronic Imaging Europe GmbH Fujistrasse 1 47533 Kleve, Germany...
  • Page 428 Be sure to read these notes before using the lens Safety Notes  WARNING  WARNING • Make sure that you use the lens correctly. Read these safety Do not i Do not immerse in or expose mmerse in or expose to water. to water.
  • Page 429 For Your Safety WARNING WARNING   • INGESTION HAZARD: This product con- tains a button cell or coin battery. • DEATH or serious injury can occur if in- gested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
  • Page 430 Statement of Compliance FUJIFILM Corporation Manufacturer: Manufacturer: 7-3, Akasaka 9-Chome Minato-Ku, Tokyo 107-0052, JAPAN Address: Address: FUJIFILM UK Limited UK Authorized Representative: UK Authorized Representative: Fujifi lm House, Whitbread Way, Bedford, Bedfordshire, MK42 0ZE, United Kingdom Address: Address: FUJIFILM Trade Mark:...

  • Page 431: Product Care

    Product Care To ensure continued enjoyment of the product, observe the following precautions. Camera body: Use a soft, dry cloth to clean the camera body after each use. Do not use alcohol, thinner, or other volatile chemicals, which could discolor or deform the leather on the camera body. Any liquid on the camera should be removed immediately with a soft, dry cloth.

  • Page 432: Cleaning The Image Sensor

    Cleaning the Image Sensor Dust that cannot be removed using D USER SETTING  > SENSOR CLEANING can be removed manually as de- scribed below. Note that there will be a charge to repair or replace the image sensor if it is damaged during cleaning. Use a blower (not a brush) to remove dust from the sensor.

  • Page 433: Firmware Updates

    First download the latest fi rmware and save it to a memory card. For the method to download the fi rmware, refer to the following website. https://fujifilm-x.com/support/download/firmware/cameras/ Updating Firmware Firmware can be updated in the following ways. Updating the Firmware When Starting the Camera Insert a memory card containing the new fi rmware into the cam- era.
  • Page 434 For details, refer to the following website. https://fujifilm-dsc.com/ Updating the Firmware Using a Smartphone App (automatic update) If FUJIFILM XApp Ver. 2.0.0 or later is used, the latest fi rmware will be automatically downloaded to the camera from your smart- phone.
  • Page 435 • If an error message appears while the fi rmware is being updated, re- fer to the following website. https://fujifilm-dsc.com/en-int/manual/error_message_recovery/ Checking the Firmware Version Select D USER SETTING > FIRMWARE UPDATE to check the version in- formation. To view the fi rmware version or update fi rmware for optional acces- sories such as interchangeable lenses, shoe-mounted fl ash units, and mount adapters, mount the accessories on the camera.

  • Page 436: Troubleshooting

    Consult the table below should you encounter problems using your camera. If you don’t fi nd the solution here, con- tact your local Fujifi lm distributor. For the latest support information, refer to the following website. https://digitalcamera-support-en.fujifilm.com/ Power and Battery Power and Battery Problem Problem...
  • Page 437 Troubleshooting Problem Problem Solution Solution • Check whether the battery is running out of power (P 42). • When the time is set in D POWER MANAGEMENT > AUTO POWER OFF, the camera will automatically turn off after that time has elapsed. •...

  • Page 438: Menus And Displays

    Problem Problem Solution Solution When the battery temperature is low or high, charging may Charging is slow. be slow for safety reasons. Wait for the battery temperature to return to normal temperature before charging again. The indicator lamp Clean the terminals with a soft, dry cloth (P 35). blinks, but the battery does not charge.

  • Page 439: Shooting

    Solution Solution Recording may stop if the writing speed of the storage me- dia is slow. A list of supported storage media is available Video recording ended on the Fujifi lm website. For details, refer to “COMPATIBILITY unexpectedly. (Cameras)”. https://fujifilm-x.com/support/compatibility/cameras/...
  • Page 440 Continuous Shooting (Burst Mode) Problem Problem Solution Solution The burst shooting speed may be slower depending on conditions such as lens type, writing speed of the storage The burst shooting media, fl ash use, exposure conditions, camera settings, re- speed is slowed down. maining battery level, and temperature of the environment in which the camera is used.
  • Page 441 Troubleshooting Subject Detection Problem Problem Solution Solution • Choose a vantage point where you can see as much of the subject as possible. • Get closer to your subject so it occupies more of the frame. No subject is detected. •...
  • Page 442 Abnormalities in Pictures Taken Problem Problem Solution Solution • Set the focus mode to a mode other than manual focus. • Use a tripod when taking pictures. Also, it is recommend- ed to use the remote release and the self-timer shooting function.
  • Page 443 Troubleshooting Problem Problem Solution Solution • Certain phenomena that are not visible to the naked eyes may be recorded in images due to the refl ection of light and other circumstances. The camera records • The Q&A section of our website provides examples of images of things that do such phenomena that may occur depending on the char- not exist, or the subject...

  • Page 444: Playback

    Playback Full-Frame Playback Problem Problem Solution Solution The pictures were taken with a diff erent make or model of Pictures are grainy. camera. Playback zoom is The pictures were created using RESIZE or with a diff erent unavailable. make or model of camera. Movie Playback Problem Problem...

  • Page 445: During Connection

    Troubleshooting During Connection Connecting to TV Problem Problem Solution Solution When the camera is connected to a TV, nothing will be dis- The monitor is blank. played on the camera screen in playback mode. • Connect the camera properly. • Set input to “HDMI”...
  • Page 446 Connecting to Smartphones Problem Problem Solution Solution POWER SUPPLY ON/COMM OFF is selected for USB POWER SUPPLY/COMM SETTING. Select POWER Cannot connect to SUPPLY OFF/COMM ON when the camera is connected iPhones or iPads. via a Lightning connection to a device that do not supply power.

  • Page 447: Wireless Transfer

    Troubleshooting Wireless Transfer For additional information on troubleshooting wireless connec- tions, visit: https://digitalcamera-support-en.fujifilm.com/ Problem Problem Solution Solution Cannot connect to smartphone. The camera is slow • Move the devices closer (P 265). to connect or upload • Use the camera away from devices that emit radio waves.

  • Page 448: Miscellaneous

    Troubleshooting Miscellaneous Camera Operation Problem Problem Solution Solution • Remove and reinsert the battery (P 35). • Charge the battery or insert a fully-charged spare battery (P 38). • Check the USB or LAN connection mode. • Press and hold the MENU/OK button to unlock the controls The camera is unre- (P 15).

  • Page 449: Warning Messages And Displays

    Warning Messages and Displays The following warnings appear in the display. Warning Warning Description Description Low battery. Charge the battery or insert a fully-charged i (red) spare battery. Battery exhausted. Charge the battery or insert a fully- j (blinks red) charged spare battery.
  • Page 450 Warning Warning Description Description Turn the camera off , remove the lens, and check for for- eign matter between the lens and the camera body, then LENS ERROR replace the lens and turn the camera on. If the problem persists, contact a Fujifi lm dealer. •...
  • Page 451 Warning Messages and Displays Warning Warning Description Description • Memory card error or connection error: Reinsert the card or turn the camera off and then on again. If the message persists, contact a Fujifi lm dealer. • Not enough memory remaining to record additional pictures: Delete pictures or insert a memory card with more free space.
  • Page 452 Warning Warning Description Description • The fi le is corrupt or was not created with the camera: The fi le cannot be viewed. • The memory card contacts require cleaning: Clean the con- READ ERROR tacts with a soft, dry cloth. If the message is repeated, format the card.
  • Page 453 Warning Messages and Displays Warning Warning Description Description F CANNOT EXECUTE The selected operation is not supported: Check whether the picture was recorded with a diff erent model of camera. m CANNOT EXECUTE The camera is approaching the maximum temperature al- p (yellow) lowed when STANDARD is selected for AUTO POWER CAMERA IS APPROACHING...

  • Page 454: Memory Card Capacity

    Memory Card Capacity The following table shows the recording time or number of pictures available at diff erent image sizes. All fi gures are approximate; fi le size varies with the scene recorded, pro- ducing wide variations in the number of fi les that can be stored.

  • Page 455: Specifi Cations

    Specifi cations System Model FUJIFILM X-M5 Product Number FF240002 Eff ective pixels Approx. 26.1 million Image sensor 23.5 mm × 15.6 mm (APS-C), X-Trans CMOS 4 sensor with primary color fi lter Storage media Fujifi lm-recommended SD/SDHC/SDXC memory cards Memory card slots SD memory card slot (UHS-I compliant) •...
  • Page 456 : vertical (2160 × 9600)/horizontal (9600 × 1440) P panorama : vertical (2160 × 6400)/horizontal (6400 × 1440) Lens mount FUJIFILM X mount • Sensitivity Still pictures: Standard output sensitivity equivalent to ISO 160 – 12800 in increments of ⁄ EV; AUTO 1–3; extended...
  • Page 457 Specifi cations System • Shutter speed MECHANICAL SHUTTER, E-FRONT CURTAIN SHUTTER, E-FRONT + MECHANICAL ⁃ Modes P and A: 30 s to ¼  s ⁃ Modes S and M: 15 min. to ¼  s ⁃ Bulb: Max. 60 min. • ELECTRONIC SHUTTER ⁃ Modes P and A: 30 s to ⁄ s ⁃...
  • Page 458 System • Focus Mode: Single or continuous AF; manual focus with focus ring • Autofocus system: Intelligent hybrid AF (TTL contrast-detect/ phase-detection AF) • Focus-area selection: SINGLE POINT, ZONE, WIDE/TRACKING, ALL White balance Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY), Custom 1, Custom 2, Custom 3, color temperature selection, direct sun- light, shade, daylight fl...
  • Page 459 Specifi cations System • ∶ ∶ ∶ ∶ Movie size: J 3:2, V 16 9, 0 16 9, 9 17 9, W 16 Movies ∶ ∶ ∶ ∶ 16, S 16 9, W 17 9, S 17 (with stereo sound) •...
  • Page 460 Power supply/other Power supply NP-W126S rechargeable battery (supplied with camera) • Battery life Battery type: NP-W126S • Lens: XF35mmF1.4 R • External fl ash units: Disabled • Shooting mode: Mode P Number of shots Number of shots PERFORMANCE PERFORMANCE  1 1 BOOST Approx.
  • Page 461 Specifi cations Power supply/other Camera size 111.9 mm × 66.6 mm × 38 mm (33.5 mm excluding projections, (W × H × D) measured at thinnest part)/4.41 in. × 2.62 in. × 1.50 in. (1.32 in.) Camera weight Approx. 307 g/10.8 oz., excluding battery, accessories, and memory card Shooting weight Approx.
  • Page 462 Specifi cations NP-W126S rechargeable battery Nominal voltage 7.2 V Nominal capacity 1260 mAh Operating 0 °C to +40 °C/+32 °F to +104 °F temperature Dimensions 36.4 mm × 47.1 mm × 15.7 mm/1.4 in. × 1.9 in. × 0.6 in. (W × H × D) Weight Approx.
  • Page 463 MEMO...
  • Page 464 7-3, AKASAKA 9-CHOME, MINATO-KU, TOKYO 107-0052, JAPAN https://fujifilm-x.com...

Table of Contents

Save PDF
