Antennas Direct EU385CF-1s Quick Start Assembly/Installation Instructions

Before permanently attaching an antenna to any surface, TEST reception in that area. Connect coaxial cable to the F-connector on the antenna. Connect the opposite end of the coaxial cable to
your TV or converter box and run a full channel scan. It's important to check the reception in the location where you intend to install the antenna prior to attaching the mast to any surface.
Cable from
UHF antenna
to UHF IN
on the Combiner
Cable from
Combiner to
TV/converter box
TV RECEPTION CAN BE AFFECTED BY OBSTRUCTIONS OR DISTANCE
BETWEEN YOUR HOME AND BROADCAST TOWERS.
Call us toll-free for technical assistance at
or contact support@antennasdirect.com
UHF/VHF ANTENNA COMBINER
1
2
EU385CF-1Z
UHF/VHF DIPLEXER
POWER PASS
UHF IN TO TV/CONVERTER BOX VHF IN

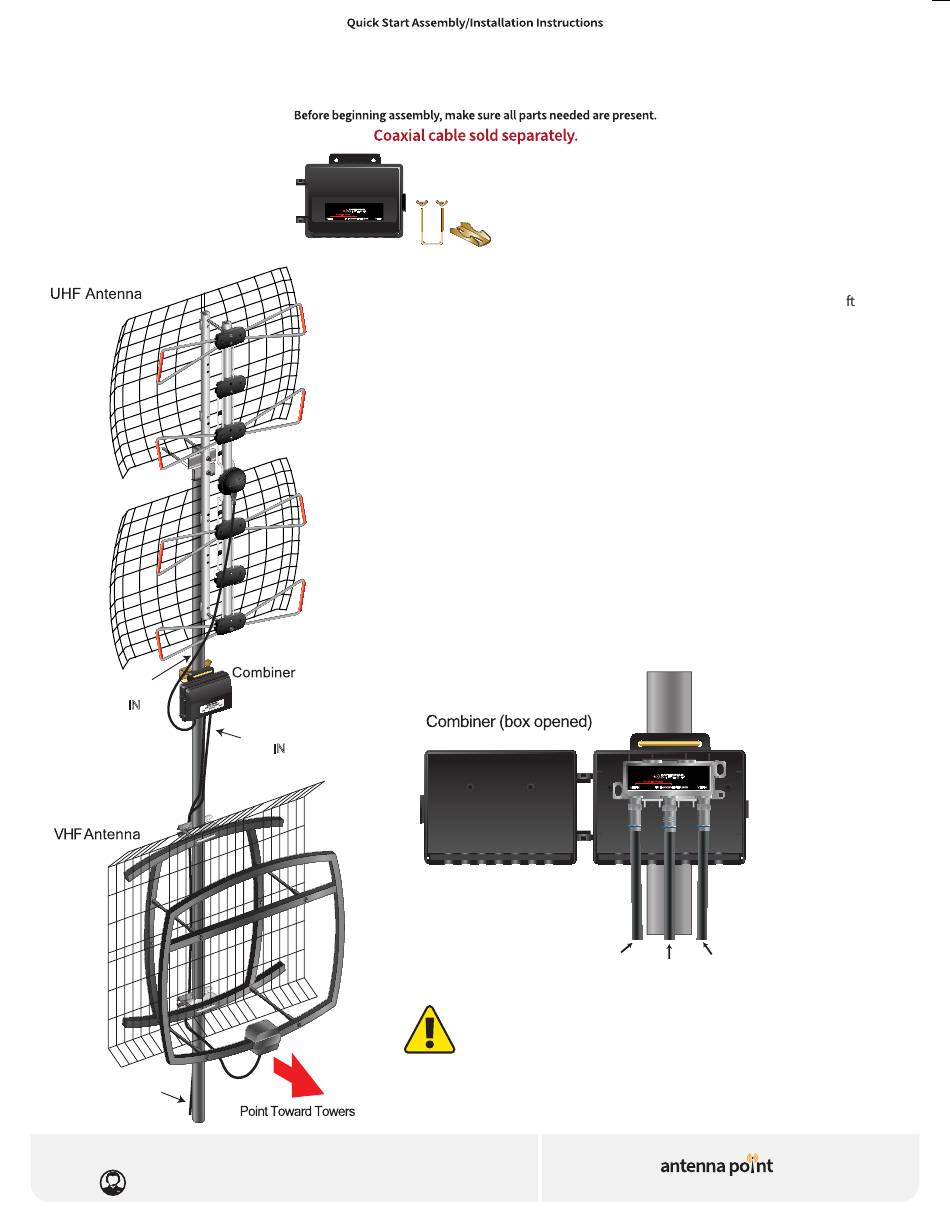

1. Install the two antennas on a single mast, with at least 18 inches (2-4 . is
2. Run a short coaxial cable from the UHF antenna (Bowtie antenna shown) to the
3. Run another short coaxial cable – of the same length as the cable in Step 2 –
4. Connect one end of the coaxial cable that will lead into your home to the
5. Follow the instructions in the owner's manual of your TV or converter box to
6. Point the front of both antennas in the direction of the broadcast towers
Cable from
the Combiner's
VHF IN
1
to the VHF
antenna
Warning!
from Power Lines.
1-877-825-5572
The Antenna Combiner
comes with:
1) Combiner
3
2) U-Bolt and Wing Nuts
3) Mast Clamp
recommended) between each antenna.
combiner connector labeled "UHF IN".
from the VHF antenna (ClearStream 5 shown) to the combiner connector
labeled "VHF IN".
combiner connector labeled "TO TV/CONVERTER BOX". Connect the other
end of that cable to the antenna input on your TV or converter box, or to the
TV distribution system (if you've had cable or satellite service in the past, the
coaxial cable needed to distribute a TV antenna's signal throughout the
home is already installed).
change the input from "CABLE" to "ANTENNA", "AIR", or "BROADCAST".
serving your area and check reception by scanning for channels on your TV.
You may have to adjust the antenna array to find the best position for
optimal reception. Remember to rescan for channels every time you adjust
the array.
From UHF Antenna
Keep Away
FIND TV CHANNELS, AIM YOUR ANTENNA
2
Mast U-Bolt (included)
EU385CF-1Z
UHF/VHF DIPLEXER
POWER PASS
UHF IN TO TV/CONVERTER BOX VHF IN
From
VHF Antenna
To
TV/converter box
DOWNLOAD OUR FREE APP
