Razor E200 Series Replacement Procedures

Hide thumbs Also See for E200 Series:

Download this manual

Required Tools: (Not included)

A. Phillips screwdriver

B. Flathead screwdriver

C. 8 mm wrench

D. 4 mm Allen wrench

E. 2.5 mm Allen wrench

WARNING

CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect

charger before conducting any assembly or maintenance procedures. Failure to follow these

steps in the correct order may cause irreparable damage.

Step 1

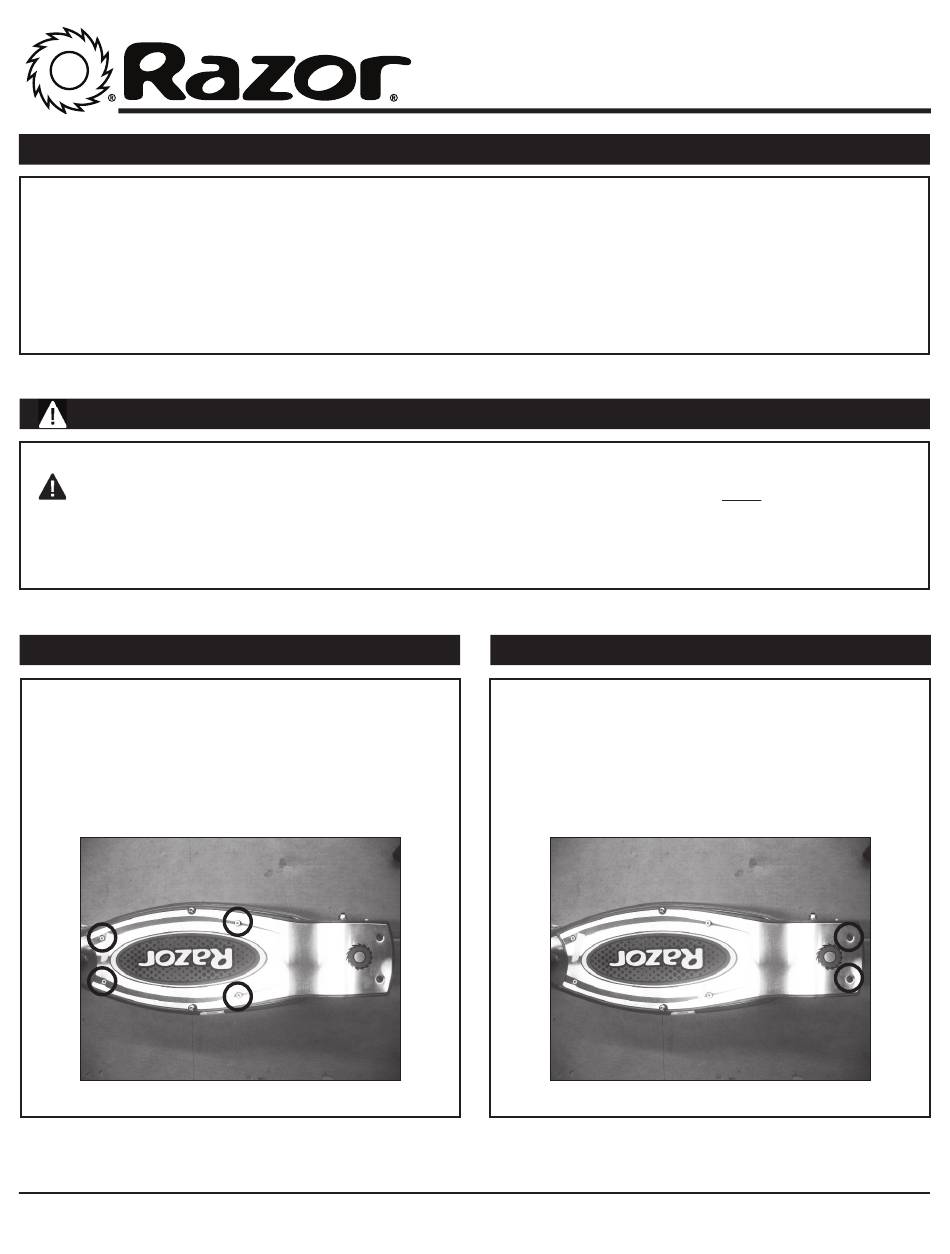

Using a Phillips screwdriver, remove the four (4) screws

on the deck cover. The locations of the screws are circled

in the image below.

Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.

E-KIT REPLACEMENT PROCEDURES

E200 (V13+) E300 (V11+) E-KIT

Step 2

Using a Phillips screwdriver and an 8 mm wrench, remove

the two (2) nuts and screws on the tail of the deck cover.

E200

, E300

Series

PART # W13113430164

Need help?

Do you have a question about the E200 Series and is the answer not in the manual?

Page 1 The locations of the screws are circled the two (2) nuts and screws on the tail of the deck cover. in the image below. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 2 Disconnect the white plastic connectors attached to the battery and control module by depressing reset button. the tab. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 3 Install the new control module and secure using the same two (2) screws previously removed. holding the control module in place and remove. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 4 • Reposition the deck cover and attach with the screws and nuts that were removed in Steps 1-3. ATTENTION: Charge battery 12 hours before using. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
Page 5 Remove screwdriver and pull the grip away from the handlebar. Remove throttle and replace with the new part. Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.

E300 series
