Hardware User Manual
NV-1-H-WE
4K60 Network Video Wall Plate Encoder for Q-SYS
TD-001675-01-A
*TD-001675-01*

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q-SYS NV-1-H-WE and is the answer not in the manual?

Questions and answers

Related Manuals for QSC Q-SYS NV-1-H-WE

Summary of Contents for QSC Q-SYS NV-1-H-WE

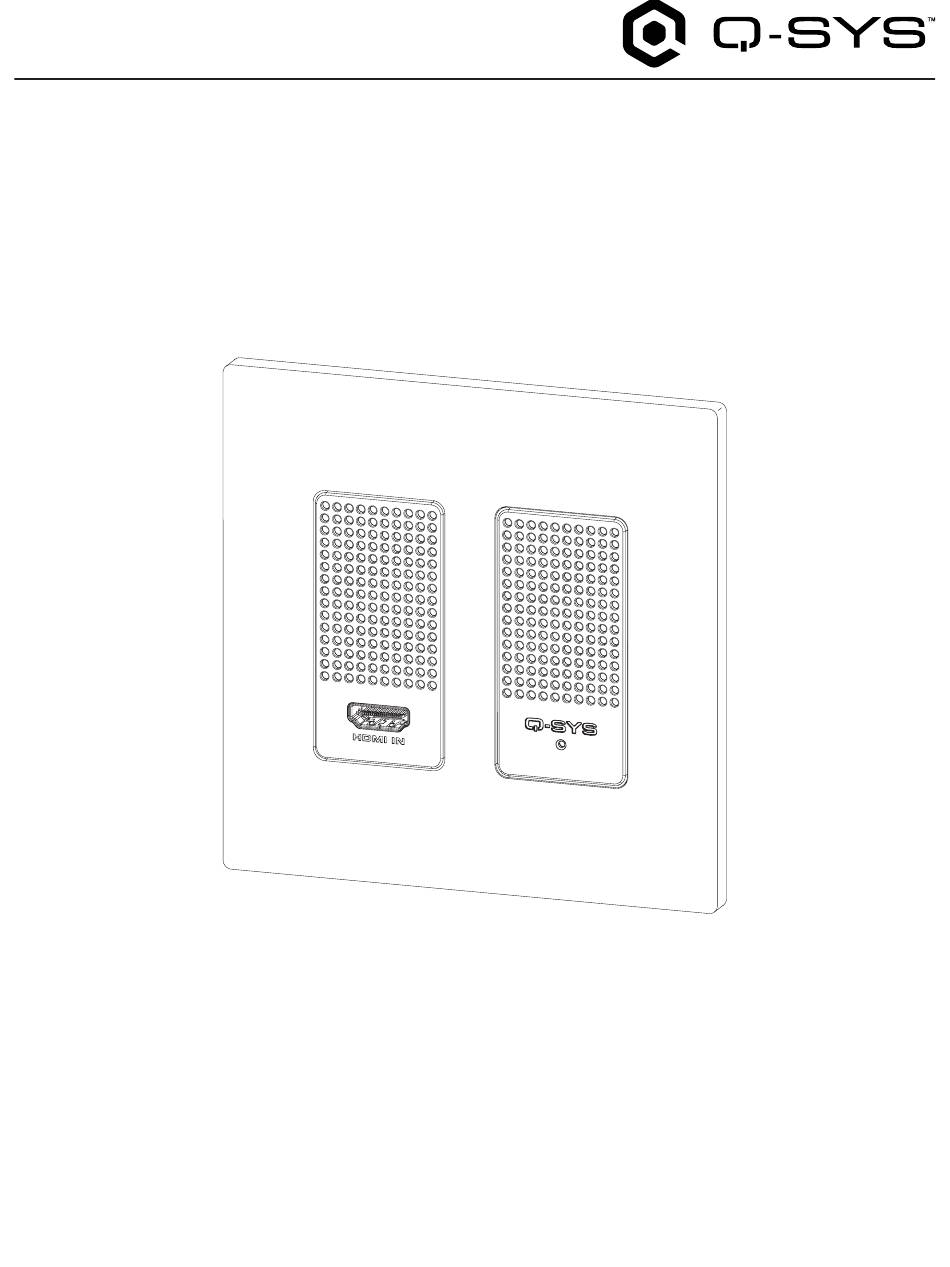

  • Page 1 Hardware User Manual NV-1-H-WE 4K60 Network Video Wall Plate Encoder for Q-SYS TD-001675-01-A *TD-001675-01*...

  • Page 2: Important Safety Instructions

    To avoid a danger of subsequent damage to the apparatus, injuries to persons and/or the creation of additional safety hazards, all maintenance or repair work on the apparatus should be performed only by a QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs.

  • Page 3: Fcc Statement

    RoHS Statements The QSC Q-SYS NV-1-H-WE is in compliance with European RoHS Directive. The QSC Q-SYS NV-1-H-WE is in compliance with “China RoHS” directives. The following table is provided for product use in China and its territories. QSC Q-SYS NV-1-H-WE 部件名称...

  • Page 4: What's In The Box

    • The NV-1-H-WE is intended to be powered by a Listed (Certificate) power supply compliant with LPS or PS2, output rated 56 VDC, 0.42A minimum (PoE), maximum ambient temperature (TMA) of 40 C°, and maximum altitude of 2000m. Contact QSC if assistance is needed.

  • Page 5: Front Panel

    Connections and Callouts Front Panel — Figure 1 — HDMI In – HDMI 2.0 input with support for HDCP 2.3 and HDCP 1.4. 2. Reset Button – (Behind perforated cover, recessed) Use a paper clip, or similar tool, to press and hold the reset button for 10 seconds to reset the NV-1-H-WE to factory values.

  • Page 6: Clearance Requirements

    Installation The NV-1-H-WE is designed to be installed into dual gang electrical boxes that are 61 mm common in North America. A variety of alternate electrical boxes and brackets with (2.4 in.) similar mounting hole placement may be accommodated, though mounting procedures for these alternate solutions are not documented here.
