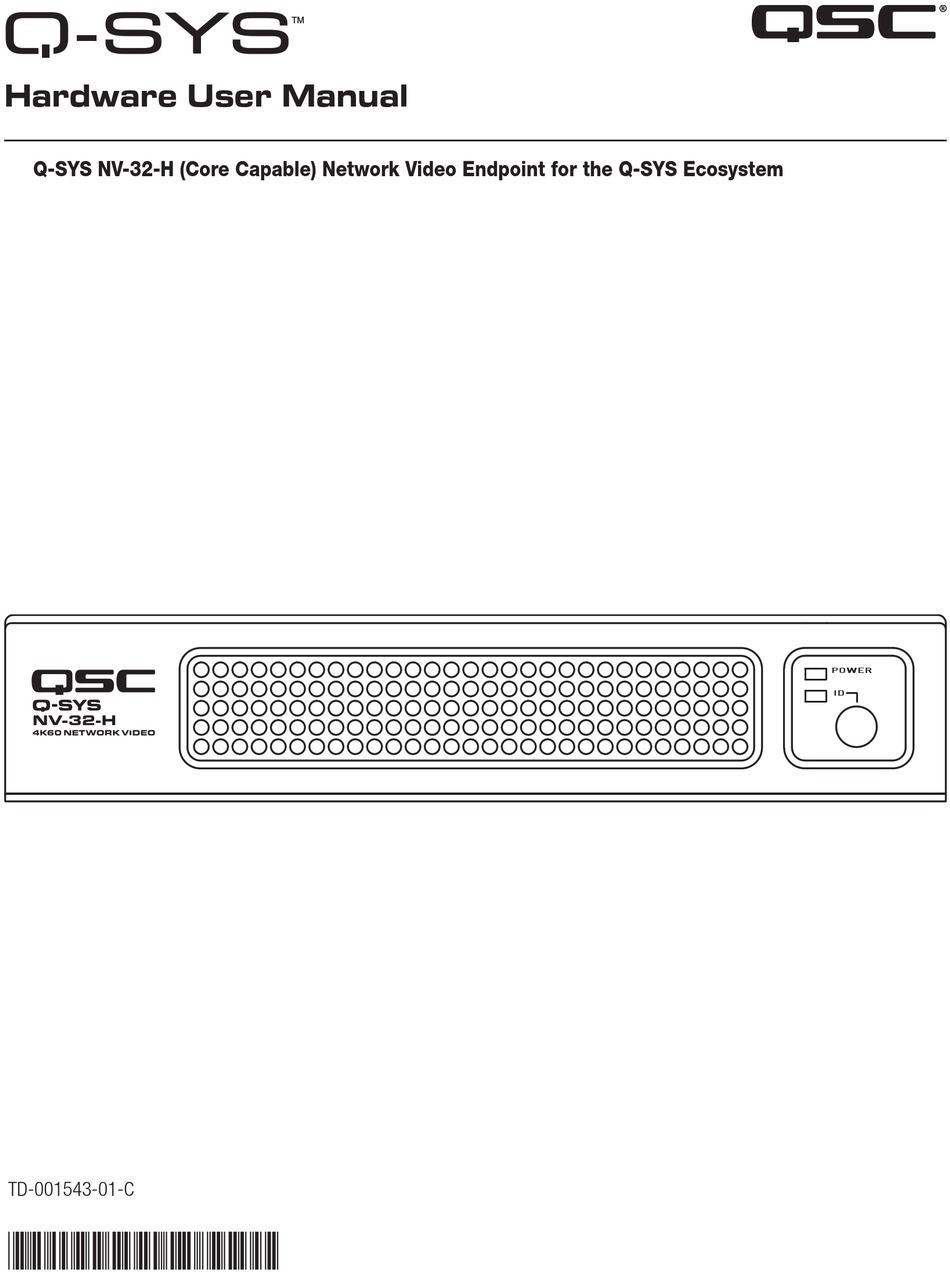

- Page 1 ™ Hardware User Manual Q-SYS NV-32-H (Core Capable) Network Video Endpoint for the Q-SYS Ecosystem POWER TD-001543-01-C *TD-001543-01*...
-
Page 2: Important Safety Instructions
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating and maintenance instructions in this manual. IMPORTANT SAFETY INSTRUCTIONS Refer to Safety Information and Regulatory Statements Q-SYS NV-32-H (Core Capable) 4K60 Network Video for important information. Warranty For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com... -
Page 3: Installation
I power supply. The Q-SYS NV-32-H (Core Capable) has a flexible power solution that allows the integrator to choose to use either a 48 VDC power supply or a 802.3bt type 4 PoE++ injector. Please note that 802.3bt type 4 is a high-power over Ethernet standard that allows for up to 71W of power delivered to end-point devices over standard Ethernet cabling. - Page 4 One Q-SYS NV-32-H (Core Capable) 19-inch Rack (Left or Right Mount) (x1) Top Side Top Side (x1) Front Panel Front Panel (x1) (x5) (x1) B. One Q-SYS NV-32-H (Core Capable) 19-inch Rack (Center Mount) (x1) Top Side vv(x2) Front Panel...
- Page 5 Two Q-SYS NV-32-H (Core Capable)'s 19-inch Rack (x2) Bottom Side (x2) Unit 2 (x2) Front Panel Bottom Side Unit 1 (x6) (x1) Front Panel (x6) One Q-SYS NV-32-H (Core Capable) Half Rack (x1) (x2) Top Side (x6) Front Panel TD-001543-01-C...
-
Page 6: Rack Mounting Options
A through E, you can mount any of the Q-SYS NV-32-H (Core Capable) configurations. The example at the lower right can be flipped to accommodate a single Q-SYS NV-32-H (Core Capable) on the left side. Equipment Rack (not supplied) (2) Rack Ear Spacer... -
Page 7: Front Panel
Features Front Panel — Figure 1 — Power LED – illuminates blue when the ID Button – Locates the Q-SYS NV-32-H (Core Capable) in Q-SYS NV-32-H (Core Capable) is powered on Q-SYS Designer GUI and by Q-SYS Core Manager/Peripheral Manager ID LED –... - Page 8 Dimensions 220.0 mm 8.66 in 286.6 mm 11.28 in 220.0 mm 8.66 in POWER 43.6 mm 1.72 in TD-001543-01-C...
-
Page 9: Specifications
Specifications Channel Capacity (Core Mode Only) Q-LAN / AES67 32 x 32 Dante channels Licensable up to 32 x 32 (none included) AEC processors 8 @ 200 ms WAN / media stream channels 8 x 8 VoIP instances Audio recording /playback 4 ch recording / 16 ch playback Q-SYS peripheral limit* Video I/O... -
Page 10: Mailing Address
FAX: +1.714.754.6173 © 2020 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. Q-SYS, Q-LAN and, Q-SYS Designer are trademarks of QSC, LLC. Patents may apply or be pending.
