MH 1-LXR
¼ λ Mobile Antenna for the 160 MHz Band
DESCRIPTION
0 dB mobile antenna.
Black-chromed, conical stainless steel whip.
Stainless steel LX-mount – professional quality in elegant and smooth design.
Especially suited for roof-mounting.
Provided with FME-connection (supplied without cable).
Bendable section in mount for adjustment of whip (tiltable 15° by hand).
Installation with access from the outside only (requiring an 18 mm dia. hole).
SPECIFICATIONS
Electrical
Model
Frequency
Antenna Type
Max. Input Power
Polarisation
Impedance
VSWR
Bandwidth
Gain (EIA RS-329-1)
Mechanical
Materials
Cable
Installation Torque
Colour
Height
Weight
Mounting
ORDERING
Model
MH 1-LXR
MH 1-LXR
Tunable by cutting within : 144...175
MHz
(Also applicable : 175...480 MHz)
Mobile whip antenna
100 W
Vertical
50 Ω
≤ 1.3 @ f. res.
≥ 15 MHz @ VSWR ≤ 2.0
0 dB
Whip : Black-chromed stainless steel
Black-chromed brass
Mount : Brass
Weather- and shockproof plastics
Stainless steel
FME-cable to be ordered separately
3.5 Nm max.
Black
Approx. 550 mm / 21.65 in.
Approx. 0.052 kg / 0.11 lb.
18 mm dia. hole
Product No.
130000713
INSTALLATION
The LX-mount is especially suited for roof-mounting. It is recommended to mount the
antenna at the centre of the roof to ensure the best omnidirectional coverage.
Mounting can take place in an 18 mm dia. hole with access from the outside only.
When cleaning the car in car-washing machines, the whip should be removed – a 9
mm fork spanner can be used. After wash, the whip is refitted and tightened lightly with
the spanner.
The mount is equipped with a bendable section (±15°) to make it possible to adjust
the antenna to an upright position.

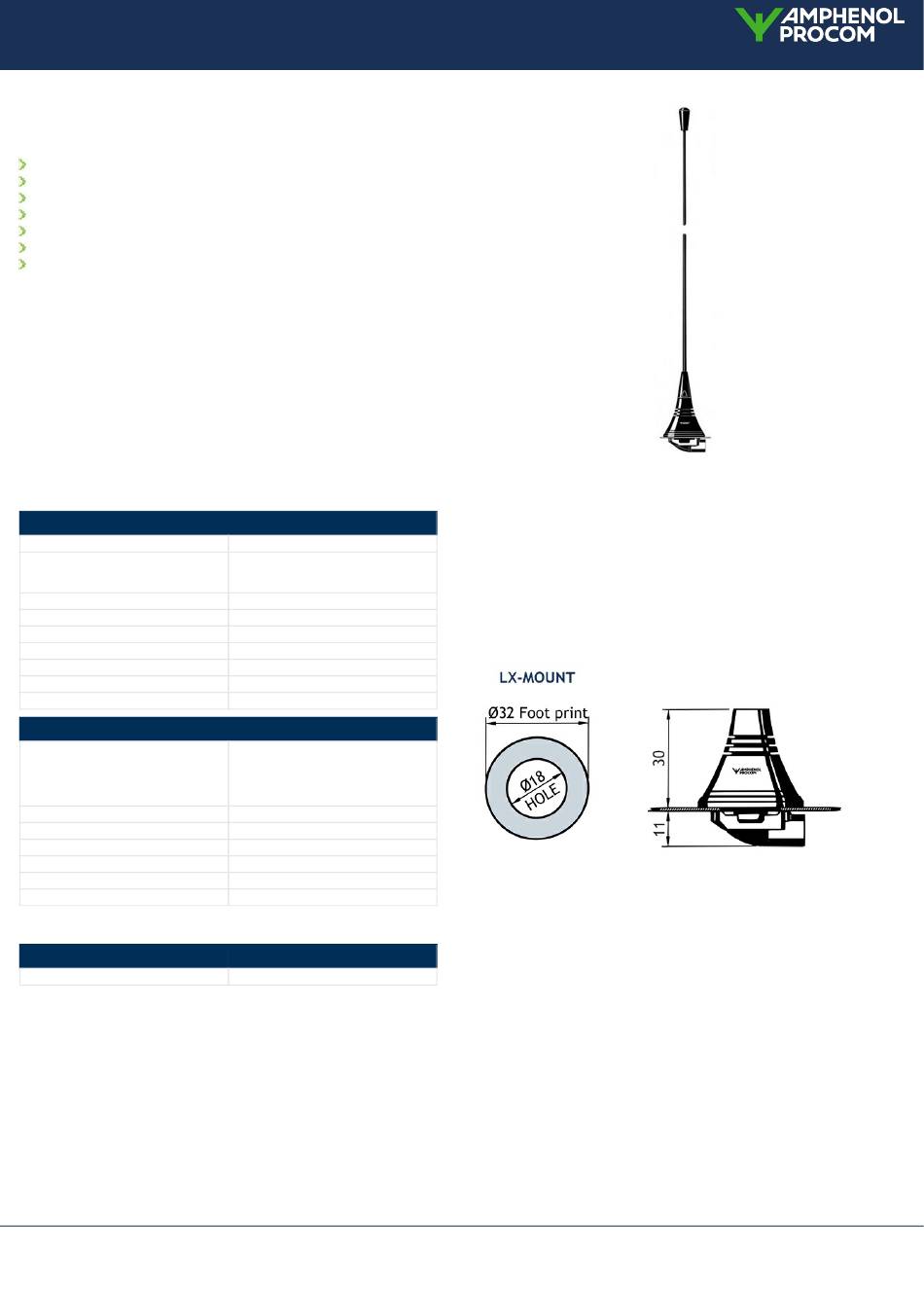

1. INSTALLATION DIMENSION
