Amphenol Procom GF 151 Quick Start Quide

GF 151

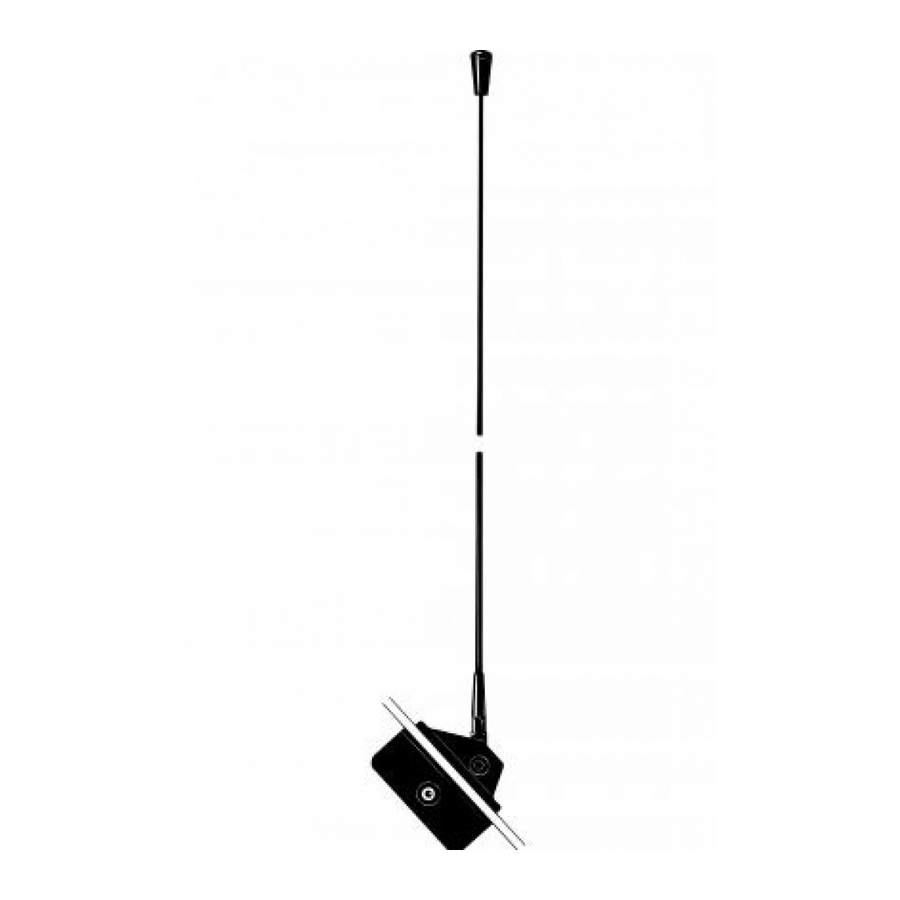

0 dB Mobile GlassFix® Antenna for the 160 MHz Band

DESCRIPTION

Half-wave, 0 dB mobile antenna for the 2 m band using the GlassFix® mounting
principle.
Mounting on car window glass – no holes required.
Double-adhesion procedure ensures fast and reliable fixing.
Internal matching unit feeds external antenna through window glass.
Half-wave design – no ground plane required.
High positioning gives performance equal to conventionally mounted car roof antenna.
FME FastCabling system (cable to be ordered separately).
Simple tuning procedure by means of tuning screw on matching unit.
Easy removable whip for car wash.
Swivel joint for 180° angle adjustment.
If removal of antenna installation is necessary, a quick dismantling procedure leaves no
trace of the installation.
NOTE
GF antennas are not suitable for car models with windows that have heat reflective
coating.

ORDERING

Type
GF 151
Product No.
130000704

SPECIFICATIONS

Electrical
Model
Frequency
Antenna Type
Polarisation
Impedance
Maximum Input Power
Gain (EIA RS-329-1)
Mechanical
Whip: Stainless steel and brass, black-chromed
Materials Mount and indoor unit: Weather- and shockproof plastics
Corrosion-safe and corrosion-protected metals
Cable FME-cable to be ordered separately
Colour Black
Height 92 mm / 3.62 in.
Weight 0.09 kg / 0.20 lb
On car windows with silicone glue (52 mm x 47 mm obstruction-free mounting
Mounting
area required)
Glass
2.5 - 7 mm / 0.10 - 0.28 in.
Thickness
GF 151
Tunable 138...175 MHz
Mobile GlassFix®antenna
Vertical
50 Ω
25 W
0 dB
Last edited: 2018/11/16
Page: 1
