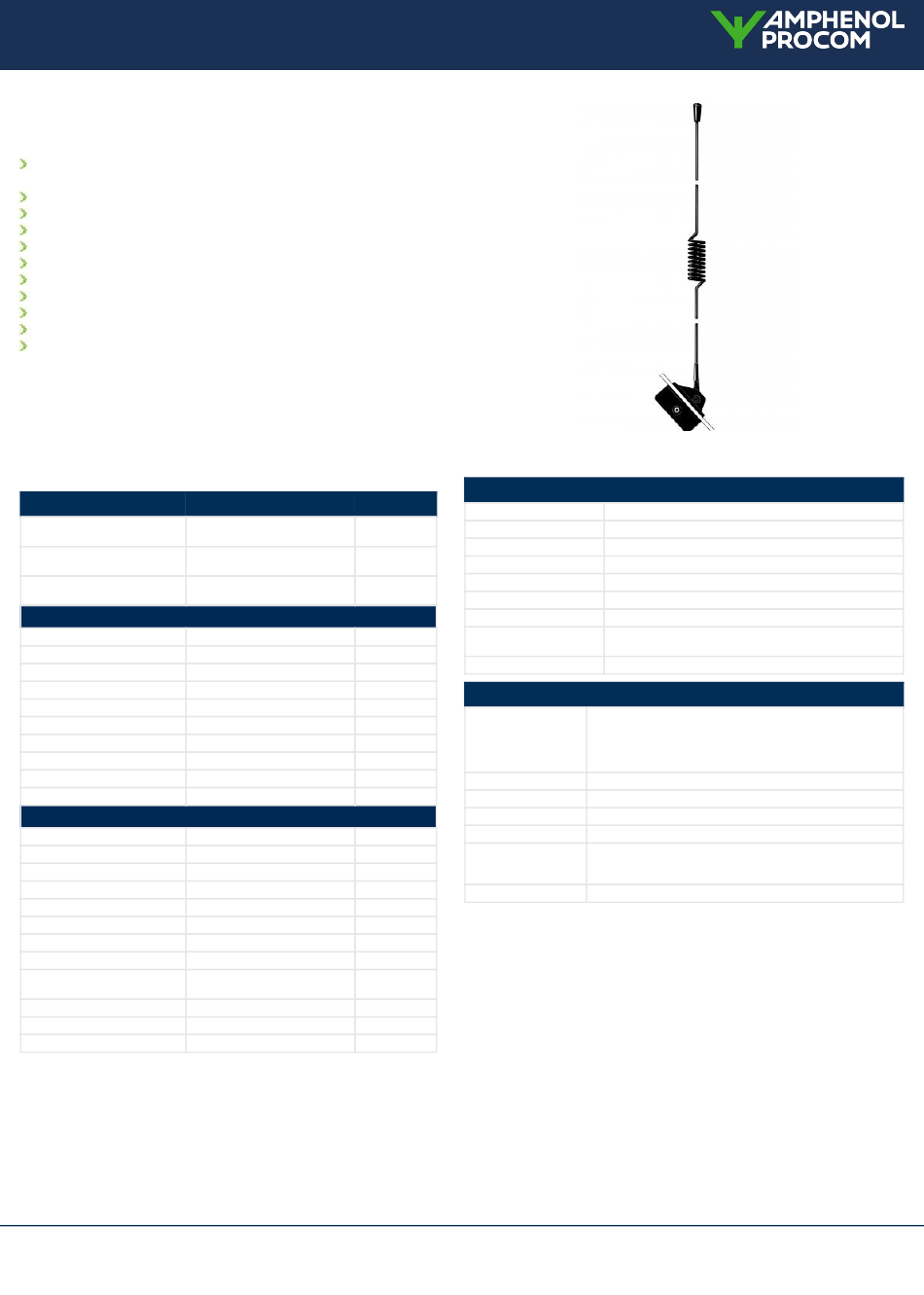

Amphenol Procom GF 402/ Series Quick Start Manual

GF 402/...
2 dB Mobile GlassFix® Antenna for the 450 MHz Band

DESCRIPTION

Colinear, 2 dB mobile antenna for the 450 MHz band using the GlassFix® mounting
principle.
Mounting on car window glass – no holes required.
Double-adhesion procedure ensures fast and reliable fixing.
Internal matching unit feeds external antenna through window glass.
Half-wave collinear design – no ground plane required.
High positioning gives performance equal to conventionally mounted car roof antenna.
FME FastCabling system (cable to be ordered separately).
Simple tuning procedure by means of tuning screw on matching unit.
Easily removable whip for cleaning in car-washing machine
Swivel joint for 180° angle adjustment.
If removal of antenna installation is necessary, a quick dismantling procedure leaves no
trace of the installation.
NOTE
GF antennas are not suitable for car models with windows having heat reflective
coating.

ORDERING

Type Product No.
Replaced by GF 404/s
GF 402/s
(130000786)
GF 402/l 130001885
GF 402/h 130000781
Accessories FME-Cables
1 m FME(f) 130000437
2 m FME(f) 130000447
3 m FME(f) 130000457
4 m FME(f) 130000466
5 m FME(f) 130000474
6 m FME(f) 130000483
4 m FME-white(f) 110000064
6 m FME-white(f) 110000066
12 m FME-white(f) 110000068
18 m FME-white(f) 110000069
Accessories FME-Connectors
FME(f)-FME(f) 130000583
FME(m)-P(m) (Prolongation) 130000565
FME(m)-N(m) 130000571
FME(m)-FSMA (Female-SMA) 130000578
FME(m)-BNC(m) 130000566
FME(m)-TNC(m) 130000569
FME(m)-UHF(m) 130000572
FME(m)-MUHF(m) (Mini-UHF) 130000573
FME(m)-EMUHF(m) (Elbow-
130000582
MUHF)
FME(m)-EBNC(m) (Elbow-BNC) 130000580
FME(m)-ETNC(m) (Elbow-TNC) 130000581
FME(m)-SMA(m) 130000577
FME-SYSTEM ACCESSORIES - NOTE
For further information about other types of FME-cables and FME-connectors, please
compare the cable and connector data sheets under accessories.

SPECIFICATIONS

Electrical
Frequency
Model
380 ... 410
Frequency
MHz
Antenna Type
406 ... 440
Max. Input Power
MHz
Polarisation
430 ... 470
MHz
Impedance
VSWR
Bandwidth
Gain (EIA RS-329-1)
Mechanical
Materials
Cable
Colour
Height
Weight
Mounting
Glass Thickness
GF 402/...
450 MHz-band covered by two tunable models
Collinear mobile GlassFix® antenna
25 W
Vertical
50 Ω
≤ 1.3 @ f.res.
≥ 8 MHz @ VSWR ≤ 2.0
≥ 15 MHz @ VSWR ≤ 3.0
2 dB
Whip:
Black-chromed stainless steel
Mount and indoor unit:
Weather- and shockproof plastics,
Corrosion-safe and corrosion-protected metals
FME-cable to be ordered separately
Black
Approx. 580 mm / 22.83 in.
Approx. 0.09 kg / 0.20 lb
On car windows with silicone glue
52 x 47 mm / 2.05 x 1.85 in.
obstruction-free mounting area required
2.5 - 7 mm / 0.10 - 0.28 in.
