Soundmachines t-generator Quick Start Manual

t-generator t-generator
INSTALLATION
Use the supplied power cable to connect the module to your system.
Be aware of the red stripe!
Simply house the module in your Eurorack case, fix it in place with the supplied
screws and washers and you are ready to go.
The module is 8 HP wide.
POWER REQUIREMENTS
150mA on +12V
20mA on -12V
CONTACTS
Website: www.sound-machines.it
Email: info@sound-machines.it
REGULATORY
Product: soundmachines t-quadstrip
QUICK OVERVIEW

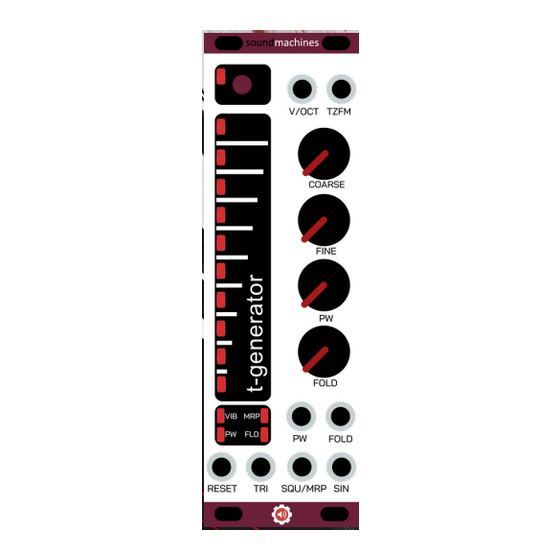

t-generator takes the concept of merging modulation sources and
destinations into a single module.
t-generator is a multi-parameter Thru-Zero FM VCO.
Three independent outputs:
-Triangle oscillator.
-Morphable square oscillator.
-Pure sine oscillator with a warm sounding and harmonically rich wavefolder.
Four independent lightstrips engines controlling four sound sculpting
parameters.
Bring life to your patches with free running or resettable custom drawn
modulation.
Maximum automation recording length of 20s for each parameter.
V/Oct, Thru-Zero FM, PWM and FOLD modulation inputs.
The integrated touch lightstrip controllers can drive four parameters with
looping or one-shot recording playback mode on each track with global
RESET input.
PW and MRP are dedicated to the square oscillator, changing the PWM and
the morphing of the wave. Increasing the MRP value add progressively a
detuned 2nd square oscillator, a square sub oscillator and finally injects also
the sine oscillator, to create a massively rich sound.
VIB is an "unconventional" Vibrato. It starts from a subtle vibrato effect and
reaches into S&H frequency modulation territories.
FLD is the folding for the sine wave.
The value of modulation inputs that share the same name (slider, pot and CV
in) are summed.
Scan for tutorials and more!
