t-quadstrip
t-quadstrip
INSTALLATION
Use the supplied power cable to connect the module to your system.
Be aware of the red stripe!
Simply house the module in your Eurorack case, fix it in place with the supplied
screws and washers and you are ready to go.
The module is 8 HP wide.
POWER REQUIREMENTS
150mA on +12V
20mA on -12V
CONTACTS
Website: www.sound-machines.it
Email: info@sound-machines.it
REGULATORY
Product: soundmachines t-quadstrip

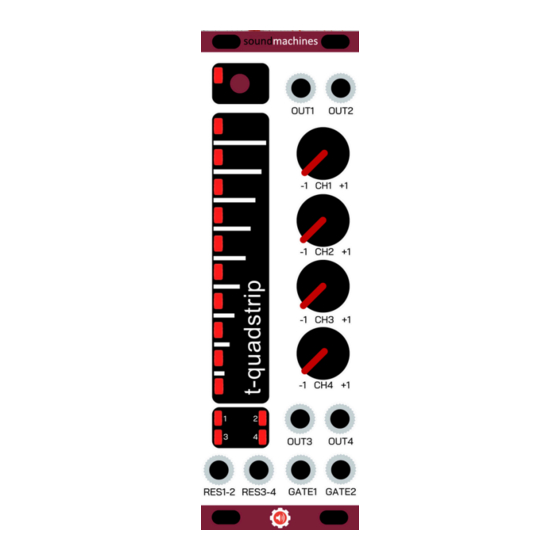

QUICK OVERVIEW
t-quadstrip is the obvious evolution of our award-winning LS1lightstrip.
Now you can have four independent lightstrips engines, with an extended
maximum recording length of 20s.
Bring life to your patches with free running or resettable custom drawn
modulations.
The t-quadstrip four CV outputs can be attenuated or inverted with the
dedicated four knobs.
Two Reset Inputs (the first for lanes 1-2, the second for lanes 3-4)
allows to use the recordings as custom envelopes, from snappy for
percussions, plucks and basses to super slow for smooth pads.
Three classic modes: LIVE, HOLD and REC Modes.
Three REC behaviors. Recorded automation playback can be set to be:
- Free running
- Looping with reset function (reset via trig in)
- One-shot mode (triggered by reset in)
Only lanes 1 and 2 have a dedicated GATE output signal.
Scan for tutorials and more!
Advertisement
Related Manuals for Soundmachines t-quadstrip
Summary of Contents for Soundmachines t-quadstrip
- Page 1 Bring life to your patches with free running or resettable custom drawn modulations. The t-quadstrip four CV outputs can be attenuated or inverted with the dedicated four knobs. Two Reset Inputs (the first for lanes 1-2, the second for lanes 3-4) allows to use the recordings as custom envelopes, from snappy for percussions, plucks and basses to super slow for smooth pads.
- Page 2 RES3-4 INPUT: Dedicated reset input for modulation lanes 3 and 4. value returns back to zero (read as to the default bottom position). t-quadstrip Whenever a gate or trigger signal is fed to this input, the recorded B.HOLD - Press it once (the LED stays lit) to set the slider to HOLD mode.
