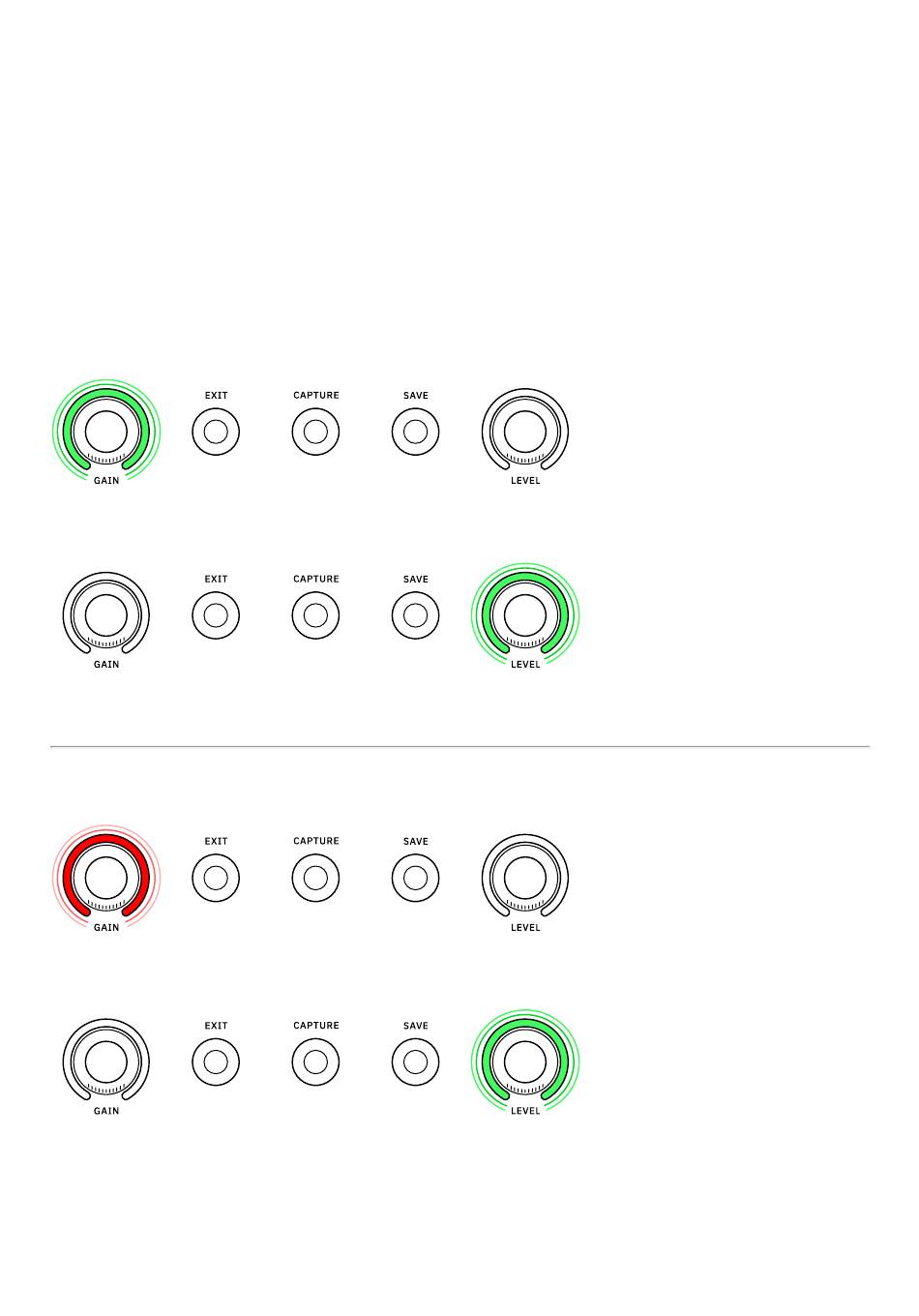

I/O Clipping Alert
The GAIN and LEVEL knobs will indicate whenever inputs or outputs are clipping.
• • •
PERFORMANCE MODE
The GAIN Knob will blink 3 times whenever INPUT detects signal clipping.
The LEVEL Knob will blink 3 times whenever OUTPUTS 1L/2R detect signal clipping.
CAPTURE MODE
The GAIN Knob will turn red whenever CAPTURE INPUT detects signal clipping.
The LEVEL Knob will blink 3 times whenever OUTPUTS 1L/2R detect signal clipping.
