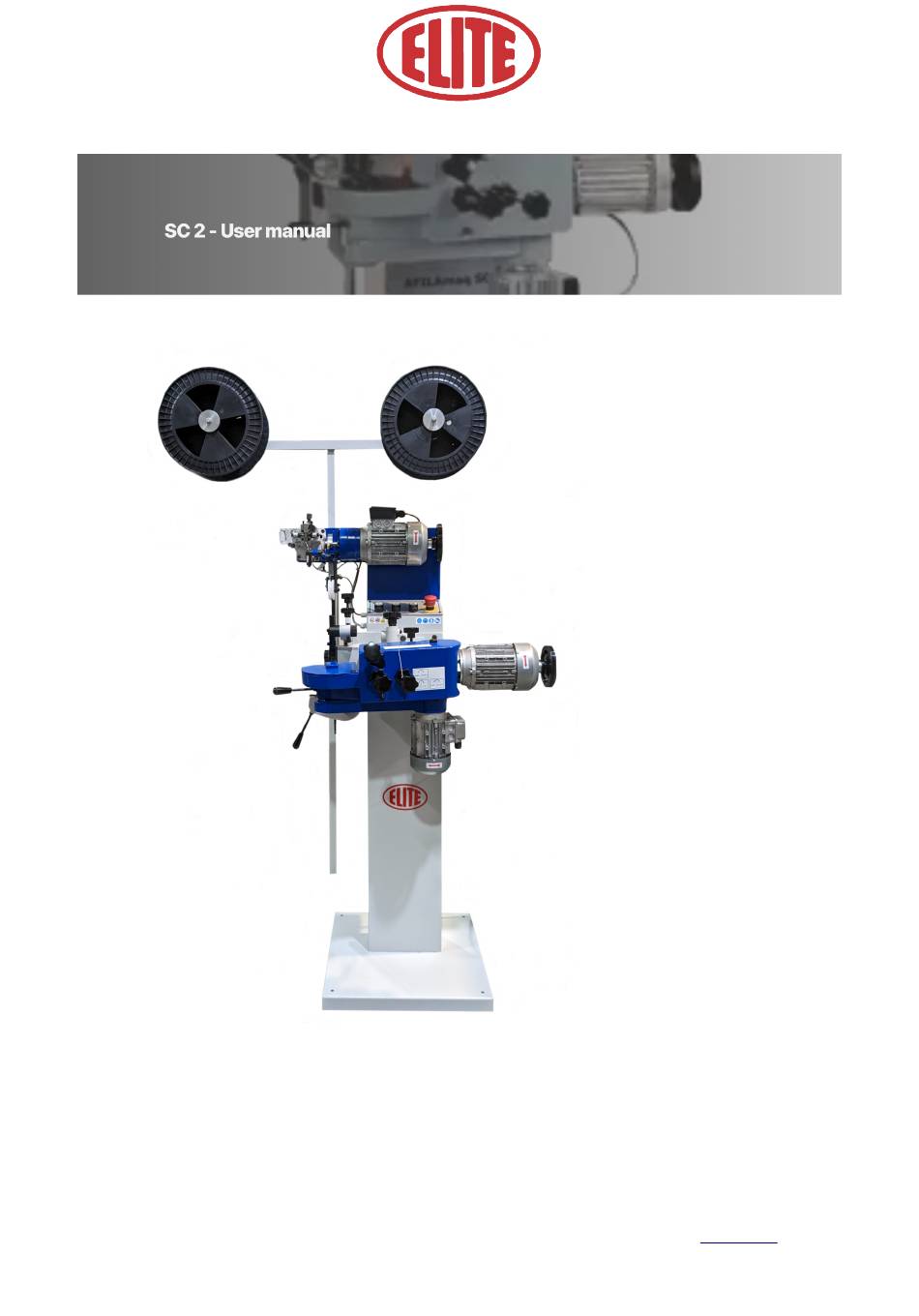

- Page 1 ELITE SC 2 User manual Version March 2023 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 2 THIS PAGE IS NOT WRITTEN INTENTIONALLY Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 3: First Steps
Read this guide before you start. The SC 2 is a bandsaws and circular saw blade automatic sharpening machine with low mainte- nance. For straight tooth and spaced straight tooth sharpening and setting in band saws from 10 up to 70 mm wide (0,4"... -
Page 4: Safety Regulations
The ELITE sharpening machines of the SC 2 model range have been designed for the sharpening of band and circular saw excluding any other type of operation. - Page 5 These warnings do not include all possible risks that improper use of the machine could cause. For this reason, the operator must proceed with prudence and observing the rules. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 6 Use of the machine by untrained persons • Serious failures in scheduled maintenance • Unauthorized interventions or modifications • Use of non-original spare parts. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 7: Declaration Of Conformity
2.3.Declaration of conformity The company hereby Elite Sharpening Machines, SLU C/Joan Oró, 27 ES-08635 Sant Esteve Sesrovire declares that the product indicated below, based on its conception and construction, as well as the version put on the market by our company, complies with the mandatory basic health and safety requirements of the CE directive. - Page 8 THIS PAGE IS NOT WRITTEN INTENTIONALLY Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 9: Technical Data
Packing Size (mm) Weight (kg) SC 2 980 x 810 x 1710 SC 2 + TR 2 980 x 810 x 1710 SC 2 + TR 3 980 x 810 x 1710 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! - Page 10 4.TRANSPORT The SC 2 is delivered packed in a wooden crate. During all transport and transfer, the machine must be kept in its original vertical position, any va- riation in this position may lead to the loss of the guarantee.
- Page 11 To unpack, first remove the front panel. Remove the wooden blocking pieces or the fixing screws on the feet of the machine. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 12 Block the lower end of the support using the bolts that you can find in the housing. Each roll is used for a specific operation. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 13 The roll for SETTING must be positioned 3-4 cm. from the horizontal rod. The roll for SHAR- PENING must be positioned 15-20 cm from the horizontal rod. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
-
Page 14: Installation
Poorly levelling the machine can cause unwanted vibrations and premature wear of the linear guides. WARNING: The machine must not be used under any circumstances by unqualified or unauthorized personnel. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... -
Page 15: Electrical Connection
• On request, the machine can be prearranged for being connected with a single-phase network (220V). ELITE does not assume any responsability in case of a wrong electric connection that may cau- se not only a bad performance of the machine, but also damages to people, animals, things. -
Page 16: Main Components Of The Machine
D. Motor and reduction unit of setting machine (optional) E. Control panel F. Driving motor of grinder unit G. Motor for grinding wheel rotation H. Base Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... -
Page 17: Control Panel
Power indication lamp q: Emergency STOP button r: Button START/ STOP feed of grinder unit s: Button START / STOP setter motor (optional) Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... - Page 18 For sections 6 to 8 of this manual, as well as for more up-to-date information and useful videos on the operation of the machine, please refer to our website www.elite.es www.elite.es/en/support/manuals/sc-2 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – !
-
Page 19: Accessories And Consumables
Remove the grinder cover, using a key 20 loosen the bolt which is at the centre of thE grinder clockwise, then substitute it and tighten the bolt Counter-Clockwise • Disconnect the emergency button (or connect the machine) Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es... - Page 20 The variable speed drive doesn't need any maintenance. 9.2.2 Setting device The machine can be equipped with the setting device model ELITE TR 2 or ELITE TR 3 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – !
- Page 21 For more updated information and helpful videos on how to operate the mac- hine, check our website www.elite.es Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
