sisel ENDA EDP7041 Manual

Read this document carefully before using this device. The guarantee will be expired by damages if you don't attend
to the directions in the user manual. Also we don't accept any compensations for personal injury, material damage or
capital disadvantages.

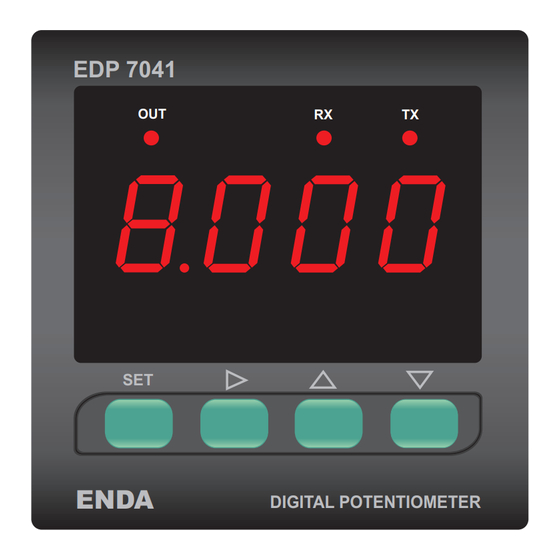

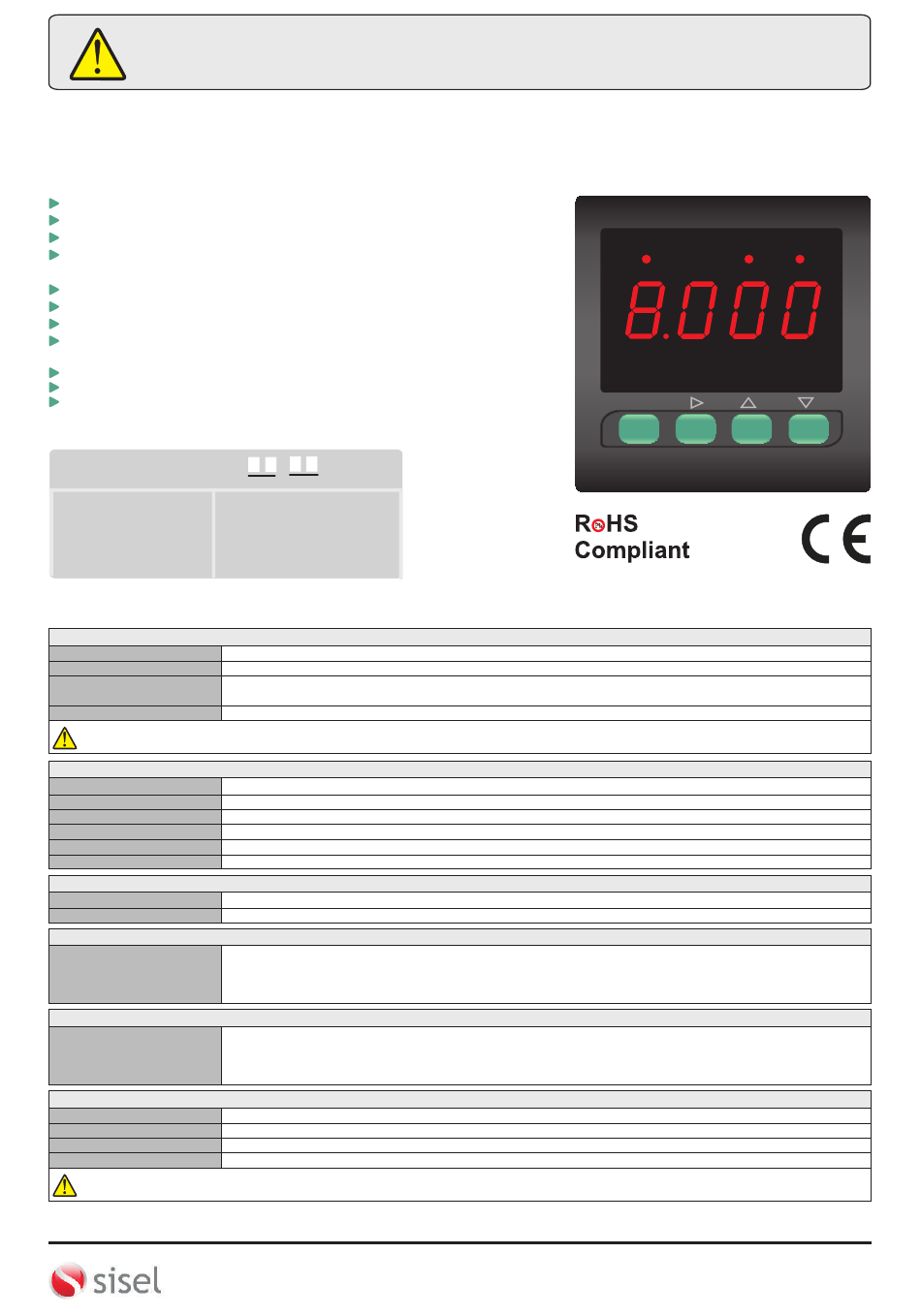

ENDA EDP7041 DIGITAL POTENTIOMETER
Thank you for choosing ENDA EDP7041 Potentiometer.
- 72x72mm sized.
- 4 digits display.
- Easy to use front panel keypad.
- Communication via RS-485 Modbus protocol or synchronous
running between two or more potentiomers (Optional).
- External preset key feature.
- Display scale can be adjusted between -1999 and 9999.
- Decimal point can be set between 1st and 3rd digit.
- 0-10V,0-20 mA a and 4-20mA output with adjustable minimum and
maximum values.
- Soft ON / Soft OFF feature.
- P arameter access protection.
- CE marked according to European Norms.
Order Code : EDP7041 -
1- Supply
UV......90-250V AC
LV.......10-30V DC /
8-24V AC
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
INPUTS
Upwards input (UP)
Downwards input (DOWN)
OUTPUT
0-10V output
OUTPUT
0-20mA output
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, gasoline, acid etc.) or corrosive materials must not be used.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
-
1 2
2- Modbus
RS... Modbus
(Specity at Order)
0 ... +50 °C/-25 ... +70°C (without icing)
80% Relative humidity for temperatures up to 31 % °C, decreasing linearly to 50% at 40°C.
Front panel :
According to EN 60529
Rear panel :
Max. 2000m
90-250V AC 50/60Hz; 10 -30V DC / -24V AC SMPS
Max. 7VA
2.5mm² Screw Connections
EEPROM (Min. 10 years)
EN 61326-1: 2013 (Performance criterion B for the EMC standards)
EN 61010-1: 2010 (pollution degree 2, overvoltage category II, measurement category I)
Contact input or max. 24VDC logic input (active low)
Contact input or max. 24VDC logic input (active low)
Digitally adjusted maximum 10mA, max. 10V potentiometer output.
Accuracy : %0.1 Resolution : 1mV
Fluctuation : Maximum 30mV
Rise time from 0 to 10V is maximum 300ms
Digitally adjusted maximum 12V, max.20 mA potentiometer output.
Accuracy : %0.1 Resolution : 2µA
Fluctuation : Maximum 60µA
Rise time from 0 to 20mA is maximum 300ms
Suitable for flush-panel mounting according to DIN 43 700.
W72xH72xD97mm
Approx. 350g (after packing)
Self extinguishing plastics
Y.Dudullu 34775
Fax : +90 216 365 74 01
IP65
IP20
8
1/4
EDP 7041
OUT RX
SET
ENDA
DIGITAL POTENTIOMETER
ENDA
EDP7041-EN-02-220103
TX
TM
