sisel ENDA EPA141 Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

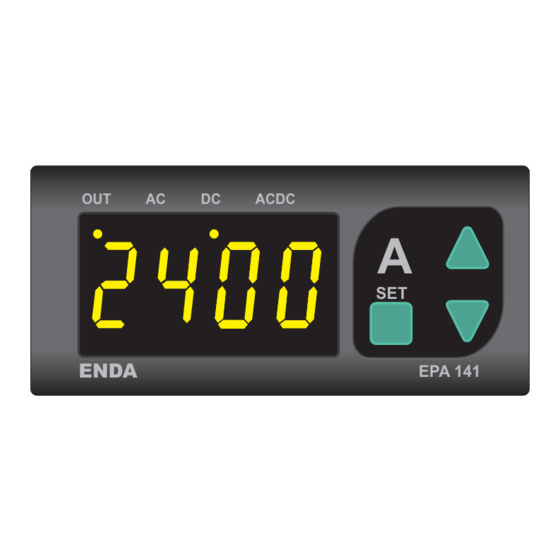

ENDA EPA141 PROGRAMMABLE AC/DC AMMETER
Thank you for choosing ENDA EPA141 programmable AC/DC ammeter.
* 35 x 77mm sized.
* 4 digits display.
* Easy to use by front panel keypad.
* With current trafo or shunt can be used.
* Programmable scale between 5A and 9999A.
* Multifunctional alarm output (NO+NC) for upper and lower
limits.
* CE marked according to Europan Norms.
* Measuring type can be selected AC, DC or True RMS
Order Code : EPA141 - -
1 2
1 - Input Type
S.........Internal Shunt Resistor
None...External Shunt Resistor
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/stroge temperature
Max. Relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Scale
Sensitivity
Accuracy
Input Range
Input impedance
Frequency Range
EMC
Safety requirements
OUTPUTS
Alarm output
Life expectancy for relay
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
All manuals and user guides at all-guides.com
3
3 - Supply Voltage
2 - Output
230VAC...230V AC
R.........Relay
24VAC.....24V AC
None...No Relay
SM...........9-30V DC / 7-24V AC
0 ... +50°C/-25 ... 70°C
80 % up to 31 °C decreasing linearly 50% at 40°C.
According to EN 60529 Front panel : IP65
Max. 2000m
230V AC +10% -20%, 50/60Hz or 24V AC
Max. 5VA
1.5mm² screw-terminal connections
0A...9999A (Specified
AC and RMS
-999A...9999A (Specified
DC
0.002A x c.tr.r ( For example , 0.01A for
± 1% (full scale)
AC
± 1% (full scale)
DC
± (full scale)
RMS 1%
EPA141Sxx -5A...5A (Device is damaged 10A peak and more current.)
EPA141xx -60mV...60mV (Device is damaged 50V peak and more voltage.)
EPA141Sxx 12mÙ
EPA141xx 40kÙ
DC , 10Hz - 200Hz (For square wave form 10Hz-70Hz)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
Relay: 250V AC, 8A (for resistive load), NO+NC
Mechanical 30.000.000 ; Electrical 100.000 operation.
Suitable for flush-panel mounting.
W77xH35xD71mm
EPA141 Approx. 250g (after packing)
EPA141-24 Approx. 250g (after packing)
Self extinguishing plastics.
OUT
ENDA
, Rear panel : IP20
± 10% , 50/60Hz or optional 9-30V DC / 7-24V AC 10% SMPS
c.tr.r parameter. For example:scale is 0A...5A for
c.tr.r parameter. For example:scale is -5A...5A for
c.tr.r =5.00 )
(For square wave form ± 2%)
(For square wave form ± 2%)
1/3
AC DC ACDC
A
SET SET
EPA 141
±
c.tr.r =5.00
c.tr.r =5.00)
EPA141-E-07-R
)
