Belkin RT3200 Manual

Product Overview

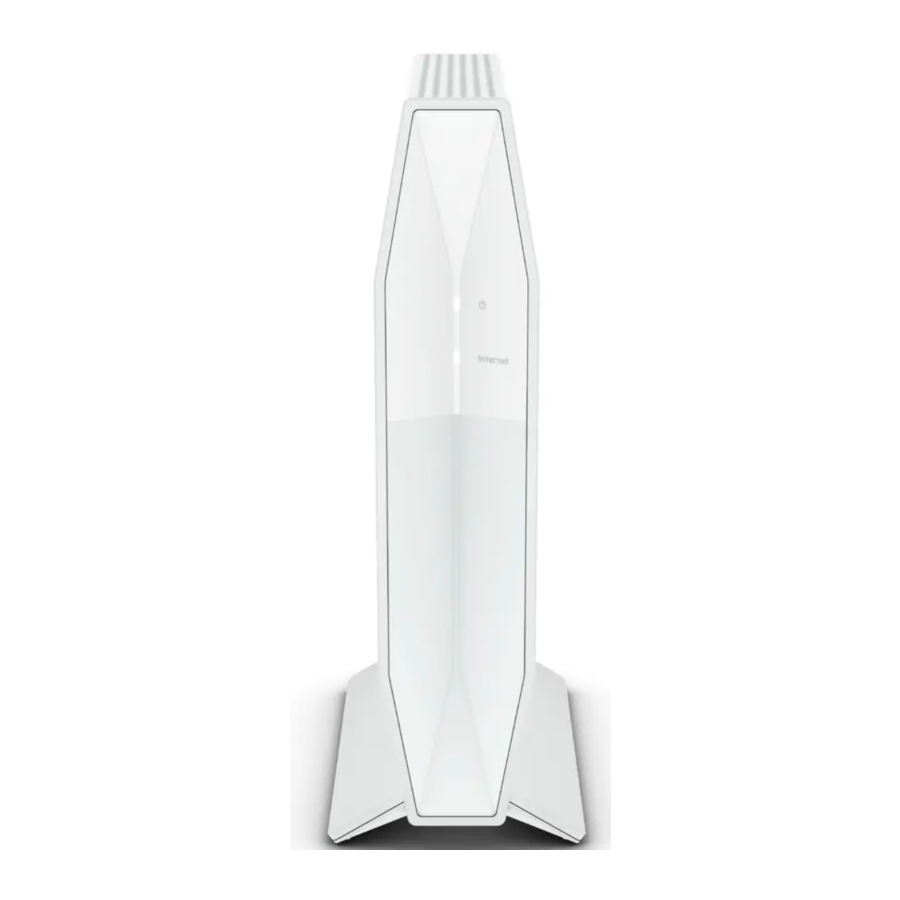

Front

Power light-Blinks white while router is starting up and during WPS pairing. Blinks yellow if WPS pairing fails

Internet status light - Is solid white when connected to the internet and solid yellow when properly connected to the modem, but not getting an internet signal. Blinks yellow if no ethernet cable is plugged into the Internet port when setting up as a traditional router or as the parent node of an EasyMesh Wi-Fi system.

Back

Wi-Fi Protected Setup™ (WPS) button (1) - Press to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices. The power light on the front of the router will blink white while WPS pairing is active.

Reset button (2) - Press and hold for about 10 seconds, until the power LED starts flashing to reset the router to factory settings.

Ethernet ports (3) - Connect ethernet cables (also called network or internet cables) to these gigabit ethernet (10/100/1000) ports and to other wired devices on your network. If you plan to use this router as the parent node in an EasyMesh Wi-Fi system, you can add child nodes wirelessly or create wired connections using these ports.

Internet port (4) - Connect an Ethernet cable to this port and to your modem. The internet status light on the front of the router will be white only when the router is connected to a modem that is connected to the internet. If you plan to use this router as a child node in your EasyMesh system, you can add it wirelessly or use this port to wire it to an ethernet port on parent node that has already been set up.

Note - Go to Basic Wireless Settings section for details on how to add a child node to an EasyMesh system - wirelessly or wired.

USB 2.0 port (5) - Connect and share a USB drive on your network.

Power port (6) - Connect the included AC power adapter to this port.

Power switch (7) - Press | (ON) to turn on the router.

Setting Up: Basics

Where to find more help

In addition to this user guide, you can find help at Belkin.com/support/RT3200(documentation, downloads, FAQs, technical support, live chat, forums)

Note - Licenses and notices for third party software used in this product may be viewed on http://www.belkin.com/support/license/. Please contact http://www.belkin.com/support/gplcodecenter/ for questions or GPL source code requests.

How to install your router

If you're setting up this router as a traditional router or as the parent node for EasyMesh Wi-Fi, follow these steps

1. If replacing an existing router, disconnect that router first.
2. Plug in the router to a power source. Make sure the power switch is in the | (ON) position.
3. Connect your new router to your modem or modem-router.

Note - Wait until the power light on the front panel of the router stops blinking and is solid white before moving to Step 4.

4. Connect to the network name shown in the Quick Start Guide that came with your router. (You can change the network name and password later.) Select the option to automatically connect to this network in the future. If you need help connecting to the network, refer to your device documentation.

Note - You will not have internet access until router setup is complete.

5. Enter http://myrouter.local in a web browser. Follow the on-screen instructions to complete setup.

   You also can enter the IP address 192.168.1.1 in a browser to start setup. If you are using a modem-router (gateway), it might already be using the 192.168.1.X subnet, and you can try the 10.0.1.1 instead.

Note - If none of those options launches the setup wizard, go to www.belkin.com/support/setupIP for more help.

6. Once you are finished with setup, please be sure to register your router so we can keep you informed security updates, product recalls and other things that will improve your experience.


Note - Your router becomes a parent node once you complete the setup. You can change to a traditional Wi-Fi setup by turning off EasyMesh Parent Node on the Basic Wireless Settings screen of the router's settings.

If you're adding this router to your existing RT3200 EasyMesh Wi-Fi, follow these steps.

Note - If you have used this router before, reset it to factory default settings before adding it to your EasyMesh Wi-Fi. You can do this in the Administration tab of the router's settings or by pressing and holding the reset button on the back of the router for 10 seconds.

• Using a computer or mobile device, connect to your parent router (the one connected to your modem) wirelessly or with an ethernet cable
• Visit myrouter.local in a web browser to log in to the parent router's settings o You also can enter 192.168.1.1 in a browser to access the parent router's settings
  Note - If neither of those options take you to the parent router's settings login screen, go to www.belkin.com/support/setupIP for more help.
• Enter the parent router password. (Default is "admin".)
• Go to Wi-Fi > Basic Wireless Settings and click on Add a new node

Note - "EasyMesh Parent Node" must be enabled on your parent router setting before you click the "Add a new node" button.

• Follow the prompts to add the node to your existing EasyMesh Wi-Fi network.

Note - If you are adding this router to a parent node from another manufacturer, please refer to the manufacturer's instructions.

Advanced Configuration

How to manage router settings in a browser

To use a browser to access router settings, make sure you are connected to the router. Open a web browser and enter http://myrouter.local.

You also can go to IP address 192.168.1.1. If you are using a modem-router (gateway), it might already be using 192.168.1.X, and you can try the IP address 10.0.1.1 instead.

Note - If none of those options launches the router settings, go to www.belkin.com/support/setupIP for more help.

The router will prompt you for a password.

If you changed the password during setup, enter the new password. Click LOGIN. If you didn't change the password, or skipped setup altogether, the default password is ''admin''.

Basic Router Settings

This screen allows you to change the router's basic configuration.

Language

Select your language - To change language, select one from the drop-down menu. The language of the browser-based utility will change within five seconds.

Internet Setup

The Internet Setup section configures the router to your internet connection. This information can be provided by your Internet Service Provider (ISP).

Internet Connection Type - Select the type of internet connection your ISP provides from the dropdown menu.

• Automatic Configuration – DHCP (default)
  Keep the default only if your ISP supports DHCP or if you connect using a dynamic IP address. (This option usually applies to cable connections.)
• Static IP
  Select if you are required to use a fixed IP address to connect to the internet.
• PPPoE
  Select if you have a DSL connection and your ISP uses Point-to-Point Protocol over Ethernet (PPPoE).
• PPTP
  Point-to-Point Tunneling Protocol (PPTP) is a service that generally applies to connections in Europe. If your PPTP connection supports DHCP or a dynamic IP address, select Obtain an IP Address Automatically. If you are required to use a fixed IP address to connect to the internet, select Specify an IP Address and configure the options that appear.
• L2TP
  Layer 2 Tunneling Protocol (L2TP) is a service that generally applies to connections in Israel.

Note - Connect on Demand or Keep Alive are options when choosing PPPoE, PPTP and L2TP.
They let you choose whether the router connects to the internet only as needed (useful if your ISP charges for connect time), or if the router should always be connected. Select the appropriate option.

•
  Bridge ModeBridge Mode disables all router capabilities and turns the router into an access point. The router will cease to act as a DHCP server and its built-in firewall as well as the NAT features will no longer be in effect.
• Wireless Bridge
  A wireless bridge wirelessly connects to your main router and can share the internet connection with devices connected to the bridge's Ethernet ports.

Basic Wireless Settings

EasyMesh Settings
If one router isn't providing whole-home Wi-Fi coverage, you can turn on the EasyMesh feature and add more RT3200 routers to your network. Once the feature is turned on by checking the box for EasyMesh Parent Node, the router connected to your modem becomes the parent node in your mesh network. Add child nodes by clicking ''Add a new node.'' Then, press the WPS button on your child node for 3 seconds. Connecting a child node should take between 70~80 seconds in most cases. You can check the progress on the parent node's setting screen.

Once the child node is added, click Mesh information to see node and the devices connected to them for the entire mesh network.

If a child node fails to join your network, move the child node closer to the parent node. Follow the prompts on the parent node's settings screen to try again.

Once you add a child node wirelessly, you can connect it with an ethernet cable to ensure a consistent signal. This is called wired backhaul. Make sure the cable comes from one of the ports labeled Ethernet on the parent node and into the port labeled Internet on the child node.

You can turn off EasyMesh Parent Mode at any time and use the parent node as a traditional router.

Any child nodes will be disconnected from your Wi-Fi.

Note - You can't add an RT3200 router to an EasyMesh system if the router has already been set up. If you have used the router before, reset it to factory settings. Press and hold the reset button on the back of the router for 10 seconds or reset it in the Administration tab of the router's settings.

If you don't see the EasyMesh option in your router settings, make sure to upgrade to the latest firmware. Firmware version needs to be 1.1.00 or above to support EasyMesh.

If a child node is too far away from another working node, the power light on the front of the child node will be solid yellow. Move the child node closer to a working node until the child node's power light is solid white. If your child node power light blinks yellow, it means the child node lost connection to a working node. Check the closest node first. If the closest node is running normally, move the child node closer to it. If that doesn't work, reset the new child node and try to add it to your mesh system again.

Control all settings in your EasyMesh network through the parent node. Changes apply to all child nodes.

5GHz Network Mode - Select the wireless standards your network will support.

• Mixed (default)
  Keep the default if you have Wireless-A, Wireless-N, Wireless-AC, or Wireless-AX devices in your network.
• Wireless-AC Mixed
  Select if you have Wireless-A, Wireless-N, or Wireless-AC devices in your network.
• Wireless-A Only
  Select if you have only Wireless-A devices.
• Wireless-N Only
  Select if you have only Wireless-N devices.
• Disabled
  Select if you have no Wireless-A, Wireless-N, Wireless-AC and Wireless-AX (5 GHz) devices in your network. 5GHz radio will be off after you choose this option.

Note - If you are not sure which mode to select, keep the default, Mixed.

2.4GHz Network Mode - Select the wireless standards your network will support.

• Mixed (default)
  Keep the default if you have Wireless-B, Wireless-G, Wireless-N 2.4GHz devices in your network.
• Wireless-B/G Only
  Select if you have Wireless-B, Wireless-G devices in your network.
• Wireless-B Only
  Select if you have only Wireless-B devices.
• Wireless-G Only
  Select if you have only Wireless-G devices.
• Wireless-N Only
  Select if you have only Wireless-N 2.4G devices.
• Disabled
  Select if you have no Wireless-B, Wireless-G, and Wireless-N (2.4 GHz) devices in your network. 2.4GHz radio will be off after you choose this option.

Note - If you are not sure which mode to select, keep the default, Mixed.

Network Name (SSID)
The Service Set Identifier (SSID) is a name used by devices to connect to a wireless network. SSIDs are case-sensitive and must not exceed 32 characters. The default SSIDs for the 2.4 GHz and 5 GHz networks are BelkinXXXXX and BelkinXXXXX_5GHz, respectively. The Xs represent the last five digits of the router's serial number, which can be found on the bottom of the router. If you changed the SSID, both bands have the new SSIDs. You may give them different names through the browserbased utility.

Note - If you restore the router's factory default settings (by pressing the Reset button or using the Configuration > Administration > Device Reset screen), the Network Name will return to its default value. Change the Network Name back to its original name, or you will have to reconnect all devices on your wireless network to the new network name.

Channel Width
Keep the default, Auto (20 MHz or 40 MHz), for best performance in a 2.4 GHz network using Wireless-B, Wireless-G and Wireless-N (2.4 GHz) devices. For a channel width of 20 MHz, select 20 MHz only. For the best performance in a 5 GHz network, keep the default Auto (20, 40 or 80 MHz).

Channel
Select the channel from the drop-down list. Keep the default, Auto, if you are not sure which channel to select.

SSID Broadcast
Keep the default, Enabled, to broadcast the router's SSID. When wireless clients survey the local area for wireless networks to associate with they will detect the SSID broadcast by the router. Attempting to hide your Wi-Fi name does not make your Wi-Fi more secure. Anyone truly interested in accessing your network can find it even if you turn off this feature. If you still do not want to broadcast the router's SSID, select Disabled.

Wireless Security

The router offers the following wireless security options:
WPA2/WPA3 Personal, WPA2 Personal, WPA2 Enterprise, WPA3 Personal, WPA3 Enterprise (WPA stands for Wi-Fi Protected Access.)

WPA3 is the strongest security option.

Security Option Settings

WPA2 Personal
If you select WPA2 Personal, each device in your wireless network MUST use WPA2 Personal and the same passphrase.

If you are not sure whether a device supports WPA2 or WPA3 Personal, select WPA2/WPA3 Mixed Personal option in Security Mode.

Passphrase - Enter a passphrase of 8-63 characters. This is the Wi-Fi password that provides access to the network. It can be the same as entered in setup.

Disabled
If you choose to disable wireless security, you will be informed that wireless security is disabled when you first attempt to access the internet. You will be given the option to enable wireless security or confirm that you understand the risks but still wish to proceed without wireless security.

Troubleshooting

You can find more help from our award-winning customer support at Belkin.com/support/RT3200.

Your router was not successfully set up

If you could not complete setup in the browser-based interface, you can try the following:

• Press and hold the Reset button on your router with a paperclip or pin until the power light on the front of the router turns off and starts blinking (about 10 seconds). Type 192.168.1.1 in a browser to try setup again.
  If you are using a modem-router (gateway), it might already be using 192.168.1.X, and you can try the IP address 10.0.1.1 instead.

Note - If none of those options launches the setup wizard, go to www.belkin.com/support/setupIP for more help.

• Temporarily disable your computer's firewall (see the security software's instructions for help). Install the router again.
• If you have another computer, use that computer to install the router.

Your Internet cable is not plugged in message

If you get a "Your Internet cable is not plugged in" message when trying to set up your router:

• Make sure that an ethernet or internet cable (or a cable like the one supplied with your router) is securely connected to the yellow Internet port on the back of the router and to the appropriate port on your modem. This port on the modem is usually labeled Ethernet.

• Make sure that your modem is connected to power and is turned on.

If your internet service is cable, verify that the cable modem's CABLE port is connected to the coaxial cable provided by your ISP.	If your internet service is DSL, make sure that the DSL phone line is connected to the modem's DSL port.

• If your computer was previously connected to your modem with a USB cable, disconnect the USB cable.
• Install the router again.

Cannot access your router message

To access your router, you must be connected to your own network. If you currently have wireless internet access, the problem may be that you have accidentally connected to a different wireless network.

To fix the problem on Windows computers, do the following*:

1. On your Windows desktop, click on the wireless icon in the system tray. A list of available networks will appear.
2. Click your own network name. Click Connect. In the example below, the computer was connected to another wireless network named wraith_5GHz. The wireless network name of the Belkin router, Damaged_Beez2.4 in this example, is shown selected.

3. If you are prompted to enter a network security key, type your password (security key) into the networksecurity key field. Click OK.
4. Your computer will connect to the network, and you should be able to access the router.

*Depending on your version of Windows, there could be some differences in wording or icons in these steps.

To fix the problem on Mac computers, do the following:

1. In the menu bar across the top of the screen, click the Wi-Fi icon. A list of wireless networks will appear.
2. In the example below, the computer was connected to another wireless network named wraith_5GHz. The wireless network name of the Belkin router, Damaged_Beez2.4 in this example, is shown selected.

3. Click the wireless network name of your Belkin router (Damaged_Beez2.4 in the example).
4. Type your wireless network password (Security Key) into the Password field. Click OK.

After setup - The internet appears to be unavailable

If the internet has difficulty communicating with your router, the problem may appear as a "Cannot find [internet address]" message in your web browser. If you know that the internet address is correct, and if you've tried several valid internet addresses with the same result, the message could mean that there's a problem with your ISP or modem communicating with your router.

Try the following:

• Make sure that the network and power cables are securely connected.
• Make sure that the power outlet that your router is connected to has power.
• Reboot your router.
• Contact your ISP and ask about outages in your area.

The most common method of troubleshooting your router is to turn it off, then back on again. Your router can then reload its custom settings, and other devices (such as the modem) will be able to rediscover the router and communicate with it. This process is called rebooting.

To restart your router using the power cord, do the following:

1. Disconnect the power cord from the router and the modem.
2. Wait 10 seconds and reconnect the power cord to the modem. Make sure it has power.
3. Wait until the modem's online indicator has stopped blinking (about two minutes). Reconnect the power cord to the router.
4. Wait until the white Power and Internet lights on the front of the router are solid. This takes about two minutes. Then, connect to the internet from a computer.

Specifications

Belkin RT3200

Environmental

Notes:
For regulatory, warranty, and safety information, see the CD that came with your router or go to Belkin.com/support/RT3200.

Specifications are subject to change without notice.

Maximum performance derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

BELKIN, LINKSYS and many product names and logos are trademarks of the Belkin group of companies. Third-party trademarks mentioned are the property of their respective owners. Licenses and notices for third party software used in this product may be viewed here: http://www.belkin.com/support/license. Please contact http://www.belkin.com/support/gplcodecenterfor questions or GPL source code requests.
