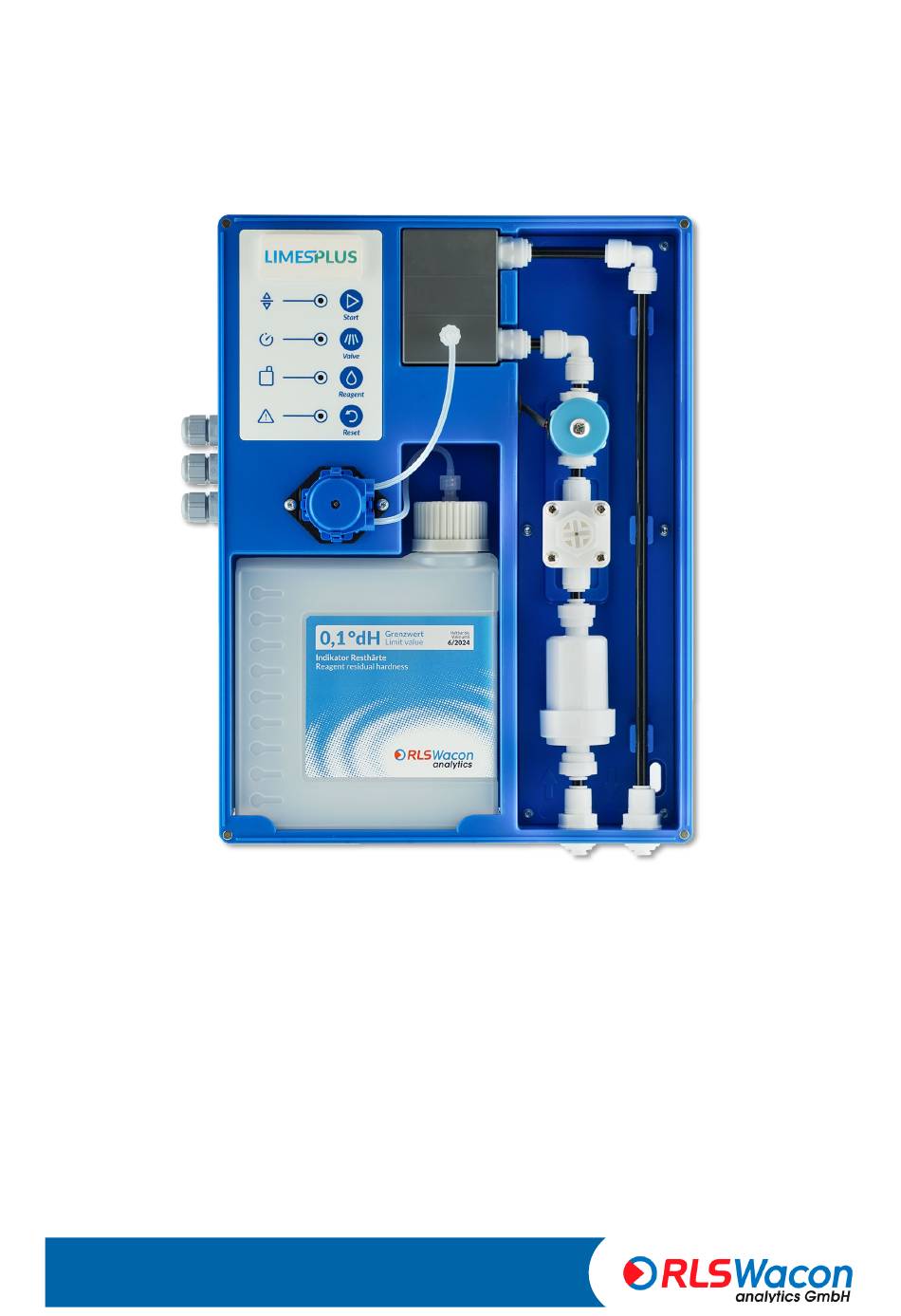

- Page 1 Operating instructions LIMES Hardness monitoring device for automated monitoring of total hardness in the process water Safety reliably produced.
- Page 2 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 3: Table Of Contents
Input contact LIMESBase .................................... 44 First value suppression ....................................45 Trigger conditions for starting an analysis .............................. 45 Commissioning ....................................... 46 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 4 Interesting facts about the indicators ..............................69 Troubleshooting Notes Appendix Maintenance and service .................................... 72 Settings ..........................................73 Document changes ....................................... 73 EU Declaration of Conformity Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 5: Foreword
Foreword Thank you for purchasing a LIMES analyser for online water hardness monitoring. The LIMES analyser for monitoring water quality is part of the water treatment system. • This manual is intended for the manufacturer and the operator of such a system. It •... -
Page 6: General Information
750 ml indicator bottle. The input contact of the device can also be used to connect a flow monitor to the device. This means that the LIMES interrupts the analysis interval when the water softener is not in use and automatically resumes the analysis when it is restarted. - Page 7 General information These operating instructions describe the installation and operation of the LIMES online analyser. Installation and commissioning may only be carried out by an authorised specialist. The appliance may only be operated under the conditions described in these operating instructions.
-
Page 8: Overview: Limesbase And Limesplus
IP54 Protection class SKII SKII - Available - Not available Further information can be found on page 22 and 68. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 9: Safety Instructions And Symbols Used
Storage Store the analyser in a dry place at temperatures between 0 - 45 °C and out of direct sunlight. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 10: Disposal Instructions
6. Send the parcel to the following address RLS Wacon analytics GmbH - Disposal service - Gropiusstr. 12 D-31137 Hildesheim Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 11: Performance Features
Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 12 BoB, e.g. to a control centre. Alternatively, signalling devices or operating valves can be switched. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 13: Specifications
Start analyses (external analysis interval) • only with LIMESPlus Flow monitor (analysis interval interruption during system • standstill) Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 14: Technical Data
Installation Maintenance set: Changing the hose pump cassette operation and seals Further information can be found on pages 52 and 67 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 15: Installation
Installation Installation requirements The LIMES analyser may only be used to determine the total hardness of water. Changes to the electrical wiring and parameterisation may only be carried out by an authorised and experienced specialist. Tension The system to be monitored must fulfil the following conditions: The maximum permissible load capacity of the relay outputs and the total power of the •... -
Page 16: Wall Mounting Limes
4. Finally, attach to the wall from the front using two screws (B) Do not install the analyser under dripping pipes. Tension Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 17: Wall Mounting Junction Box (Optional)
4. Finally, fix to the wall with two screws (B) Do not install the junction box under dripping pipes. Tension Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 18: Connect The Supply Line To The Sample Water And The Sewer
The system must be able to depressurise freely against atmospheric pressure (no back pressure). The water is drained into an open funnel or drain without pressure. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 19: Device Overview
Measuring chamber inlet In the housing / not visible Magnetic agitator Agitator blade Injector Optical measuring section Actuator board (LED) RGB sensor Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 20 Illustration 6LIMES exploded view - assembling the components Observe the correct positioning and flow direction when replacing components or carrying out other work on the analyser. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 21: Displays And Front Panel
Device overview Displays and front panel There are 4 LEDs on the front of the LIMES analyser to indicate the operating status and 4 buttons for operating the device. Illustration 7LIMES - Device overview / front foil The operating status is indicated by the LED display:... -
Page 22: Overview Of The Configuration Elements
(LIMESPlus plug-in board, board extractor, LIMESPlus rubber cap). The LIMESPlus functions are activated by inserting the LIMESPlus plug-in board. Further information can be found on page 8 and 68. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 23: Electrical Installation
BoB - Power supply 16 (blue): (Power in) (Brown): Magnetic agitator (connection C) Dosing pump (connection 5 and 6) Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 24 100 VDC / 2.5 A. Provide suitable interference suppression for inductive loads. Tension Work on the electrical equipment of the system/machine may only be carried out by a trained electrician! Tension Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 25: Overview Of The Electrical Connections (Cables)
Overview of the electrical connections (cables): The standard scope of delivery (without junction box) includes the LIMES analyser with 3 cables fed out. The cables are 1.75 m long, stripped and the individual wires are fitted with wire end ferrules. -
Page 26: Overview Of The Electrical Connections (Junction Box)
Electrical installation Overview of the electrical connections (junction box): The optional connection box for the LIMES analyser ensures easy access to the existing electrical connections and has an on/off switch. To the switch To the analyser From supply From the switch... -
Page 27: Establishing The Supply Voltage (With Junction Box)
Designation Colour Brown Blue Connect the connection cable to your supply voltage in accordance with the applicable standards and directives. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 28: Connection Of The Relay Outputs
COM to NO) until the measured water hardness is below the limit value again. The limit value is then cancelled again and relay output 1 switches back (connection from COM to NC). Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 29 There is no water in the measuring chamber. o There was no mixing (agitator blade missing or magnetic agitator is defective). Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 30: Input Contact Connection
Only connect potential-free switches to the terminals. Connecting an external voltage source can damage the device. Tension Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 31: Wiring Example 1: Connection To Control Room (Limesplus Only)
Relay 2 is always energised in normal operation: Connection COM to NO (wire breakage protection) Illustration 15Circuit diagram 1 - LIMESPlus Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 32: Wiring Example 2: Connection To A Reverse Osmosis System (Connection Potential Free Switch, Limesplus)
Relay 2 is always energised in normal operation: Connection COM to NO (wire breakage protection) Illustration 16Circuit diagram 2 - LIMESPlus Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 33: Wiring Example 3: Connection To External Control Unit (Limesplus Only)
Relay 2 is always energised in normal operation: Connection COM to NO (wire breakage protection) Illustration 17Circuit diagram 3 - LIMESPlus Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 34: Wiring Example 4 And 5: Input Input Contact (Limesplus Only)
Only connect potential-free switches to the terminals. Connecting an external voltage source can damage the device. Tension Illustration 18Circuit diagram 4 and 5 - LIMESPlus Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 35: Wiring Example 6: Limesbase
Relay 2 is always energised in normal operation: Connection COM to NO (wire breakage protection) Illustration 19Circuit diagram 6 - LIMESBase Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 36: Operation And Handling
The reset may only take place if you have used a full 750 ml indicator bottle. Functional principle The LIMES, based on the SYCON series, is an online analyser for the automatic determination of total hardness using the colourimetric limit value method. A colour reaction is generated by adding an indicator to the water sample. -
Page 37: Analysis Procedure
The solenoid valve opens, flushing out the coloured water sample. The measuring chamber remains filled with pure process water until the next analysis begins. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 38: Before Commissioning
Ensure that the electrical connections are correctly installed. If in doubt, consult a specialist or contact your supplier or the manufacturer. Tension Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 39: Device Settings
You will need a small screwdriver to operate the rotary switches and to set the programme switch SW (slide switch). Please only use suitable and tested tools to avoid damaging the sensitive components. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 40: Setting The Flush Duration Limesplus
An upgrade kit is required to activate the flushing time, which you can purchase from us. Further information can be found on page 8, 22 and 68 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 41: Limesplus Analysis Interval Depending On The Input Input Contact
Analyses are carried out Paused: No analyses are performed because the input contact is open Only one analysis is performed Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 42: Analysis Interval Limesbase
On delivery, the programme switch SW3 = OFF and the input contact is bridged so that the internal analysis interval is active. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 43 Analyses are carried out continuously without pauses at 30 min intervals Analyses are carried out Only one analysis is performed Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 44: Input Contact Limesbase
Further information can be found on page 8, 22 and 68 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 45: First Value Suppression
• 4 minutes after a limit value has been exceeded • Switching on a connected flow monitor after system standstill • Through a connected external control unit Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 46: Commissioning
(During this time, the agitator blade rotates) Filling the measuring chamber with water • Press the "Valve" button until the measuring chamber has filled with water. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 47: Led Displays
• An analysis starts with flushing the measuring chamber. LED displays Using the 4 LEDs, the LIMES analyser displays information on the operating status and the results of the measurements and provides information on the fill level of the indicator. - Page 48 Input (flow monitor function). Luminous yellow The indicator lights up permanently, signalling that an analysis has been started. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
- Page 49 To acknowledge the device fault, press the "Reset" button or switch the device off and on again. Relay 2 "Device fault / indicator message BoB " has dropped out. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
- Page 50 (D) illuminated red: Indicates that the specified limit value has been exceeded, but relay 1 has been cancelled by pressing the "Reset" button. Relay 1 "Limit value" has dropped out. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 51: Led Display Indicator Fill Level
25 % - 0 % The red LED lights up Less than 2500 analyses are possible until the indicator bottle is changed. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 52: Maintenance And Service
Maintenance and service To ensure long-term and trouble-free operation of the LIMES analyser, it is necessary to clean the measuring chamber and replace wearing parts. We therefore recommend: A weekly visual inspection of the device • Cleaning the measuring chamber at least every 6 months •... -
Page 53: Inserting A Full Indicator Bottle
We recommend wearing suitable protective clothing when handling the indicator: • Workwear • Laboratory gloves • Eye protection / safety goggles Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 54: Install Maintenance Set / Clean Measuring Chamber
Push the O-ring onto the injector and grease it, then screw it into the measuring chamber. • Torque 0.2 Nm. Now connect the measuring chamber to the inlet and outlet hose. • Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 55: Change Peristaltic Pump Cash Box
• Maintenance is now complete. Change peristaltic pump cash register To ensure the measuring accuracy of the LIMES analyser, the peristaltic pump cassette should be replaced after 24 months. • Press the locking tabs together with your thumb and index finger and pull the hose pump cassette off the motor shaft. -
Page 56: Replacement Of Components
Torx T10, T20 screwdriver and a phase tester Preparation: Ensure that the inlet is depressurised. (Close the manual valve) • Loosen the hose connection to the inlet and outlet on the LIMES • Switch the device on briefly. • Press and hold the "Valve" button. By opening the solenoid valve, you depressurise the •... - Page 57 Replacing the measuring chamber Preparation: Ensure that the inlet is depressurised. (Close the manual valve) • Loosen the hose connection to the inlet and outlet on the LIMES • Switch the device on briefly. • Press and hold the "Valve" button. By opening the solenoid valve, you depressurise the •...
- Page 58 Do not place the analyser on its front without the housing cover. See page 15. Preparation: Ensure that the inlet is depressurised. (Close the manual valve) • Loosen the hose connection to the inlet and outlet on the LIMES • Switch the device on briefly. •...
-
Page 59: Diagnostic Functions Limesplus
Programme switch Function Diagnostic programme Each time the "Start" button is pressed, the system switches to the next diagnostic step. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 60 After pressing the "Start" button for the first time, the buttons are checked. By pressing the following buttons, the corresponding LED lights up: Valve" button Reagent" button Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
- Page 61 Turn the switch to the 16 positions from 0 to F one after the other. An LED combination corresponding to the HEX code is displayed in each position. Rotary switch position Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
- Page 62 After pressing the "Start" button for the 9th time, the agitator is checked. • The red and blue LEDs flash and the agitator is switched on. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
- Page 63 • Green: Measured value below the limit value • Red: Measured value above the limit value Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 64: Diagnostic Functions Limesbase
To activate the diagnostic programme, you need an upgrade kit, which you can purchase from Further information can be found on page 8, 22 and 68 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 65: Spare Parts
Spare parts Illustration 22Spare parts LIMES Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 66 LIMESBase plug-in board incl. mounting tool 30-035 202 LIMESPlus plug-in board incl. installation tool 30-035 203 Actuator board LIMES (LED) 30-090 182 Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice...
-
Page 67: Maintenance Kits And Accessories
It is also recommended to clean the measuring chamber regularly, but at least every 6 months. The LIMES Clean cleaning set is available for this purpose. It contains all the tools required for cleaning as well as the cleaning fluid FIT 3000. -
Page 68: Accessories
Stopcock 1/4 inch LIMES 33-000 217 Connection size 1/4 inch You can find more information about our products on our website www.rls-wacon.de Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 69: Indicators
The indicators can be stored for 24 months if stored properly (dark and cool). 24 months. Sample water with temperatures above 40 °C must be cooled before analysing. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 70: Troubleshooting
Check the water in the system for compliance with the device concentrations of iron or other chemicals specification. that interfere with the measurement. Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 71: Notes
Notes Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 72: Appendix
Appendix Maintenance and service Model: Serial number: date Employees Remark Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 73: Settings
Disposal instructions revised / changes to LHV-7.0 / front cover 28.11.2023 Note on correct storage of the analyser added (page 15) Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... -
Page 74: Eu Declaration Of Conformity
EU Declaration of Conformity Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙ info@rls-wacon.de Subject to change without notice... - Page 75 Register court: Local court Hildesheim Register number: HRB 203 391 VAT ID: DE240123142 Photo back: Vitali Vidnevski (employee of RLS Wacon analytics GmbH), 2015 Changes and errors excepted Safety reliably produced. © RLS Wacon analytics GmbH ∙ +49 (0)5121 28126 0 ∙...
