Summary of Contents for RLS Wacon SYCON BOB

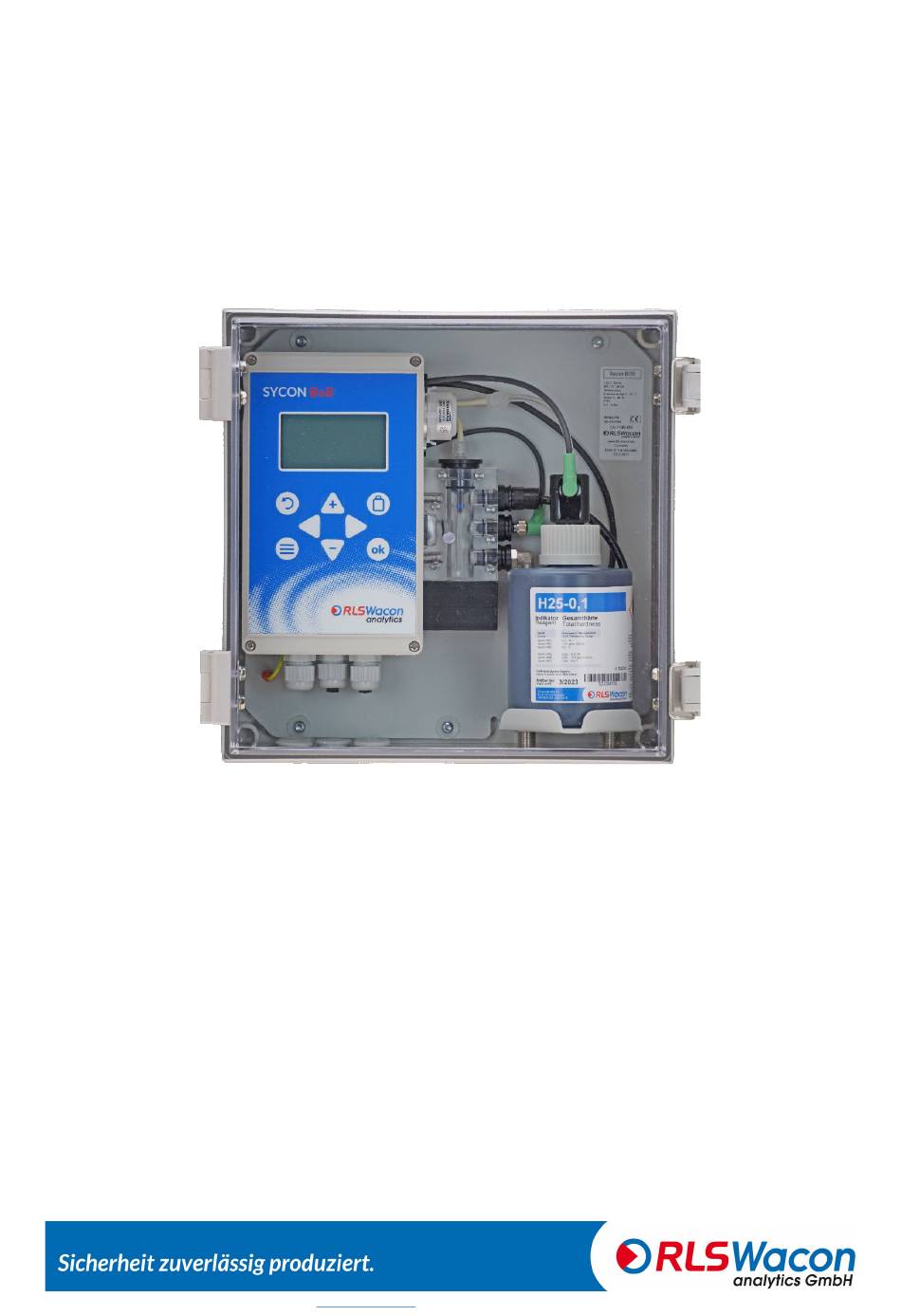

- Page 1 Operating instructions SYCON BOB TÜV certified analyser according to VdTÜV Water monitoring device 100 for the automated Measurement of the residual hardness in the process water © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023...
-
Page 2: Table Of Contents
Display indication Menu ..........................40 Menu languages ..............................40 Display indication during a measurement ....................41 Display of measured value history ......................42 Display Selection menu ..........................42 February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 2 Subject to change without notice... - Page 3 Behaviour in the event of a power failure ....................58 SD card ................................59 Maintenance and service ...........................61 Cleaning the measuring chamber ........................61 Inserting the "Maintenance Set for SYCON BOB ..................63 Reset maintenance counter ..........................65 Changing the reagent bottle ........................65 Good and bad counters ..........................66 Change battery..............................67...
-
Page 4: General Notes
General notes These operating instructions describe the installation and operation of the SYCON BOB on-line analyser. Installation and commissioning may only be carried out by an authorised specialist. The unit may only be operated under the conditions described in these operating instructions. The unit may only be used for the specified purpose. -
Page 5: Transport
Storage Store the analyser in a dry place at temperatures between 0 - 45 °C and out of direct sunlight. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... -
Page 6: Disposal Note
5. mark your shipment with the inscription FOR DISPOSAL 6. send the package to the following address RLS Wacon analytics GmbH - Disposal Service - Gropiusstr. 12 D-31137 Hildesheim February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 6 Subject to change without notice... -
Page 7: Sycon Bob In Detail
SYCON BOB in detail The SYCON BOB online analyser is characterised by the following features: Reliable, accurate and fully automatic analyser • Monitoring of boiler feed water or recycled condensate • Simple commissioning through configuration wizard • Certified BOB operation (72 hours) according to leaflet WÜV 100 •... -
Page 8: Scope Of Delivery
Operation of the analyser is menu-driven and intuitive via the graphic display and the 8 keys on the control housing. CON BOB in detail February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 8 Subject to change without notice... -
Page 9: Device Description
Behind the reagent bottle there is a solenoid valve in the supply line. Figure 2: View of the solenoid valve (no reagent bottle installed) A more detailed description of the components can be found from page 38. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023... -
Page 10: Bob Operation
SYCON BOB in detail BOB operation BOB stands for operation without supervision. The SYCON BOB is specially certified for use in boiler houses. This ensures unattended operation of the analyser for 72 hours. The monitoring of the reagent level reports a sufficient amount of reagent for 72 hours. -
Page 11: Access Protection
The access code is preset at the factory to the numerical sequence 2802. An own access code can be created on the SD card of the SYCON BOB. To do this, the desired four-digit number sequence is stored in a file access.txt on the internal SD card. -
Page 12: Differences To The Other Sycon Models
Differences to the other SYCON models To exclude additional consumption of reagent, external analysis starts via the input contact are not possible. Therefore, the SYCON BOB does not have the input function analysis start and the input of a quantity interval is also not possible. -
Page 13: Operating Principle
SYCON BOB in detail Operating principle The SYCON BOB based on the SYCON series is an online analyser for the automatic determination of water parameters according to the colorimetric titration method. By adding an reagent to the water sample, a colour reaction is generated. Depending on the reagent used, the device evaluates the intensity of the colour. -
Page 14: Technical Data
The limit value is defined by the reagent used and the parameterisation. In the SYCON BOB, the use of the reagents H25-0.05 and H25 - 0.1 is possible. These reagents cover the valid limit values for soft water in the steam boiler area. -
Page 15: Inputs/Outputs Of The 24 V Ac/Dc And 230 Vac Version
Cleaning the measuring chamber (as above), after 12 months of Installation Maintenance kit: Change the hose pump cassette and the operation seals. Resetting the maintenance counter. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 15... -
Page 16: Installation
The temperature of the sample water must be between 5 and 40 °C. If the sample water has a higher temperature, a sample cooler must be used. This is available as an accessory. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 16 Subject to change without notice... -
Page 17: Wall Mounting With Housing
Water inlet - connection for hose with 6 mm outer diameter Water drain - connection for hose with 6 mm outer diameter Door hinge Door latches © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... -
Page 18: Work On Pressurised Water Pipes
Clean the unit, absorb any spilled liquids and leave the unit in a clean condition. • Check that all safety devices are in place and operational. • February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 18 Subject to change without notice... -
Page 19: Operation With Unpressurised Sample Water
Operation with unpressurised sample water If the sample water is unpressurised, a pressure-controlled diaphragm or submersible pump is required to convey the sample water into the measuring chamber of the analyser. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023... -
Page 20: Electrical Installation
Open the cover of the control unit by loosening the four screws in the corners of the cover. Position Description Display connection SD card socket Sound signal generator Illustration 9: Back of the cover February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 20 Subject to change without notice... -
Page 21: Main Board 230 Vac Version
Fuse (5 x 20 mm) 400 mA Inert 4 x relay Agitator connection RGB sensor BOB module Figure 10: Main board 1 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 21... -
Page 22: Main Board 24 V Ac/Dc Version
Fuse (5 x 20 mm) 1 A Inert 4 x relay Agitator connection RGB sensor BOB module Figure 11: Main board 2 February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 22 Subject to change without notice... -
Page 23: Connection Of The Supply Voltage
The maximum connected load of all loads must not exceed 250 V / 1 A. Provide suitable interference suppression for inductive loads. Voltage © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... -
Page 24: Connecting The Relay Outputs
1 is energised and establishes a connection from COM to NO. In addition, the symbol R1 is marked in black in the display. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 24 Subject to change without notice... - Page 25 If the level falls below 12%, relay 2 is energised and establishes a connection from COM to NO. In addition, the symbol R2 is marked in black in the display. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023...
- Page 26 The switching behaviour of relay 3 is inverted. This makes it possible to detect a switched-off device as well as a wire breakage. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 26 Subject to change without notice...
- Page 27 After the delay time has elapsed, the solenoid valve on the SYCON opens and the analysis begins. The relay remains switched for the duration of the analysis. For further information see page 36. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023...
-
Page 28: Power Interface And Rs-485
26 (A) Output A RS-485 27 (B) Output B RS-485 Information on the Modbus interface can be found in the separate Modbus manual. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 28 Subject to change without notice... -
Page 29: Input Contacts 1 And 2
Input contact 2 Function: A control can be connected to the input contact to perform a remote reset in case of malfunctions as well as to cancel an analysis in progress. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023... -
Page 30: Connection Of External Components
The connection to external controls is usually made via the potential-free contacts of the relays. Illustration 17Schematic view of the connection terminals February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 30 Subject to change without notice... - Page 31 4 must not exceed 250 VA. The output terminals are switched with the Voltage analyser's mains switch and protected by the unit's microfuse. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice...
-
Page 32: Flow Monitor/Timer
Programming: Menu > Parameters > Inputs > Input 1 > Flow monitor This function must not be confused with the function "Start analysis" by external control. Illustration 18: Connection of external components 1 February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 32 Subject to change without notice... -
Page 33: Interval Reset
(When using this function, the SYCON must be in automatic mode). Programming: Menu > Parameters > Inputs > Input 1 > Interval reset Illustration 19: Connecting external components 2 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023... -
Page 34: Input 2 (Input 2) Connection Of A Switch Error Reset
This function is often used in combination with pilot distributors. Programming: Menu > Parameters > Outputs > Relay 1 February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 34 Subject to change without notice... - Page 35 Connection of external components Illustration 20: Assignment of the terminals when connecting an reagent lamp/horn © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 35...
-
Page 36: Regeneration System For Demand-Controlled Regeneration Triggering
Talk to the manufacturer of your steam boiler. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 36 Subject to change without notice... -
Page 37: Operating Status Via Analogue Current Interface
Reagent level < 12 % 16.5 mA 16.8 mA Malfunction 0 mA 4 mA The specifications listed here may have a deviation of ± 0.3 mA. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 37... -
Page 38: Operation
(push-in connection for plastic hoses with 6 mm outer diameter) Water drain (push-in connection for plastic hoses with 6 mm outer diameter) February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 38 Subject to change without notice... -
Page 39: Display And Keyboard
Inserting a new reagent bottle Main menu / Switching between main menu and analysis display Arrow keys for navigation / value entry OK / Confirm © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... -
Page 40: Display Indication Menu
• French (Français) • Italian (Italiano) • Spanish (Español) • Russian (Русский) • Polish (Polski) • Dutch (Dutch) • Danish (Dansk) • February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 40 Subject to change without notice... -
Page 41: Display Indication During A Measurement
Simple analysis start. Press and hold the [OK] button for 3 seconds to start an analysis. The analysis start is possible in manual and automatic mode. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... -
Page 42: Display Of Measured Value History
The black filled circle to the left of the unit indicates which unit is currently programmed for analysis. Figure 27SYCON BOB Display - Unit February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 42 Subject to change without notice... -
Page 43: Display With Value Input
Figure 28Sycon BOB display - flushing time After entering a flush time of 90 seconds, confirming with the [OK] button overwrites the current flush time with 90 seconds. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... -
Page 44: Configuration
Relay 3 Reporting errors Relay 4 Analysis active Reset the factory settings with Programming: Menu > Parameters > General > Factory settings February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 44 Subject to change without notice... -
Page 45: Configuration Wizard
Now move the cursor to the OK field on the keyboard and press the [OK] key. After 10 minutes of inactivity in the measured value display, the access code must be entered again. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... - Page 46 Confirm with the [OK] key and change step by step from day to month and further to year until the date is set. Press the [OK] key. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 46 Subject to change without notice...
- Page 47 Select [Yes] or [No] with [ ] and [ ] confirm with [OK]. [Yes] The bottle level is set to 100 %. [No] The previous bottle filling level in % is retained. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 47...
- Page 48 Make sure that the sample water is clear and free of bubbles. Flushing time Set the rinsing time in the following screen. Press the [OK] key. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 48 Subject to change without notice...
- Page 49 OK field in of the keyboard and confirm with the [OK] key. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice...
- Page 50 Make your selection and confirm with the [OK] key. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 50 Subject to change without notice...
- Page 51 Make your selection and confirm with the [OK] key. (When using this function, the SYCON must be in automatic mode). © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice...
- Page 52 [Pulse] The relay switches for a set pulse time. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 52 Subject to change without notice...
- Page 53 COM to NO (wire breakage safety). In the event of a device error, relay 3 drops out and establishes the connection COM to NC. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice...
- Page 54 4 to 20 mA Status • Make your selection and confirm with the [OK] key. (If Status is selected, see further information on page 37.) February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 54 Subject to change without notice...
- Page 55 Press the [OK] key. This completes the configuration of the unit. If necessary, individual settings can also be made without the wizard. Programming: Menu > Parameters © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice...
-
Page 56: Menu Structure
The following is an overview of the menu structure to give you an overview of all the functions of the analyser. Illustration 30Menu structure February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 56 Subject to change without notice... -
Page 57: Operation
Functions for maintenance, diagnosis and reagent change Assistant Setup wizard for guided parameterisation of the unit Course Display of the last 100 measurement results with date and time © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 57... -
Page 58: Info Display
After inserting the SD card into the new device, the settings can be imported (Menu > Parameters > General > Import settings). The measurement protocol on the SD card is continued by the new device. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 58 Subject to change without notice... -
Page 59: Sd Card
If you wish to use an SD card other than the one supplied, make sure that it is formatted as follows: Supported: FAT16 up to 4 GB FAT32 up to 32 GB © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... - Page 60 For more information on how to install a software update, please see page 67. It is recommended to delete the file from the SD card after installing an update. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 60 Subject to change without notice...
-
Page 61: Maintenance And Service
Place the cleaned measuring chamber on the retaining bolts and lock it in place. • Insert the stirring fish into the measuring chamber. • © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice... - Page 62 % is retained. Rinse the measuring chamber again (programming: Menu > Service > Manual rinse). • The unit is ready for operation again. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 62 Subject to change without notice...
-
Page 63: Inserting The "Maintenance Set For Sycon Bob
Inserting the "Maintenance Set for SYCON BOB The hose pump cassette, hoses and seals must be replaced at regular intervals. The required replacement parts are included in the "Maintenance set for SYCON BOB". See page 74. Maintenance takes about 25 min. - Page 64 Reset the maintenance counter to 12 months / 15,000 analyses • (Programming: Menu > Service > Acknowledge Maintenance). The unit is ready for operation again. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 64 Subject to change without notice...
-
Page 65: Reset Maintenance Counter
Maintenance and service Reset maintenance counter After maintenance has been carried out with the "Maintenance set for SYCON BOB" inserted, the maintenance counter in the SYCON must be reset. The note "Maintenance" is hidden in the display and only appears after the 12 months have expired or after 15,000 analyses, then maintenance must be carried out again. -
Page 66: Good And Bad Counters
The counters can be reset in the menu. Programming: Menu > Service > Good/Bad counter February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 66 Subject to change without notice... -
Page 67: Change Battery
Switch off the unit, remove the SD card and delete the TB28xxx.bin file from the SD card. • Insert the SD card back into the unit. • Check the unit configuration of the unit. • © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 67... -
Page 68: Diagnostic Functions
To exit, move the cursor to Exit and press the [OK] key. The positioning of the plugs can be found on page 20. February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 68 Subject to change without notice... -
Page 69: Stir-Fish
There must be enough reagent in the bottle so that the rods are in contact with the reagent. The display shows that the level is ok. The diagnostic mode is finished. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023... -
Page 70: Error Messages
Check the electrical connection of the actuator plug. • Check the correct position of the actuator plug. • Check the colour sensor in the diagnostic menu. • February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 70 Subject to change without notice... -
Page 71: Error Message E14 Titration
Check the electrical connection of the BOB probe and the main board. • Check the cable assignment on the BOB module. • © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 71... -
Page 72: Appendix
Appendix Spare parts Illustration 35: Spare parts SYCON BOB February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 72 Subject to change without notice... - Page 73 Connecting cable actuator 33-090 074 Connecting cable SYCON BOB probe 33-000 038 Maintenance set SYCON BOB incl. position A, B, C, D, S, 4 x J, L 33-030 099 Cleaning set SYCON CLEAN 30-010 900 (Please read the contents of the set in the chapter Spare parts >...
-
Page 74: Maintenance Sets
Appendix Maintenance sets The SYCON BOB operates largely maintenance-free. A maintenance set is available for the analyser. It is recommended to change the hose pump cassette, hoses and O-rings after 15,000 analyses or 12 months. The unit shows a maintenance note in the display after the maintenance interval has expired. -
Page 75: Accessories
Depending on the temperature of the water and the cooling water, upstream coolers are offered for flow-through cooling. Further information and data sheets can be found on our website. © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023... -
Page 76: Settings
Time interval ☐No ☐Yes Control measurement No repetition ☐ ☐ 1 repetition ☐ 2 repetitions 3 repetitions ☐ Analysis stop ☐ ☐ February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 76 Subject to change without notice... -
Page 77: Document Changes
Connection examples updated Added configuration page Hazard statements extended 09.02.2023 New warning signs added according to ISO 7010 WEEE disposal note added © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de February 2023 Subject to change without notice Page 77... -
Page 78: Declaration Of Conformity
Appendix Declaration of conformity February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de Page 78 Subject to change without notice... - Page 79 Managing Directors: Dr Claudia Rudolph, Dr Sascha Matern Register court: Hildesheim Local Court Registration number: HRB 203 391 VAT ID: DE240123142 Photo back: Vitali Vidnevski (employee RLS Wacon analytics GmbH), 2015 Changes and errors excepted 13.09.2022 February 2023 © RLS Wacon analytics GmbH +49 (0)5121 281260 info@rls-wacon.de...
