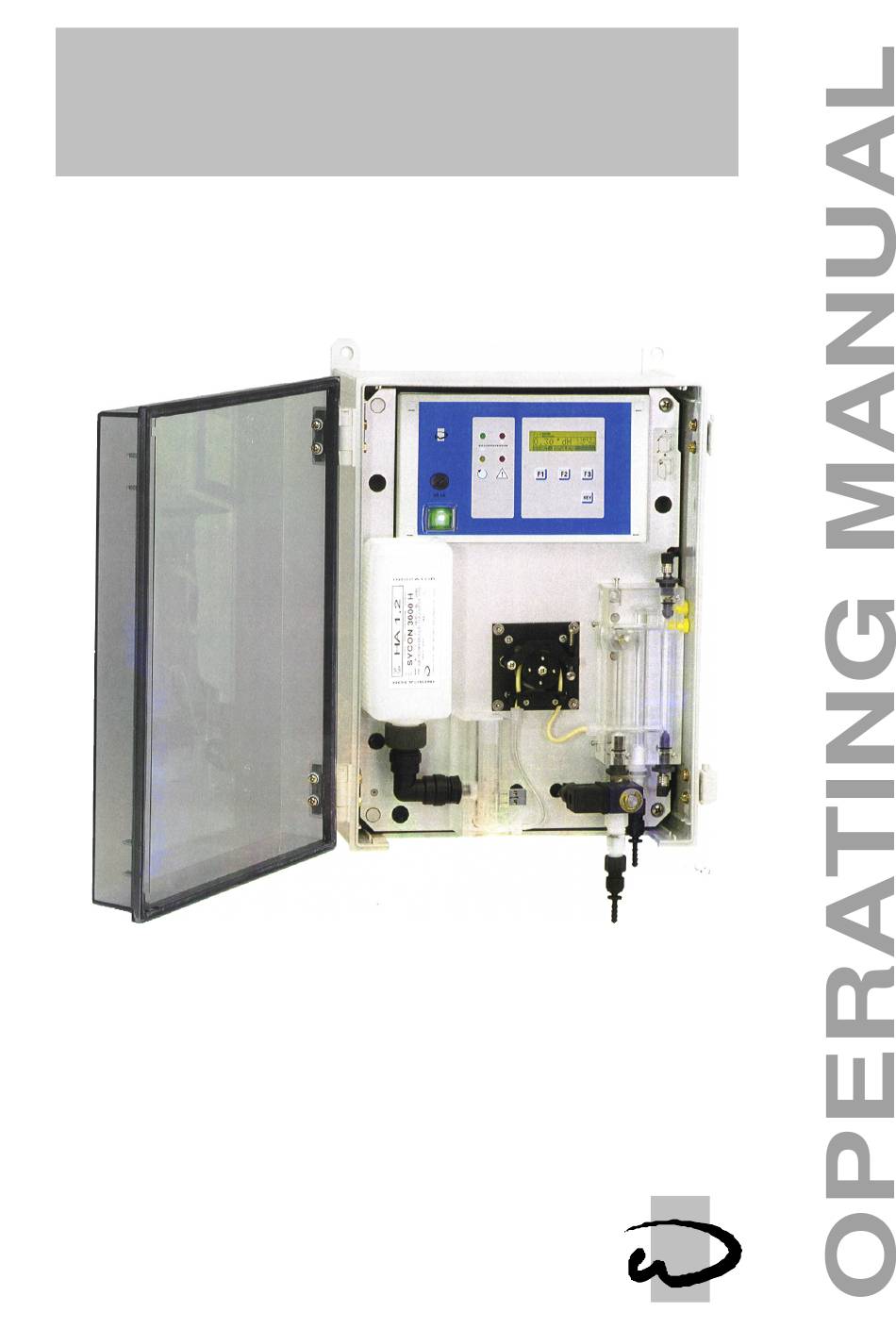

- Page 1 SYCON 3000 H Analytical Instrument to Measure the Total Hardness of Water...
-
Page 2: Table Of Contents
Table of Contents Functional description .......................... 1 Operating displays ..........................2 LED control lamps ..........................2 LCD display............................3 INFO displays ............................4 Indicator type and hardness unit ...................... 4 Service telephone number ....................... 4 Input states............................4 Output states ............................ 4 Analysis result counter ........................ - Page 3 4. Parameters of the input functions ....................14 Input function "START" ........................14 Delay time Analysis start ......................14 Input function "STOP" ........................14 Delay time Analysis stop ......................14 Input function "Reset relay"......................14 Delay time Delete relay ......................14 Input function "Water meter"...
-
Page 4: Functional Description
The built-in feed valve is closed during the analytical pauses to prevent unnecessary water consumption. SYCON 3000 H Water softening plant Analytical Instrument to Measure the Total Hardness of Water Installation example... -
Page 5: Operating Displays
Operating displays LED control lamps SYCON 3000 H Operating displays LED control lamps LCD - display LED - control lamps 10 m Limit 0.90° mg/l > 0.5 STA RT FLUSH Fuse Keys MT 4A Power switch Coloured control lamps indicate the most important operating states: Soft water ( g ree n ) Hard water (red) Analysis (yellow) -
Page 6: Lcd Display
Operating displays LCD display SYCON 3000 H LCD display Displays between the analyses Displays during the analyses 5 , 3 1 c b m | 2 * B l a n c v a l u e L i m i t L i m i t 2 . -
Page 7: Info Displays
Operating displays INFO display SYCON 3000 H INFO displays With the help of the INFO key, different information or values can be requested. Modifications will be described – as far as possible – in the programme section "Changing and reading out the programme data". -
Page 8: Manual Control
Manual control SYCON 3000 H Manual control The three keys F1 F1, F2 F2 and F3 F3 under the display are characterised as softkeys. These keys have a changing function instead of a fixed function. The function that the key has at the moment is shown above the key in the inverse colour scheme in the lower display line. -
Page 9: Messages
Messages SYCON 3000 H Messages If the integrated buzzer is activated in the course of a message, you can delete it by pressing the "HORN" key. The message in the LCD display is only removed when the cause of the message is remedied or a new analysis is started manually. -
Page 10: Input Functions
Input functions SYCON 3000 H Input functions From the 3 available input functions, maximally 2 can be programmed for the two inputs of the ana- lyser in the programme steps 3.1 and 3.2 or can be deactivated totally. Each function can only be implemented once. -
Page 11: Output Functions
Output functions SYCON 3000 H Output functions Of the 5 available output functions, maximally 3 can be programmed for the outputs of the analyser. The output function "Permanent signal" is available in 2 different versions. With the output function "Permanent signal 2" the relay can also be activated in the case of a disturbance in function. The activation of the outputs Pulse signal and Permanent signal can occur with hard water or soft wa- ter according to the programming in programme step 1.5. -
Page 12: Recorder Outputs
Recorder outputs SYCON 3000 H Recorder outputs At the recorder outputs RC1 and RC2, line recorders or dot printers with a current input of 0 - 20 mA or 4-20 mA can be connected. Programming occurs in programme steps 8.1 and 8.2 respectively. Recorder output RC 1 A recorder at this output registers the following states of the analyser: 1. -
Page 13: Changing And Calling Up The Programme Data
Changing and calling up the programme data SYCON 3000 H Changing and calling up the programme data General information on programming and on entering the national language On commissioning the analyser is pro- E N G L I S H grammed according to the desired mode of operation. -
Page 14: Reagents And Limit Value
Changing and calling up the programme data Reagents and limit value SYCON 3000 H 1. Reagents and limit value Indicator type S t e p n o . : 1 . 1 Through different indicators, START T y p : H A 1 , 2 different measurement... -
Page 15: Analysis Sequence
Changing and calling up the programme data Analysis sequence SYCON 3000 H 2. Analysis sequence Flush time S t e p n o . : 2 . 1 F l u s h t i m e 6 0 s Prior to every extraction of a test sample, the supply line to the instrument is flushed. -
Page 16: Selection Of The Programmable Input Functions
Changing and calling up the programme data Selection of the programmable input functions SYCON 3000 H 3. Selection of the programmable input functions From the 4 available input functions, maximally 2 can be programmed to the two inputs IN1 IN1 and IN2 IN2 of the analyser. -
Page 17: Parameters Of The Input Functions
Changing and calling up the programme data Parameters of the input functions SYCON 3000 H 4. Parameters of the input functions In line with the selection made in programme step 3.1 and 3.2, supplementary data must be entered in the form of parameters for the inputs IN1 IN1 and IN2 IN2. -
Page 18: Selection Of The Programmable Output Functions
Changing and calling up the programme data Selection of the programmable output functions SYCON 3000 H 5. Selection of the programmable output functions Of the 5 available output functions, maximally 3 can be programmed to the outputs OUT1 OUT1 OUT1 OUT1, OUT2 OUT2 OUT2 and OUT3... -
Page 19: Parameters Of The Output Functions
Changing and calling up the programme data Parameters of the output functions SYCON 3000 H 6. Parameters of the output functions In line with the selection made in programme steps 5.1 to 5.3, supplementary data must be entered in the form of parameters for the outputs OUT 1 OUT 1 to OUT 3 OUT 3. -
Page 20: Output Functions: Permanent Signal 2
Changing and calling up the programme data Parameters of the output functions SYCON 3000 H Output functions: Permanent signal 2 Activation with a limit overrun or underrun and in the event of a fault. Automatic delete function 2 S t e p n o . -
Page 21: Output Function: Signal Relay
Changing and calling up the programme data Parameters of the output functions, Activation of the buzzer SYCON 3000 H Output function: Signal relay Fault messages S t e p n o . : 6 . 9 R F | N I | B V | V H | V L |... -
Page 22: Recorder
Changing and calling up the programme data Recorder SYCON 3000 H 8. Recorder Recorder output RC1 = operational sequence S t e p n o . : 8 . 1 A n a l y s i s a c t i v e It is possible to connect a recorder or a dot printer to the output RC 1 in order to log the sequence of operations of the analyser. -
Page 23: Entering A Code Number
Changing and calling up the programme data Entering a code number SYCON 3000 H 9. Entering a code number S t e p n o . : 9 . 0 C o d e n u m b e r * * * * If a code number has already been defined to protect against unauthorised programming modification, you must enter this number before you can effect... -
Page 24: Service Setting 1 And 2
Service setting 2 Test of the output relays SYCON 3000 H Service setting 1 - 3 With the help of the "KEY" key, activate the key function "SERVICE" for the "F3" key. Press the key function "SERVICE". After approx. 4 seconds the analyser switches into the Service setting 1. You switch into the next service mode by pressing the "... -
Page 25: Test Of The Output Relays
Service setting 2 Test of the output relays SYCON 3000 H Note! The hardness of the water is not significant, since the adjustment takes place using pure water – with- out the addition of the indicator. The accuracy of the measurement is not dependent on this adjust- ment either, since the measurement is based on the recognition of a colour change (indicator transi- tion). -
Page 26: Installation Of The Instrument
Installation of the instrument Commissioning of the instrument SYCON 3000 H Installation of the instrument 5. 5. 5. 5. Setting Setting Setting Setting up up the the water water water outflow water outflow outflow outflow 1. 1. 1. 1. Mounting Mounting the the enclosure enclosure... -
Page 27: Dimensions And Drilling Plan For The Assembly
Dimensions and drilling plan for the assembly Measurement diagram SYCON 3000 H Dimensions and drilling plan for the assembly For the wall mounting of the ana- lyser, the 4 enclosed brackets must be fitted onto the instrument with the aid of the 4 screws. Use 8 mm dowels and wood screws of 4.0 x 45 mm for the wall mounting. -
Page 28: Terminal Plan
Terminal plan Internal connections SYCON 3000 H Terminal plan internal signal tone generator Programmable Operation Water functions progress hardness 24 V ~ 500 mA Programmable functions PE PE No Nc No Nc No Nc Protective earth Power in Power out OUT 1 OUT 2 OUT 3... -
Page 29: Notes On Connections
Notes on connections SYCON 3000 H Notes on connections Mains input The mains input voltage can be found on the nameplate. The instrument can be con- nected with the mains supply permanently or through a mains plug. Example NE 1 If the analyser has a fixed connection with the power supply system and in addition 22-26 the door is closed with a lock, an additional contact-breaking device, e.g. -
Page 30: Relay Outputs
Notes on connections SYCON 3000 H Relay outputs The analyser is equipped with 3 identical relay outputs. It is only through the programming in pro- gramme steps 5.1 - 5.3 that they are accorded a specific function. In programme step 5.4, it is de- termined whether the relay pulls in or drops out when this function is activated. -
Page 31: Recorder Interface
Notes on connections Connection and programming examples SYCON 3000 H Recorder interface Example RC1 Example RC2 The analyser is equipped with 2 analogue outputs. The various instrument states can be extracted as analogue values between 0-20 mA at the output RC RC 1 RC 2 1 and the measured water hardness at the output RC 2. - Page 32 Notes on connections Connection and programming examples SYCON 3000 H Solenoid valve at the output OUT 2 Function: Function: Function: Function: the solenoid valve closes if an excessive water hardness is measured 3 times consecutively or if a mal- function exists. In this way, the water supply to the consumers can be interrupted. Thereafter, no fur- ther analyses are conducted.
- Page 33 Connection and programming examples SYCON 3000 H Delete key at IN 2 Function: Function: Function: Function: If a relay has been permanently activated, it can be deactivated again at the instrument or by means of a remote switch (external delete key). Programming: Programming: Programming:...
-
Page 34: Replacing Components
Replacing components Instrument maintenance SYCON 3000 H Replacing components 1. Fitting and removing the circulation 2. Changing the metering pump hose pump a. Tilt the fastening lever of the pressure a. Withdraw the retention pin for the pump bracket to the right. cover. -
Page 35: Spare Parts List
Spare parts list SYCON 3000 H Spare parts list Spare parts list Spare parts list Spare parts list Measuring chamber Art. No. Art. No. Art. No. Art. No. Designation Designation Designation Designation 90121 Intake plug, male fitting, ¼" 90 300 90123 Outlet plug, male fitting ¼"... -
Page 36: Technical Data
Technical data Mains connection: Standard: 230V ± 10% 50-60 Hz fuse MT 4T also available in: 115V ± 10% 50-60 Hz fuse MT 4T 24V ± 10% 50-60 Hz fuse MT 4A The instrument is non-volatile Power consumption of the analyser: 30 VA Protective system: IP 54...
