Stuv 21-85 Installation Manual

Guillotine firescreen

Hide thumbs Also See for 21-85:

Installation manual (68 pages)

page of 28

/ 28
Bookmarks

Quick Links

Download this manual

REQUIRED FOR INSTALLATION

Door support

Light

Vacuum cleaner

3mm

No. 2

hex key

phillips bit

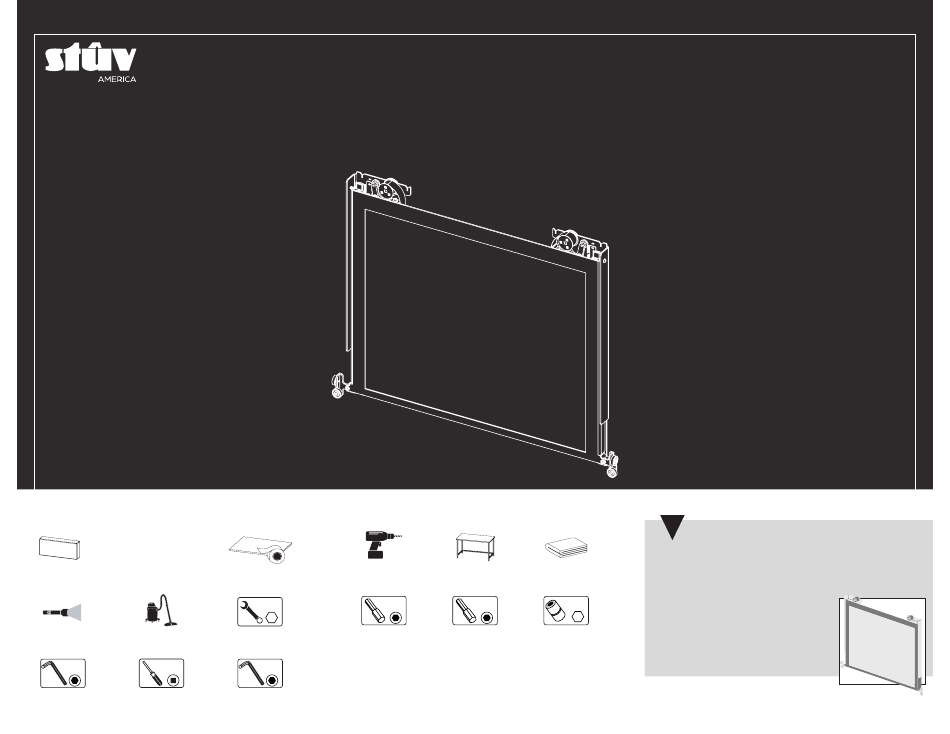

G U I L L O T I N E F I R E S C R E E N

INSTALLATION MANUAL

Keep these instructions for future reference

FOR MAINTENANCE

Cardboard and

Impact driver

masking tape

2.5mm

8mm ratchet

2.5mm

spanner wrench

hex bit

4mm

hex key

S T Û V 2 1

Covered

Protective cloth

workplace

5mm

7mm

hex bit

hex socket

IMPORTANT

This document is an additional manual to the

Stûv 21 installation manual. For a successful

installation, it is important to follow these

instructions carefully.

Look for this symbol in the

Stûv 21 installation manual

to know when to refer to this

additional manual.

Need help?

Do you have a question about the 21-85 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stuv 21-85

Page 1 G U I L L O T I N E F I R E S C R E E N S T Û V 2 1 INSTALLATION MANUAL Keep these instructions for future reference REQUIRED FOR INSTALLATION FOR MAINTENANCE IMPORTANT This document is an additional manual to the Stûv 21 installation manual.
Page 2 DIMENSIONS DIMENSIONS AND PART NUMBERS ..................3...
Page 3 Handle cylinder Ø1" Guide arm Roller bearing M6 x 14mm flat head screw and washer LEXICON Frame Counter-frame MODEL CODE Guide arm assembly 21-85 AW1300400001 48 7/8" 23 11/16" 30" Slide 21-95 AW1300400002 55 3/8" 26 15/16" 33 7/8" Coil spring...
Page 4 INSTALLATION UNPACKING ........................... 5 INSTALLING THE FIRESCREEN WHILE INSTALLING THE FIREPLACE ....... 6 INSTALLING THE FIRESCREEN AFTER THE FIREPLACE HAS BEEN INSTALLED .... 9...
Page 5 UNPACKING IMPORTANT LEFT The paint is not cured and is therefore bearing fairly fragile, but will harden after being on side heated a few times. Handle with care. bearing Open the firescreen box and check that in front everything is there. CONTENTS RIGHT Guillotine firescreen, including:...
Page 6 INSTALLING THE FIRESCREEN WHILE INSTALLING THE FIREPLACE insertion Step 1.1 Remove the screws holding the support front cover in place. Step 1.2 Slide the cover down by tilting it slightly. Removing the cover will make the insertion supports visible. Set the cover and the screws aside to reinstall at the end.
Page 7 INSTALLING THE FIRESCREEN WHILE INSTALLING THE FIREPLACE Step 1.5 While supporting the weight from below, slide the hanging screws into the holes on the fireplace upright to hold the firescreen in place. Step 1.6 Align the screw holes on the firescreen and on the fireplace structure and affix using the provided screws.
Page 8 INSTALLING THE FIRESCREEN WHILE INSTALLING THE FIREPLACE low-angle view Step 1.11 Slide the end of the fireplace handle into the notch under the frame and pull down to lower the firescreen about a quarter of its height. Step 1.12 Bring the guide arms up to the firescreen and slide the right side into the slot under the frame.
Page 9 INSTALLING THE FIRESCREEN AFTER THE FIREPLACE HAS BEEN INSTALLED low-angle view NOTE If the fireplace is already installed and the wall is closed, follow these instructions. If the removable firescreen supports are installed, they need to be removed. They will not be needed with the guillotine firescreen.
Page 10 INSTALLING THE FIRESCREEN AFTER THE FIREPLACE HAS BEEN INSTALLED Step 2.6 Unhook the counterweight cables on the door and reattach them in standby mode on the lower sides of the unit. ATTENTION Hold the cable tightly as they are attached to counterweigths that are quite heavy.
Page 11 Number of nuts: 21-85 / 21-95 / 21-105 5 nuts 21-125 8 nuts Step 2.12 For 21-85 model, manually unscrew the knurled thumb nuts blocking the passage of the door adjusters.
Page 13 INSTALLING THE FIRESCREEN AFTER THE FIREPLACE HAS BEEN INSTALLED Step 2.21 While supporting the weight from below, push the retaining support screws into the center holes on the fireplace upright to hold the firescreen in place. This screw is a support for the firescreen to hold it during the fastening.
Page 14 INSTALLING THE FIRESCREEN AFTER THE FIREPLACE HAS BEEN INSTALLED Step 2.27 Remove the hanging tool. The tool and its screw must be kept in a safe place for conducting maintenance on the firescreen. Step 2.28 Bring the guide arms up to the firescreen and slide the end into the slot under the frame.
Page 15 Step 2.34 Tighten the nuts until the door is perfectly level. Loosen and readjust as necessary For 21-85 model, screw back the knurled thumb nuts. Step 2.35 Reinstall the damper control in the door housing and screw it back into the hole on the left.
Page 16 THREE HEIGHTS .......................... 17...
Page 17 THREE HEIGHTS The firescreen can be fixed at three predefined heights. During installation, the firescreen will be in maintenance mode. 1. Open fire mode To operate the unit without the glass in front of the fire, the open fire mode is required to prevent falling embers and logs.
Page 18 MAINTENANCE REMOVING THE DOOR ......................19 REMOVING THE FIRESCREEN ....................21 REPLACING COMPONENTS ...................... 22 REASSEMBLY ..........................26...
Page 19 REMOVING THE DOOR masking tape ATTENTION for protection It is advisable that main- tenance be conducted by two people. Step 1 Push the firescreen all the way up to clear the door opening. Step 2 Protect the sides of the fireplace - Apply painter's masking tape on both cardboard vertical sides, leaving the slot free to slide...
Page 20 Using an 8 mm ratchet wrench, loosen but do not completely remove all the nuts, being sure to support the door to keep it from falling. Number of nuts: 21-85 / 21-95 / 21-105 5 nuts 21-125 8 nuts for 21-85 model top view...
Page 21 REMOVING THE FIRESCREEN Step 12 Unscrew the handle cylinder to separate the guiding system from the firescreen. Step 13 Place the guide arms at the bottom of the fireplace opening until the firescreen is reinstalled. Step 14 Install the firescreen’s retaining piece and screw the handle cylinder and the screw back in.
Page 22 REPLACING COMPONENTS WORKPLACE Select a work surface that is large enough to hold the entire firescreen and place all the disassembled components around it. 2 Cover the work surface with a protective cloth. 3 Place the disassembled components as shown to facilitate reassembly. 4 The steps are shown for the left side but need to be completed on both sides, symmetrically.
Page 23 REPLACING COMPONENTS NOTE No shortcuts are possible. Il n'est pas possible de prendre un raccourci. The following next are shown in the mandatory order and some components need to be removed even if the don't need to be replaced. Perform each steps symmetrically. Step 18 Place the firescreen flat on the slide supports.
Page 24 REPLACING COMPONENTS view from underneath Step 24 Remove the stopper and its screw on the side of the firescreen. Step 25 Push the system up to remove the socket head screw and the two flat head screws holding the slide. Hold the firescreen to keep it from tipping over.
Page 25 REPLACING COMPONENTS MESH Step 29 If the wire mesh needs to be changed, unscrew the flanged nuts in the top and bottom crosspieces of the counter-frame to separate it from the frame. Set aside the counter-frame. Step 30 Unscrew the headless screws to release the wire mesh.
Page 26 REASSEMBLY Step 34 Attach the slide with its first screw by extending the slide system downward. Step 35 Slide the support to the other side to access the other three screws. The socket head screw should not be screw to the end.
Page 27 WARRANTY WARRANTY COVERAGE THE DEALER This Stûv accessory is guaranteed against: Company: ________________________________________________________________ • manufacturing defects Name: ____________________________________________________________________ • paint defects on the visible parts of the accessory Address : _________________________________________________________________ • shipping-related damage if we are notified within 48 hours of delivery and the damage is noted __________________________________________________________________________ on the carrier’s bill of lading when the accessory is received (website) Tel no.: ___________________________________________________________________...
Page 28 Stûv fireplaces are designed and manufactured by: Stûv sa – Belgique stuv.com Rue Jules Borbouse n°4 B-5170 Bois-de-Villers This accessory is designed and manufactured by : Stûv America inc. – Canada stuvamerica.com 34, Boulevard de l’ A éroport Bromont Qc Canada J2L 1S6...

This manual is also suitable for:

21-95 21-105 21-125
